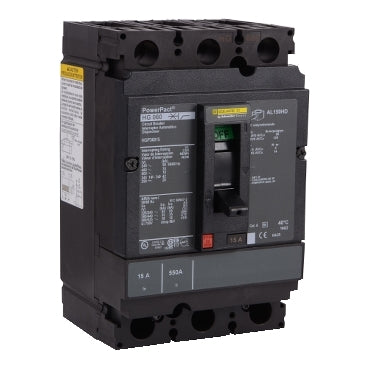

HGP36015 - Square D PowerPact H 15A 3-Pole 600VAC Circuit Breaker

HGP36015

HGP36015 is a molded case circuit breaker manufactured by Square D, part of the PowerPact H series, designed for thermal magnetic protection in industrial and commercial electrical systems.

The HGP36015 delivers reliable overload and short-circuit protection with a 15 amp continuous rating at 80% duty cycle. This 3-pole breaker operates at 600 VAC and features a bolt-on connection configuration with line and load lugs. The thermal-magnetic trip unit provides precise protection with a magnetic tripping current of 750 A and magnetic hold current of 350 A, ensuring dependable performance in demanding applications.

• Amperage: 15A
• Poles: 3
• Voltage: 600 VAC
• Series: PowerPact H
• Mounting: Bolt-On
• Connection: Line and Load Lugs
• Trip Unit: Thermal-Magnetic
• Magnetic Tripping Current: 750 A
• Magnetic Hold Current: 350 A
• Continuous Current Rating: 80%
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 606486118316
• GTIN : 03606486118313
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
