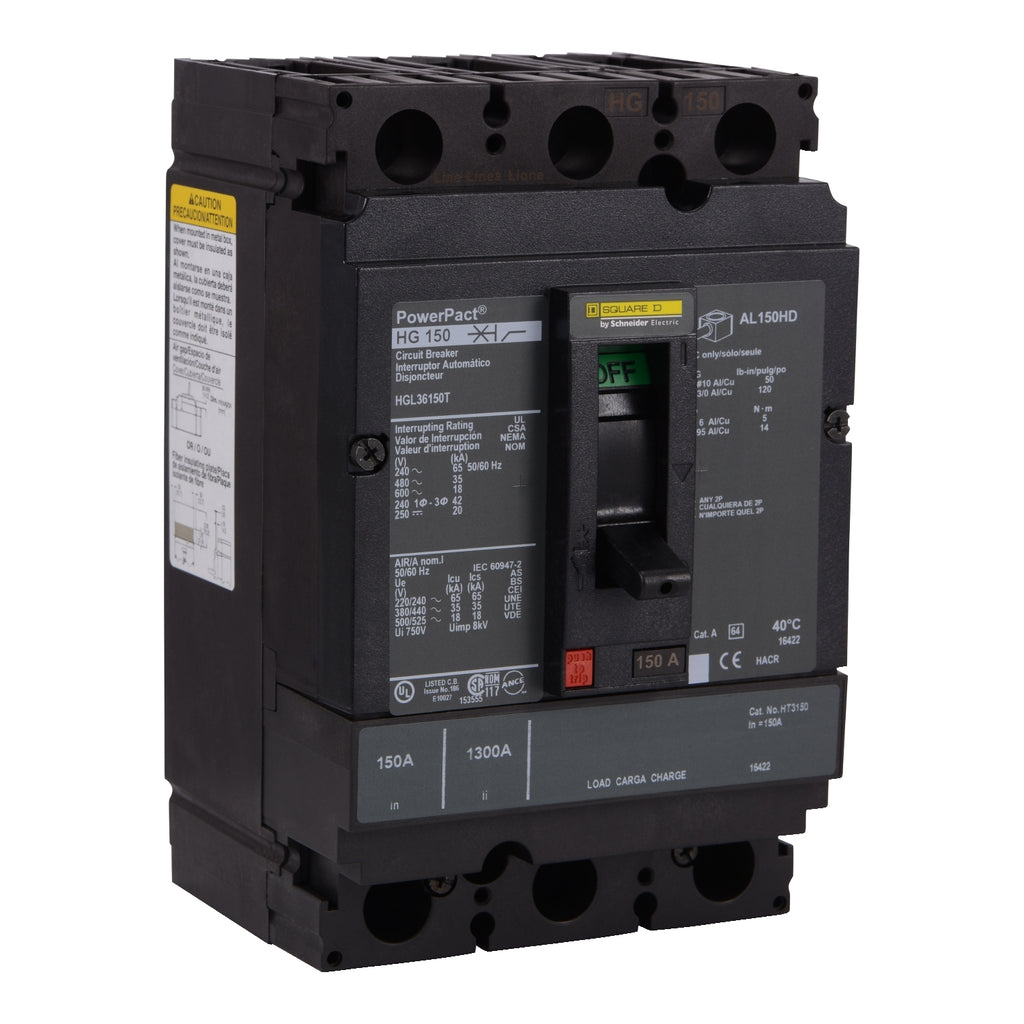

HGL36150T - Square D PowerPacT H-Frame 3-Pole 150A 600V Molded Case Circuit Breaker Thermal Magnetic

HGL36150T

HGL36150T is a Square D PowerPacT H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole, 150A, 600V breaker features a thermal magnetic trip unit and is suitable for unit mount installations. Engineered for durability and safety, the HGL36150T offers high interrupting capacity and is UL 489 listed. It supports both line and load side lug connections and is reverse fed capable, making it ideal for a wide range of electrical distribution needs.

• Part Number: HGL36150T
• Manufacturer: Square D (Schneider Electric)
• Series/Frame: PowerPacT H-Frame
• Poles: 3
• Amperage: 150A
• Voltage: 600V AC
• Interrupt Rating: 35kA @ 480V, 18kA @ 600V
• Mounting Type: Unit Mount
• Connection Type: Lugs Line / Lugs Load
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Standards: UL 489 Listed, CSA, NEMA, CE, IEC
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36150T
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901568254
• GTIN : 00785902000000
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
