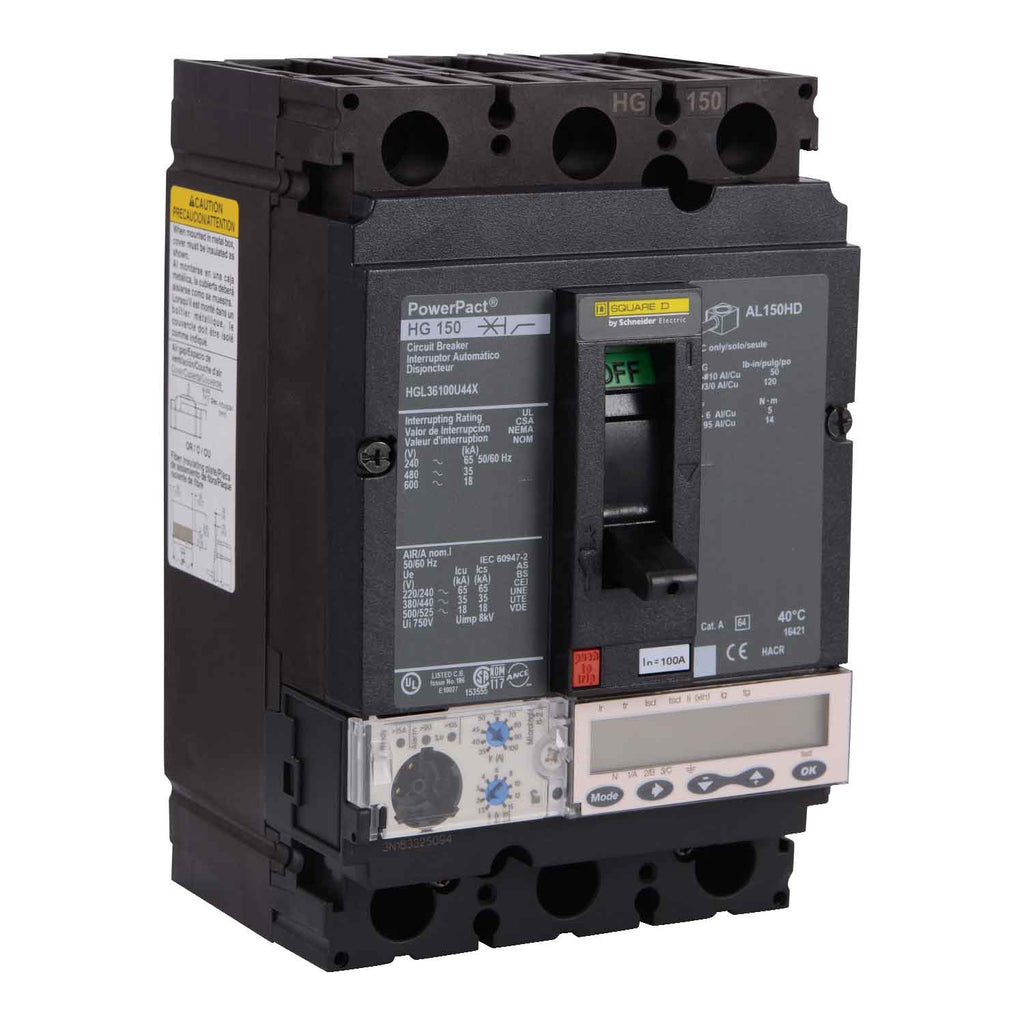

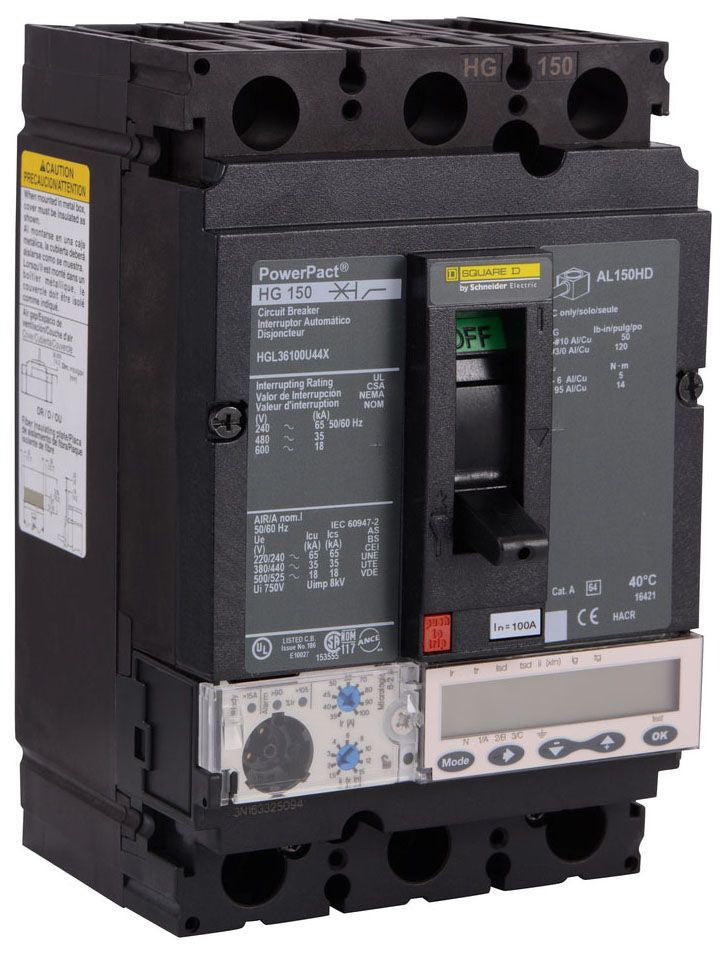

HGL36100U44X - Square D 100A 600V 3-Pole Molded Case Circuit Breaker HG Series

HGL36100U44X

HGL36100U44X is a 3-pole molded case circuit breaker from Square D's HG series, rated for 100 amps and 600 volts AC. It provides reliable circuit protection with advanced trip functionality.HGL36100U44X features a thermal magnetic trip unit with adjustable instantaneous and high amp trip settings, suitable for demanding industrial applications. It supports a maximum interrupt rating of 65kA at 240V AC and is UL listed and CSA certified. The breaker mounts free standing and uses box lug terminal connections.

• Amperage: 100 A
• Voltage Rating: 600 V AC / 250 V DC
• Poles: 3
• Series/Frame: HG
• Interrupt Rating: 65kA at 240V AC
• Trip Type: Thermal Magnetic, adjustable
• Mounting Type: Free Standing
• Terminal Connection: Box Lug
• Standards: UL Listed, CSA Certified, CE Marked, IEC, NEMA
• Width: 4.1 in, Height: 6.4 in, Depth: 3.4 in
• Phase: 3
• Manufacturer Warranty: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36100U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Ammeter W LSIG Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 094715966454
• GTIN : 00785901946472
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
