HGL36100U33X - Square D 100A 600V 3-Pole Molded Case Circuit Breaker PowerPact H Frame

HGL36100U33X

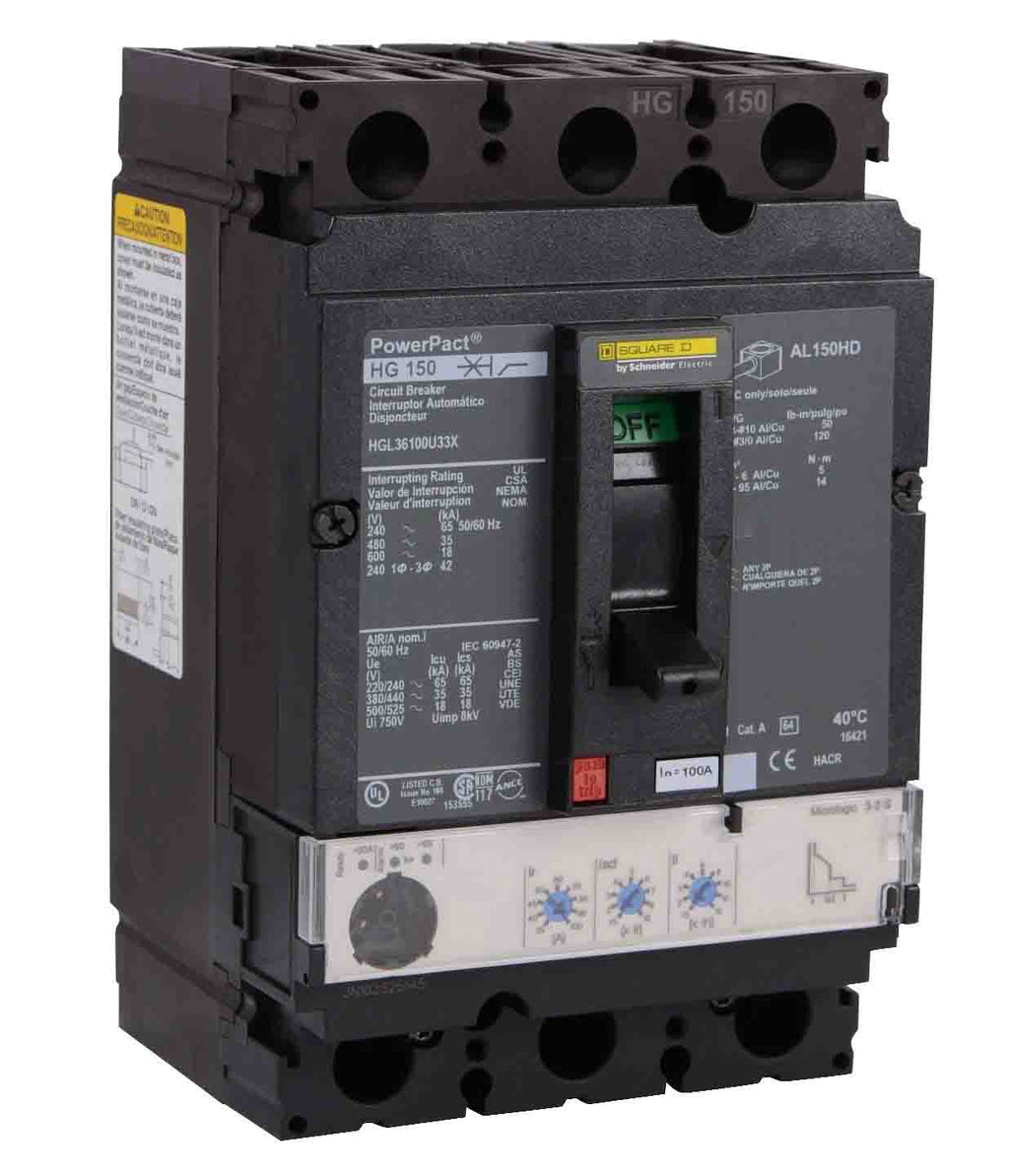

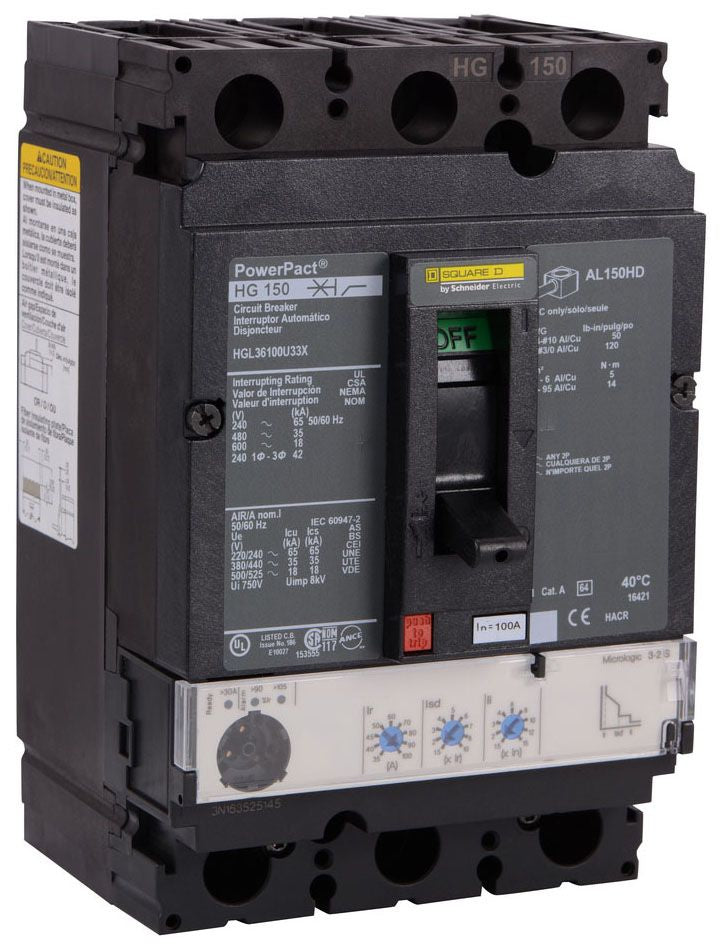

HGL36100U33X is a 100 Amp, 600 Volt, 3-pole molded case circuit breaker from Square D's PowerPact H Frame series.This breaker features a plug-on mounting type, electronic trip unit with MicroLogic 3.2 S technology, and a G interrupt rating suitable for industrial applications. It is UL 489 listed and designed for reliable protection with a 35kA interrupt capacity at 480V. The breaker dimensions are approximately 6.4 inches high by 4.12 inches wide by 4.36 inches deep.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: Plug-On
• Frame/Series: PowerPact H Frame
• Interrupt Rating: 35kA at 480V (G Interrupt Rating)
• Trip Unit: Electronic, MicroLogic 3.2 S
• Certifications: UL 489 Listed
• Dimensions: 6.4" H x 4.12" W x 4.36" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36100U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long Time, Short Time, and Instantaneous Trip
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Standard W LSI Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901402947
• GTIN : 00785901402947
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
