HGF36090 - Square D PowerPact H Frame Molded Case Circuit Breaker 90 Amp 3 Pole 600 VAC G Interrupt Rating

HGF36090

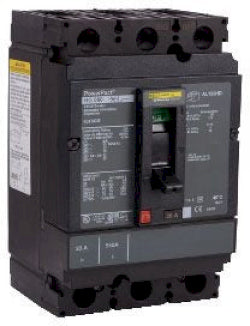

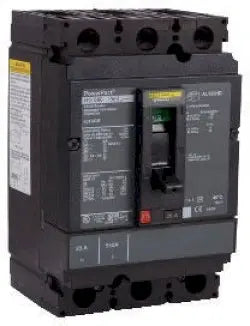

HGF36090 is a Square D PowerPact H Frame molded case circuit breaker designed for reliable circuit protection.This 90 Amp, 3 pole breaker supports up to 600 VAC or 500 VDC and features a G interrupt rating for enhanced interrupting capacity. It is a thermal-magnetic trip unit breaker with a unit mount design, suitable for busbar terminal connections. The breaker is UL 489 listed and built for versatile installation with a compact size.

• Amperage: 90 Amp
• Voltage Rating: Up to 600 VAC / 500 VDC
• Number of Poles: 3
• Frame Type: PowerPact H Frame
• Interrupt Rating: G (35 kA at 480 VAC)
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Terminal Connection: Busbar
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included

Specifications

• Part Number: HGF36090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901697497
• GTIN : 00785901697497
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.18
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
