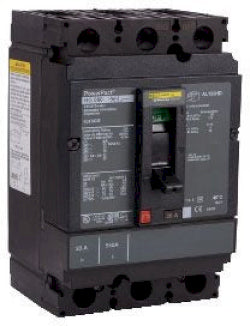

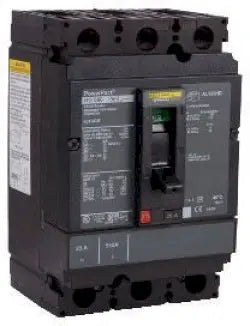

HGF36080 - Square D 80 Amp 600 Volt 3 Pole PowerPact H Circuit Breaker Thermal Magnetic

HGF36080

HGF36080 is a Square D PowerPact H series circuit breaker rated for 80 amps and 600 volts with 3 poles and thermal magnetic trip unit.

This molded case circuit breaker features a bolt-on mounting type and is designed for busbar terminal connections. It has an interrupting rating of 18 kA at 600 VAC and a magnetic hold current of 800 A. The breaker provides reliable protection with thermal magnetic tripping and an 80% continuous current rating.

Key Specifications
• Amperage: 80 Amps
• Voltage: 600 Volts AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18 kA at 600 VAC
• Series/Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Terminal Connection: Busbar
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
