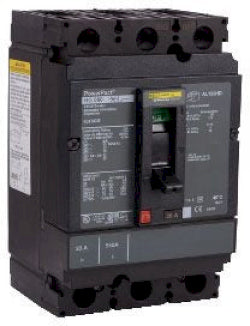

HGF36040 - Square D PowerPact H-Frame 40 Amp 3 Pole 600V AC Molded Case Circuit Breaker

HGF36040

HGF36040 is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable electrical system protection.This 3 pole circuit breaker features a 40 ampere rating and is suitable for use up to 600 volts AC. It has a G interrupt rating, providing an interrupting capacity of 35 kA at 480 VAC. The breaker is unit mount type and uses a thermal-magnetic trip unit for overload and short circuit protection. It is UL 489 listed and certified to meet multiple international standards including CSA, IEC, and CE.

Key Specifications
• Manufacturer: Square D
• Series/Frame: PowerPact H-Frame
• Amperage: 40 Amp
• Poles: 3 Pole
• Voltage Rating: 600 VAC
• Interrupt Rating: G (35 kA at 480 VAC)
• Mounting Type: Unit Mount
• Trip Unit: Thermal-Magnetic
• Certifications: UL 489 Listed, CSA, IEC, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HGF36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901959915
• GTIN : 00785901959915
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
