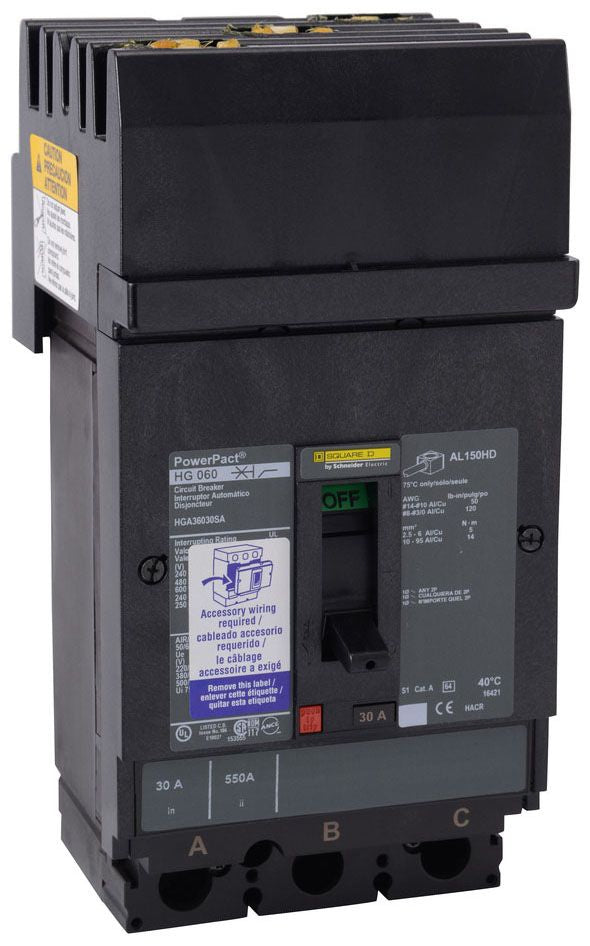

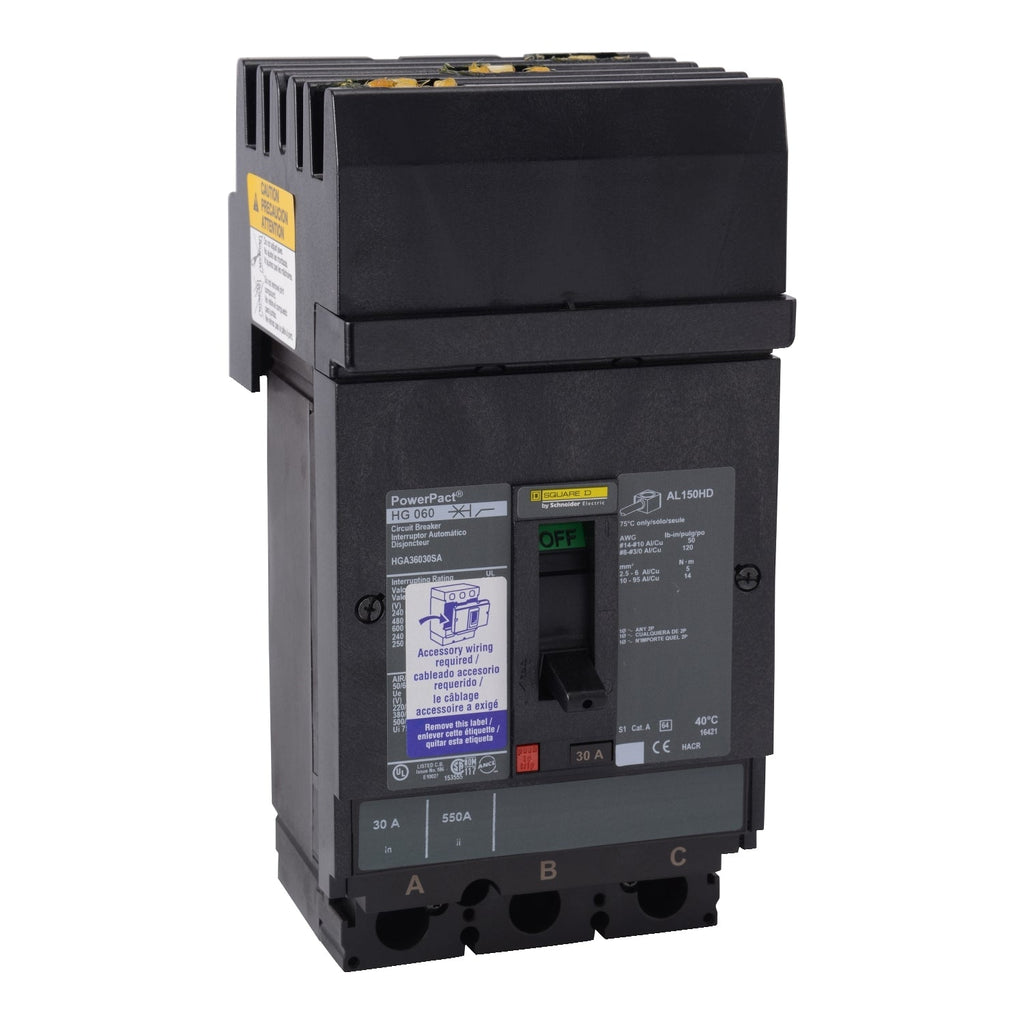

HGA36100U31X - Square D 100A 600V 3 Pole PowerPact H I-Line Circuit Breaker with Micrologic 3.2 Trip Unit

HGA36100U31X

HGA36100U31X is a Square D PowerPact H series 3 pole molded case circuit breaker rated for 100 amps and 600 volts AC with an I-Line plug-in mounting style.This circuit breaker features a solid state electronic Micrologic 3.2 trip unit providing long-time and instantaneous trip functions. It supports a 35kA interrupt rating at 480VAC and up to 65kA at 240VAC, suitable for industrial power distribution. The breaker is UL, CSA, IEC, CE, and CCC certified and designed for use with wire gauges from AWG 14 to 3/0 aluminum or copper.

Key Specifications
• Amperage: 100A
• Voltage: 600/690VAC
• Poles: 3
• Series/Frame: PowerPact H
• Mounting Type: I-Line plug-in
• Interrupt Rating: 35kA at 480VAC, 65kA at 240VAC, 18kA at 600VAC
• Trip Unit: Micrologic 3.2 electronic
• Certifications: UL, CSA, IEC, CE, CCC
• Connection Type: I-Line style plug-in
• Wire Gauge Range: AWG 14 to AWG 3/0 aluminum/copper
• Phase: 3 (ABC)
• Terminal Connection: Load side lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGA36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901559955
• GTIN : 00785901559955
• Country of Origin : Mexico

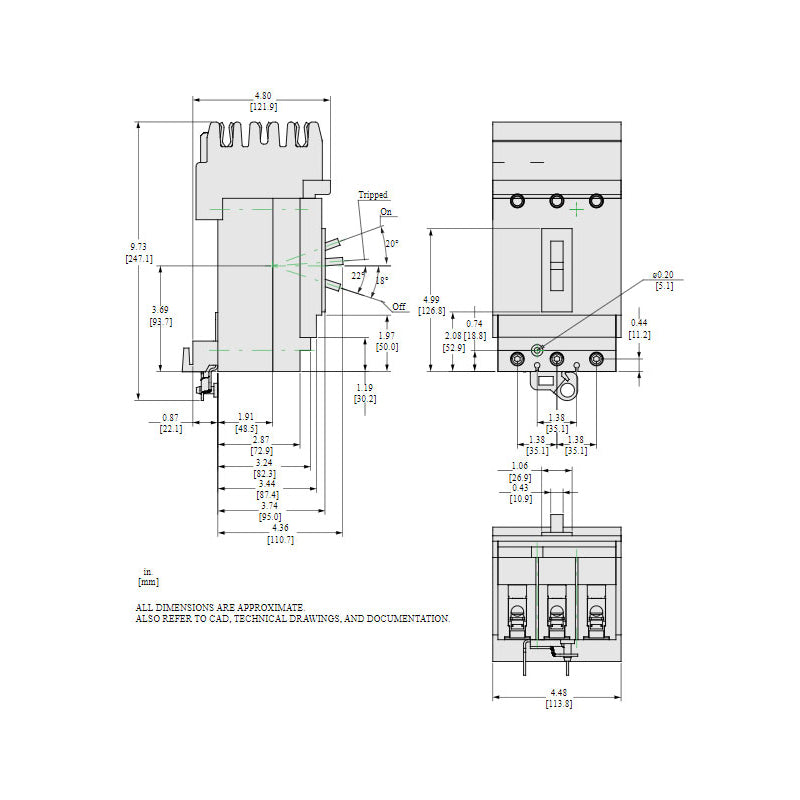

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.382
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
