Description

HGA36100

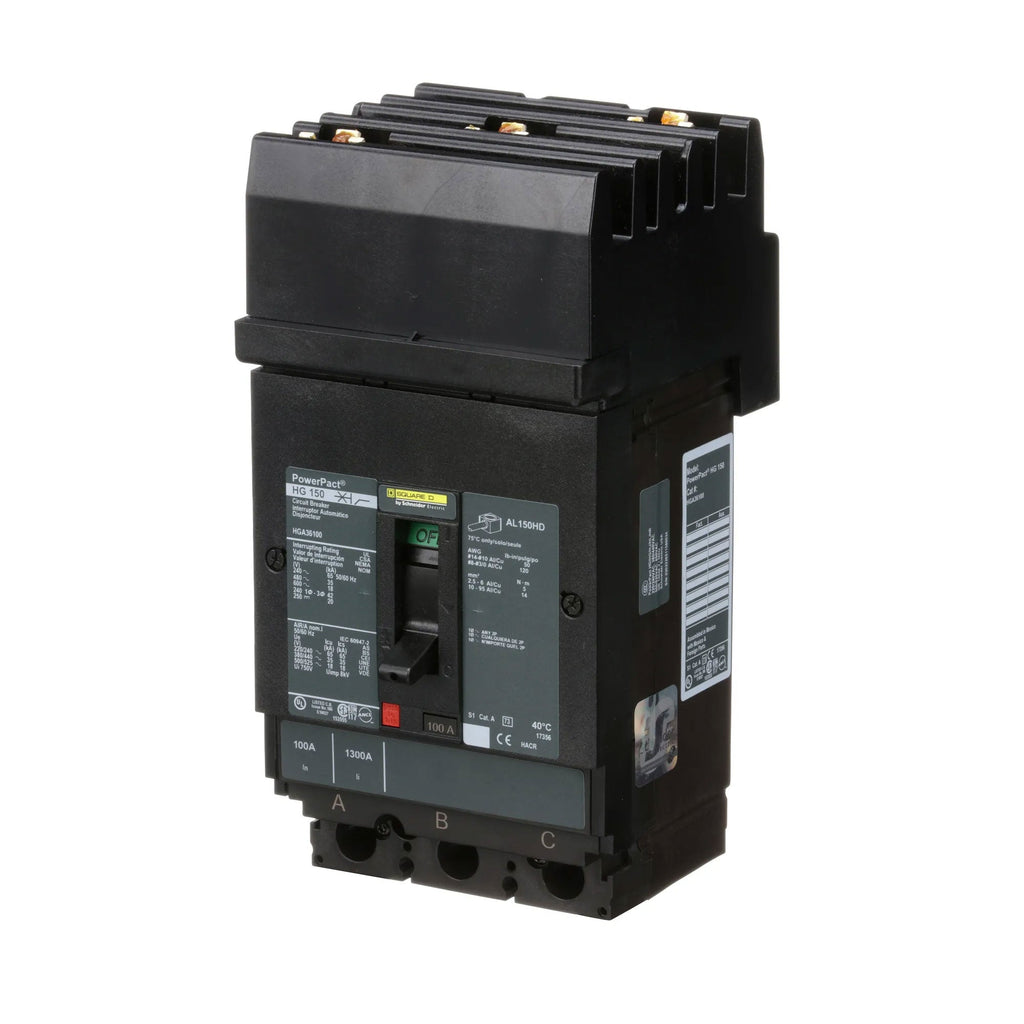

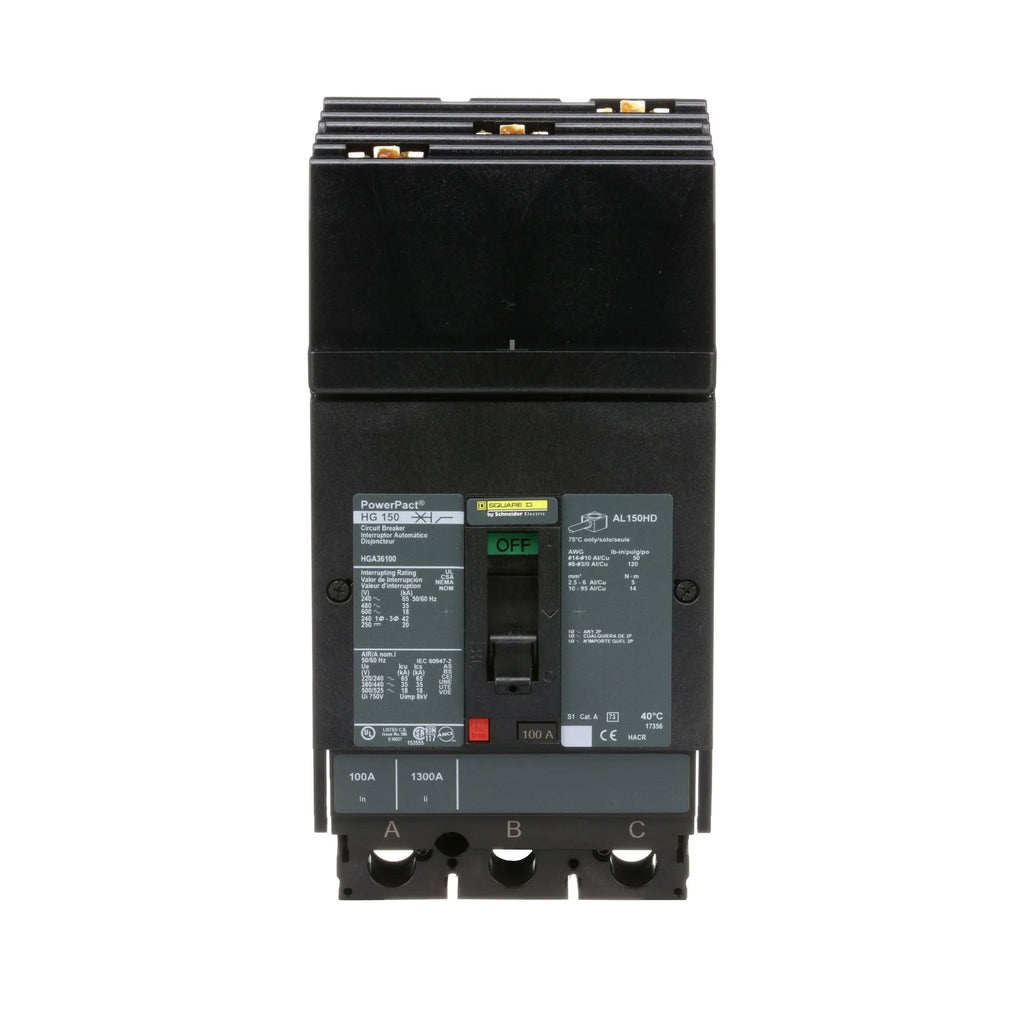

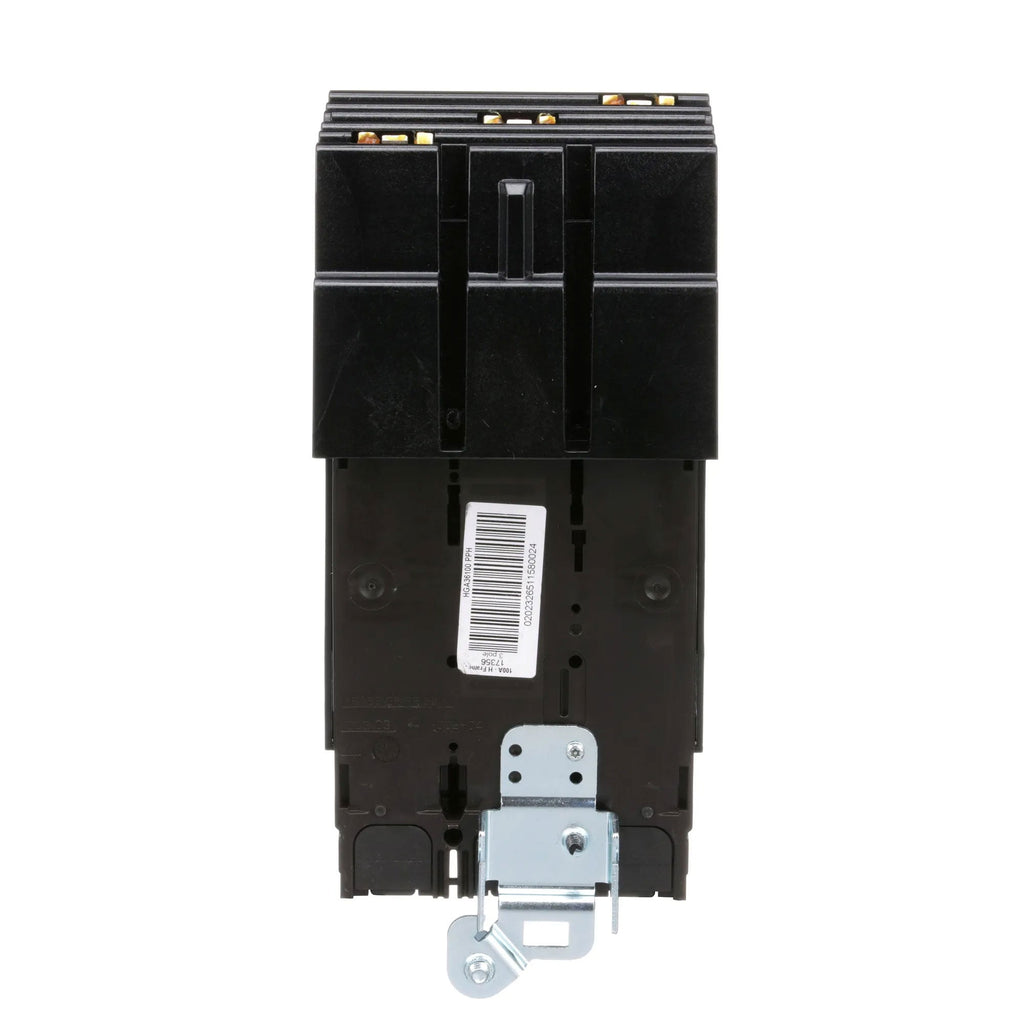

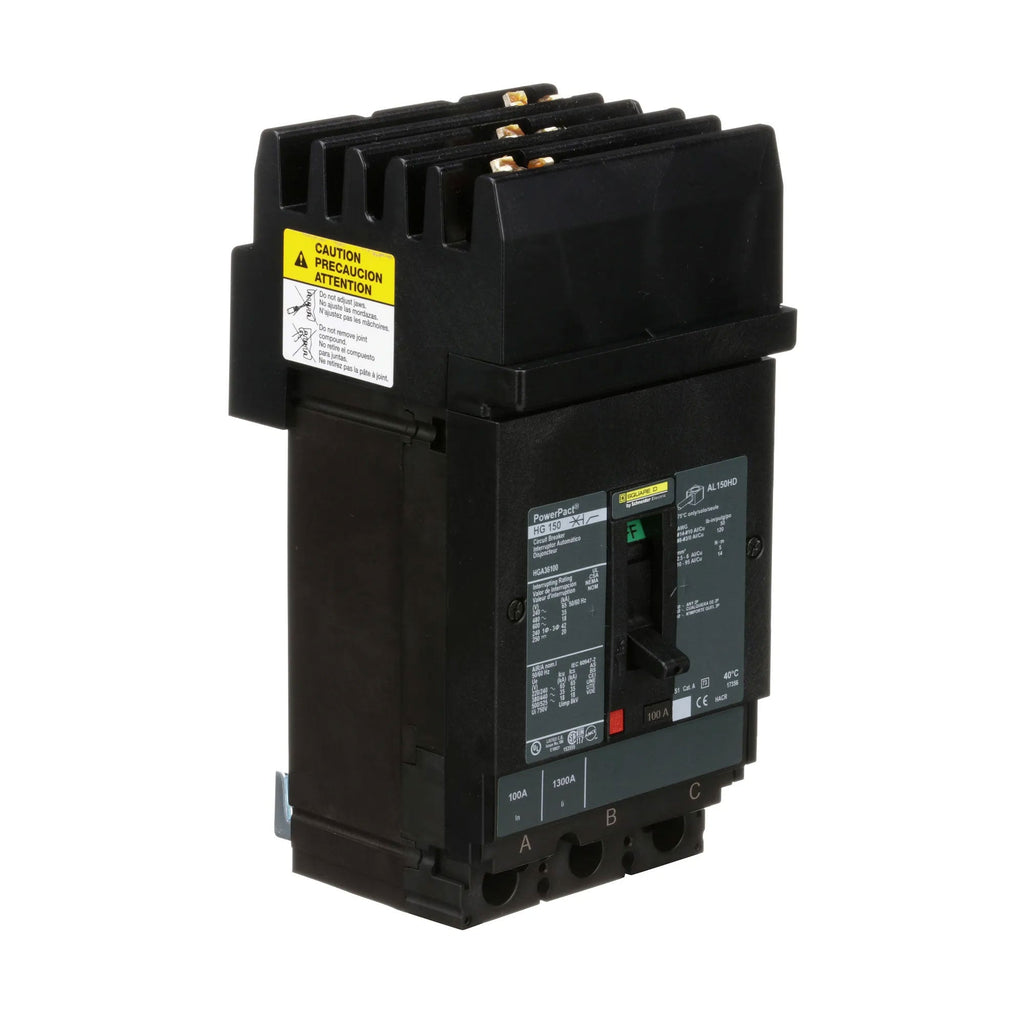

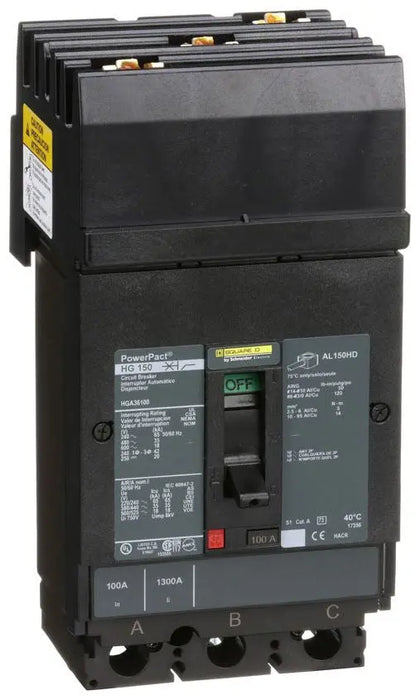

HGA36100 is a Square D PowerPacT HGA series molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This 3-pole circuit breaker features a 100A amperage rating, 600V voltage rating, and is engineered for I-Line panelboard mounting. It offers a high interrupting capacity, thermal magnetic trip unit, and is certified to meet stringent industry standards for safety and performance.

    Key Specifications
  • Part Number: HGA36100
  • Manufacturer: Square D
  • Series/Frame: PowerPacT HGA
  • Amperage: 100A
  • Voltage: 600V AC
  • Poles: 3
  • Mounting Type: I-Line (Plug-In)
  • Interrupt Rating: 18kA @ 600V AC, 35kA @ 480V AC, 65kA @ 240V AC
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489 Listed, CSA, NEMA, IEC, CE Marked
  • Standard Rating: 80% or 100%
  • Accessories: Field installable
  • Environmental: Recyclable packaging, carbon footprint data available

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGA36100
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 150A/HG
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901795056
  • GTIN : 00785901795056
  • Country of Origin : Mexico

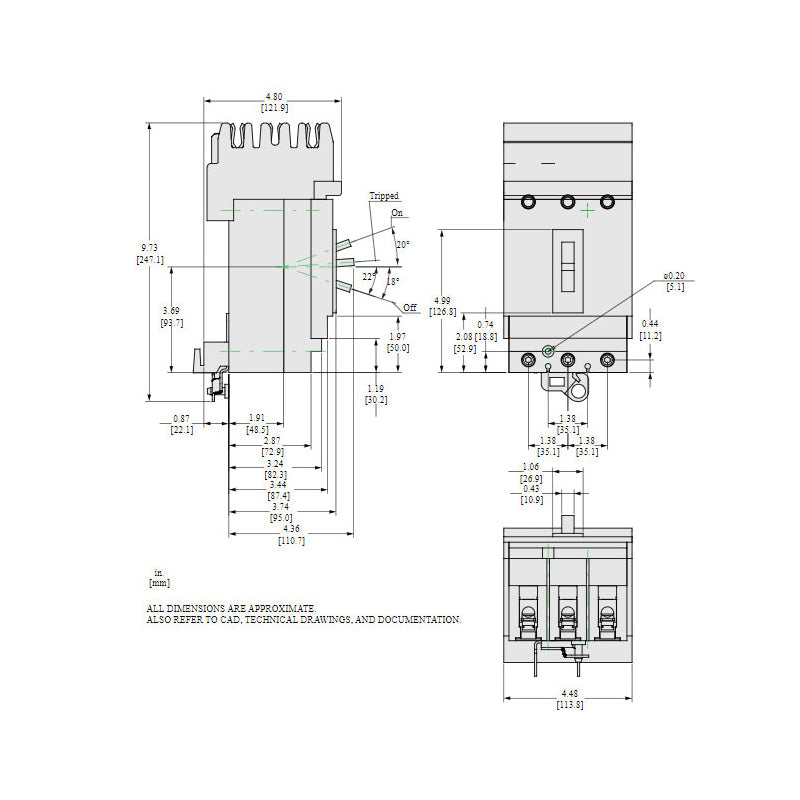

  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5.549
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29451
S29450
S29384
S29410
S29414
CYA150HD
