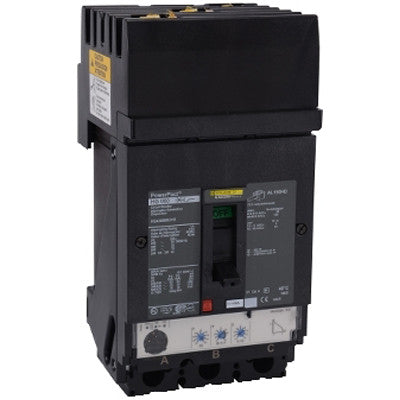

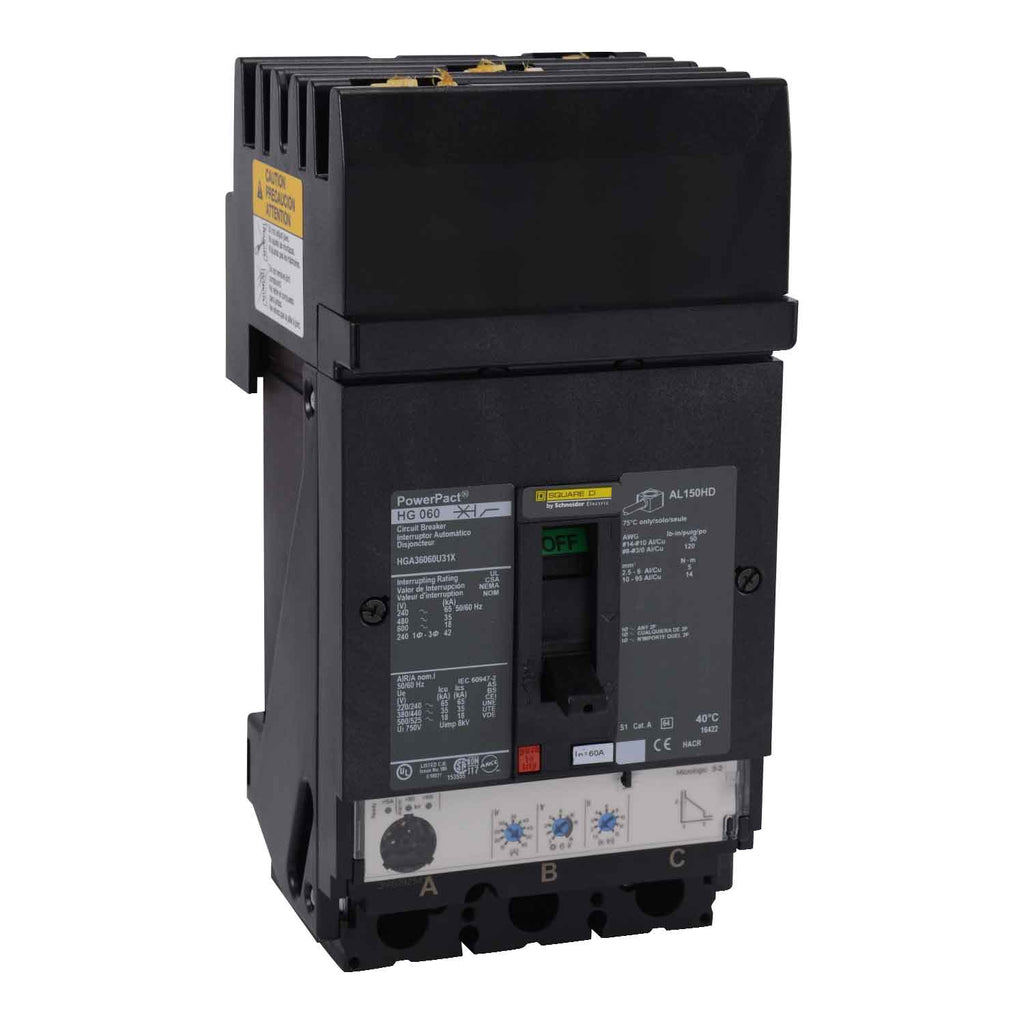

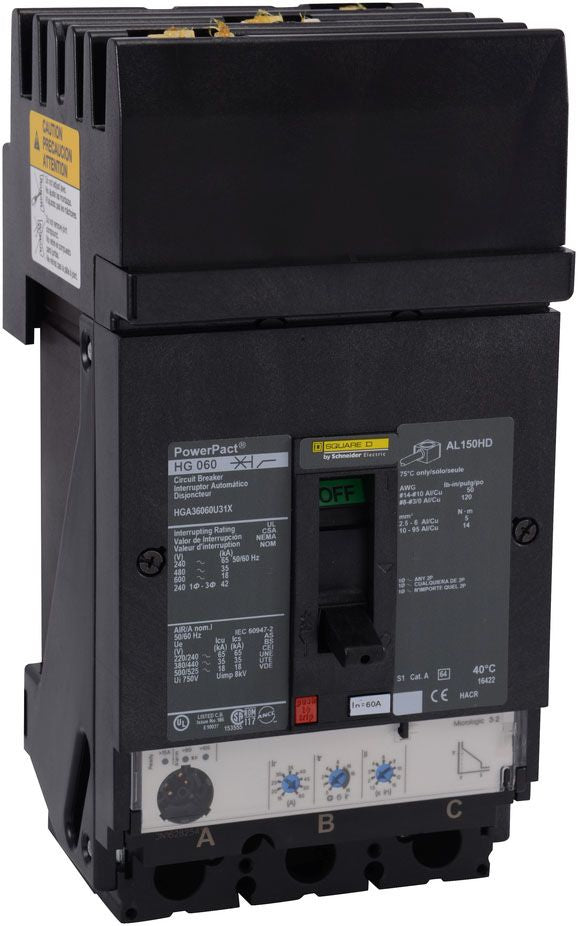

HGA36060U31X - Square D 60A 600VAC 3 Pole Powerpact H Circuit Breaker I-Line Plug-In

HGA36060U31X

HGA36060U31X is a Square D Powerpact H series molded case circuit breaker rated for 60 amps and 600 volts AC with 3 poles and I-Line style plug-in mounting.This circuit breaker features solid state electronic protection with long-time and instantaneous trip functions. It has a 35kA interrupting rating at 480VAC and is UL, CSA, IEC, CE, and CCC certified. The breaker supports ABC phase connection and is designed for use in industrial and commercial power distribution applications. It includes a Micrologic 3.2 trip unit and is suitable for reverse connection and 2-pole applications.

Key Specifications
• Manufacturer: Square D
• Series: Powerpact H
• Amperage: 60A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 35kA at 480VAC
• Trip Unit: Micrologic 3.2, Long-Time and Instantaneous
• Frame Type: HGA
• Phase: 3 (ABC)
• Certifications: UL, CSA, IEC, CE, CCC
• Connection: Plug-In Panelboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901404132
• GTIN : 00785901404132
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.382
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
