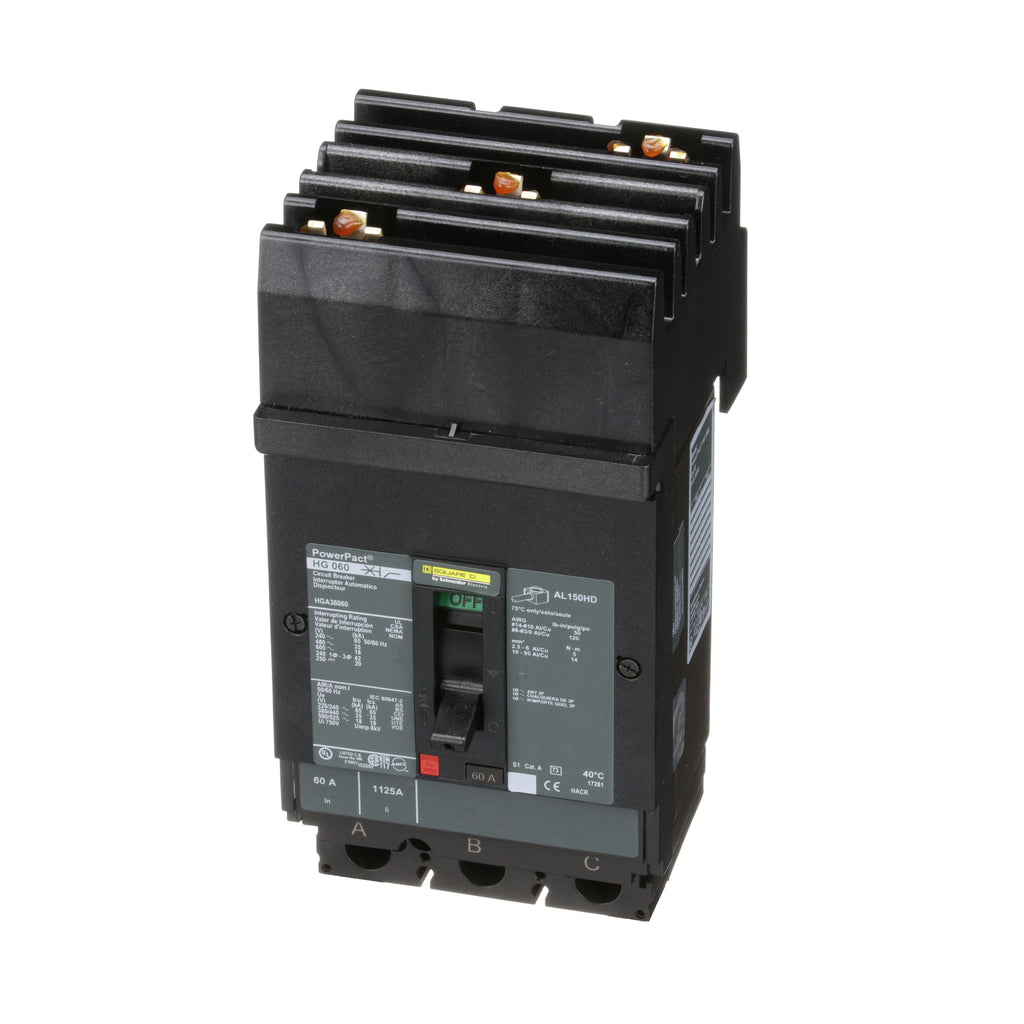

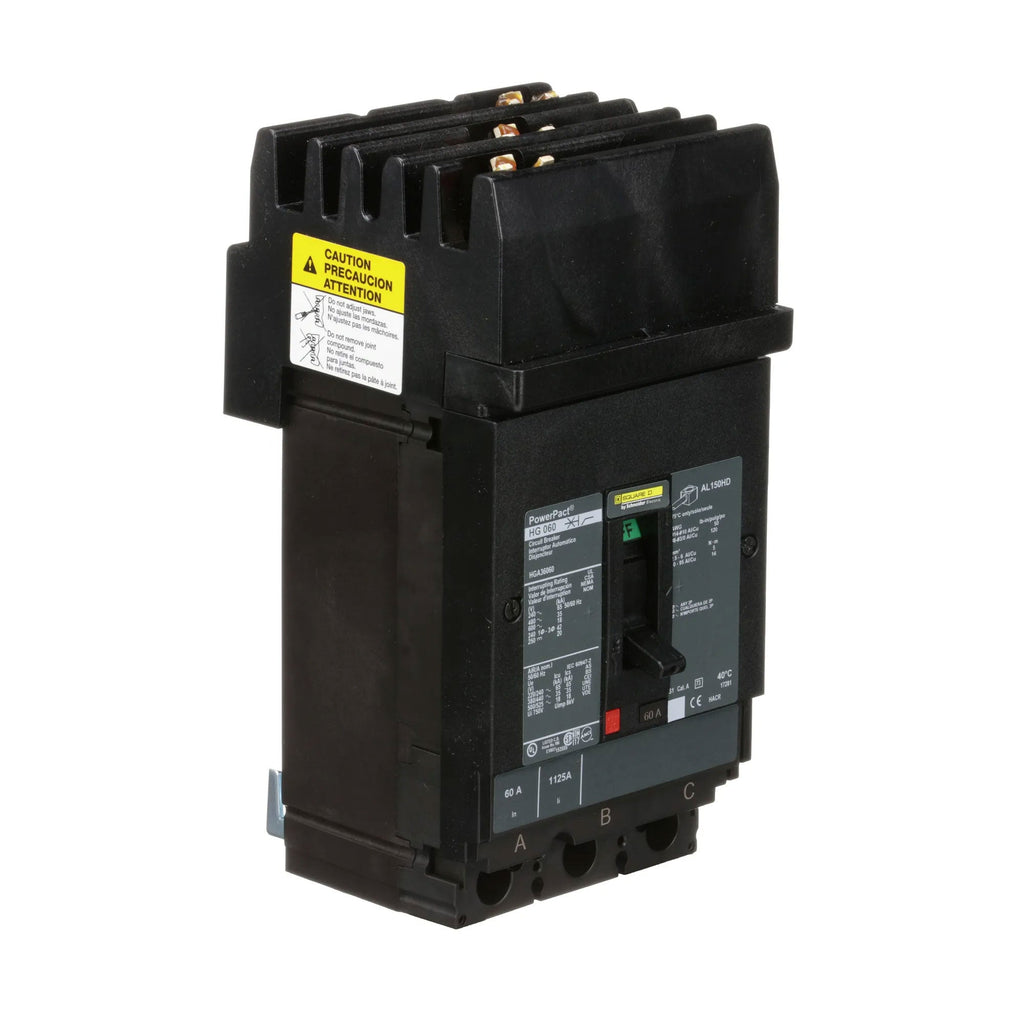

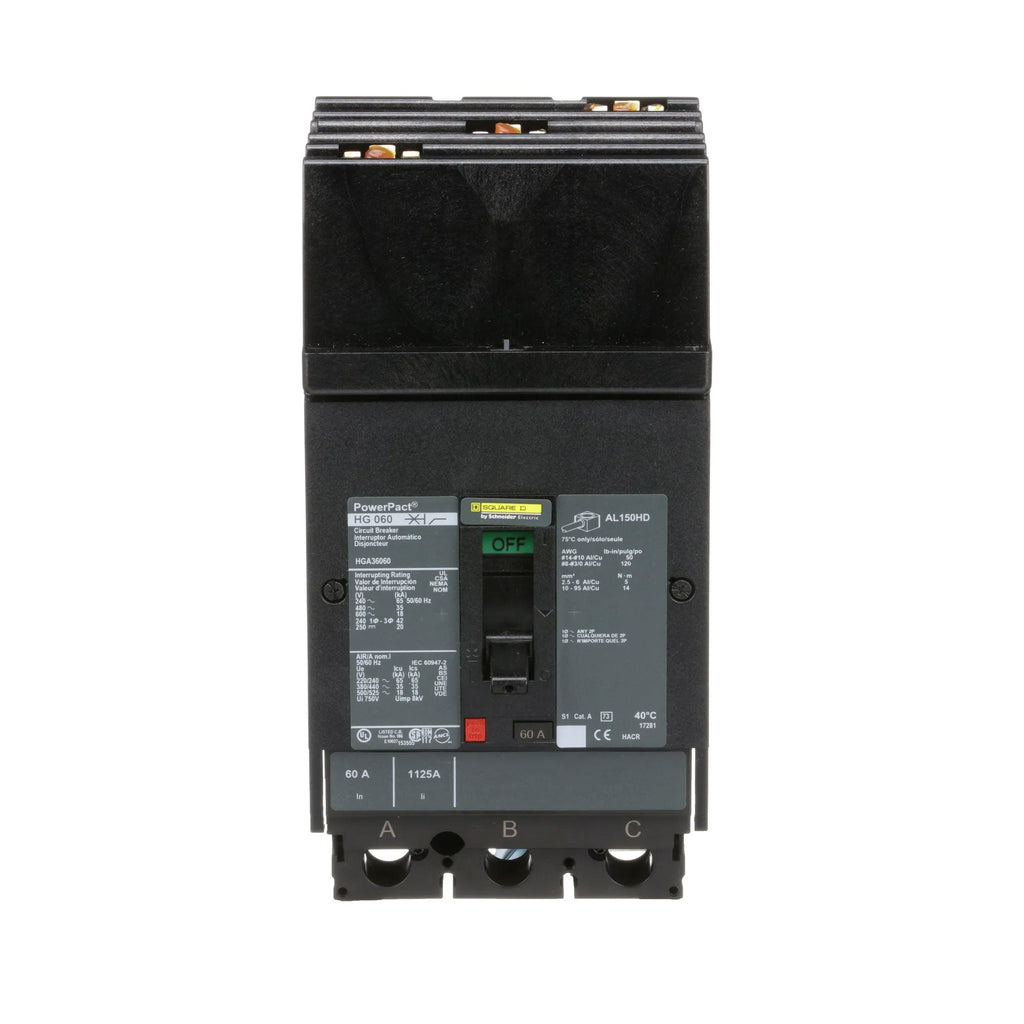

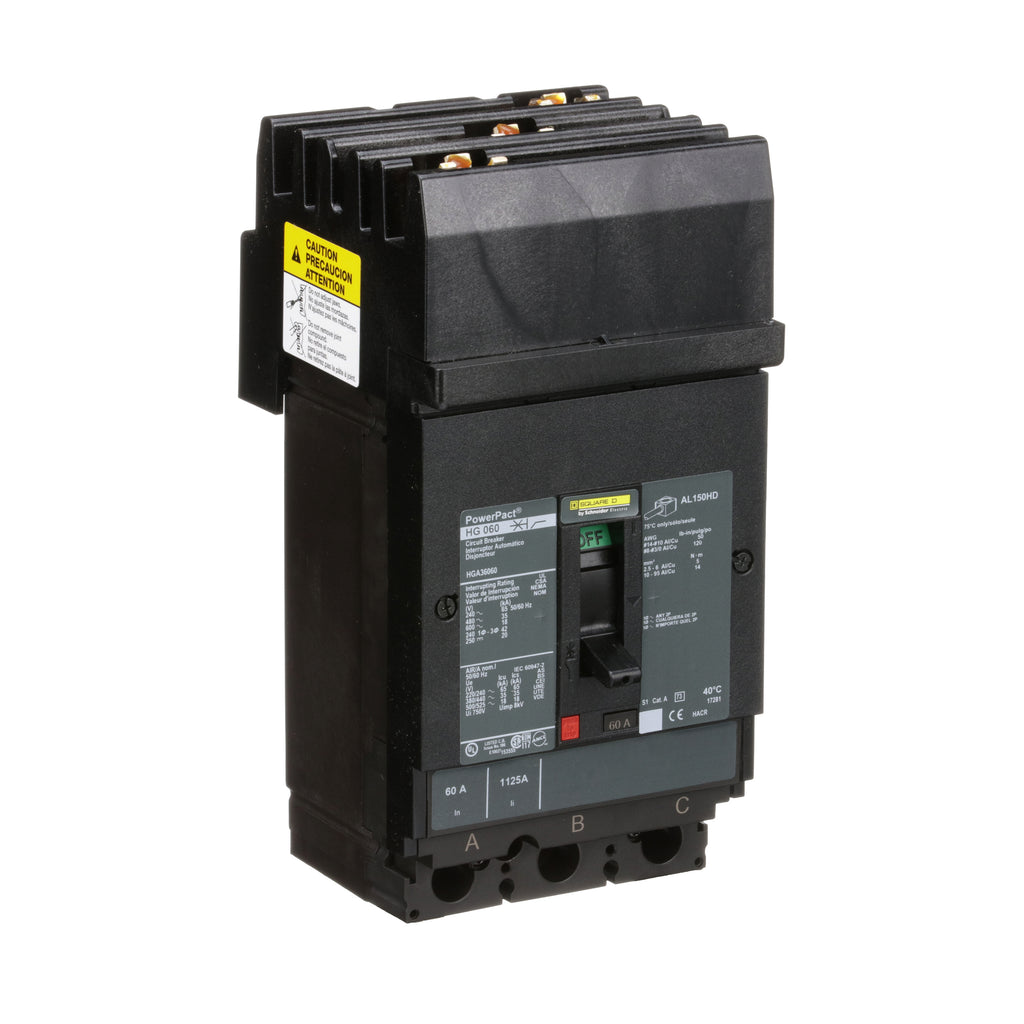

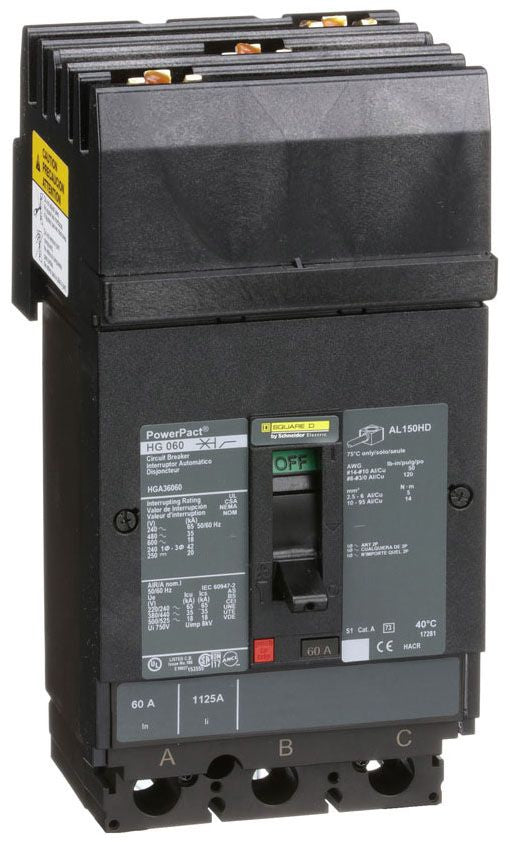

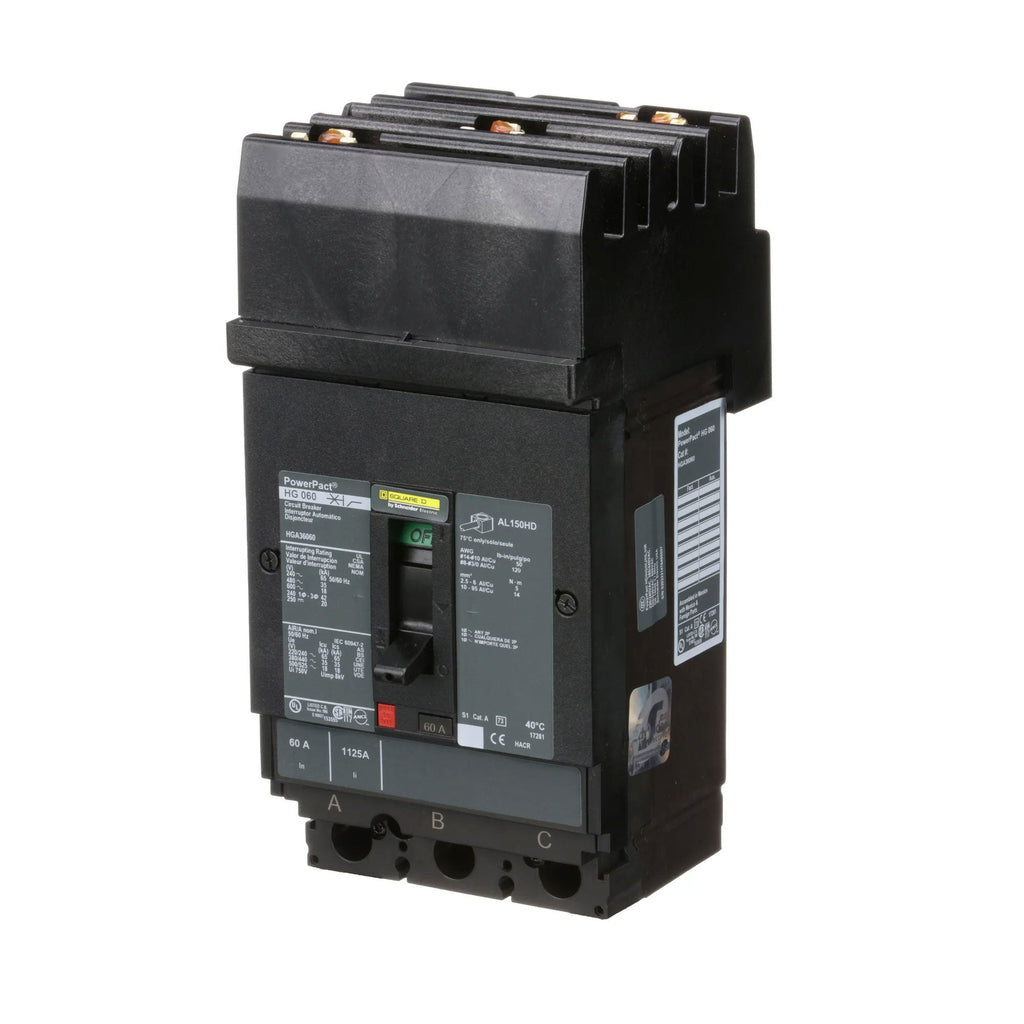

HGA36060 - Square D 60 Amp 600VAC 3 Pole I-Line Thermal Magnetic Circuit Breaker PowerPacT H Frame

HGA36060

HGA36060 is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 60 Amps and 600/690VAC voltage. It features an I-Line style plug-in connection and PowerPacT H frame.This circuit breaker provides reliable protection with a 35kA interrupting rating at 480VAC and includes long-time and instantaneous trip functions. It is UL, CSA, CE, NOM, IEC, and NEMA certified, suitable for industrial power distribution applications. The breaker supports load side lug terminal connections and fits I-Line mounting brackets.

Key Specifications
• Amperage: 60 Amps
• Voltage: 600/690VAC
• Poles: 3
• Interrupt Rating: 35kA at 480VAC
• Frame Type: PowerPacT H (HGA)

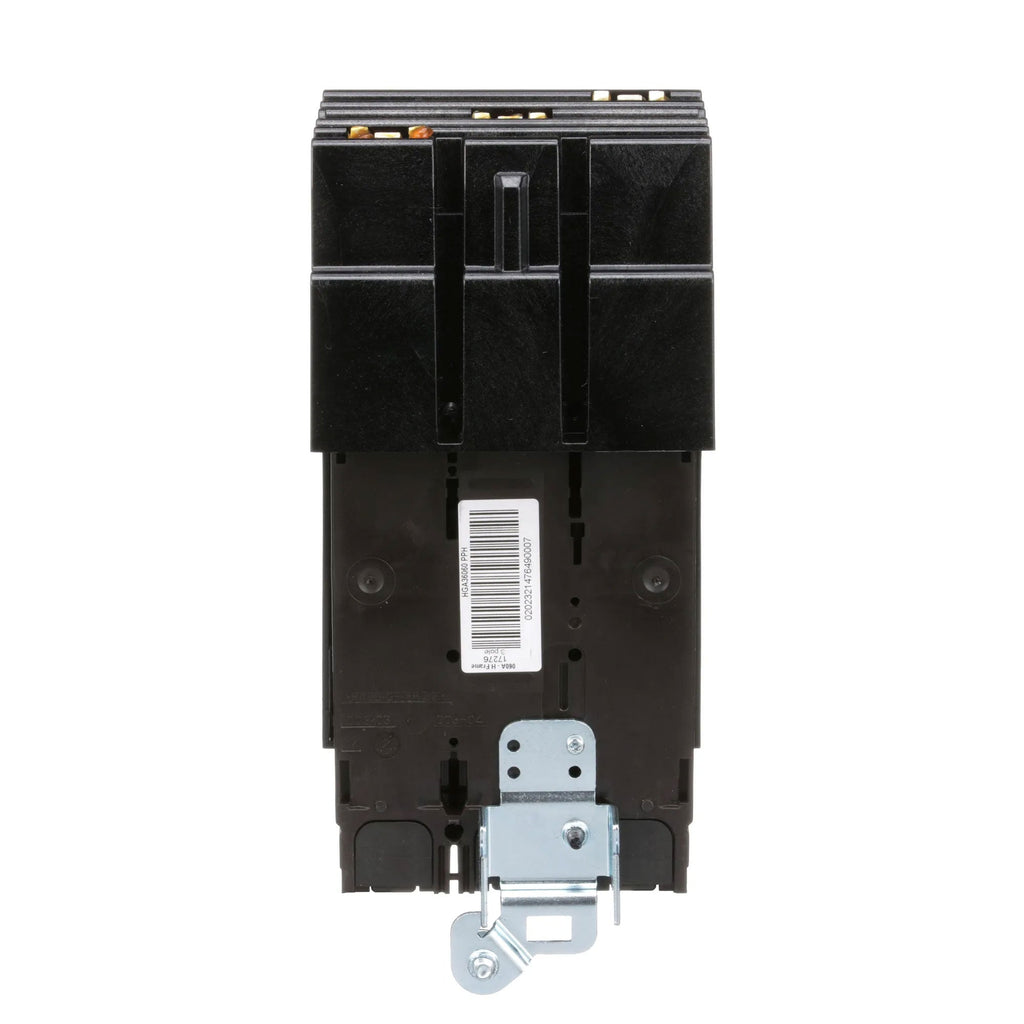

• Mounting Type: I-Line Bracket
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Connection Type: I-Line Style Plug-In
• Certifications: UL, CSA, CE, NOM, IEC, NEMA
• Terminal Connection: Load Side Lug
• Operating Temperature: -25 to 70 °C
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901795032
• GTIN : 00785901795032
• Country of Origin : Mexico

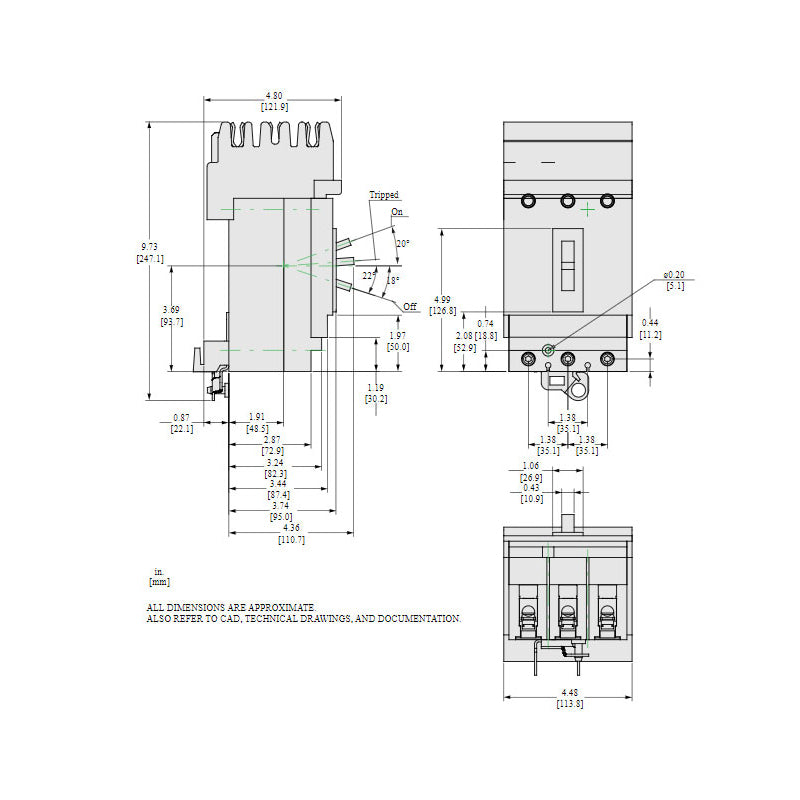

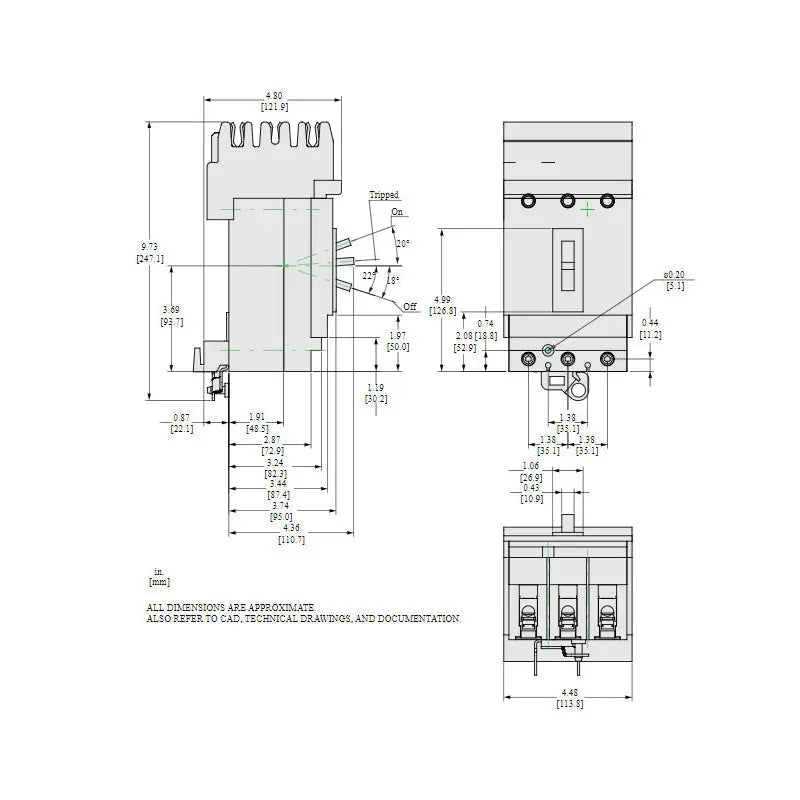

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.426 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
