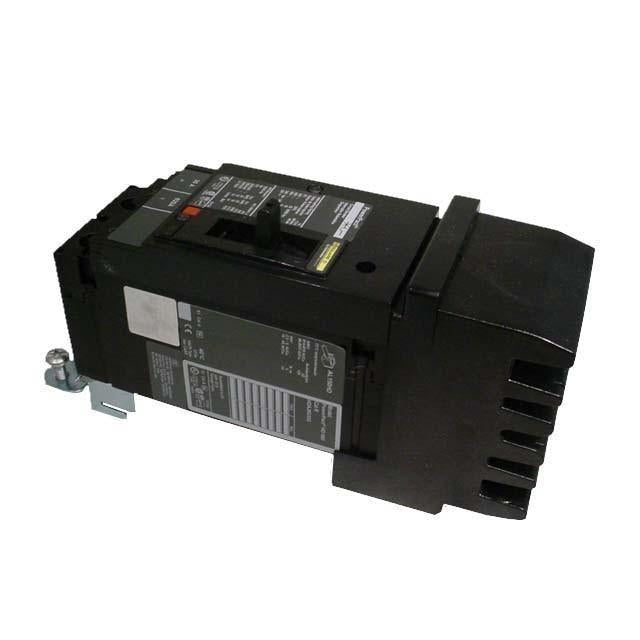

HGA260152 - Square D 15A 600V 2-Pole I-Line PowerPact H Molded Case Circuit Breaker Thermal Magnetic Trip

HGA260152

HGA260152 is a Square D 15 amp, 600 volt, 2-pole molded case circuit breaker designed for reliable circuit protection with thermal magnetic trip technology.This PowerPact H series breaker features a G frame and I-Line lug connection for easy plug-in mounting. It offers an interrupt rating up to 65 kA at 240V AC and supports both AC and DC voltages. The breaker is rated for 50/60 Hz frequency and suitable for use in NEMA AB1 enclosures. It supports wire sizes from 14 to 3/0 AWG aluminum or copper and has a trip range of 350 to 750 amps. Manufactured in the US by Schneider Electric, it meets UL certification standards.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 600 V AC / 250 to 500 V DC
• Number of Poles: 2
• Frame Type: G Frame, PowerPact H Series
• Mounting Type: I-Line Plug-In Lug Connection
• Interrupt Rating: 18/20/35/65 kA (varies by voltage)
• Trip Unit: Thermal Magnetic
• Wire Size Range: 14 to 3/0 AWG Al/Cu
• Frequency: 50/60 Hz
• Enclosure Type: NEMA AB1
• Trip Range: 350 to 750 A
• Country of Origin: US
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGA260152
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AC



Product Data

• UPC : 785901912286
• GTIN : 00785901912286
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
