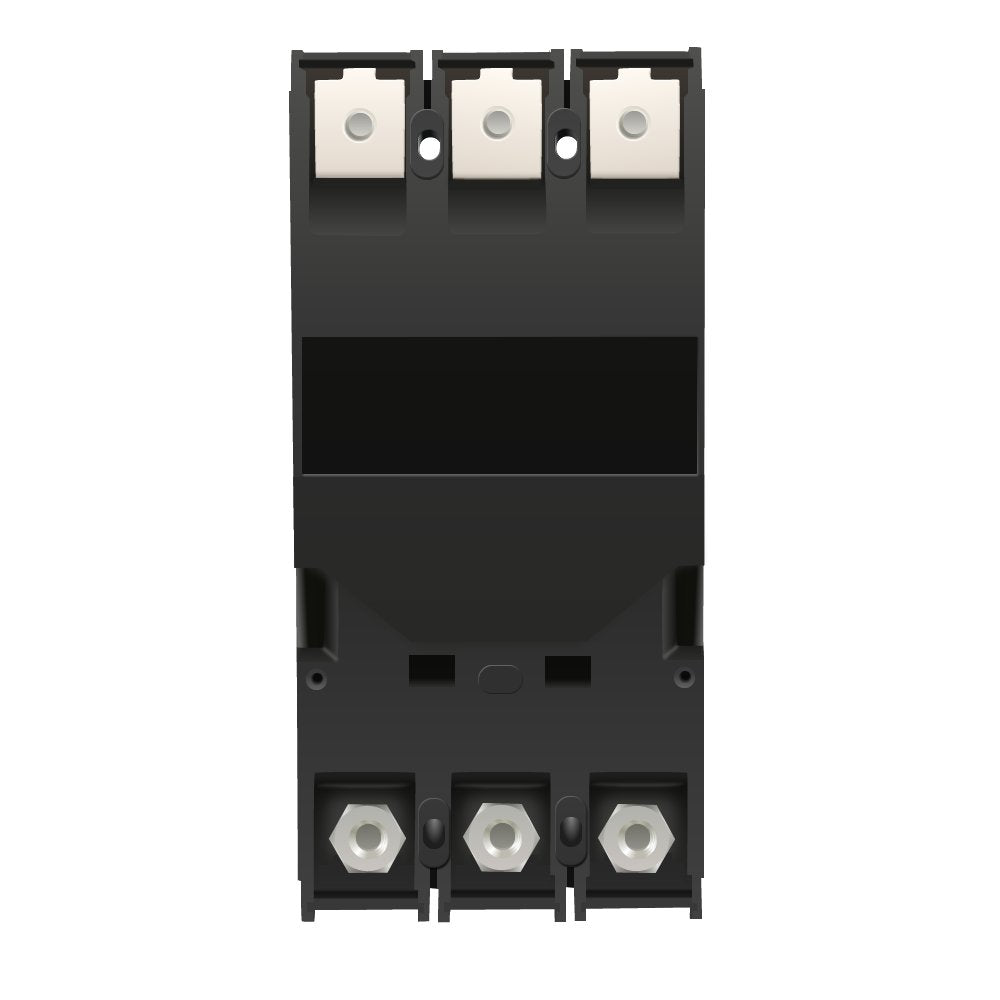

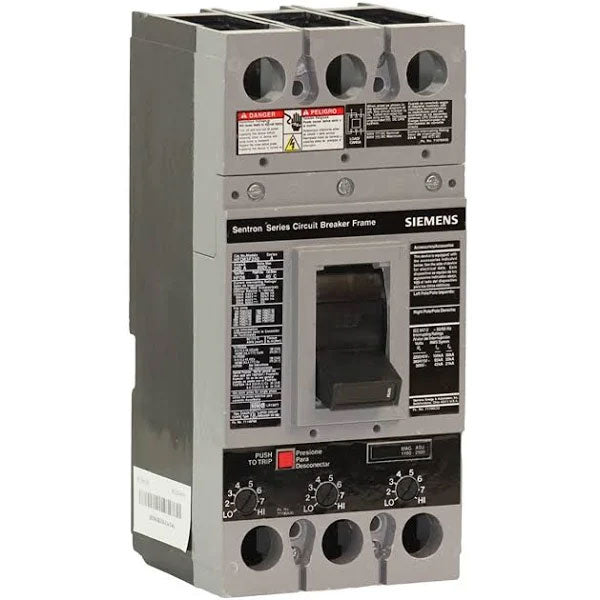

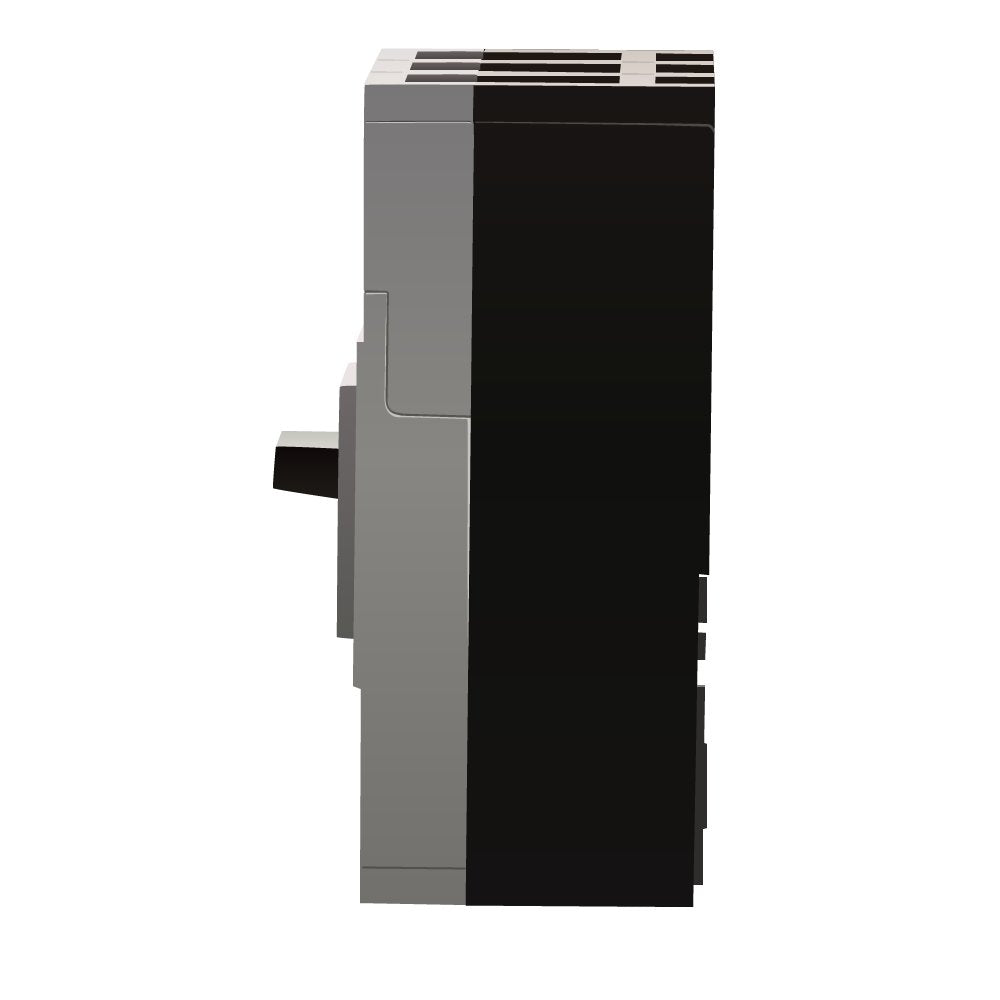

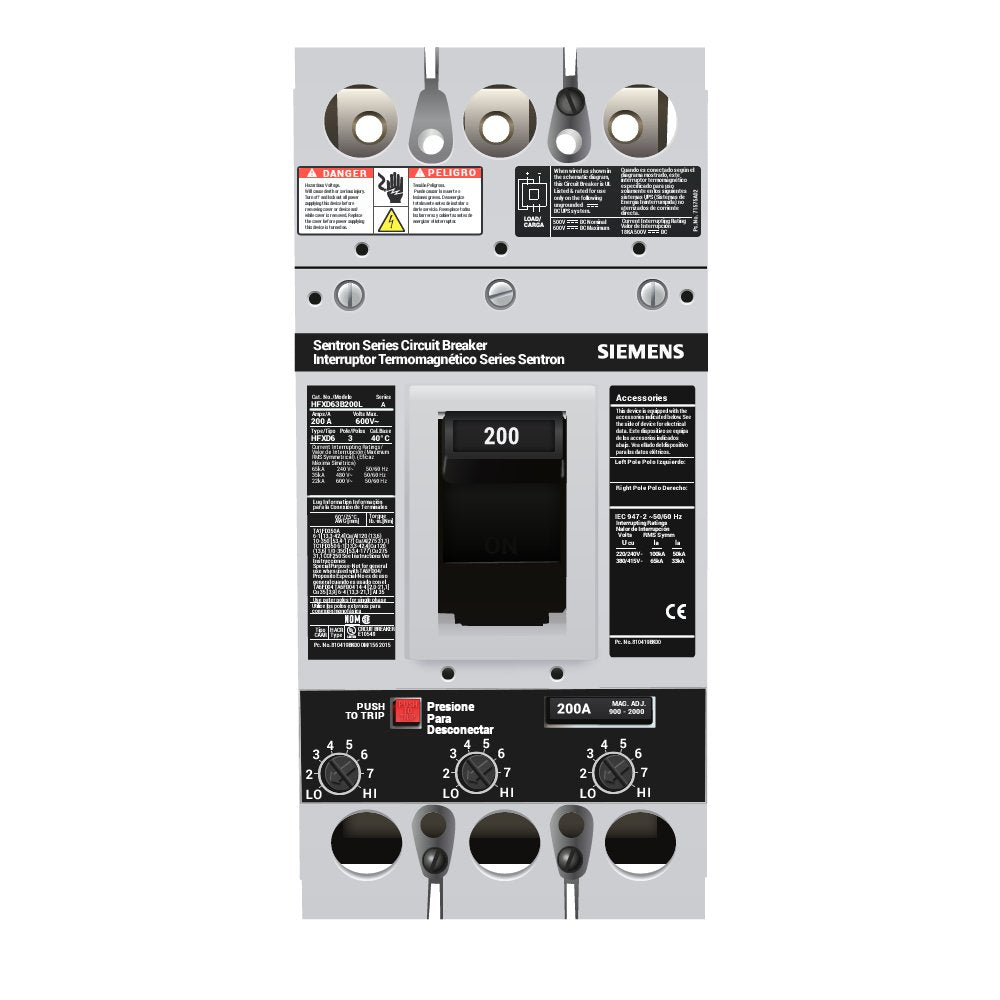

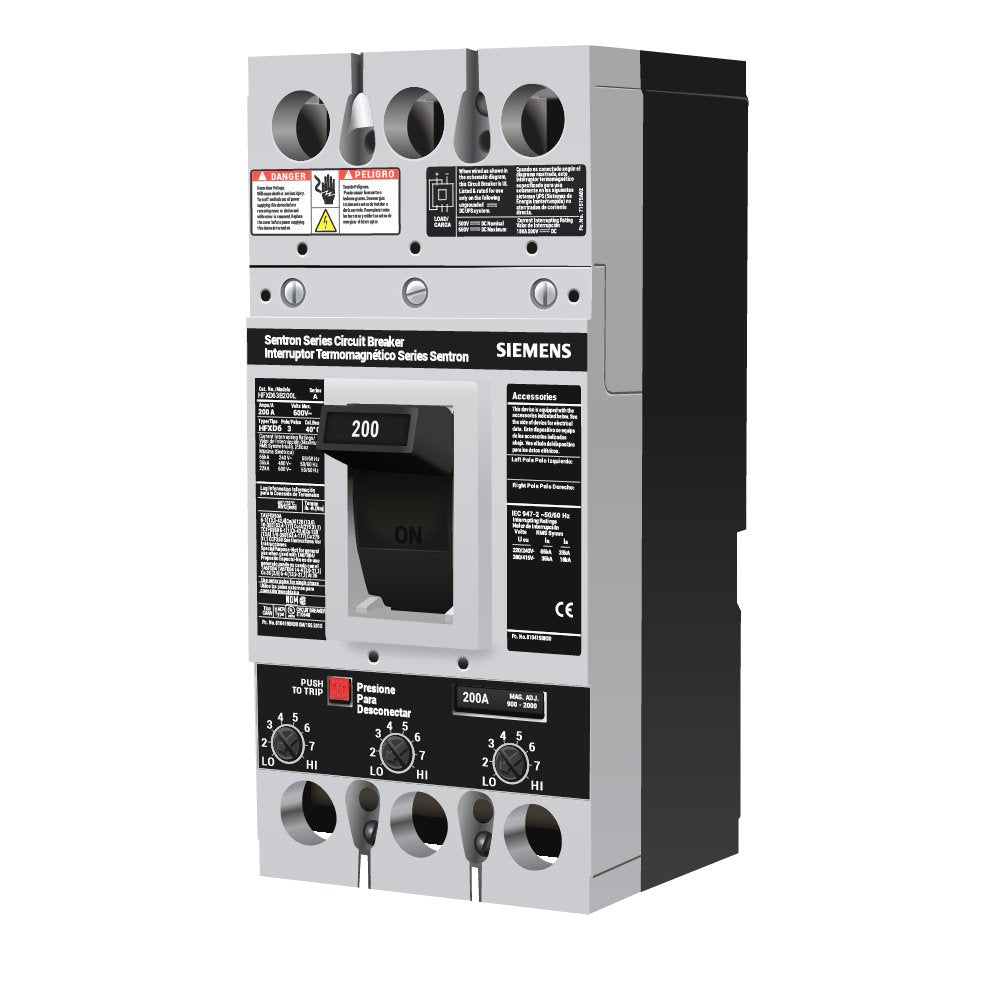

HFXD63B200L - Siemens 200A 600V 3-Pole Molded Case Circuit Breaker FD Frame Thermal Magnetic Trip UL 489 Listed

HFXD63B200L

HFXD63B200 is a Siemens Sentron molded case circuit breaker featuring a 200A thermal-magnetic trip unit in an FD frame.This 3-pole breaker provides standard breaking capacity with 22kA interrupt rating at 600V and 35kA at 480V, designed for 40 deg C operation in motor circuits and short circuit protection. It includes a non-interchangeable trip unit with 900-2000A trip range and bolt-on mounting for reliable performance.

• Part Number: HFXD63B200
• Manufacturer: Siemens
• Amperage Rating: 200A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Frame Size: FD
• Trip Unit: Thermal-Magnetic, Non-Interchangeable
• Interrupt Rating: 22kA at 600V, 35kA at 480V
• Mounting Type: Bolt-On
• Temperature Rating: 40 deg C
• Frequency: 50/60 Hz
• Approvals: UL 489 Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFXD63B200L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFXD
• Voltage : 600 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643322288
• GTIN : 00783643322288
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.017
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
