Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFXD63B070L

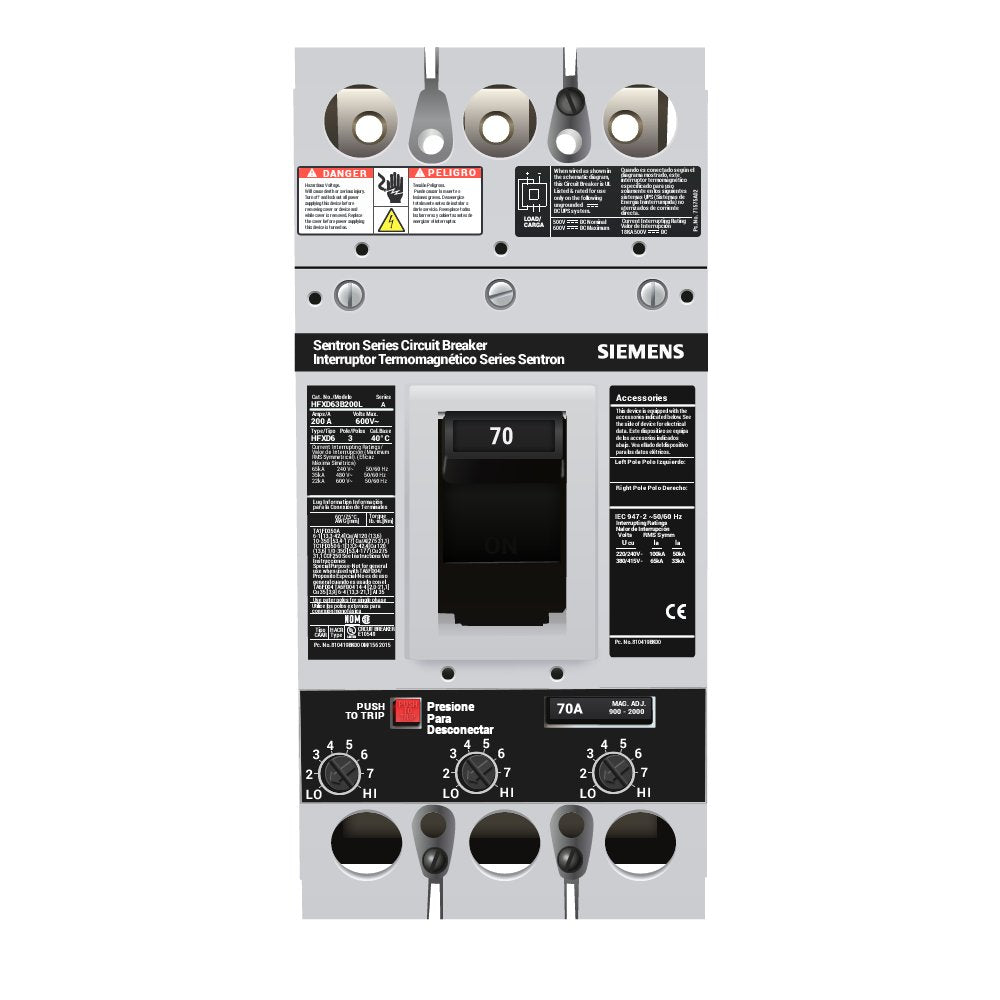

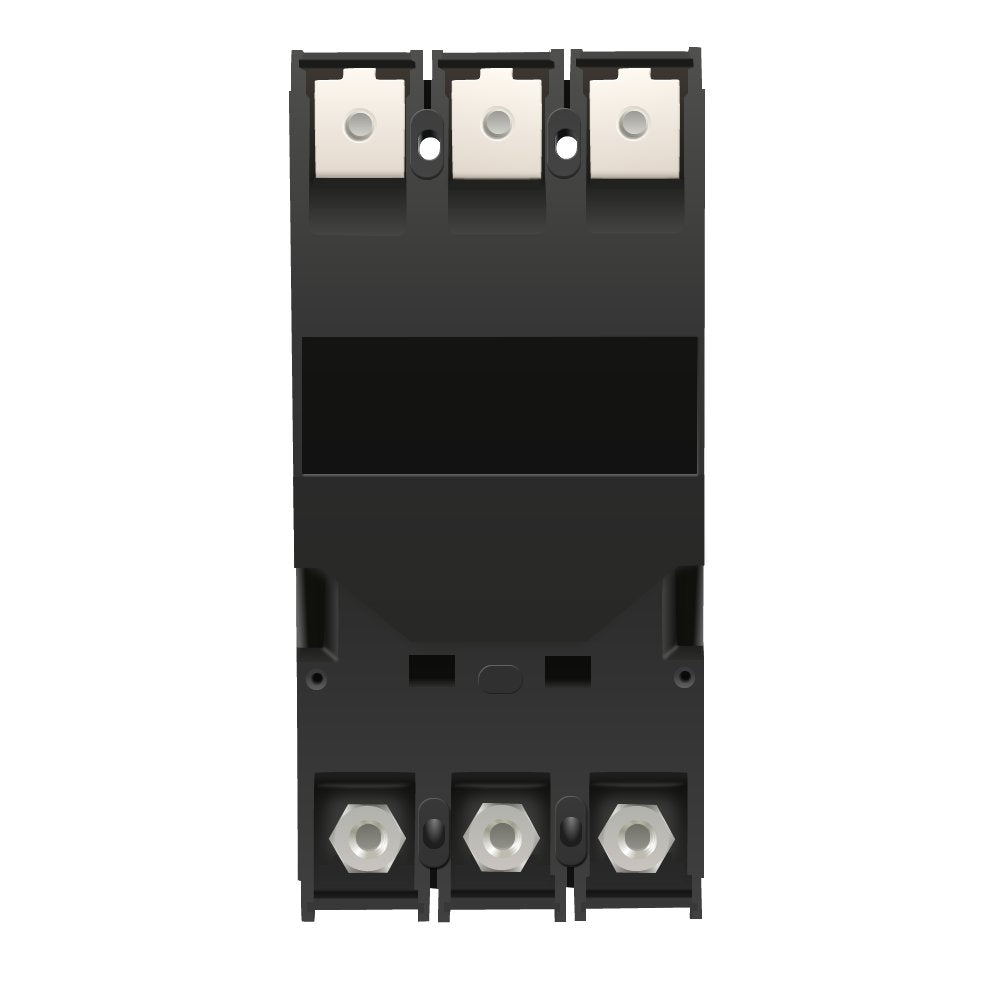

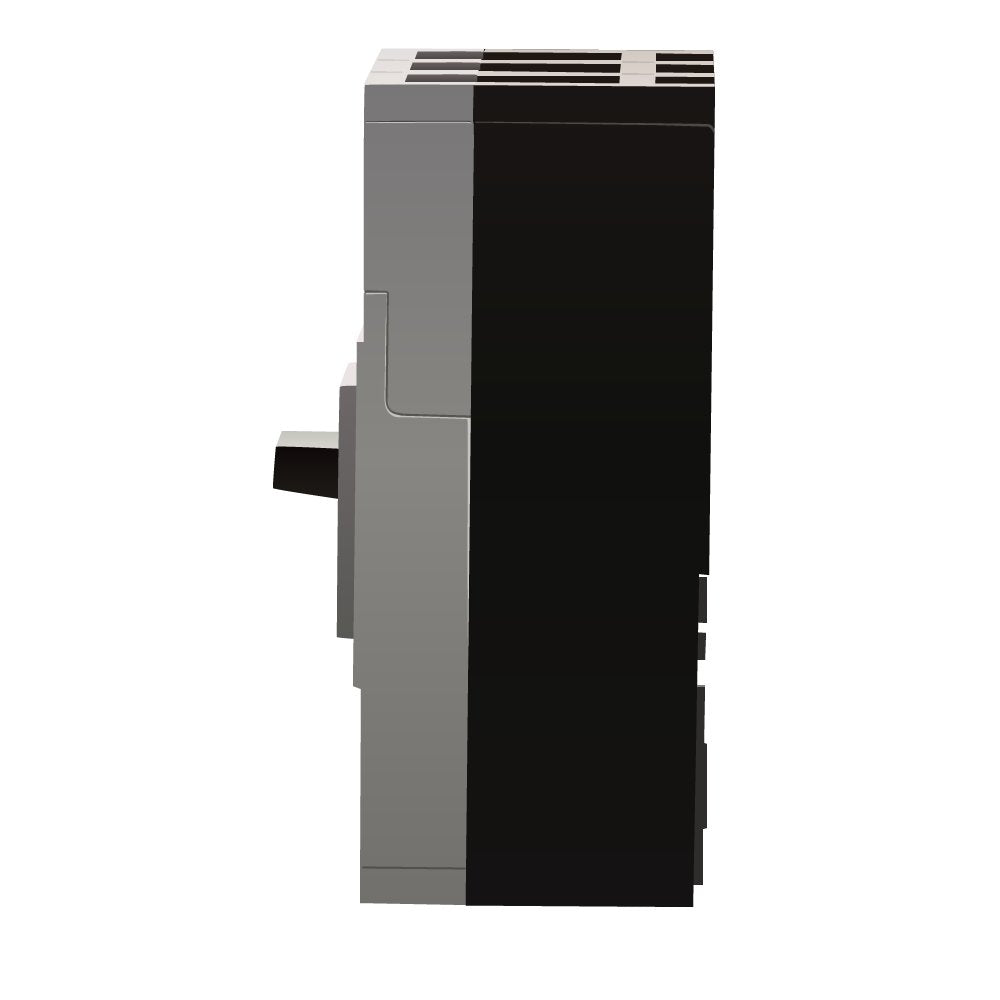

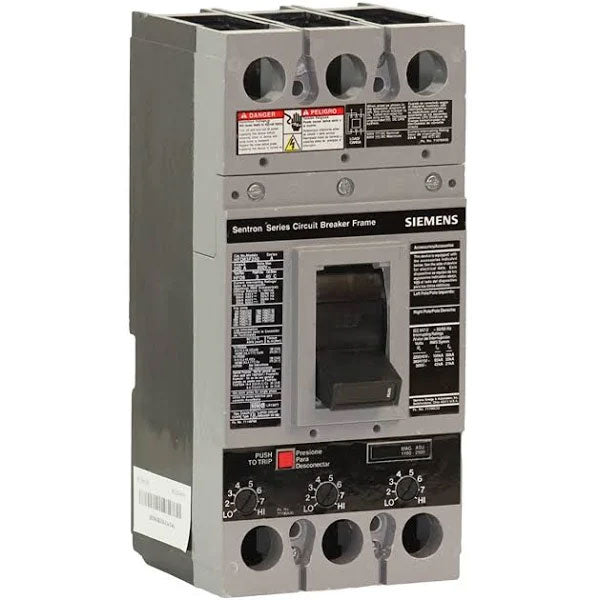

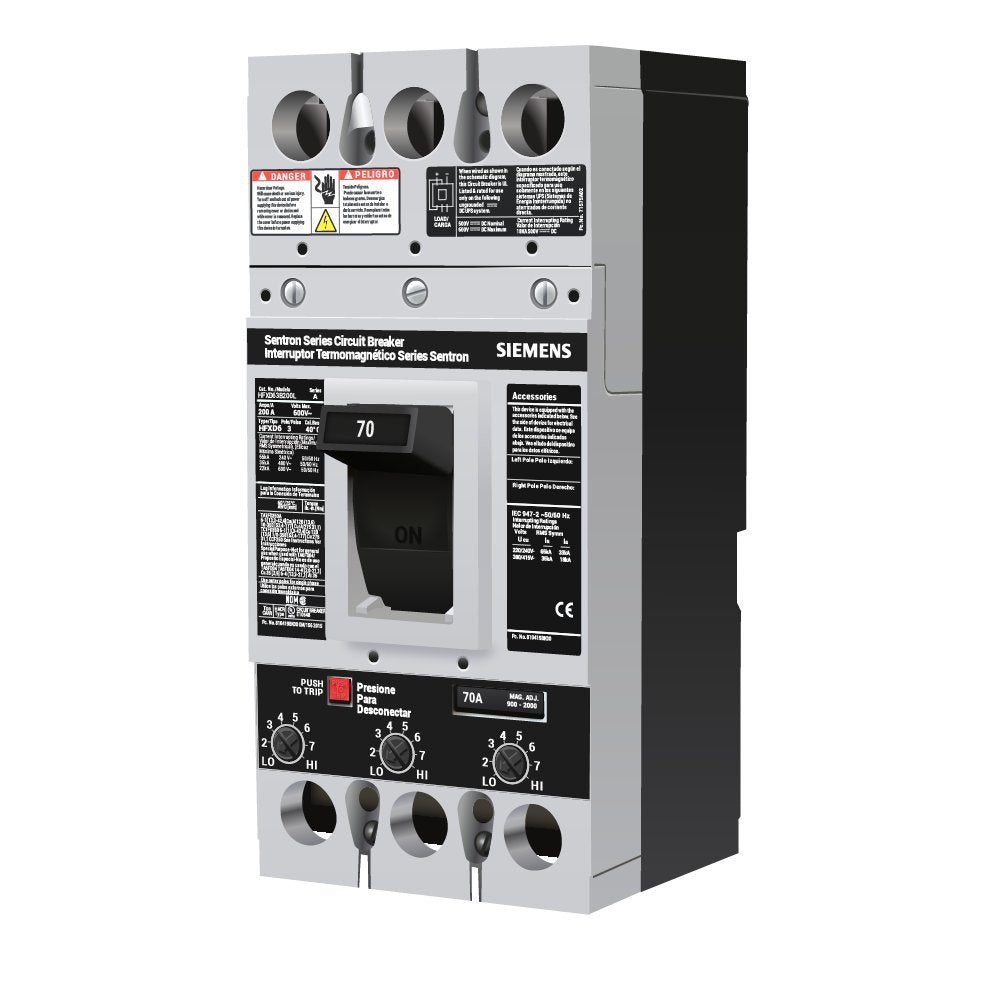

HFXD63B070L is a Siemens 3-pole molded case circuit breaker rated at 70 amps and 600 volts.This Sentron series HFXD thermal-magnetic circuit breaker provides overload and short circuit protection in a feed-thru design with fixed lugs.
- Part Number: HFXD63B070L
- Manufacturer: Siemens
- Poles: 3
- Amperage: 70A
- Voltage: 600V
- Series/Frame: HFXD / HFD6
- Trip Unit: Thermal-Magnetic
- Mounting Type: Feed-Thru Lugs
- Protection: Overload and Short Circuit
Additional Information
Line and load side lugs included (TA1FD350A)
Specifications
- Part Number: HFXD63B070L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFXD
- Voltage : 600 AC
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643084445
- GTIN : 00783643084445
- Country of Origin : Mexico
- Dimensions : 9.843 x 5.906 x 6.693 inch
- Weight : 9.017
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL ( UL Listed ) ( CE Marked) (CSA Certified)
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
