Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFXD63B110

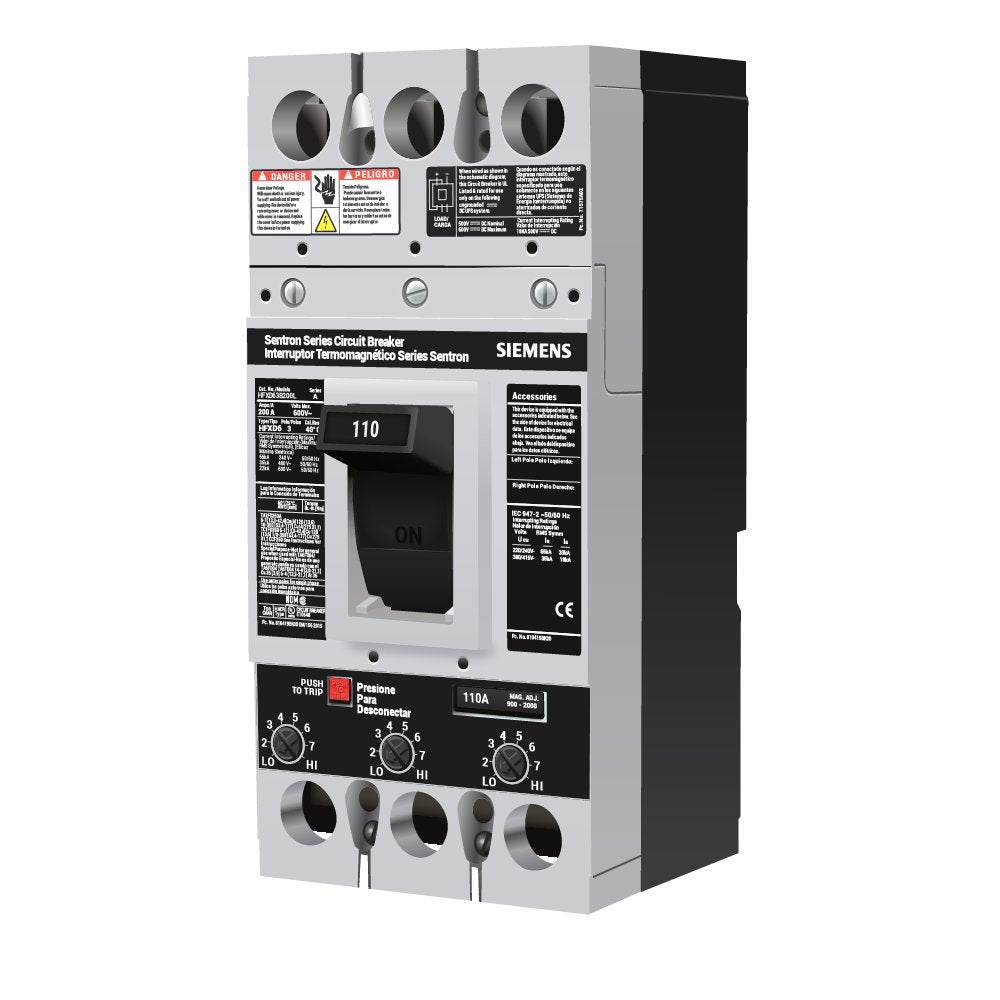

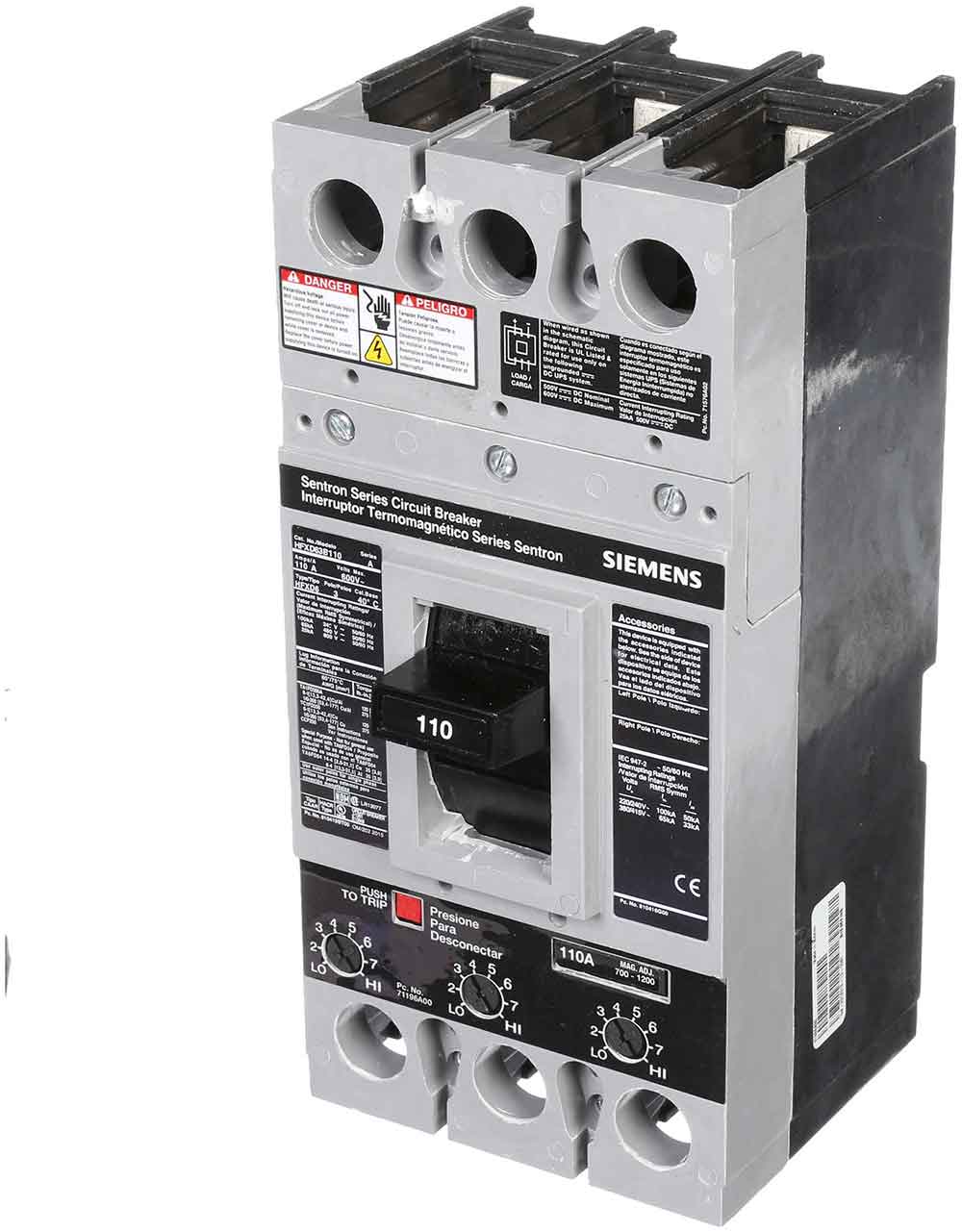

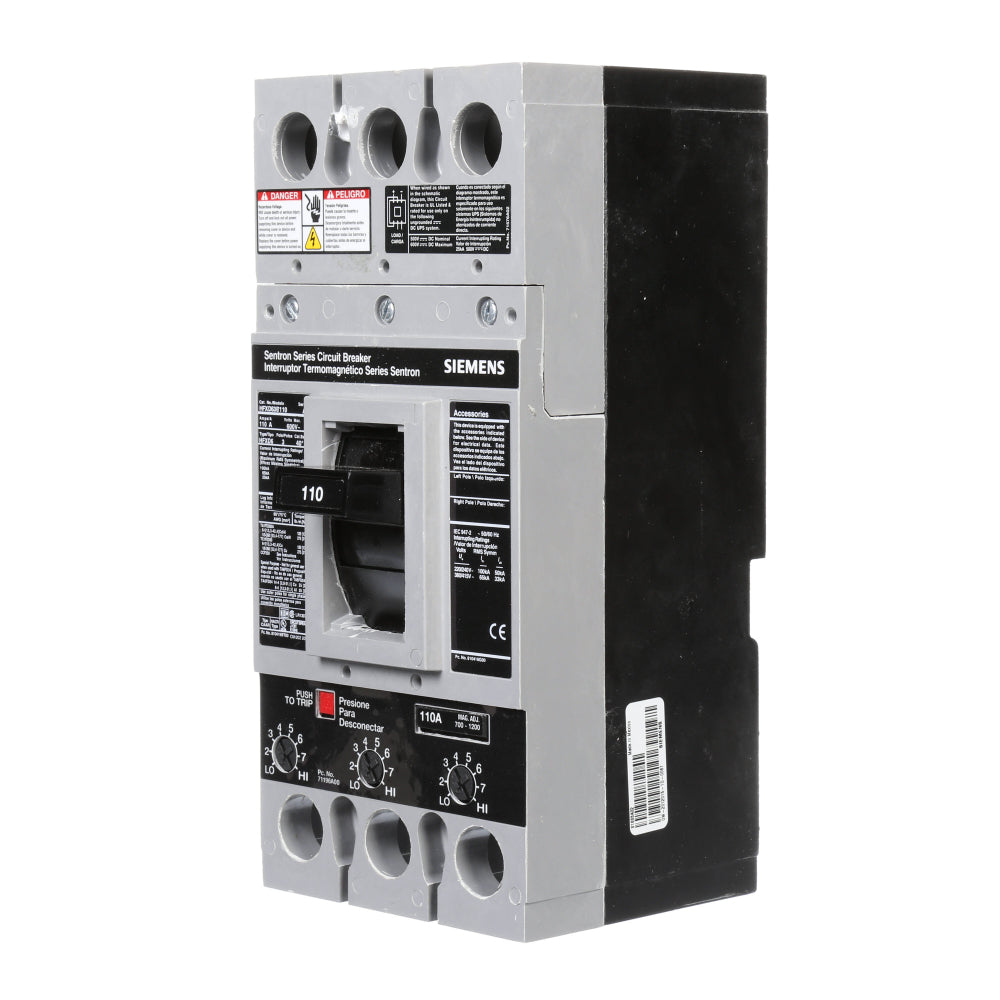

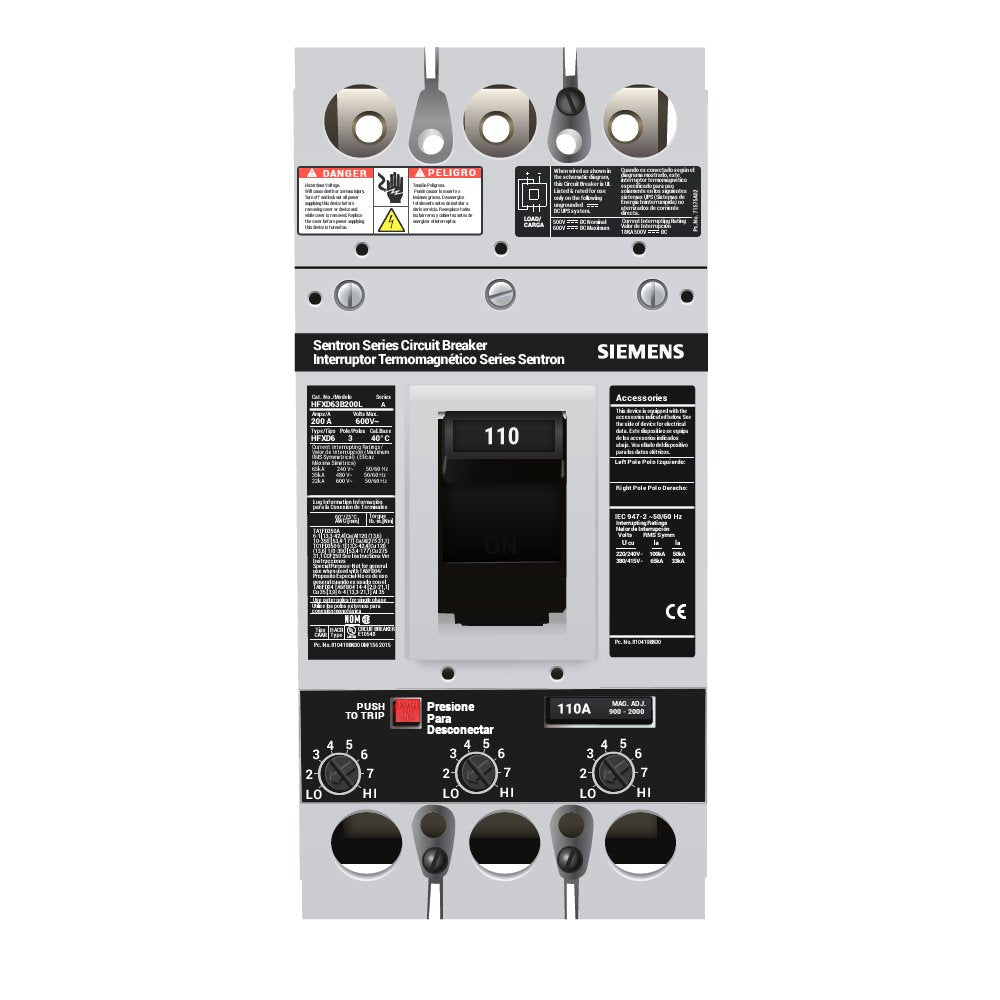

HFXD63B110 is a Siemens Sentron series molded case circuit breaker featuring high interrupting capacity for reliable circuit protection.This 3-pole thermal magnetic breaker from the HFD6 frame provides long-time and instantaneous trip functions (LI), with bolt-on mounting and ratings up to 65kAIC at 480VAC. It supports 110A at 40C in a compact molded case design suitable for industrial applications.
- Part Number: HFXD63B110
- Manufacturer: Siemens
- Series/Frame: HFD6 / FD Frame
- Poles: 3
- Amperage: 110A at 40C
- Voltage: 600VAC / 500VDC
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic (LI)
- Interrupt Rating: 65kAIC at 480VAC; 25kAIC at 600VAC; 100kAIC at 240VAC
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: HFXD63B110
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFXD
- Voltage : 600 AC
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643318465
- GTIN : 00783643318465
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.946
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
