Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFXD63B070

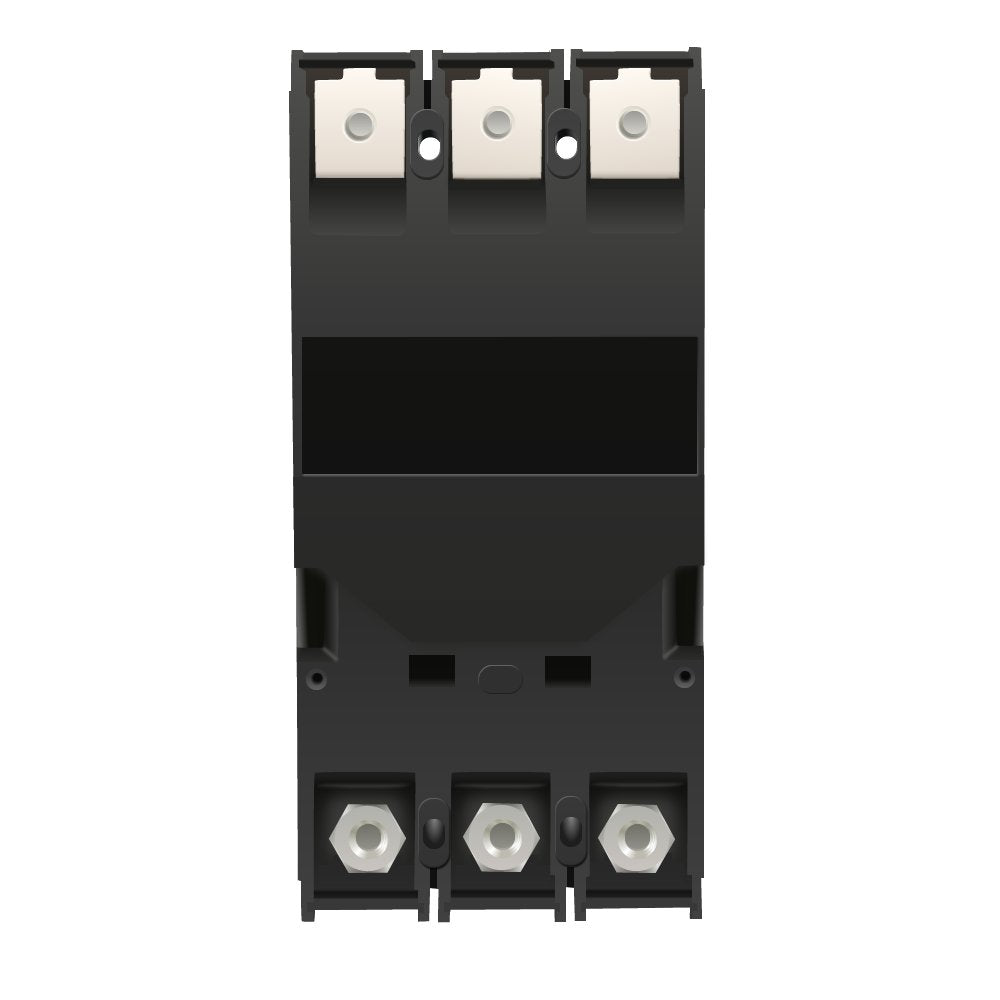

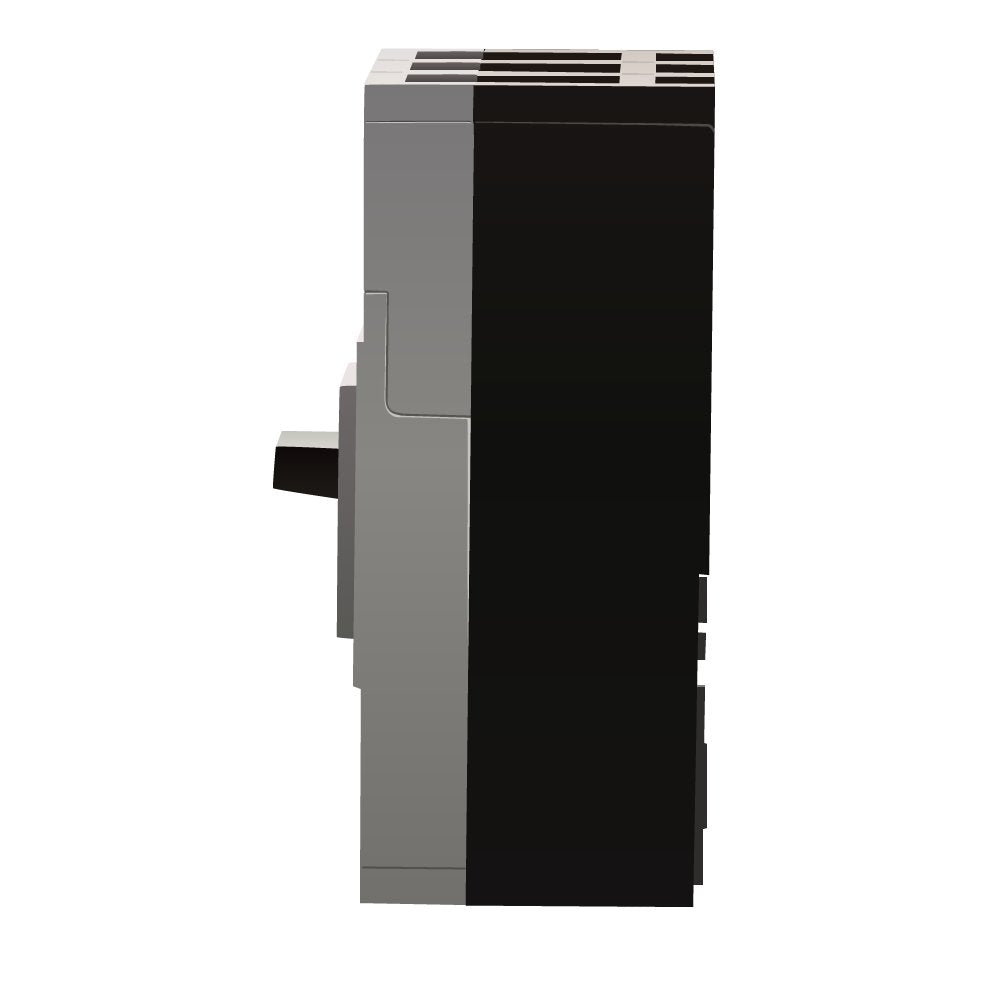

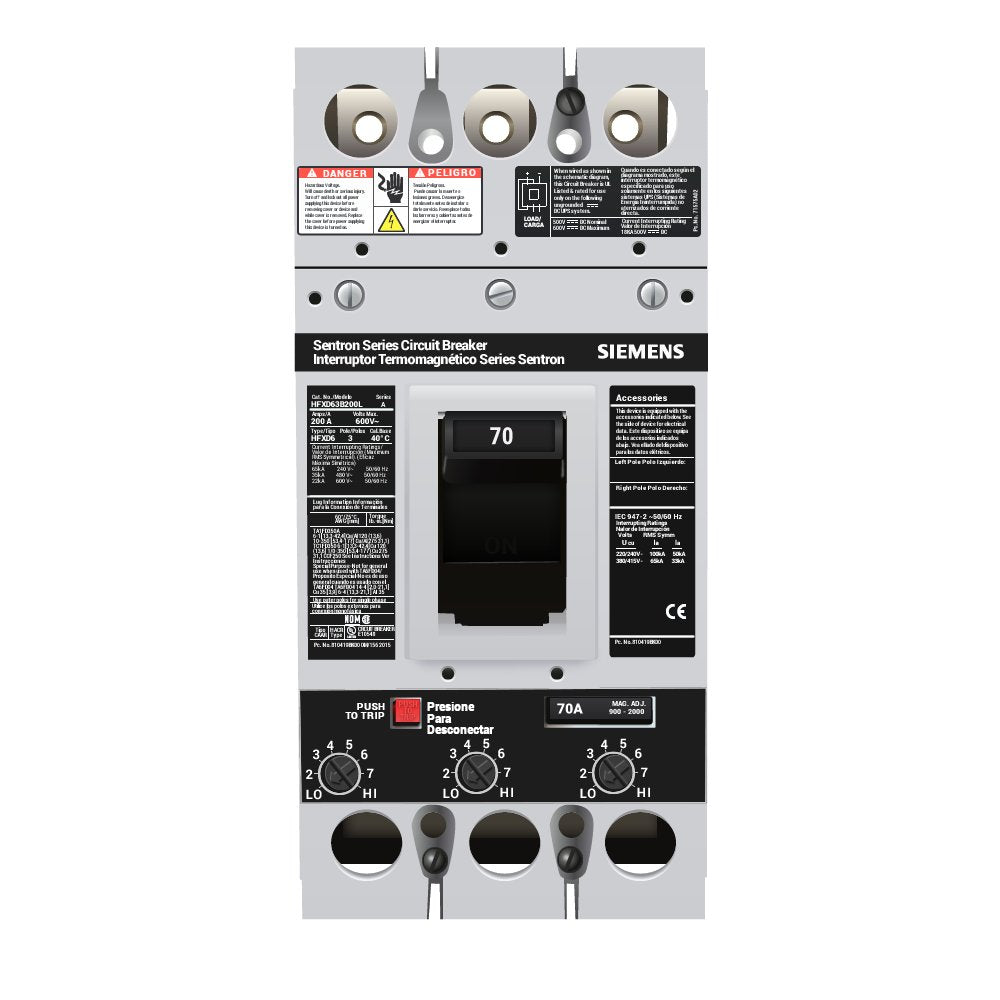

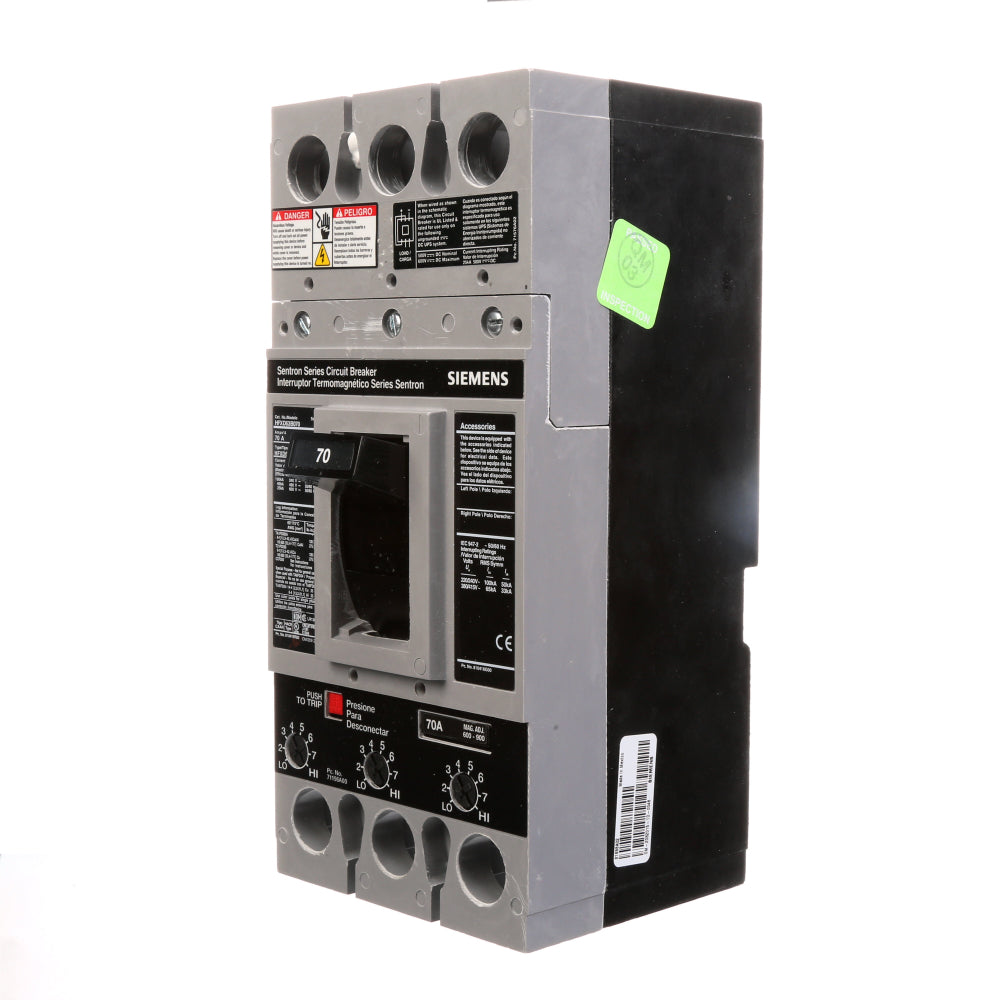

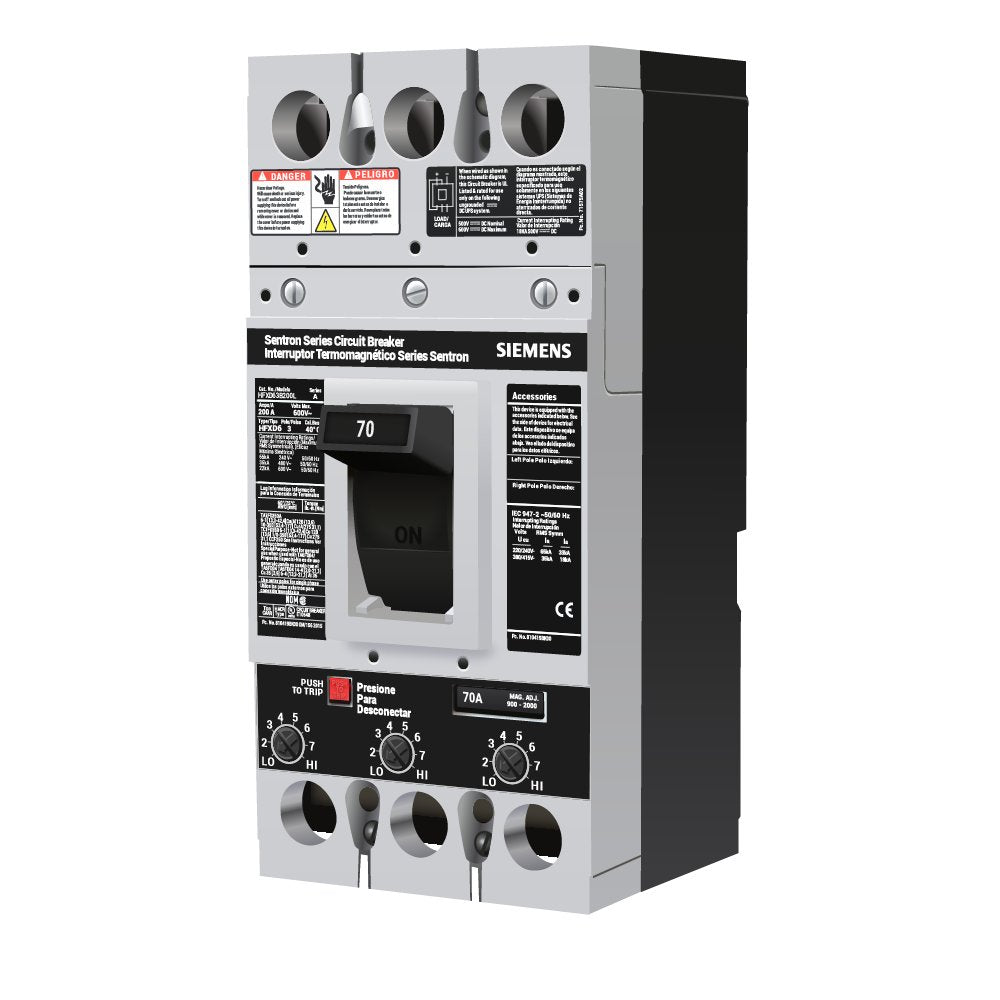

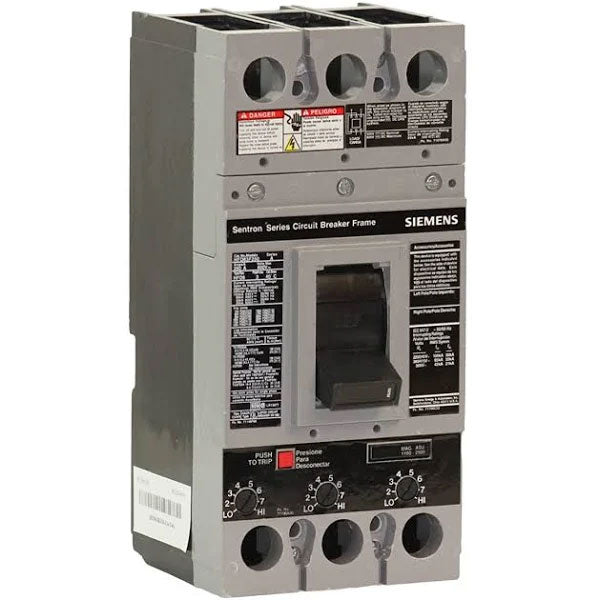

HFXD63B070 - Siemens Sentron Series 3-pole molded case circuit breaker with thermal-magnetic trip, rated at 70A and 600V.This Siemens HFXD6 breaker features FD frame, non-interchangeable thermal-magnetic trip unit with long-time and instantaneous functions, high interrupting capacity, and feed-thru connection design without lugs installed. It provides reliable overcurrent protection for industrial and commercial applications.
- Part Number: HFXD63B070
- Manufacturer: Siemens
- Series/Frame: Sentron FD / HFXD6
- Poles: 3
- Amperage: 70A
- Voltage: 600V AC
- Phase: 3
- Trip Unit: Thermal-Magnetic (LI)
- Interrupt Rating: 65kA@480V, 25kA@600V
- Connection: Feed-Thru (No Lugs)
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: HFXD63B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFXD
- Voltage : 600 AC
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643318427
- GTIN : 00783643318427
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 7.5
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
