Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFXD63B090

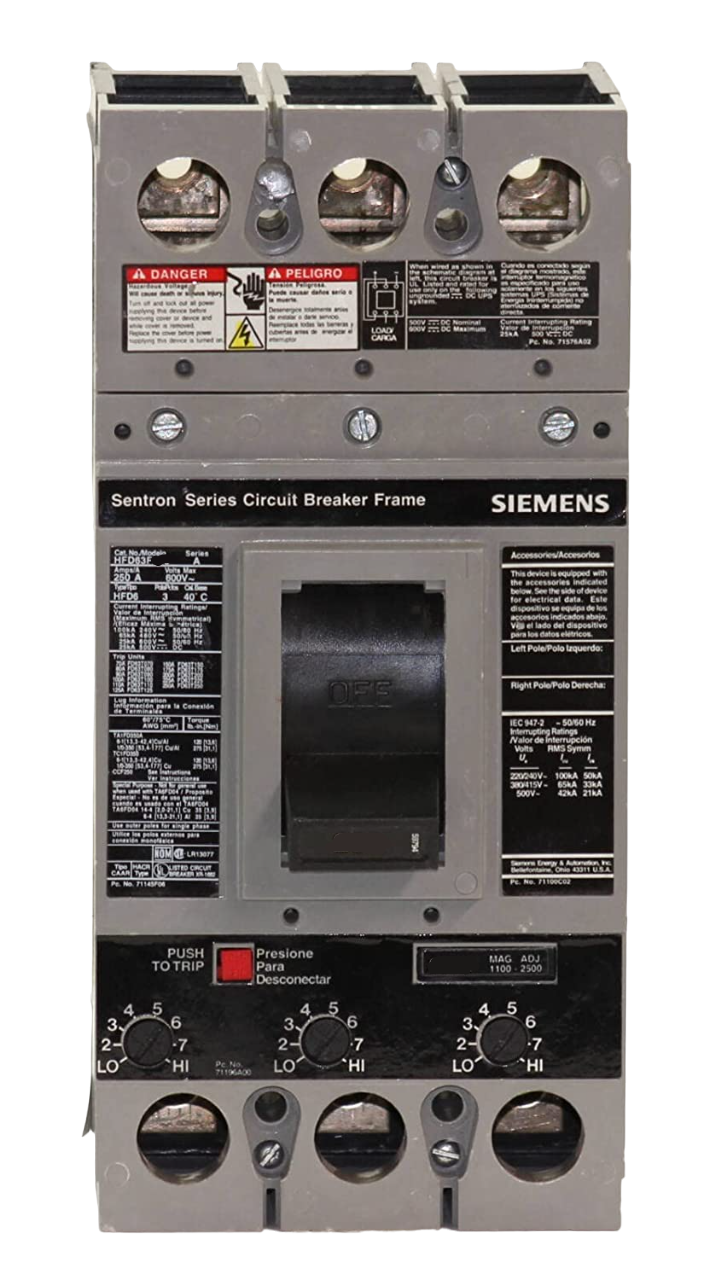

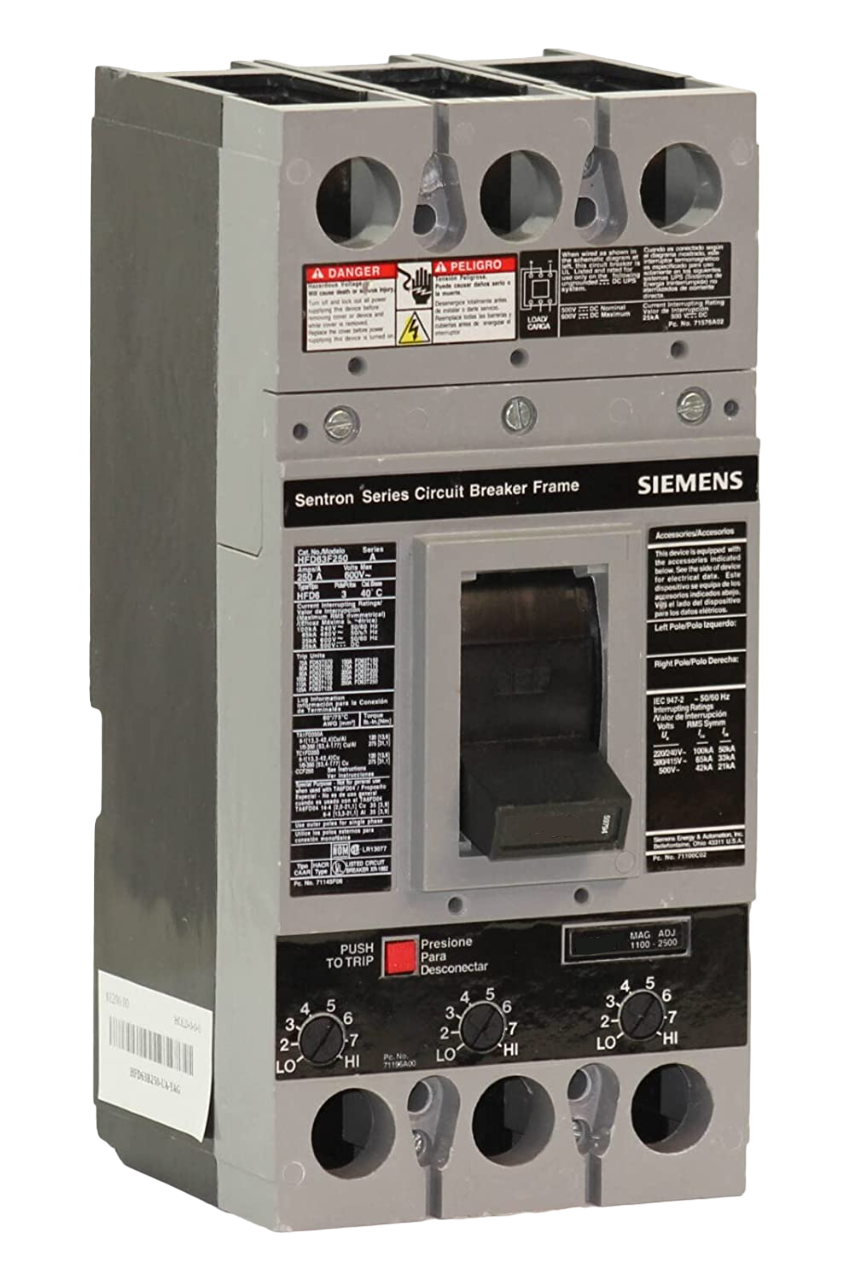

HFXD63B090 - Siemens 3-pole molded case circuit breaker rated at 90A and 600VAC with thermal magnetic trip unit.The HFXD63B090 features FD frame construction for high interrupting capacity, including 65kA at 480VAC and 100kA at 240VAC, with line and load lug terminals in a compact 4.5in W x 5.25in D x 9.5in H size.
- Part Number: HFXD63B090
- Manufacturer: Siemens
- Amperage: 90A at 40C
- Voltage: 600VAC / 500VDC
- Poles: 3
- Frame: FD / HFD6
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 65kA@480VAC, 100kA@240VAC, 25kA@600VAC
- Mounting: Bolt-On
- Terminals: Line Lug / Load Lug
- Type: Molded Case
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: HFXD63B090
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFXD
- Voltage : 600 AC
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643318441
- GTIN : 00783643318441
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 7.5
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
