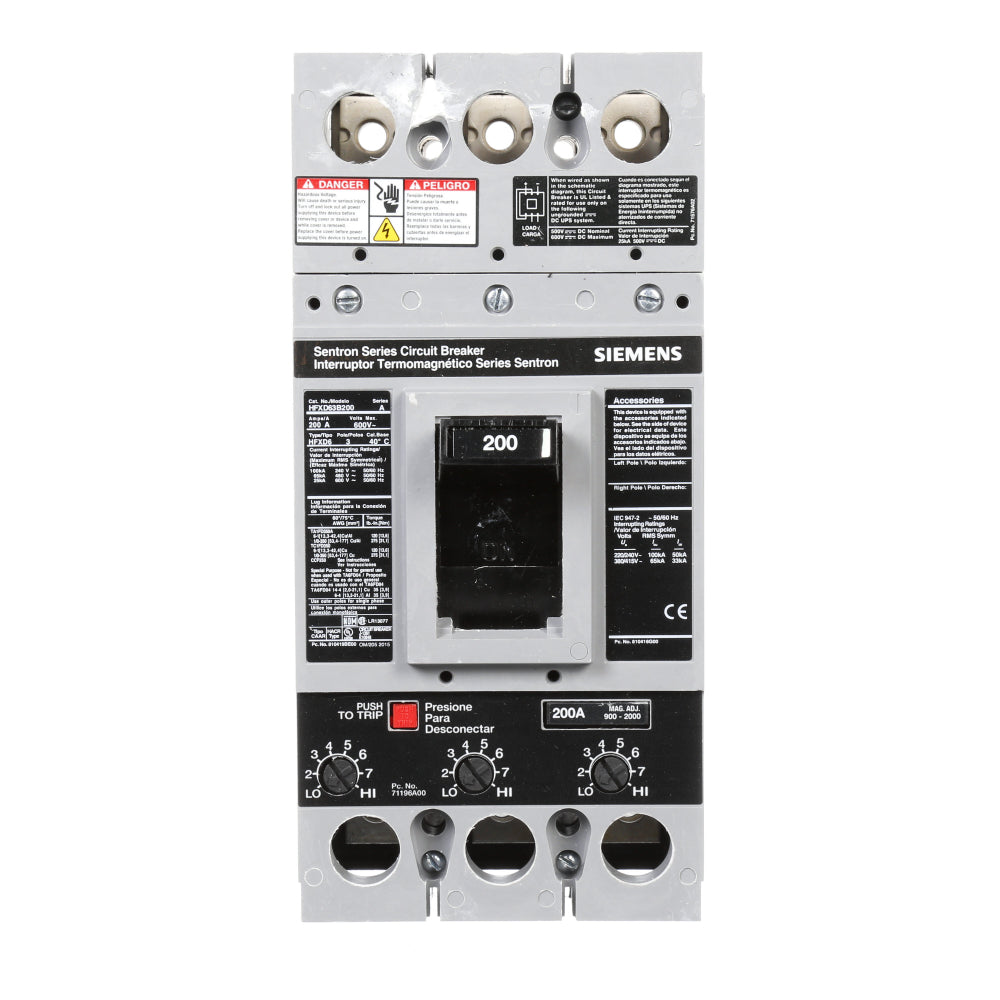

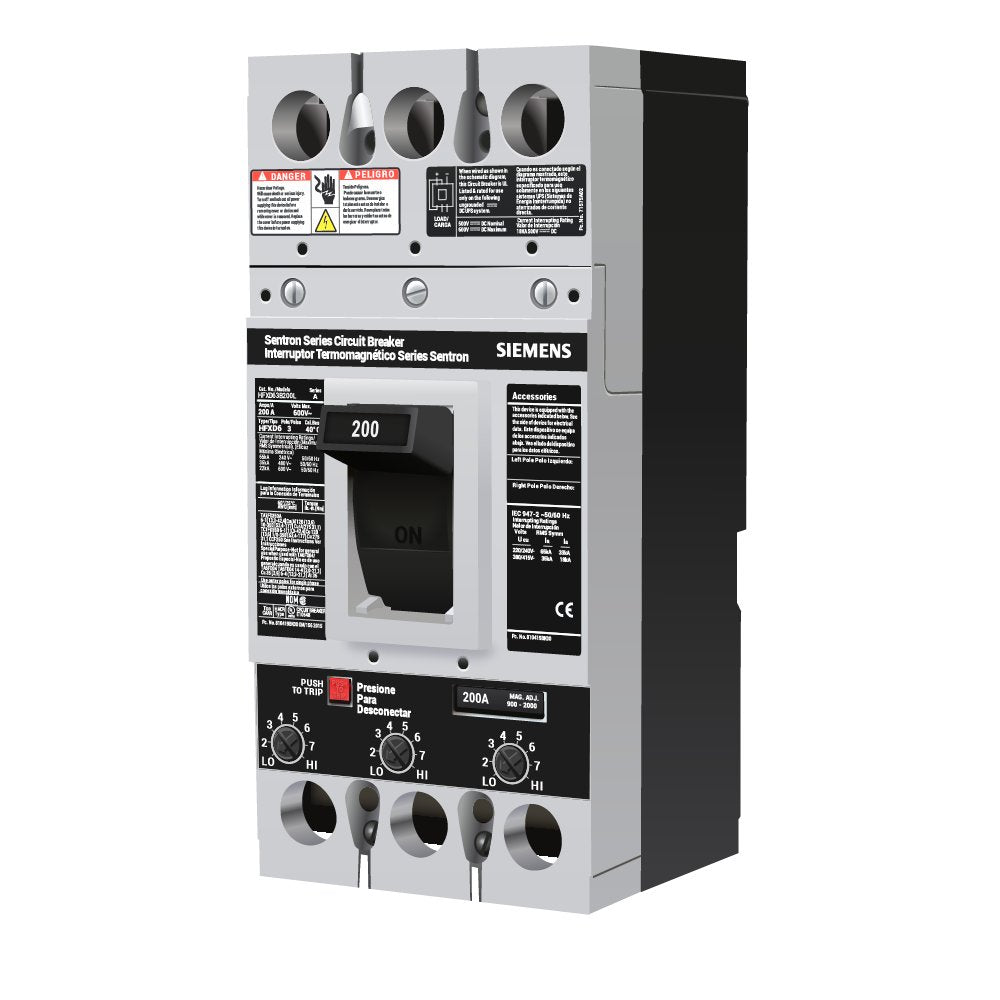

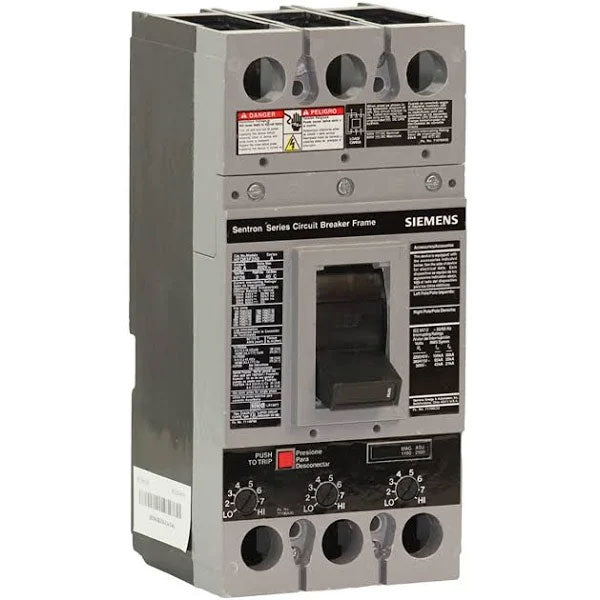

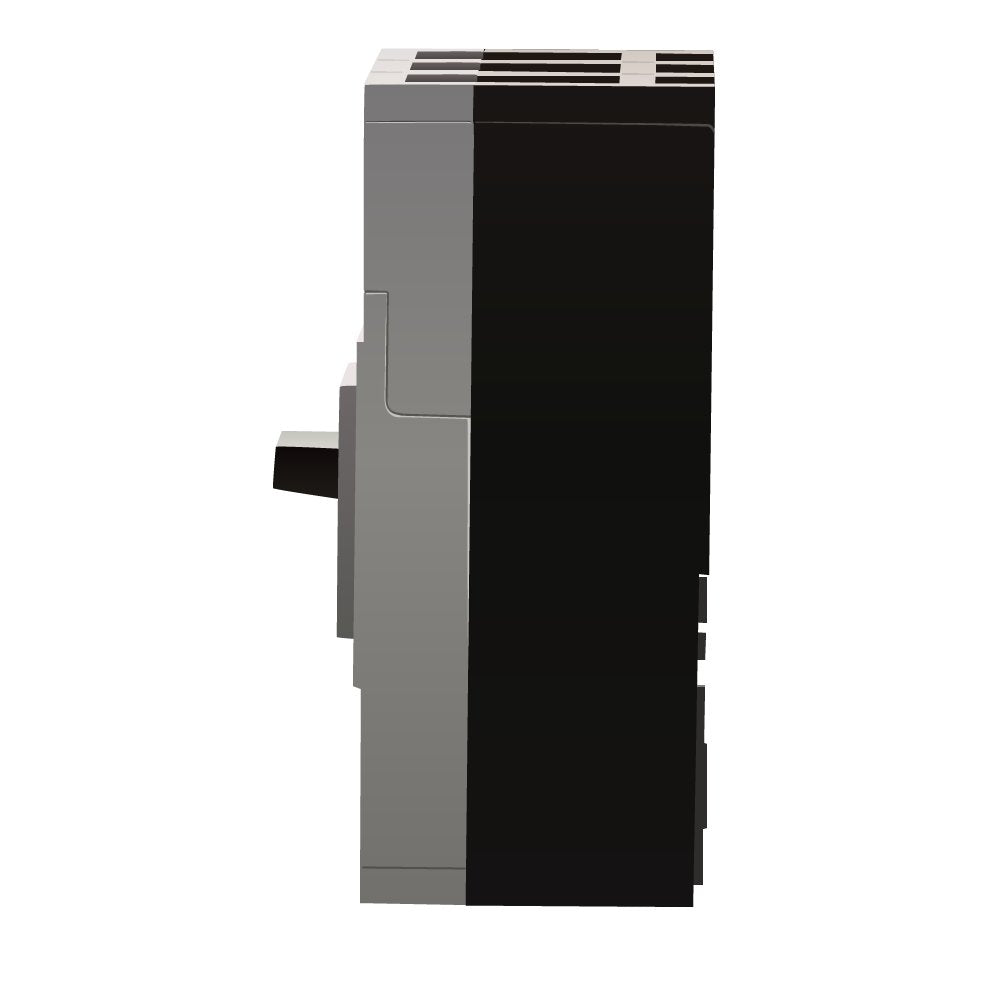

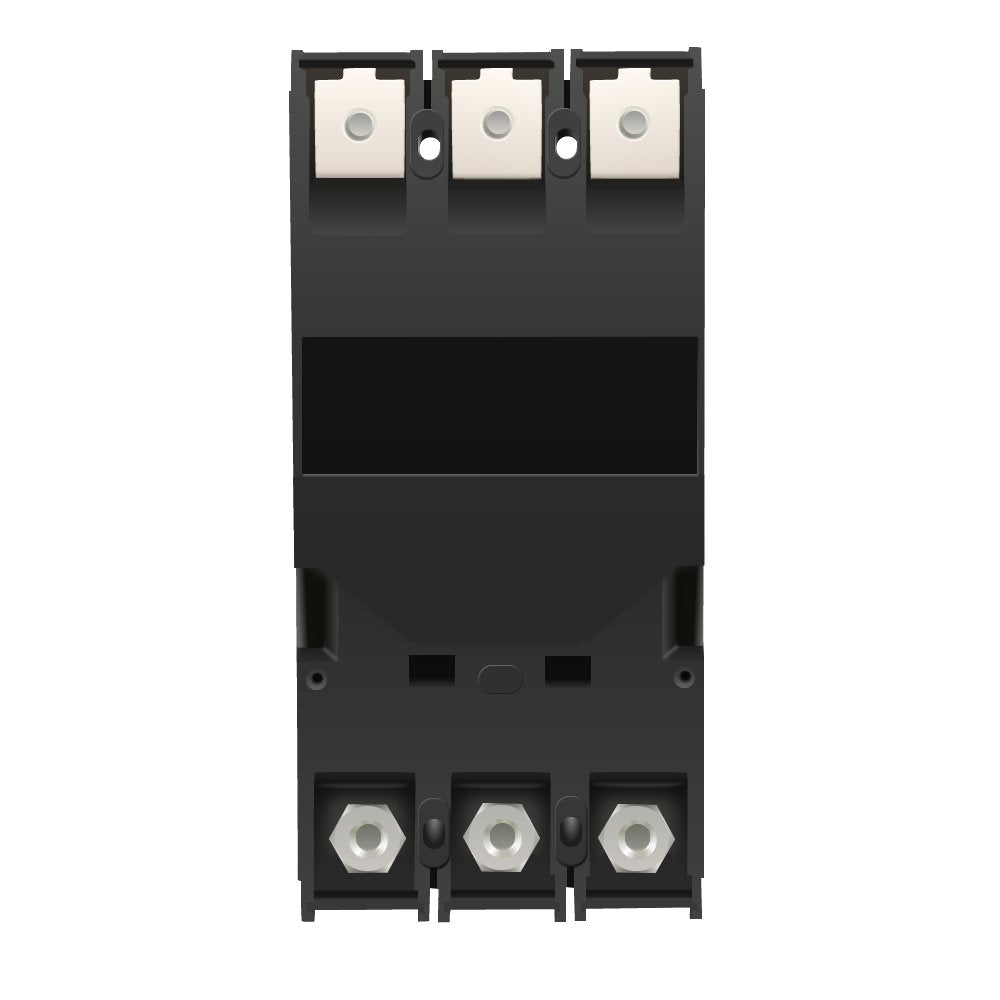

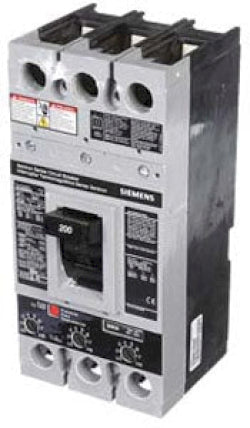

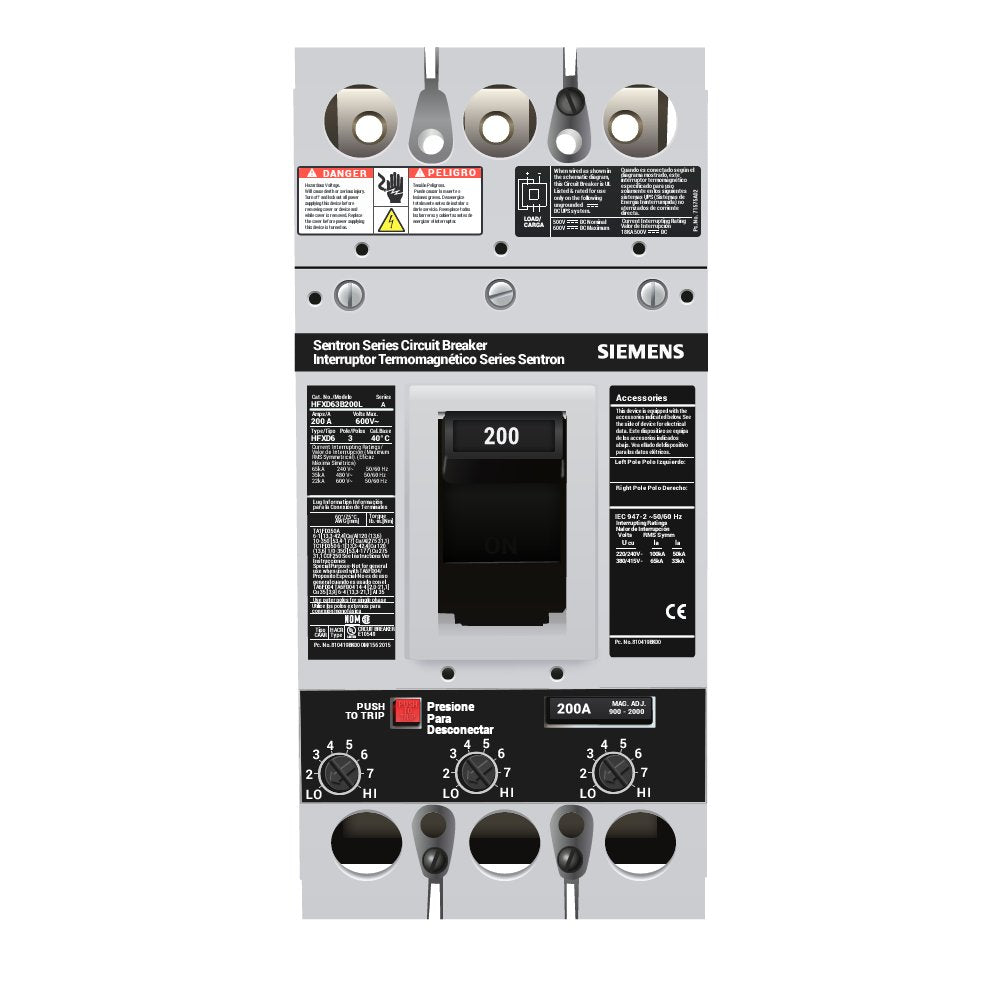

HFXD63B200 - Siemens 200A 600VAC 3-Pole Thermal Magnetic Molded Case Circuit Breaker

HFXD63B200

HFXD63B200 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 200 amps and 600 VAC operation.This Siemens Sentron series breaker features a 25 kA interrupting rating at 600V and 65 kA at 480V, with bolt-on mounting and long time plus instantaneous trip functions. It is designed for reliable protection in low voltage electrical distribution systems and complies with UL and IEC certifications.

• Amperage: 200A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 25 kA at 600V, 65 kA at 480V
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Series/Frame: Sentron FD Frame
• Certifications: UL, IEC, RoHS
• Dimensions (W x H x D): 4.5 x 9.5 x 4.0 inches
• Temperature Rating: 40 ¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HFXD63B200
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFXD
• Voltage : 600 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318496
• GTIN : 00783643318496
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.501
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
