Description
A02FD64

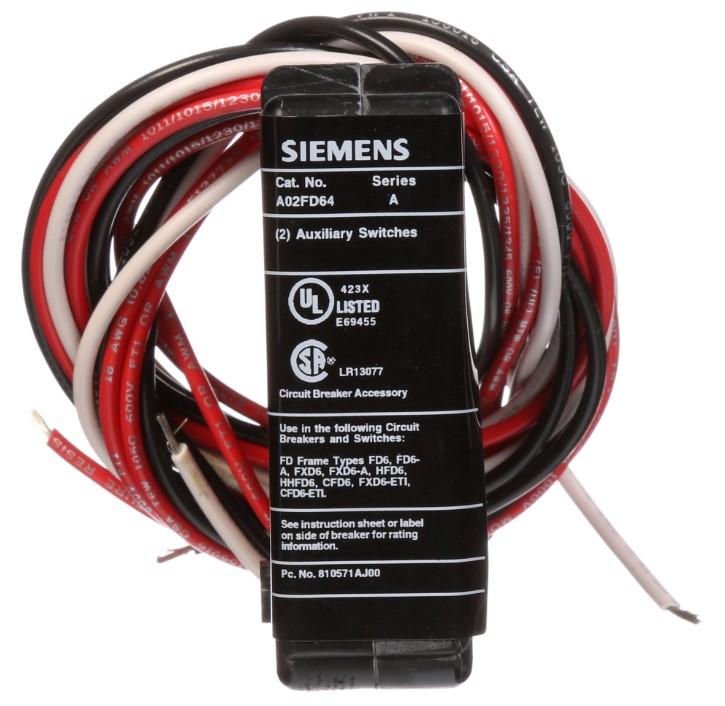

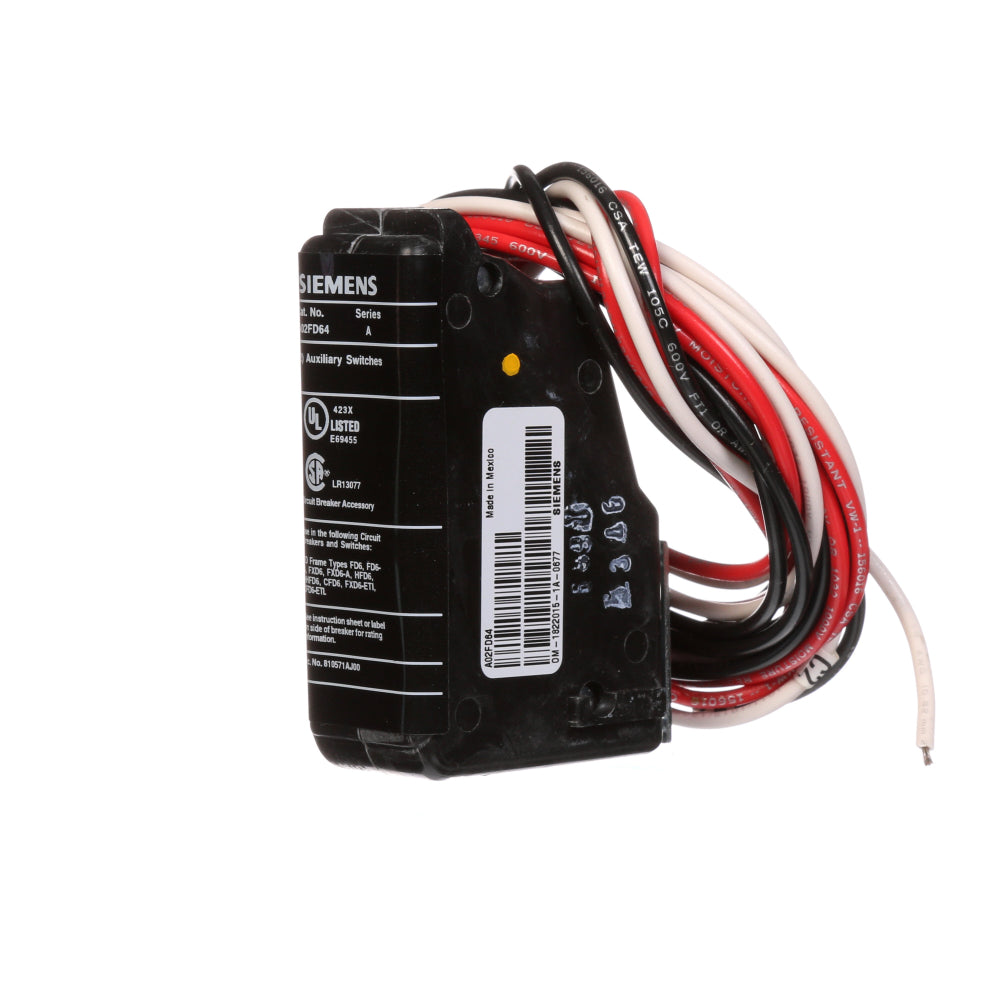

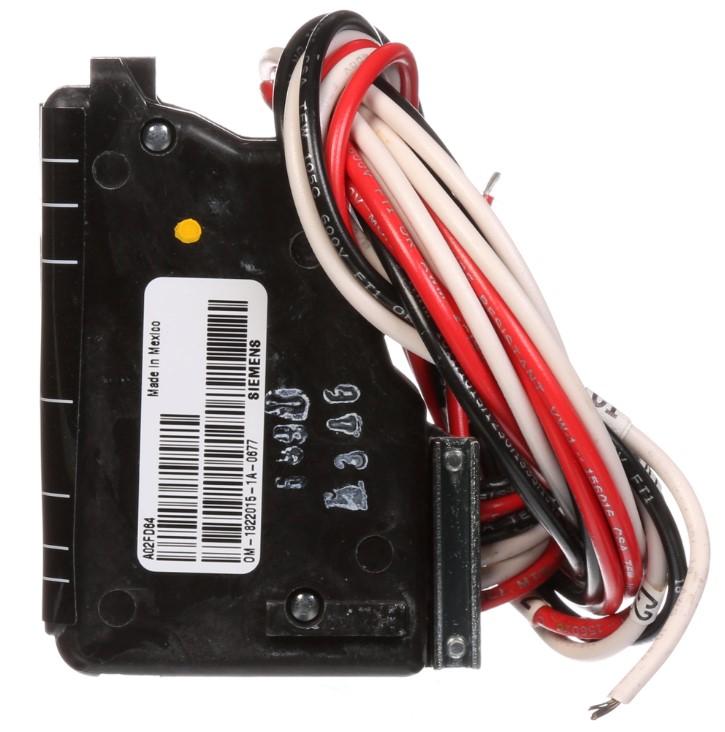

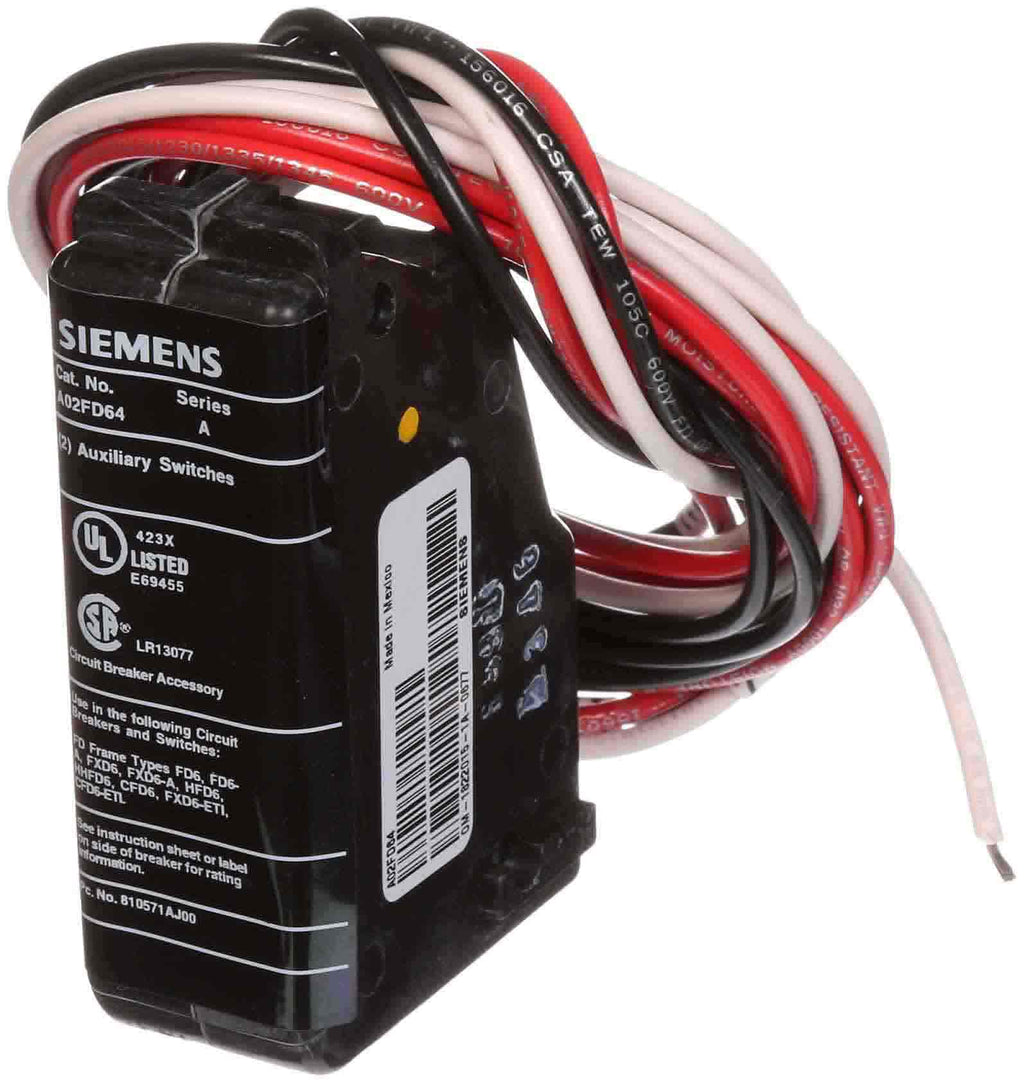

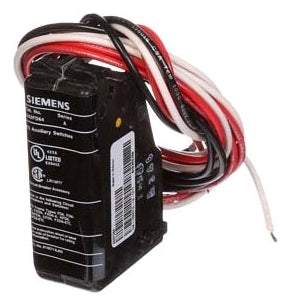

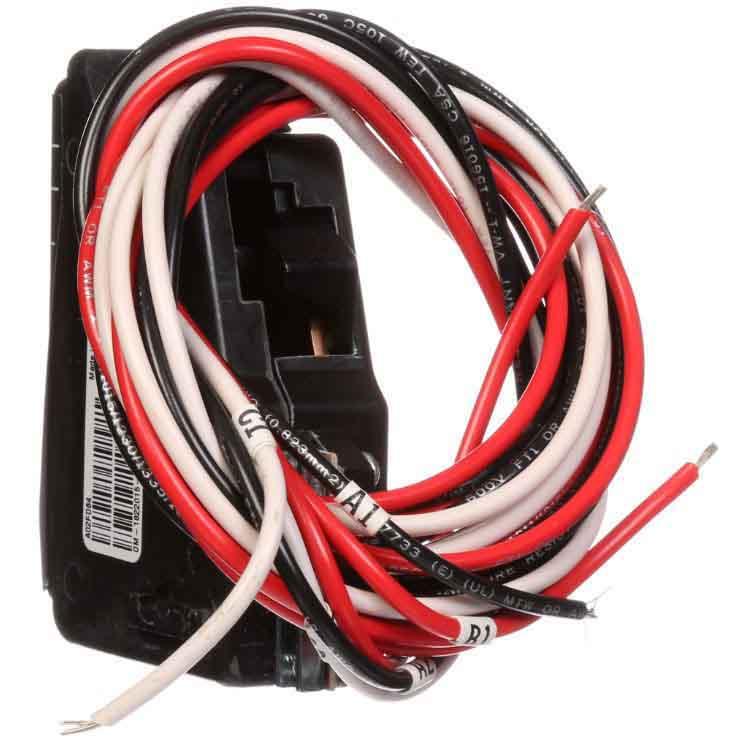

A02FD64 is a Siemens auxiliary switch designed for use with 250A FD, FFC, and FFF frame molded case circuit breakers. It features a 2NO-2NC contact configuration and supports 480V AC and 250V DC operation.Technical Description: This Siemens Sentron auxiliary switch provides reliable circuit breaker status signaling with a 2 normally open (NO) and 2 normally closed (NC) contact arrangement. It is compatible with Siemens 250A FD frame circuit breakers and operates at 50/60 Hz frequency with an ambient temperature rating of 40°C. The switch dimensions are 4 in L x 5 in W x 5 in H, and it meets UL and CSA certification standards.
- Contact Configuration: 2NO-2NC
- Voltage Rating: 480V AC / 250V DC
- Compatible Frame: 250A FD, FFC, FFF
- Frequency: 50/60 Hz
- Operating Temperature: 40°C
- Dimensions: 4 in L x 5 in W x 5 in H
- Certifications: UL, CSA
- Country of Origin: Mexico
- Manufacturer: Siemens
Specifications
- Part Number: A02FD64
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Sentron Series
- Type : Sentron
- Voltage : 480VDC
- Configuration : 1NO, 1NC
- Compatible Frames : FD, HFD, HHFD, FXD, HFXD, HHFXD, CFD, FM6B, FMKB
Product Data
- UPC : 783643219007
- GTIN : 00783643219007
- Country of Origin : Mexico
- Weight : 0.45
