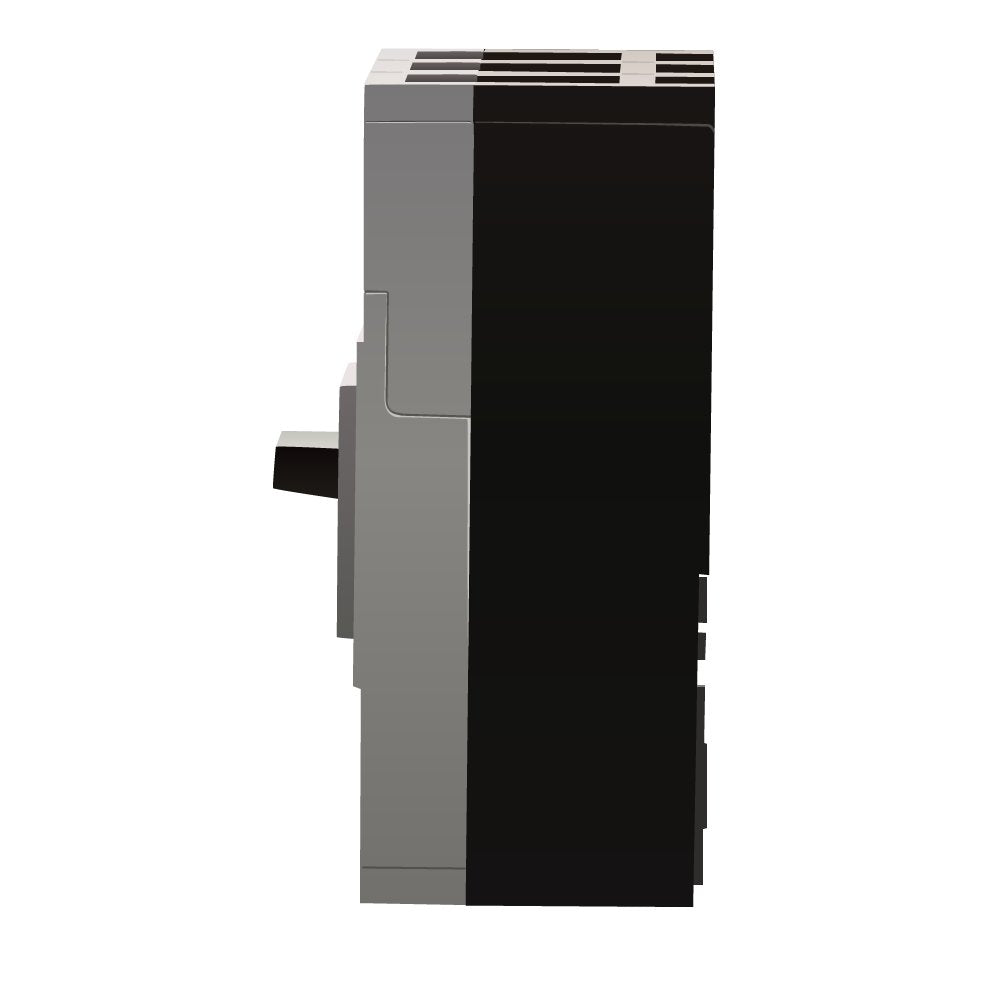

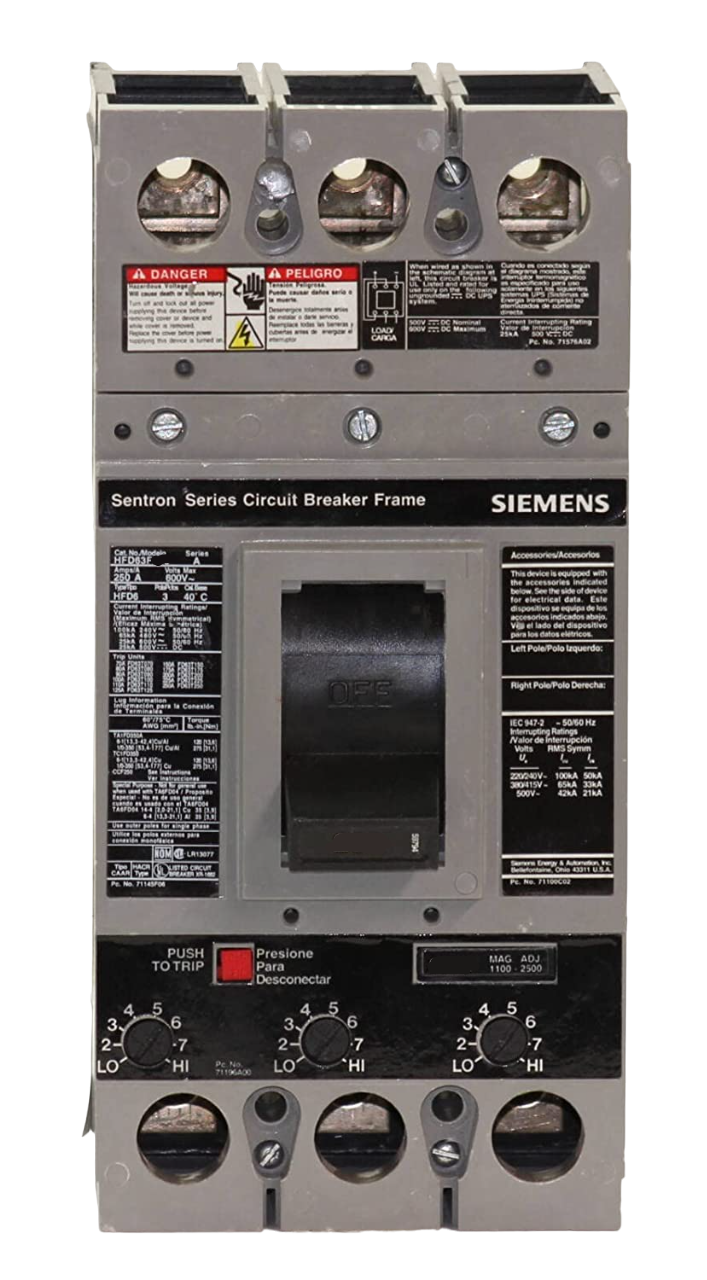

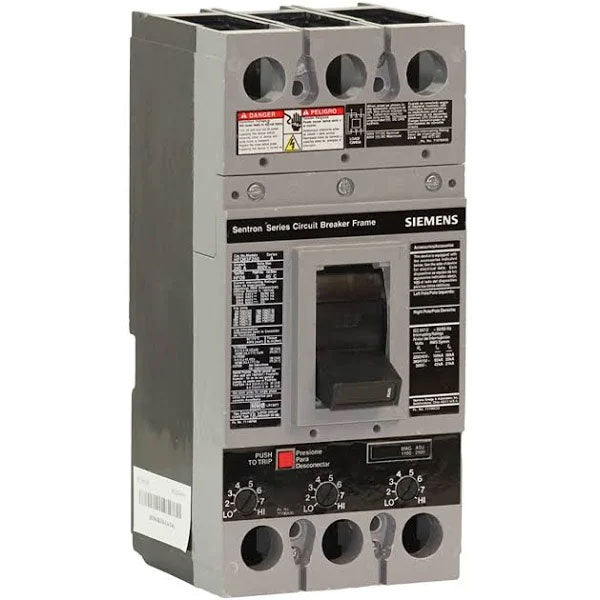

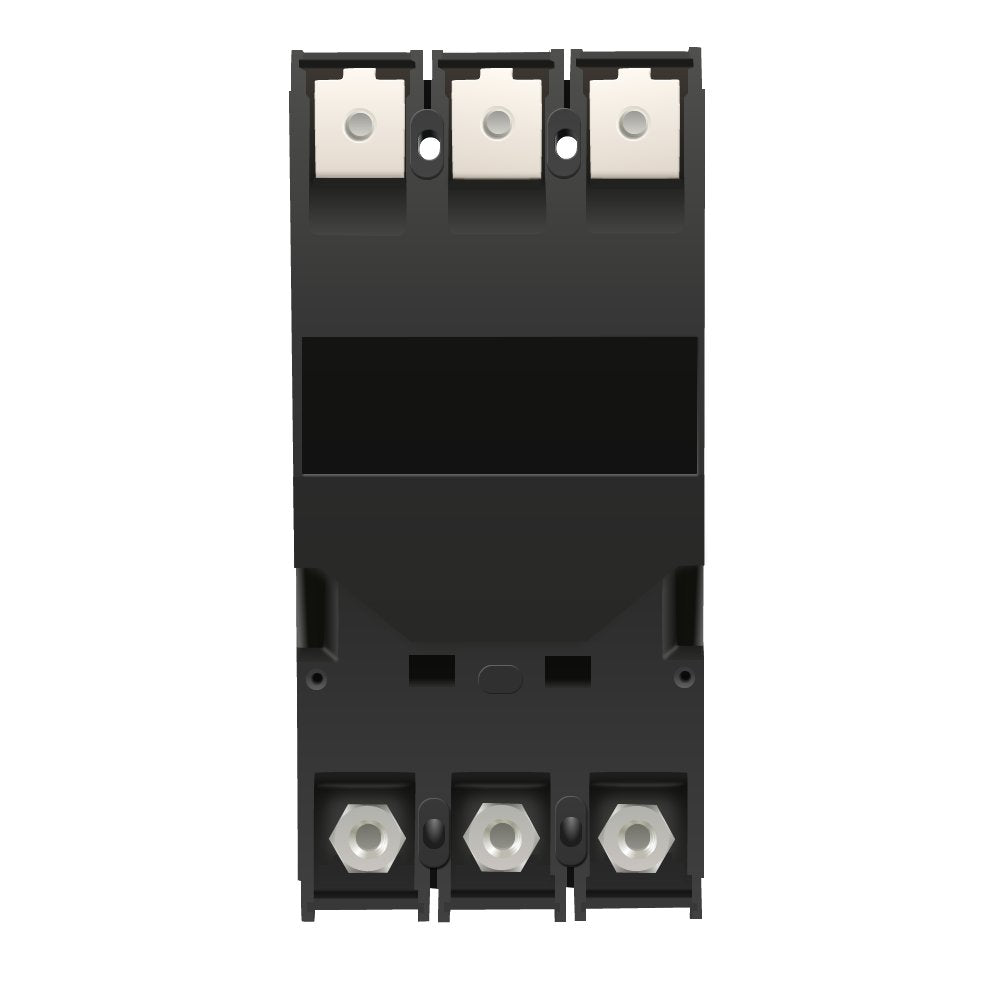

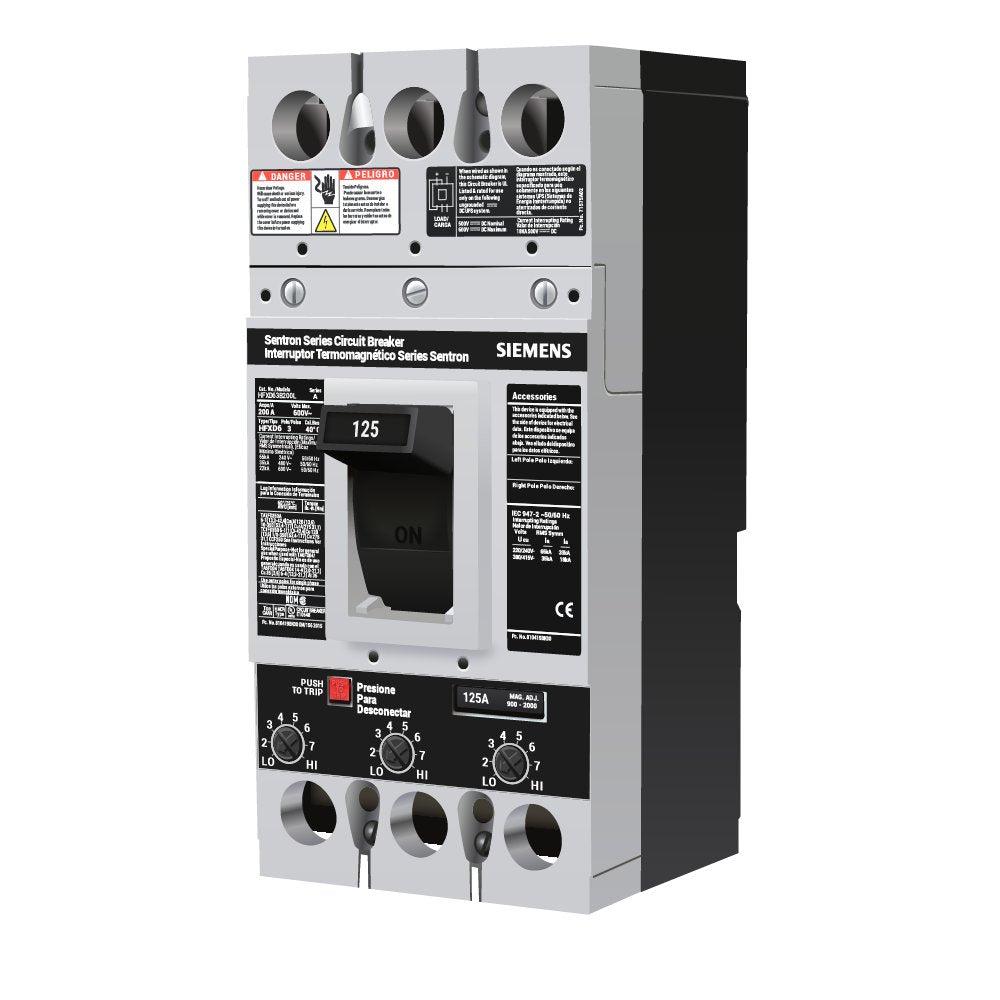

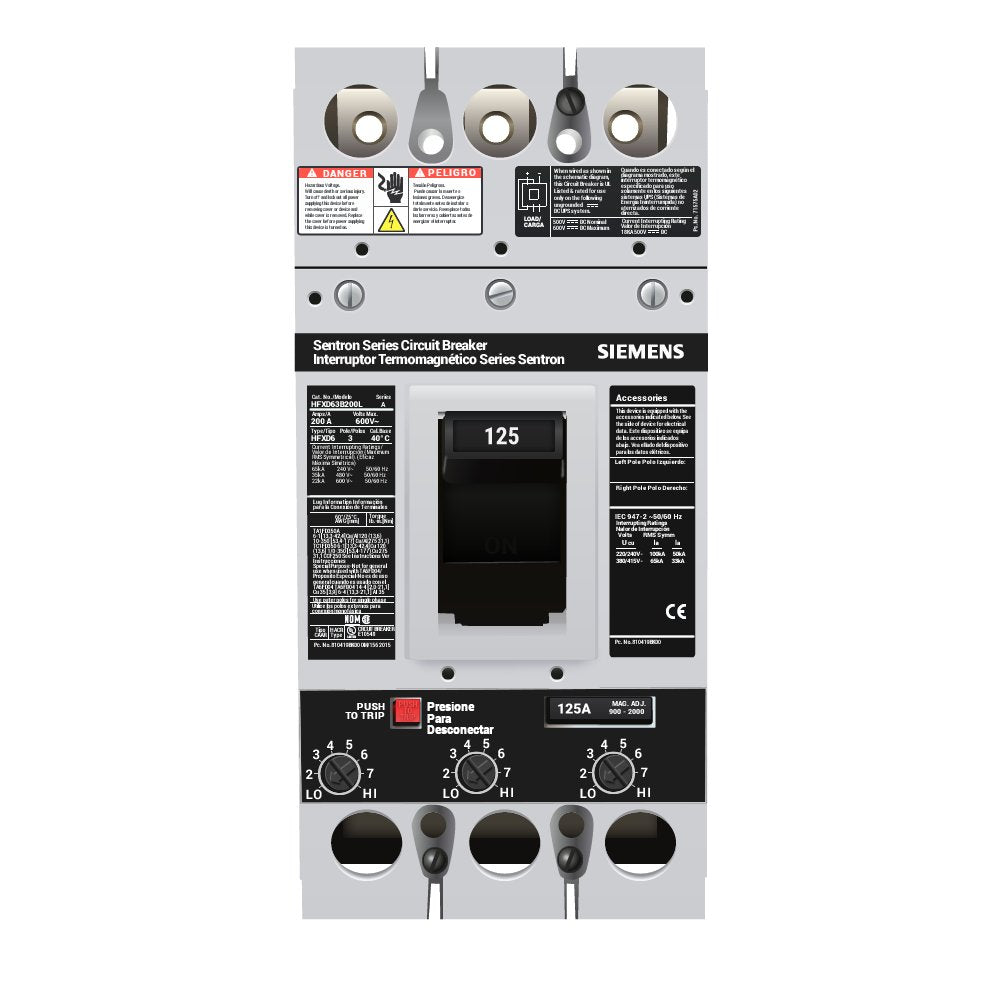

HFXD63B125L - Siemens 125 Amp 600V 3 Pole Molded Case Circuit Breaker Thermal Magnetic

HFXD63B125L

HFXD63B125L is a Siemens 3 pole molded case circuit breaker rated for 125 amps and 600 volts AC, featuring thermal magnetic trip technology.This Siemens HFXD series breaker provides reliable overcurrent protection with a thermal magnetic trip unit, suitable for industrial and commercial applications. It supports feed-thru connection and includes lug-type line side terminals. The breaker has an interrupt rating of up to 100kA at 240VAC and 65kA at 480VAC, ensuring high fault current interruption capability. It is designed for panel mounting and complies with industry certifications.

Key Specifications
• Amperage: 125 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC
• Series/Frame: HFXD
• Trip Unit: Thermal Magnetic
• Connection Type: Feed-Thru with Lug Terminals
• Certifications: Industry Standard Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Line and load side lugs included (TA1FD350A)




Specifications

• Part Number: HFXD63B125L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFXD
• Voltage : 600 AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643084490
• GTIN : 00783643084490
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.017
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, AL
