Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFD1015L

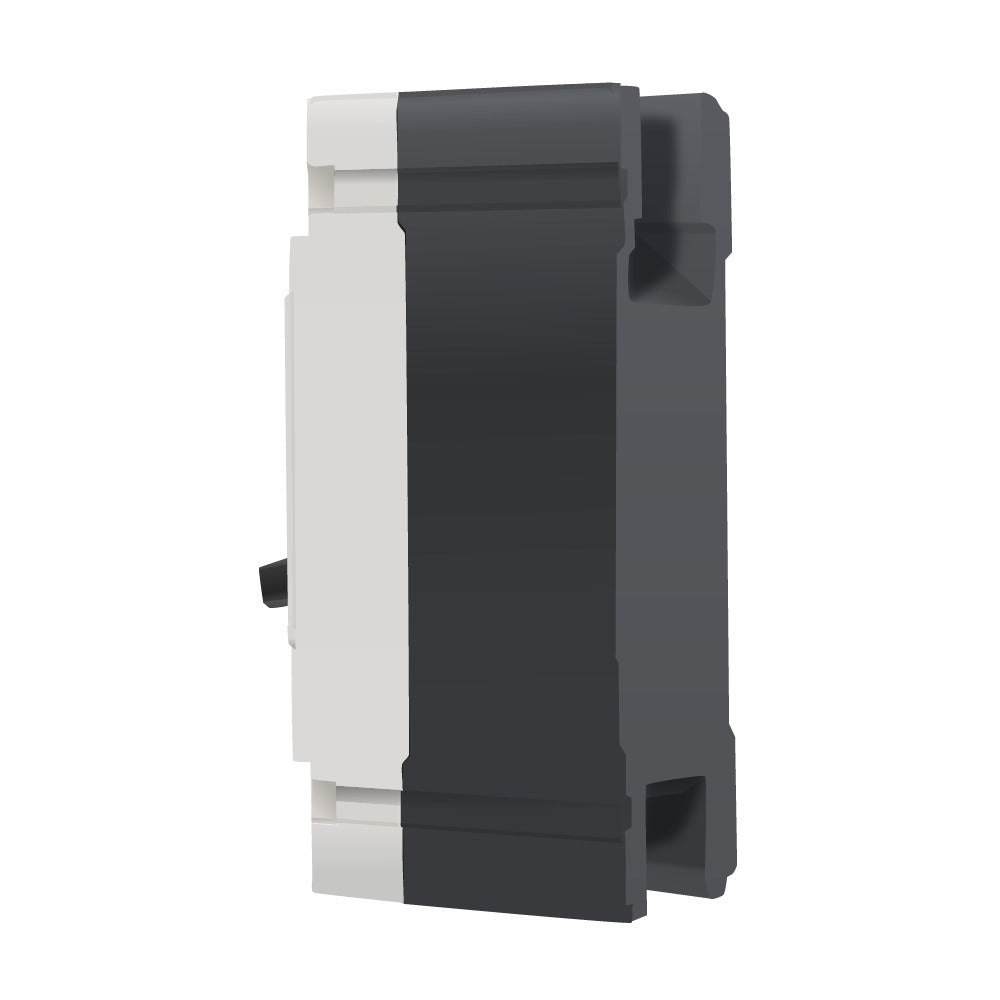

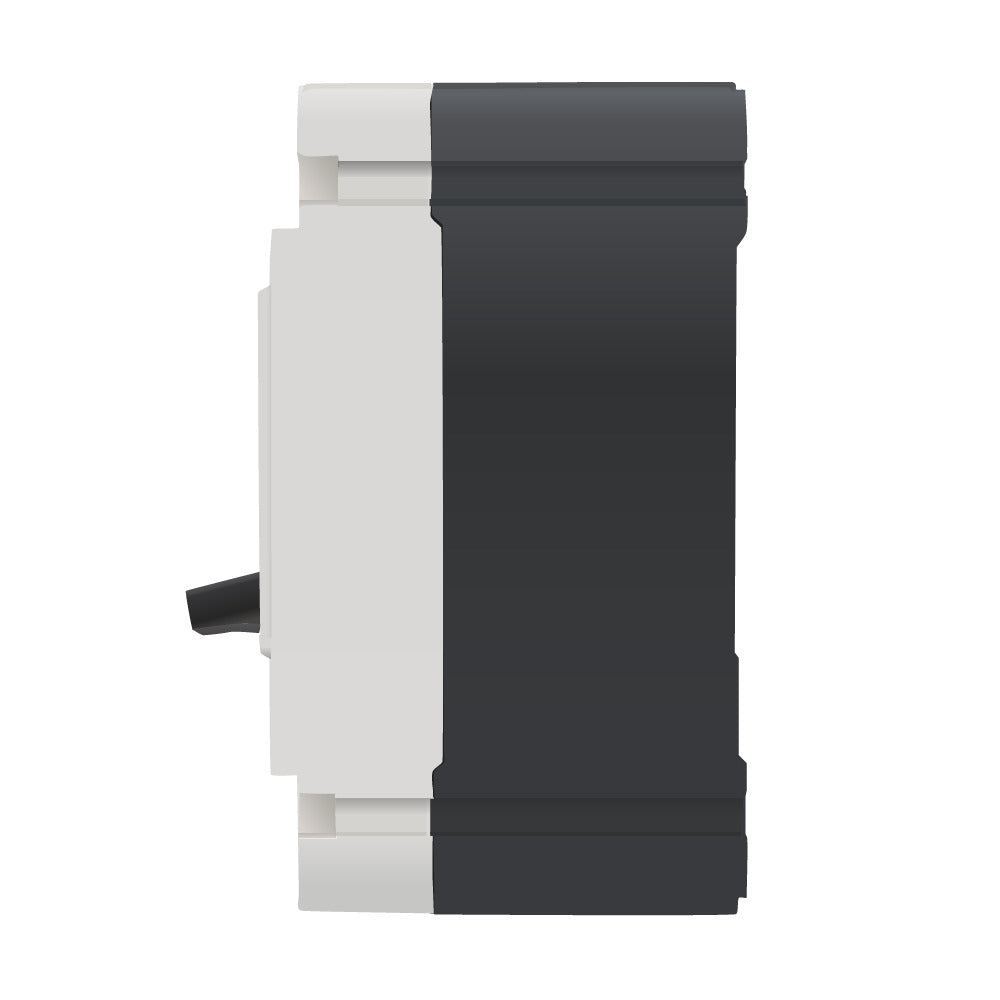

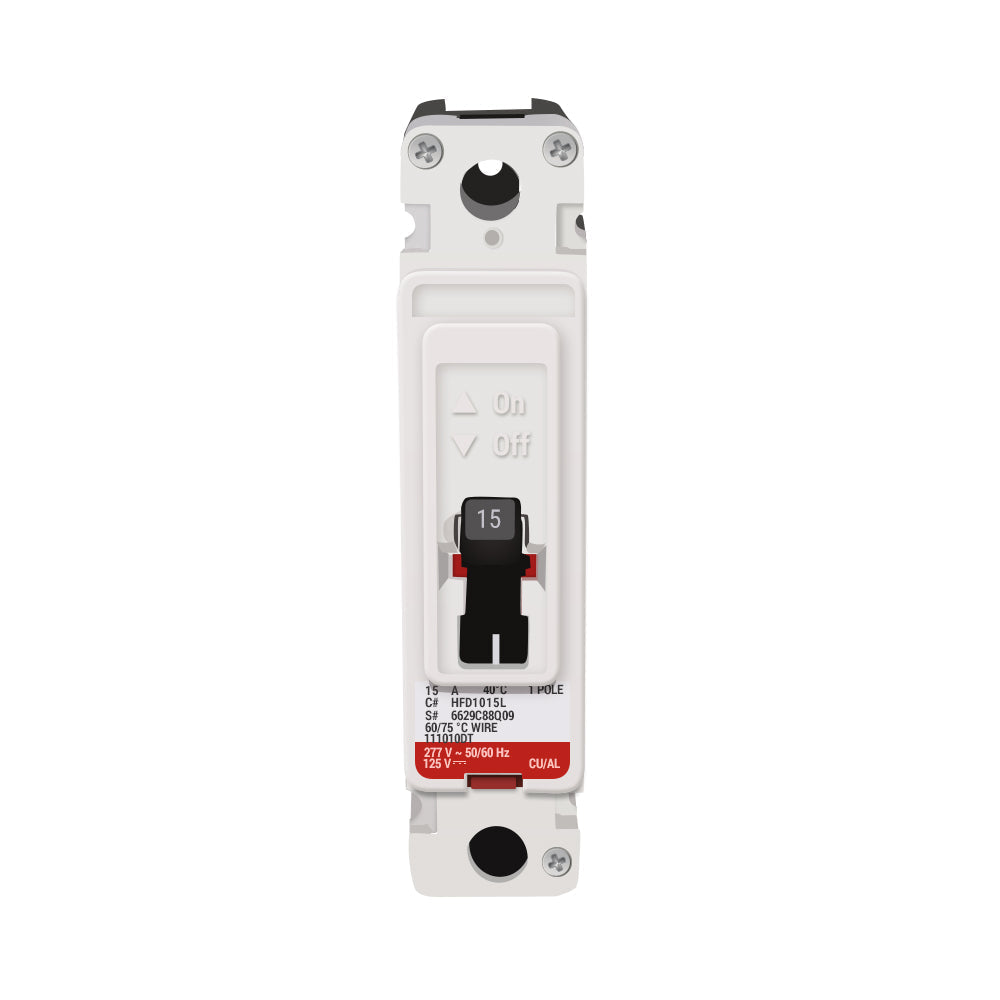

HFD1015L - Eaton F-frame molded case circuit breaker with fixed thermal-magnetic trip, rated at 15A, single pole, 347VAC.
This complete HFD series breaker features line and load terminals, feed-thru connection, and patented high-speed blow-open contact design for superior arc interruption performance. It supports 50/60 Hz operation with 100 kAIC interrupt rating at 240VAC and 65 kAIC at 480VAC, ideal for industrial and commercial applications.
Key Specifications
- Amperage: 15A
- Poles: 1 Pole
- Voltage: 347VAC / 125VDC
- Frame: F-Frame
- Series: HFD
- Trip Unit: Fixed Thermal / Fixed Magnetic (LI)
- Interrupt Rating: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC
- Mounting: Bolt-On
- Connection: Line and Load (Feed-Thru)
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HFD1015L
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 277 AC
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 65kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679175514
- GTIN : 00786679175514
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 2
- Certification : UL Listed
