HF366JA - Siemens 600A 600VAC 3-Pole Fusible Heavy Duty Safety Switch NEMA 12

HF366JA

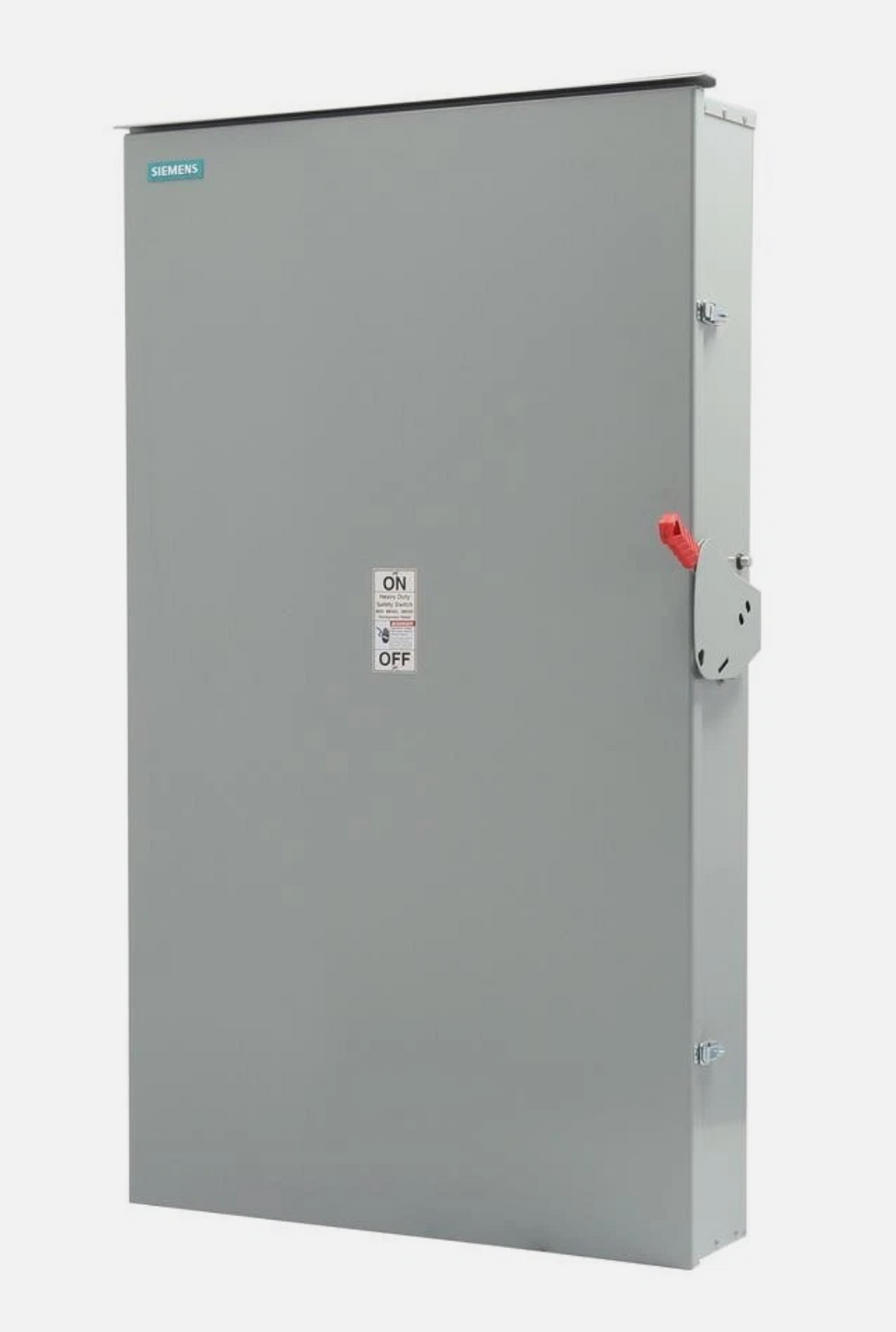

HF366JA - Siemens Type VBII fusible heavy duty safety switch, 600A, 3 pole, 600V AC, NEMA 12 steel enclosure.

This Siemens HF366JA is a single throw fusible heavy duty safety switch rated for 600 amps and 600 volts AC, featuring 3 poles and 3 wires in a NEMA 12 surface mount steel enclosure with mechanical lugs. It includes quick-make quick-break mechanism, visible blades, arc chutes, red handle grip for hook stick operation, defeatable cover interlock, and padlockable handle accepting up to three 5/16 inch hasps. Operating temperature range is -29 to 85 degrees C, with tangential knockouts and informative labeling.

Key Specifications:

• Manufacturer: Siemens
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Wires: 3
• Mounting Type: Surface
• Enclosure Type: NEMA 12
• Enclosure Material: Steel
• Terminal Type: Mechanical Lugs
• Type: Fusible Heavy Duty Single Throw
• Series: VBII
• Temperature Range: -29 to 85 degrees C
• Certifications: UL 98

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF366JA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 887621872687
• GTIN : 00887621872687
• Country of Origin : Mexico
• Dimensions : 6.693 x 22.047 x 45.276 inch
• Weight : 99.803 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
