Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF225NRA

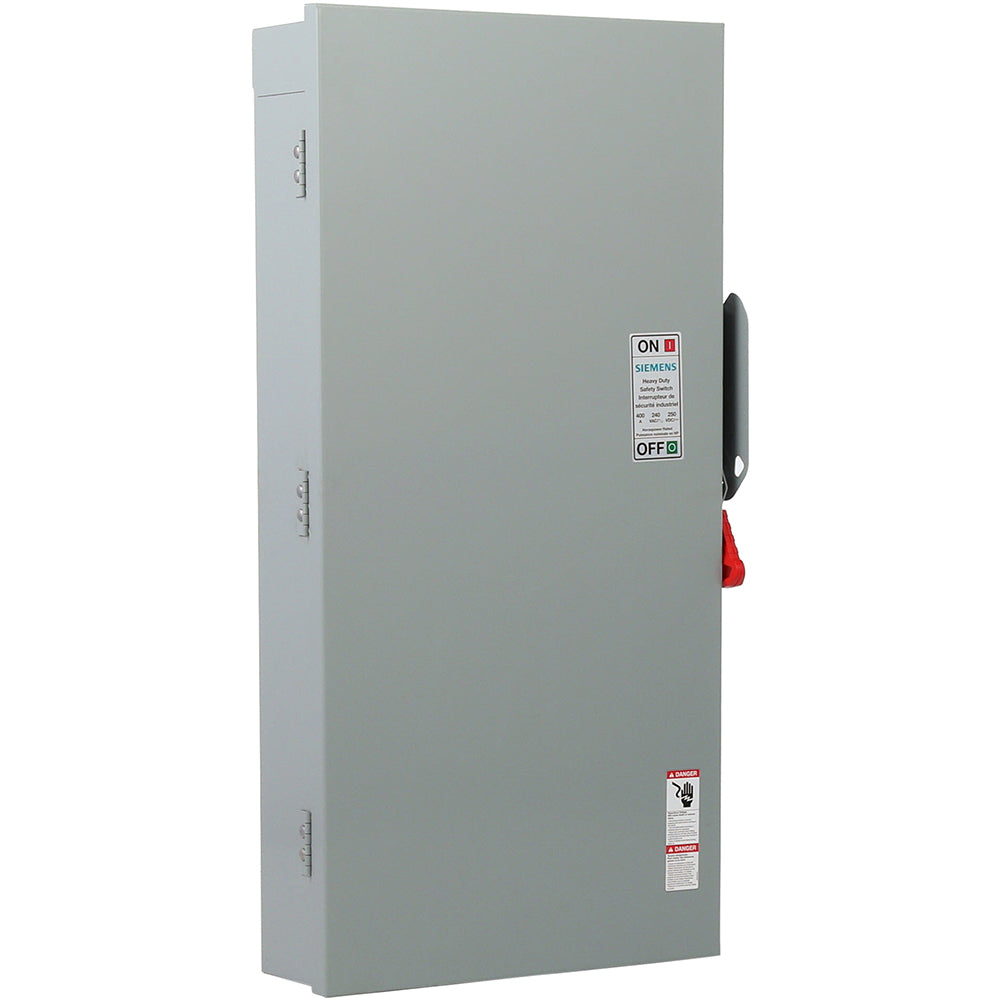

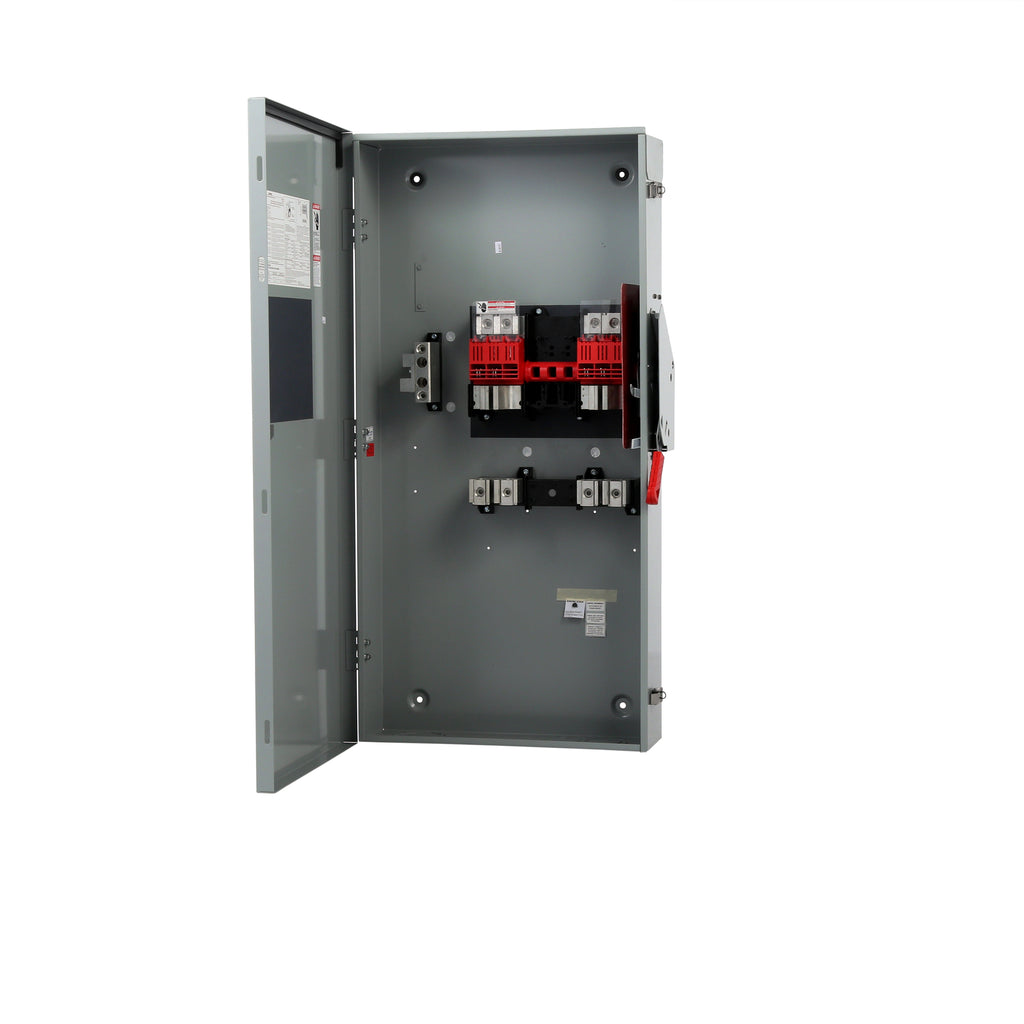

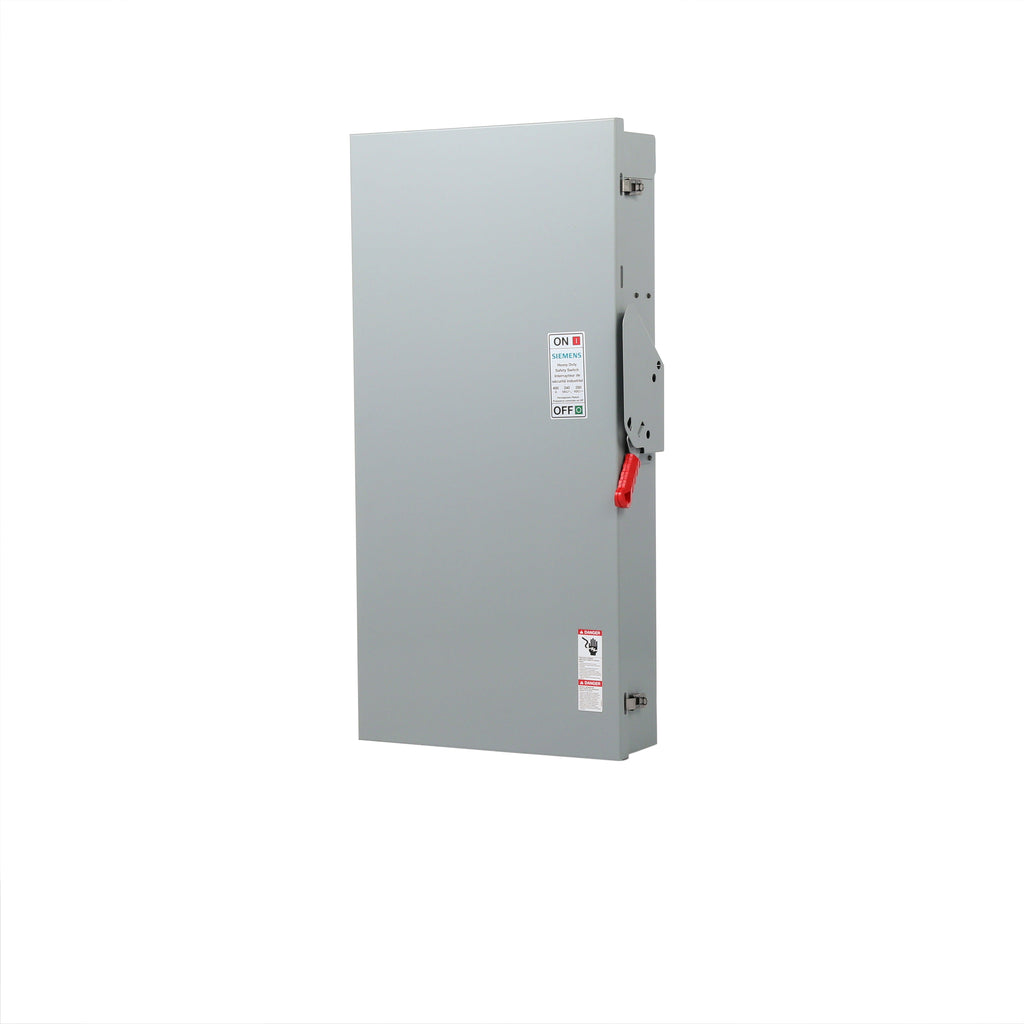

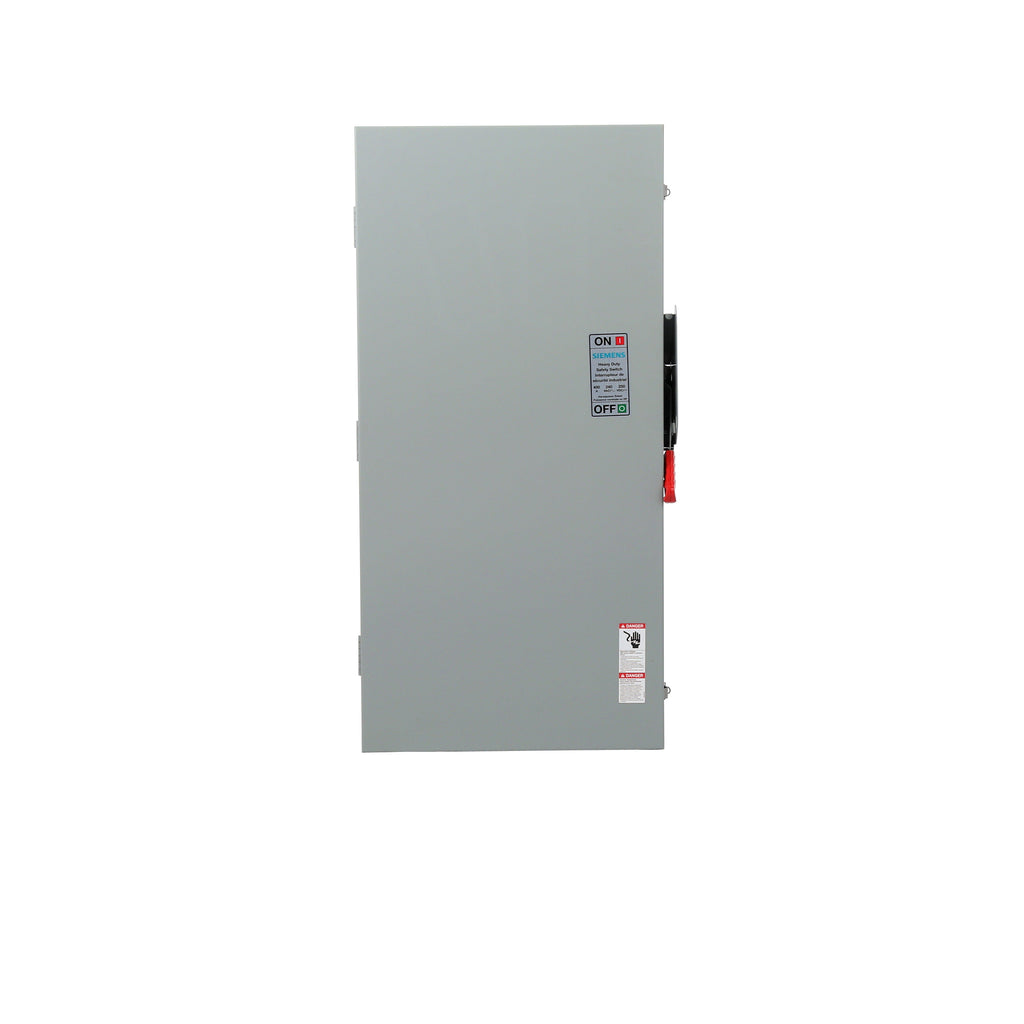

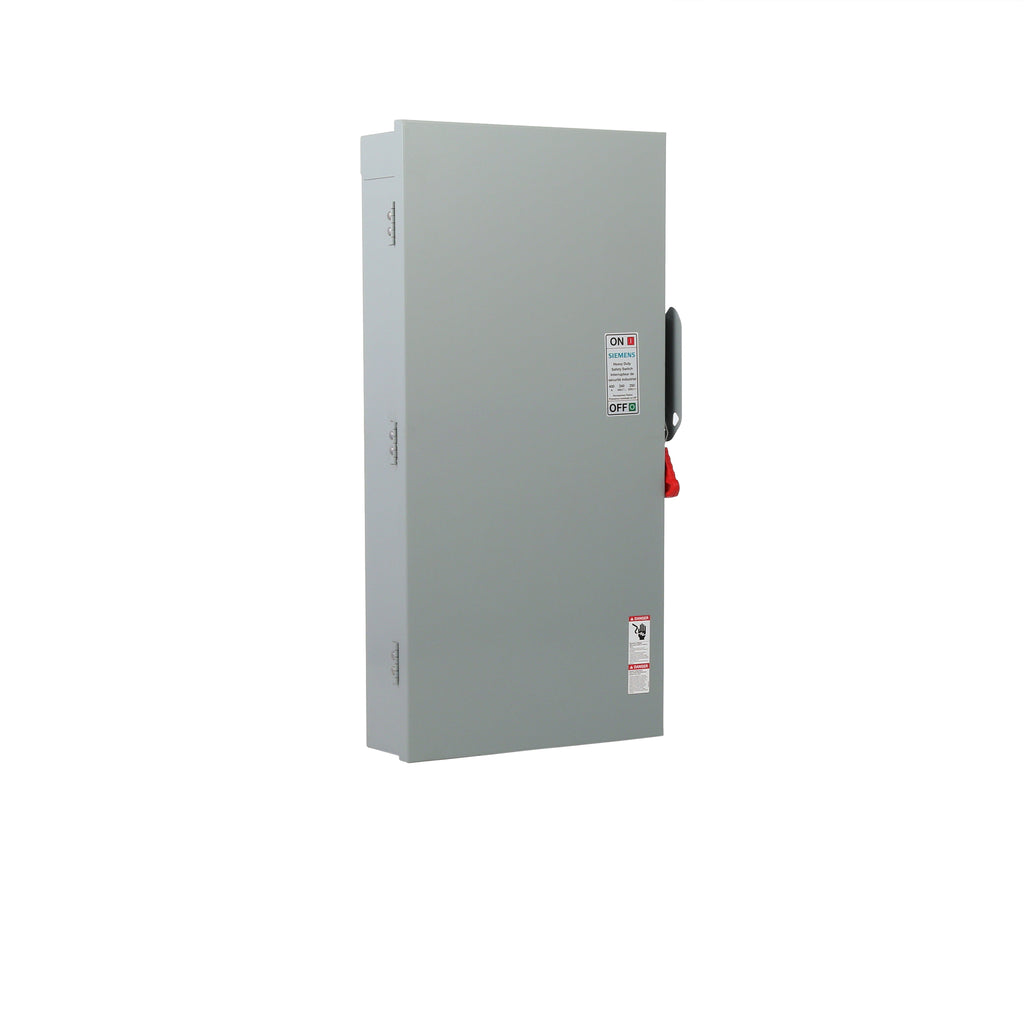

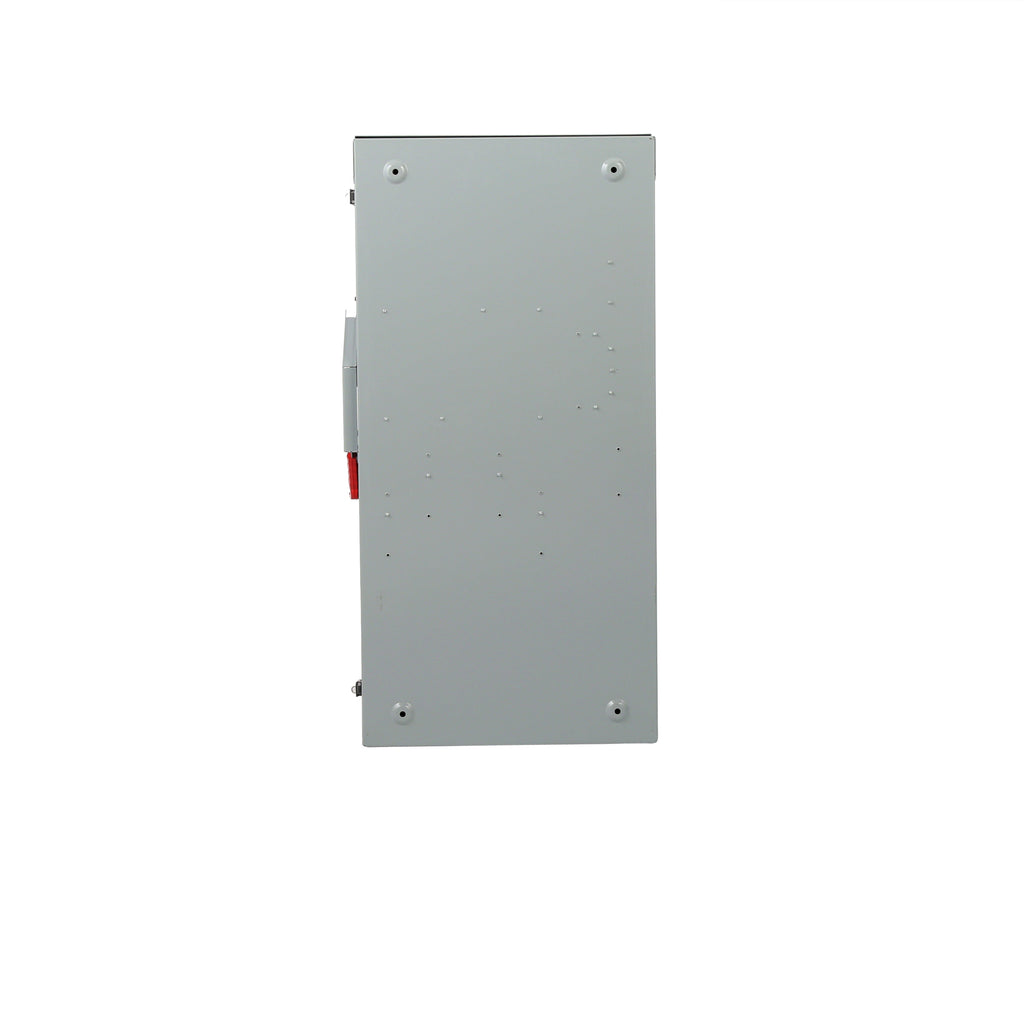

HF225NRA - Siemens Heavy Duty Fusible Safety Switch, 400 Amp, 240 VAC, 2-pole, NEMA 3R outdoor enclosure.
This Siemens HF225NRA is a fusible heavy duty safety switch rated for 400A at 240VAC with 2 poles, featuring a NEMA 3R enclosure for outdoor surface mounting and solid neutral. It provides quick-make/quick-break operation, visible blades, and accepts Class H fuses standard, with options for Class R or J conversion. UL98 listed for service entrance and load disconnect applications.
Key Specifications
- Amperage: 400A
- Voltage: 240 VAC
- Poles: 2
- Mounting Type: Surface
- Enclosure: NEMA 3R
- Type: Fusible Heavy Duty Safety Switch
- Neutral: Solid
- Certifications: UL98
- Fastening: Mechanical Lugs
- Actuating Element: Single Throw
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HF225NRA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Amperage Maximum : 400
- Amperage Minimum : 200
- Switch Type : Fusible
Product Data
- UPC : 887621872618
- GTIN : 00887621872618
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 99.803 lb
- Certification : UL listed
