Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
HDP36060U31X

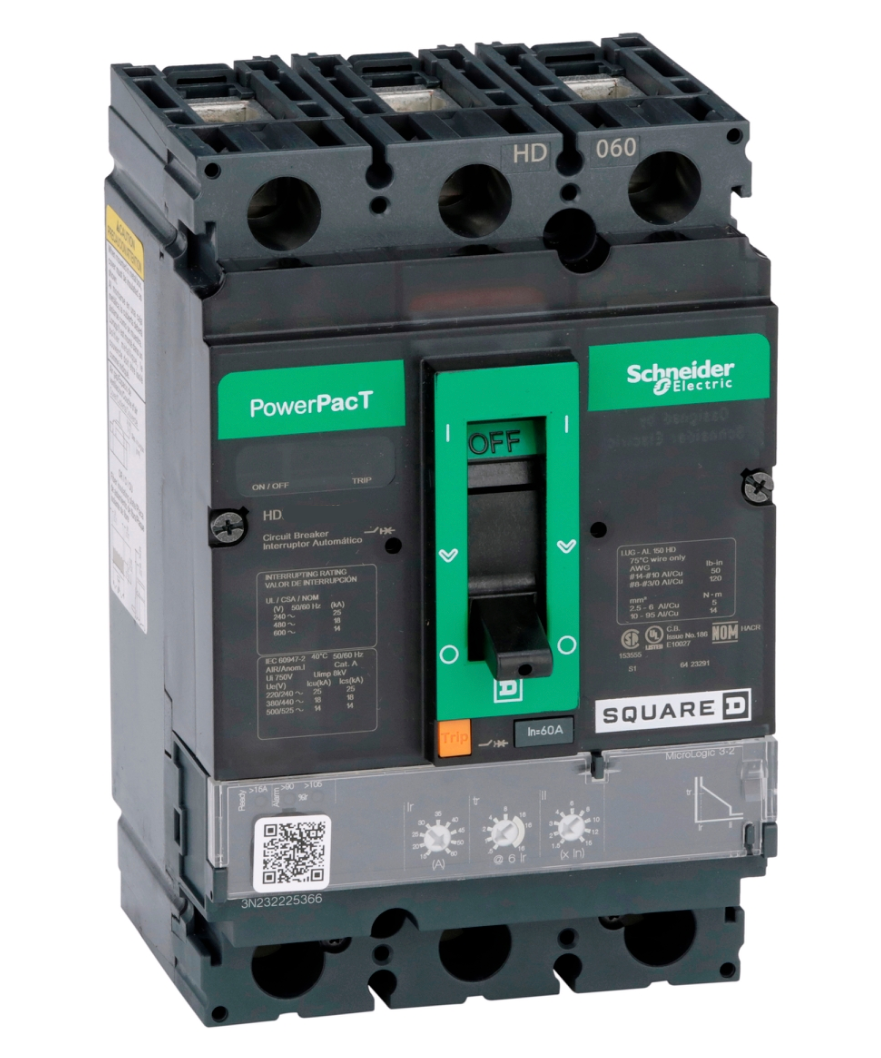

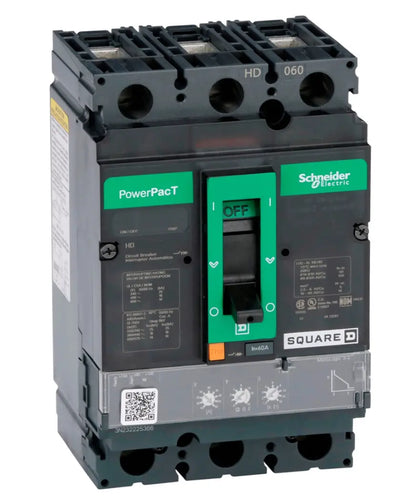

HDP36060U31X is a 60 amp, 600 volt, 3-pole molded case circuit breaker by Square D designed for bolt-on mounting.This Square D HDP36060U31X circuit breaker features a Powerpact H frame with a 3-pole configuration and an interrupt rating of 18kA at 480V. It includes a Micrologic 3.2 trip unit with long-time and instantaneous (LI) trip functions, providing solid state electronic protection. The breaker is UL 489 listed and suitable for use in 3-phase applications with feed-thru connections and line & load side lug terminals.
- Key Specifications
- Amperage: 60A
- Voltage Rating: 600V AC
- Poles: 3
- Frame Type: Powerpact H
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA @ 480V
- Trip Unit: Micrologic 3.2, LI (Long-Time and Instantaneous)
- Connection Type: Feed-Thru with lug terminals
- Standards: UL 489 Listed, CSA, CE Marked
- Part Number: HDP36060U31X
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDP
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Protection : Solid State
- Weight : 5
