Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

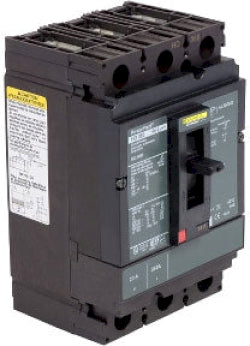

HDL36125AB
HDL36125AB is a 125 Amp, 3-pole, 600VAC molded case circuit breaker from Square D designed for reliable overload and short-circuit protection in industrial and commercial applications. This PowerPacT H-frame breaker features thermal magnetic protection with long-time and instantaneous trip functions, making it suitable for feed-thru installations and reverse-fed applications. The unit mount design with line and load side lug terminals provides flexible installation options for power distribution systems.
- Amperage Rating: 125A
- Voltage Rating: 600VAC
- Poles: 3
- Phase: 3-phase
- Frame Type: HDL (PowerPacT H)
- Interrupting Rating: 18kAIC at 480VAC
- Trip Functions: LI - Long-Time and Instantaneous
- Protection Type: Thermal Magnetic
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lugs
- Mounting: Unit Mount
- Certifications: UL 489, CSA, CE, NEMA, IEC
Specifications
- Part Number: HDL36125AB
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDL
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078590169741
- GTIN : 00785901697411
- Weight : 5
