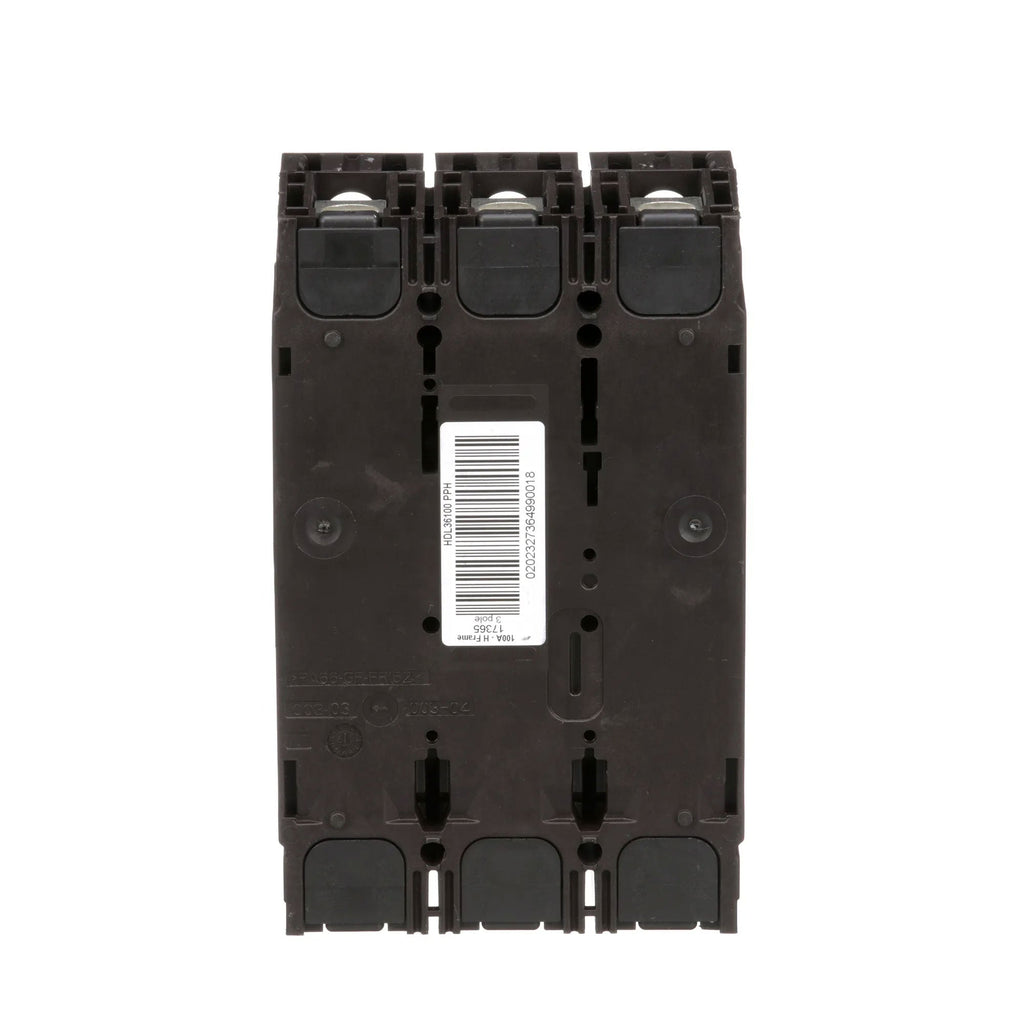

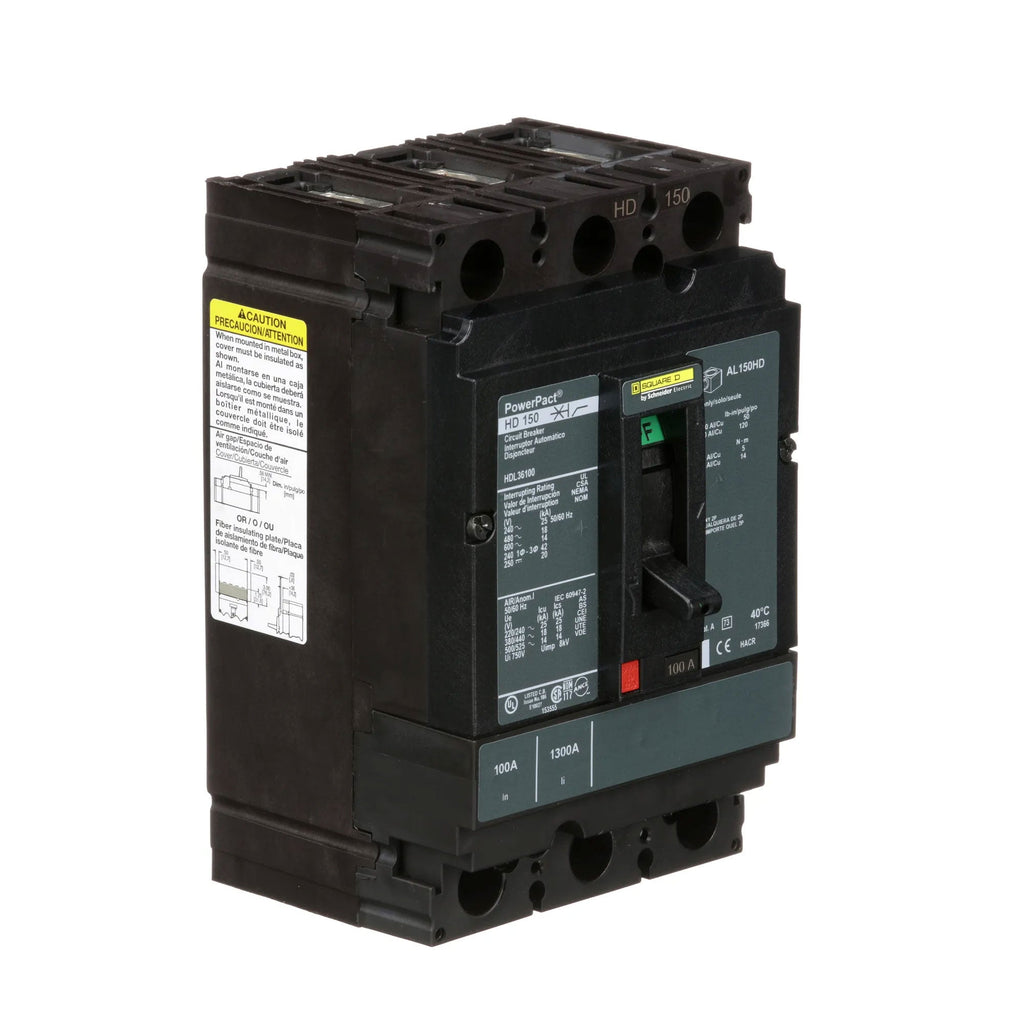

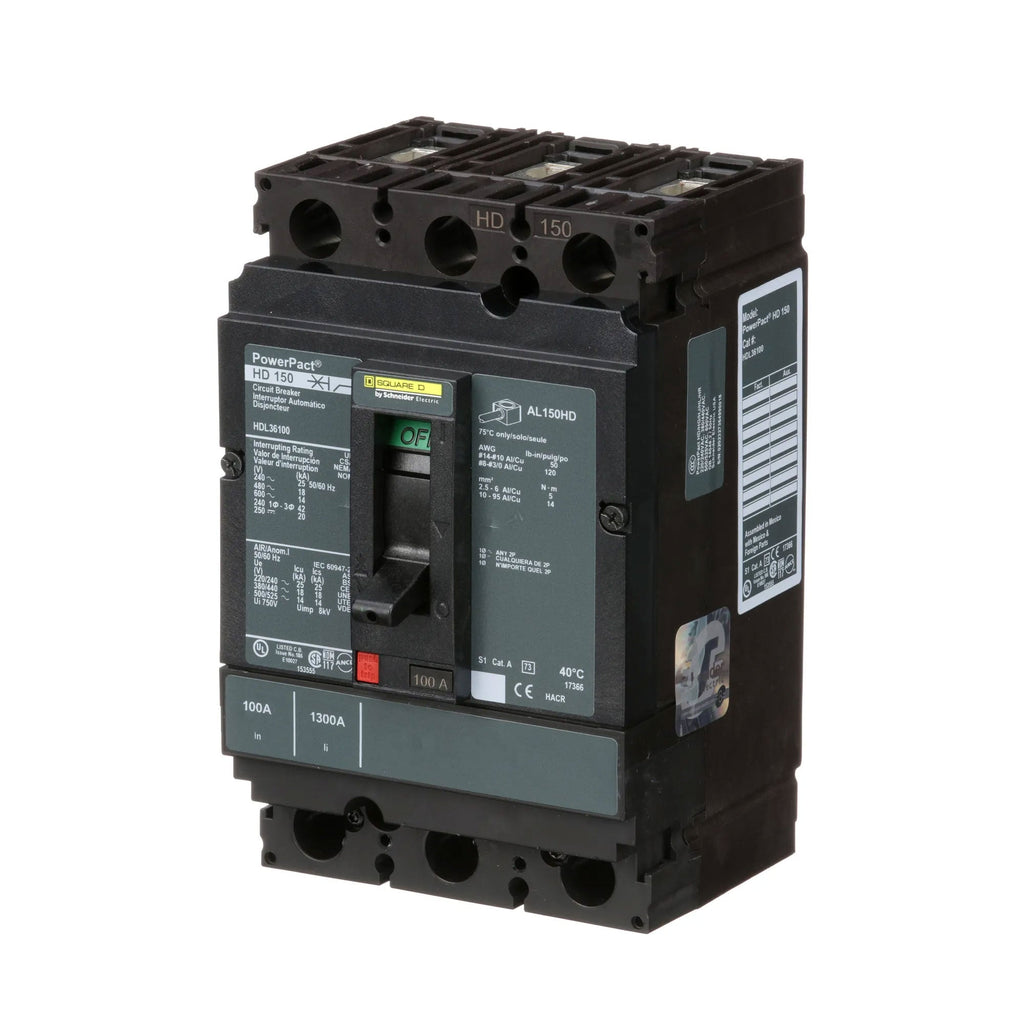

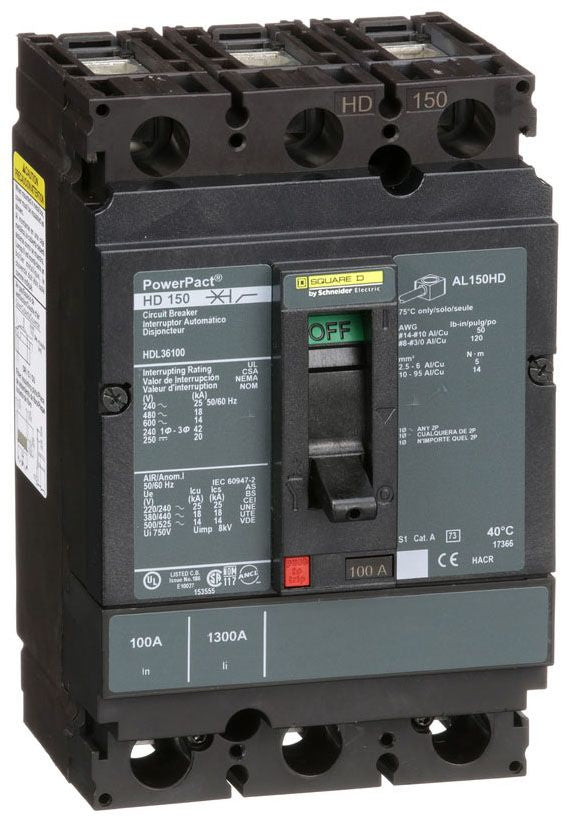

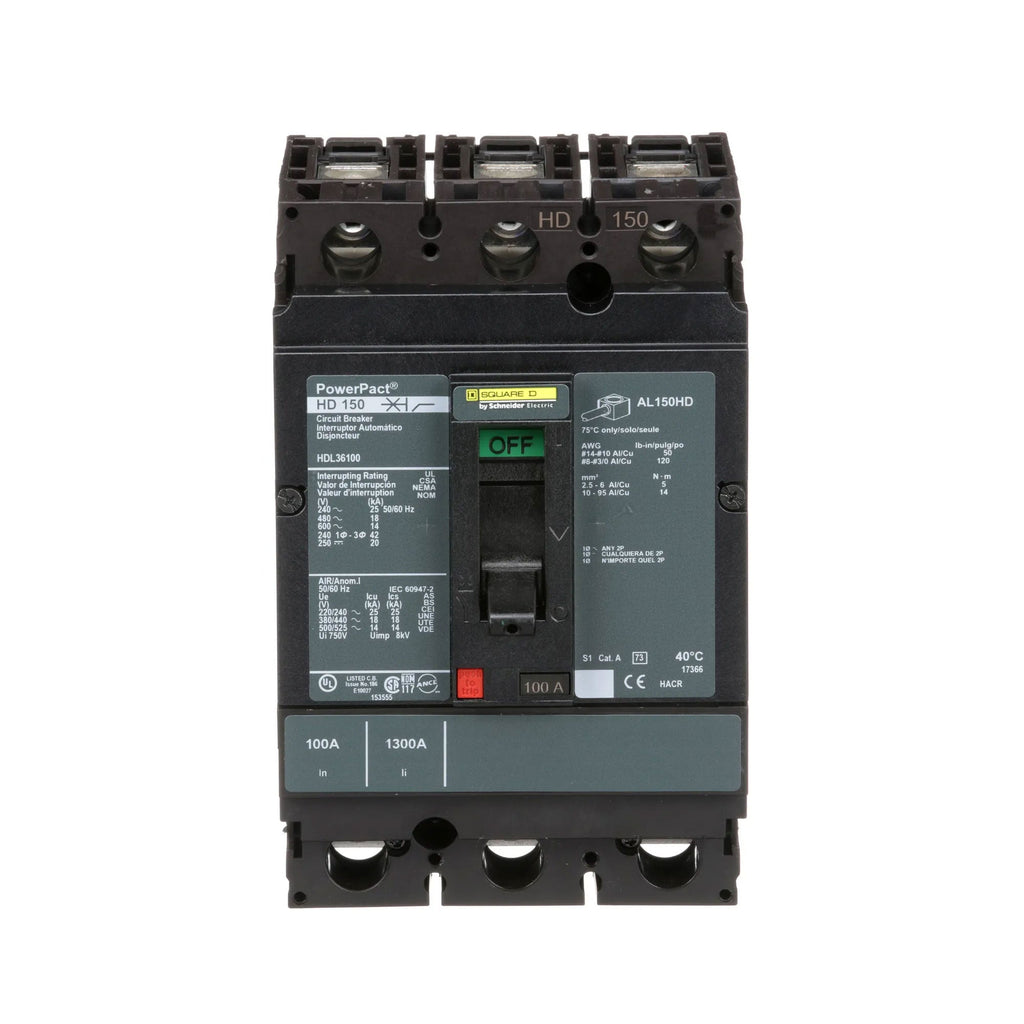

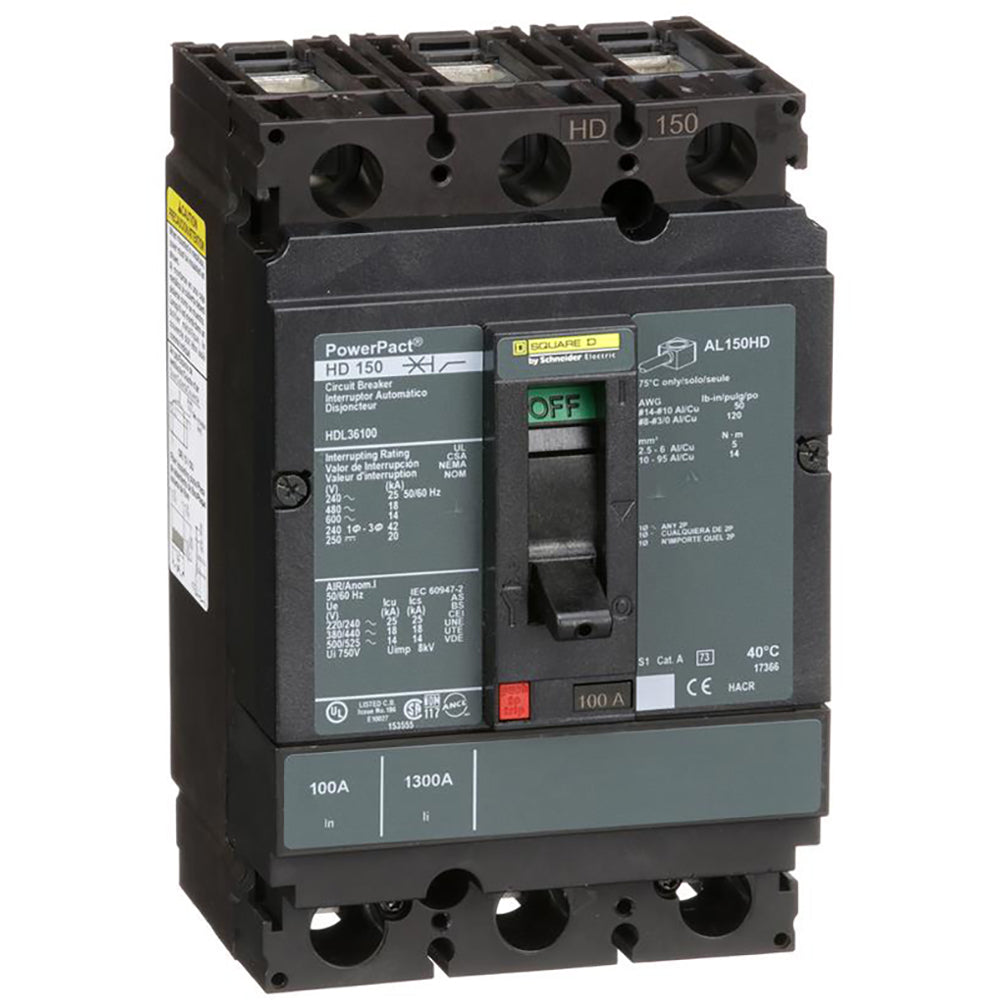

HDL36100 - Square D 100 Amp 600V 3 Pole Molded Case Circuit Breaker H Frame Thermal Magnetic

HDL36100

HDL36100 is a Square D 100 Amp, 3 Pole Molded Case Circuit Breaker designed for reliable circuit protection.This breaker features a 600 Volt rating with a thermal magnetic trip unit and an H frame size. It has a bolt-on mounting type and offers interrupting ratings of 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC. The unit is UL listed, CSA certified, and IEC rated, suitable for industrial and commercial applications. It uses lug-type terminals for both line and load connections.

Key Specifications
• Amperage: 100A
• Voltage: 600V AC / 250V DC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
• Frame: H Frame (Powerpact H)
• Trip Unit: Thermal Magnetic
• Approvals: UL Listed, CSA Certified, IEC Rated
• Terminal Type: Line and Load Lugs

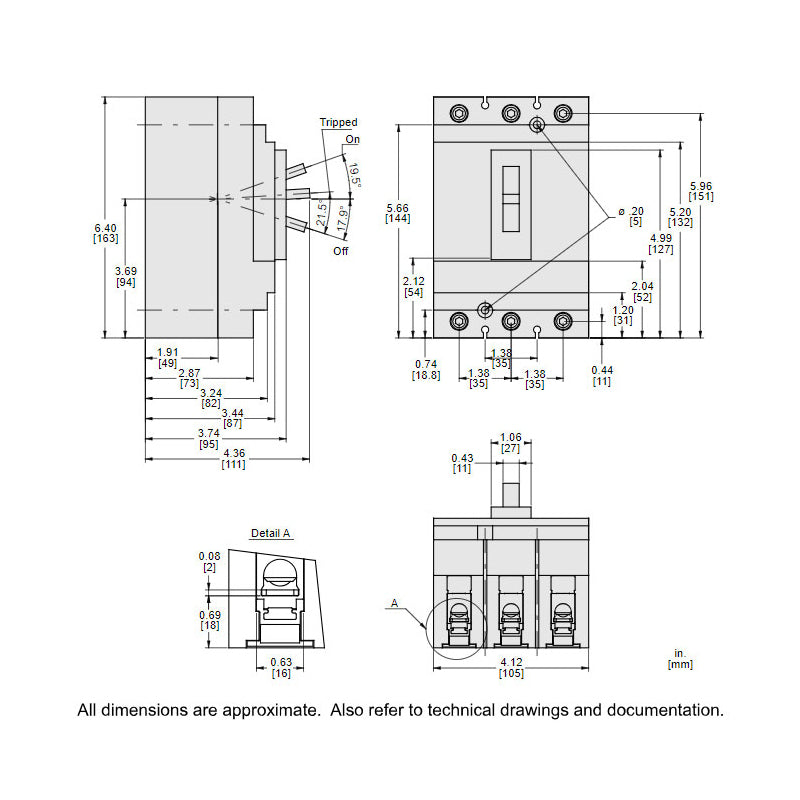

• Dimensions: Approx. 6.4" H x 4.12" W x 4.36" D
• Brand: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901839934
• GTIN : 00785901839934
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.149
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
