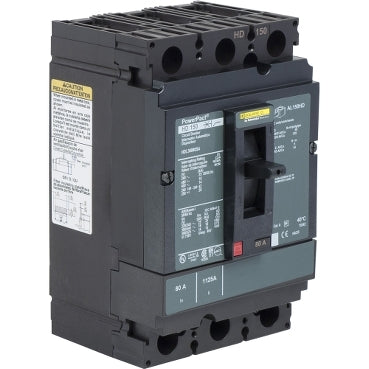

HDL36060LU - Square D Powerpact H-Frame 3 Pole 60A 600V Molded Case Circuit Breaker Thermal Magnetic

HDL36060LU

HDL36060LU is a Square D Powerpact H-Frame molded case circuit breaker designed for reliable overload and short circuit protection in industrial and commercial applications. This 3-pole breaker features a 60A trip rating, 600VAC maximum voltage, and is suitable for unit mount installations with line and load side lug terminals. The breaker utilizes a thermal magnetic trip unit for accurate protection and is UL 489 listed for safety compliance. The HDL36060LU is part of the Powerpact H-Frame series, known for its durability and compatibility with a wide range of electrical systems. It offers a continuous current rating of 80%, making it suitable for demanding environments. The breaker is designed for use with wire sizes from #14 to 3/0 AWG copper or aluminum, and features a feed-thru connection style for flexible installation.

• Part Number: HDL36060LU
• Manufacturer: Square D
• Series: Powerpact H-Frame
• Poles: 3
• Amperage: 60A
• Voltage: 600VAC
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA@480VAC, 14kA@600VAC
• Terminal Type: Line and Load Lugs
• Wire Size: #14-3/0 AWG (Al/Cu)
• Protection Type: Thermal Magnetic
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36060LU
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901219422
• GTIN : 00785901219422
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
