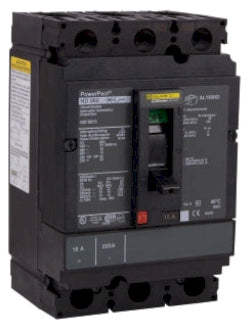

HDF36125 - Square D 125 Amp 600 Volt 3 Pole PowerPact H Frame Circuit Breaker

HDF36125

HDF36125 is a Square D PowerPact H Frame molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This circuit breaker features a 125 ampere rating, 600 volt maximum voltage, and three poles. It has a thermal magnetic trip unit and a bolt-on mounting type. The breaker is UL 489 listed and offers interrupt ratings of 25 kA at 240 VAC, 18 kA at 480 VAC, and 14 kA at 600 VAC, ensuring high fault current interruption capability.

Key Specifications
• Amperage: 125 Amp
• Voltage: 600 Volt
• Poles: 3
• Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25 kA @ 240 VAC, 18 kA @ 480 VAC, 14 kA @ 600 VAC
• Mounting Type: Bolt-On
• Certifications: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HDF36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901437420
• GTIN : 00785901437420
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
