HDF36025 - Square D H Frame 25 Amp 600V 3 Pole Bolt-On Circuit Breaker

HDF36025

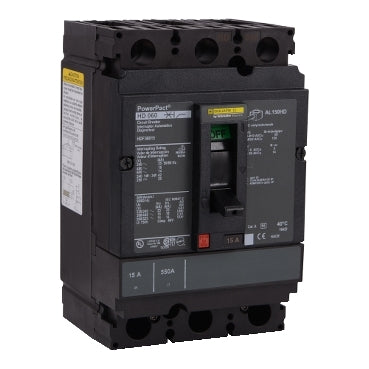

HDF36025 is a Square D H Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3 pole, 25 amp unit is rated for up to 600 volts AC and features a bolt-on mounting configuration for secure installation. The breaker is built with a thermal magnetic trip unit for dependable overcurrent and short-circuit protection. It is UL 489 listed and suitable for use in a wide range of electrical environments. The HDF36025 is part of the PowerPacT H-Frame series, known for high interrupting ratings and robust construction. Its design supports easy integration into panelboards and switchgear, making it a versatile solution for demanding applications. The breaker is engineered for durability and long service life under continuous load conditions.

• Part Number: HDF36025
• Manufacturer: Square D
• Series: PowerPacT H-Frame
• Amperage: 25 Amp
• Voltage: 600 VAC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 18 kA @ 480V, 25 kA @ 240V, 14 kA @ 600V
• Trip Unit: Thermal Magnetic
• Certification: UL 489 Listed
• Application: Molded Case Circuit Breaker
• Frame Type: H Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HDF36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
