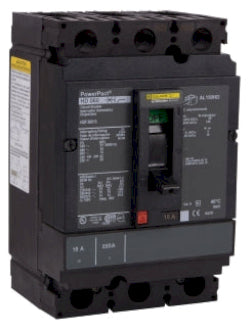

HDF36020 - Square D 20A 600V 3-Pole PowerPact H Molded Case Circuit Breaker

HDF36020

HDF36020 is a Square D PowerPact H molded case circuit breaker rated for 20 amps and 600 volts with 3 poles.This circuit breaker features a thermal magnetic trip unit and is designed for unit mount installation. It has a frame type H, with a breaking capacity of 14kA at 600VAC, 18kA at 480VAC, and 25kA at 240VAC. The breaker complies with UL, CSA, NOM, and IEC standards and is CE marked. It includes dual-break rotating contacts to reduce peak current during faults and a push-to-trip button for manual testing.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: H (PowerPact H)
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 14kA at 600 VAC, 18kA at 480 VAC, 25kA at 240 VAC
• Mounting Type: Unit Mount
• Certifications: UL, CSA, NOM, IEC, CE Marked
• Dimensions: 4.36 in L x 4.12 in W x 6.4 in H
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HDF36020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901675624
• GTIN : 00785901675624
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.136
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
