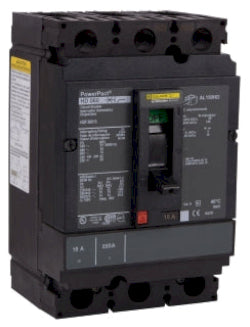

HDF36050 - Square D PowerPact 50A 3-Pole 600V Molded Case Circuit Breaker

HDF36050

HDF36050 is a 3-pole, 50-amp rated molded case circuit breaker manufactured by Square D, designed for thermal magnetic protection in industrial and commercial power distribution applications.

The HDF36050 features PowerPact H-Frame construction with a 600V rating and multiple interrupt capacities across different voltage levels. This breaker utilizes thermal magnetic trip technology for reliable overcurrent and short-circuit protection. The unit is equipped with lug terminals for both line and load connections, making it suitable for bolt-on mounting configurations in panelboards and distribution equipment.

• Part Number: HDF36050
• Manufacturer: Square D (Schneider Electric)
• Poles: 3
• Amperage: 50A
• Voltage Rating: 600V
• Series: PowerPact H-Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
• Connection Type: Lug terminals
• Mounting: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HDF36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901634539
• GTIN : 00785901634539
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.189
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
