HDF36040 - Square D H Frame 40 Amp Three Pole 600V Molded Case Circuit Breaker

HDF36040

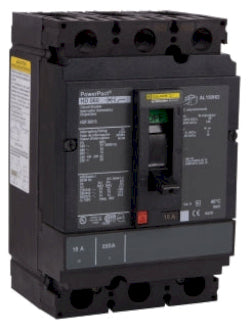

HDF36040 is a Square D H Frame molded case circuit breaker rated for 40 amperes at up to 600 VAC or 250 VDC with three-pole configuration and unit mount design. This thermal magnetic type breaker is UL 489 and CSA approved for industrial and commercial power distribution applications requiring reliable overcurrent protection. The breaker features a compact footprint measuring 4.12 inches wide by 4.36 inches deep by 6.4 inches high, making it suitable for space-constrained installations. Key Specifications

• Part Number: HDF36040
• Manufacturer: Square D by Schneider Electric
• Amperage: 40 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Poles: Three Pole
• Frame Type: H Frame
• Mounting: Unit Mount
• Interrupt Rating: 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC
• Trip Type: Thermal Magnetic
• Certifications: UL 489, CSA
• Frequency: 50/60 Hz
• Dimensions: 4.12 W x 4.36 D x 6.4 H inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HDF36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901682509
• GTIN : 00785901682509
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.2
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
