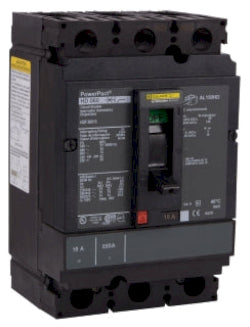

HDF36030 - Square D 30A 600V 3 Pole PowerPact H Frame Molded Case Circuit Breaker

HDF36030

HDF36030 is a 3 pole, 30 amp, 600 volt PowerPact H Frame molded case circuit breaker from Square D designed for reliable circuit protection.HDF36030 features thermal magnetic trip units with a 18 kA interrupt rating at 480 VAC and 14 kA at 600 VAC, suitable for industrial and commercial power distribution applications. It supports unit mount installation and complies with UL and CSA certifications.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame: PowerPact H
• Interrupt Rating: 18 kA at 480 VAC, 14 kA at 600 VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA
• Dimensions: 4.36 in L x 4.12 in W x 6.4 in H
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HDF36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901697350
• GTIN : 00785901697350
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.156
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
