Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HDA36150SA

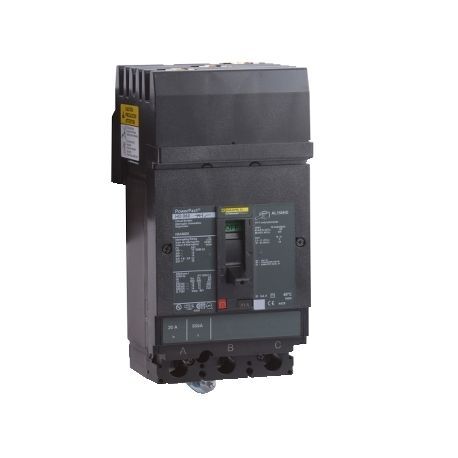

The Square D HDA36150SA is a Molded Case Circuit Breaker. The HDA36150SA is a 3 pole, 600 Volt, 150 amp rated circuit breaker, with an AIC rating of 18kA@480V. The HDA36150SA is manufactured by Square D. The HDA36150SA uses a I-Line Style Plug-In connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Additional Information
complete with 120Vac shunt trip
Specifications
- Part Number: HDA36150SA
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901324102
- GTIN : 00785901000000
- Country of Origin : United States
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
