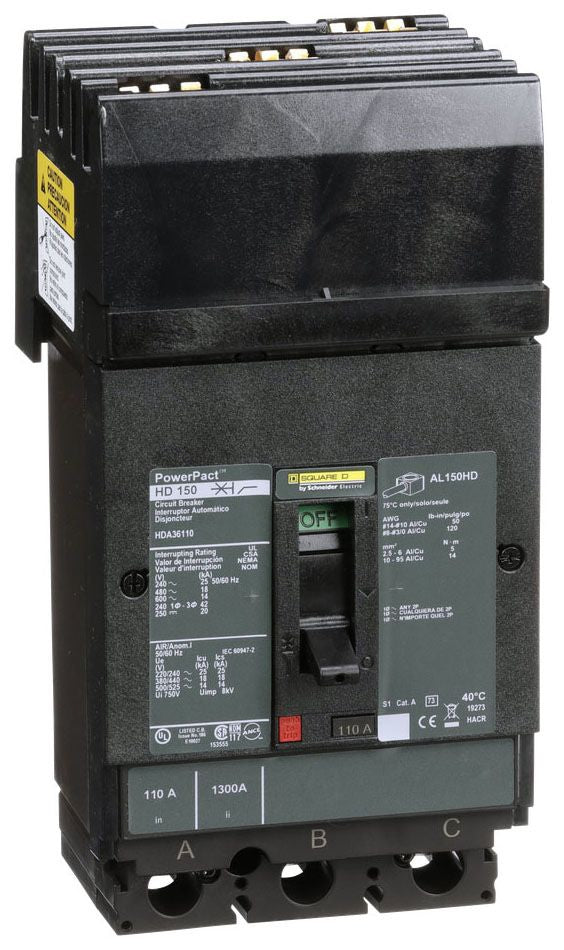

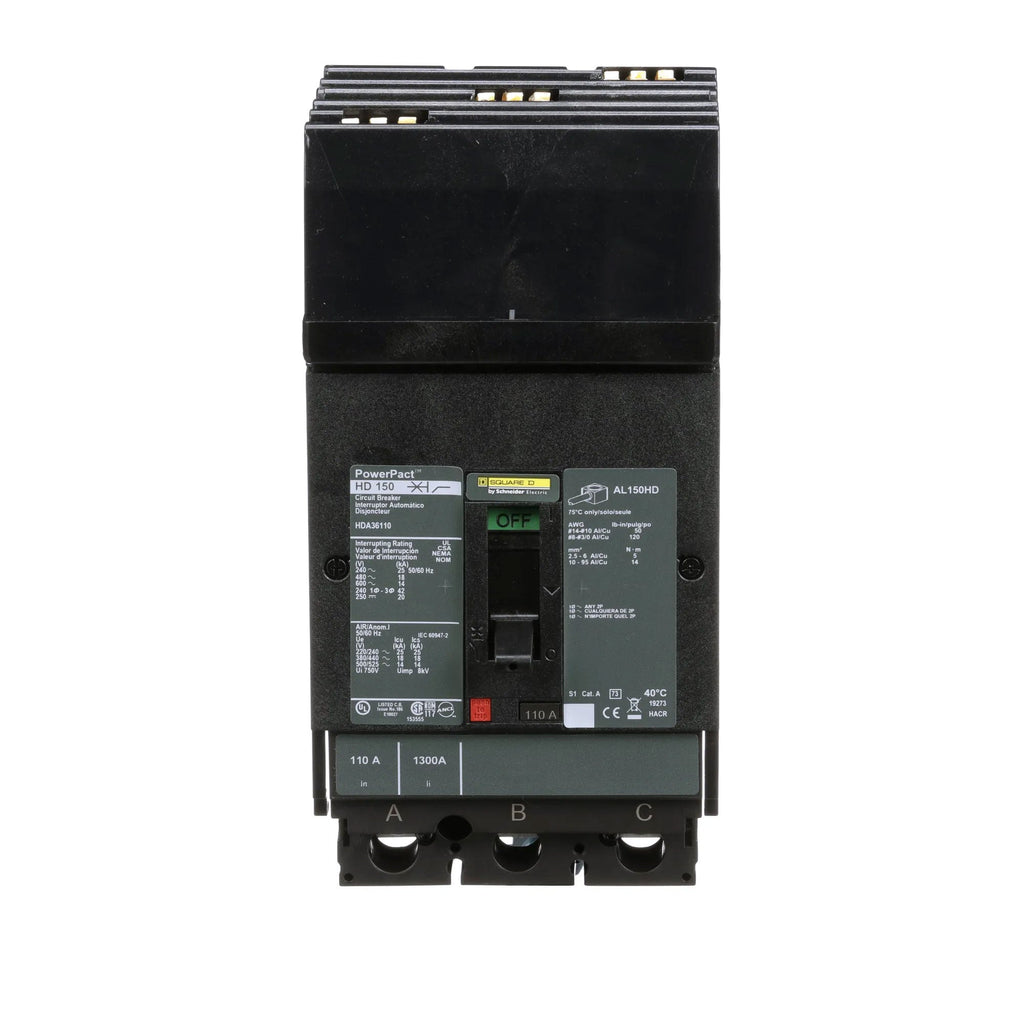

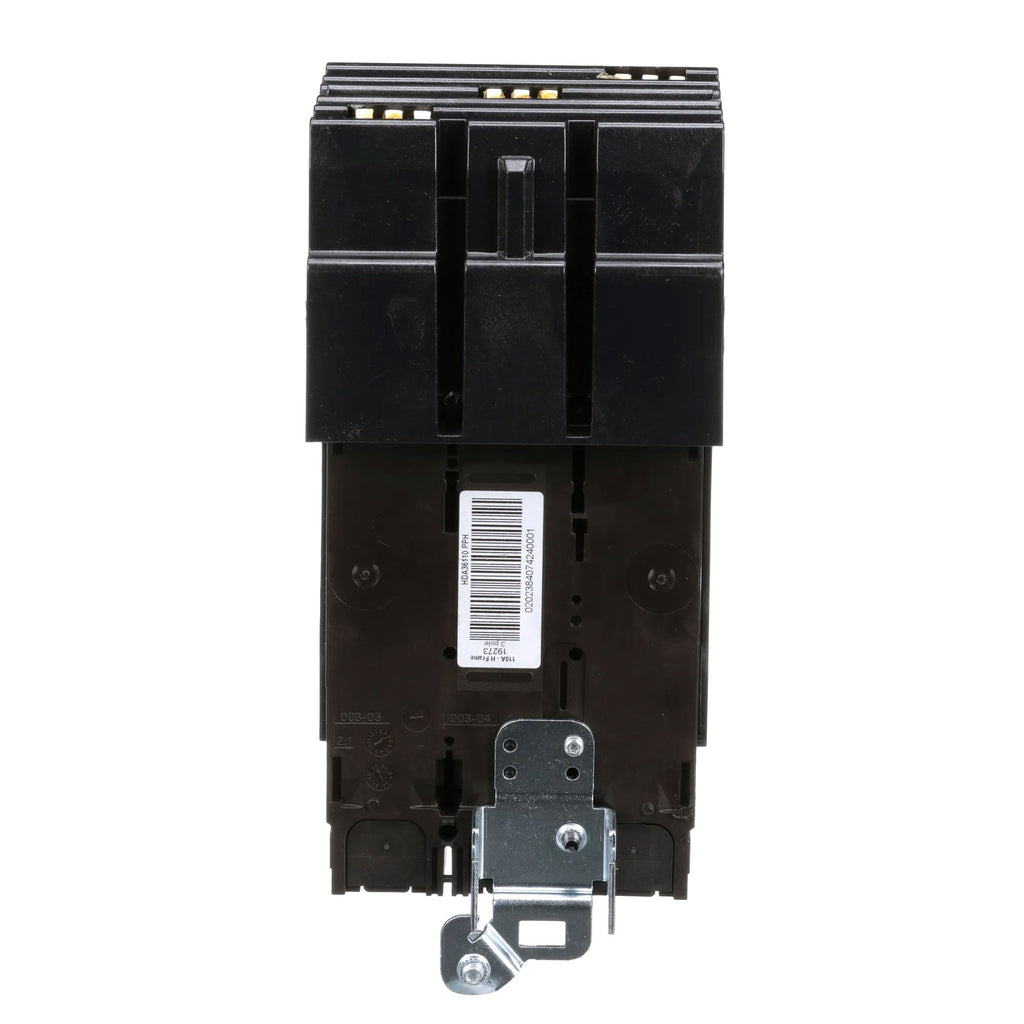

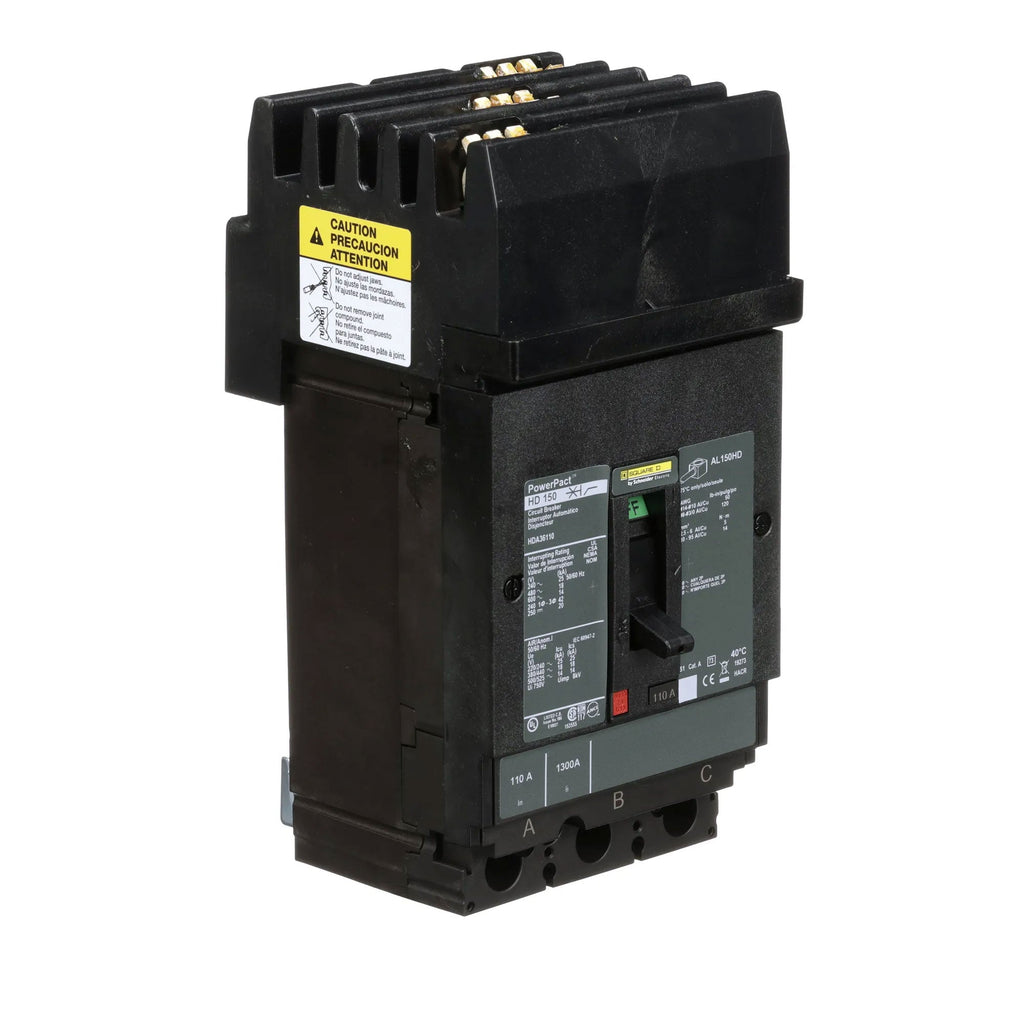

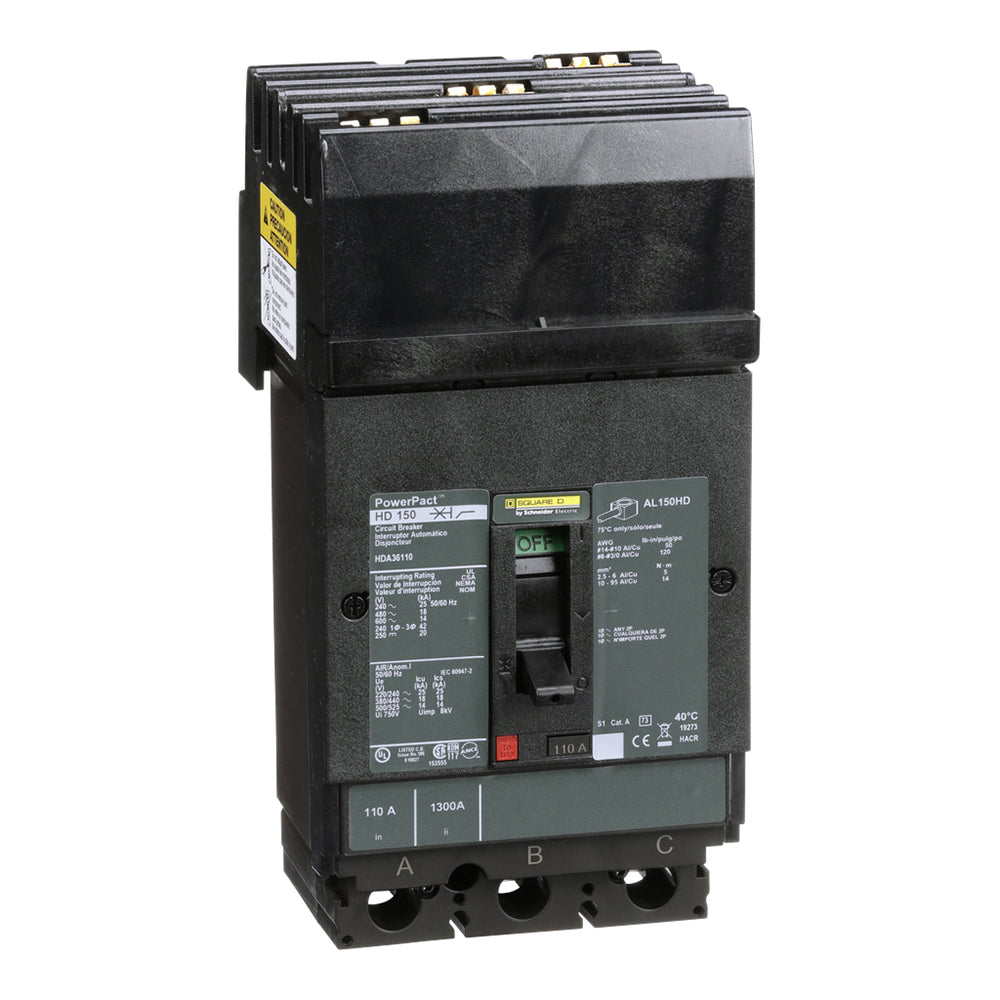

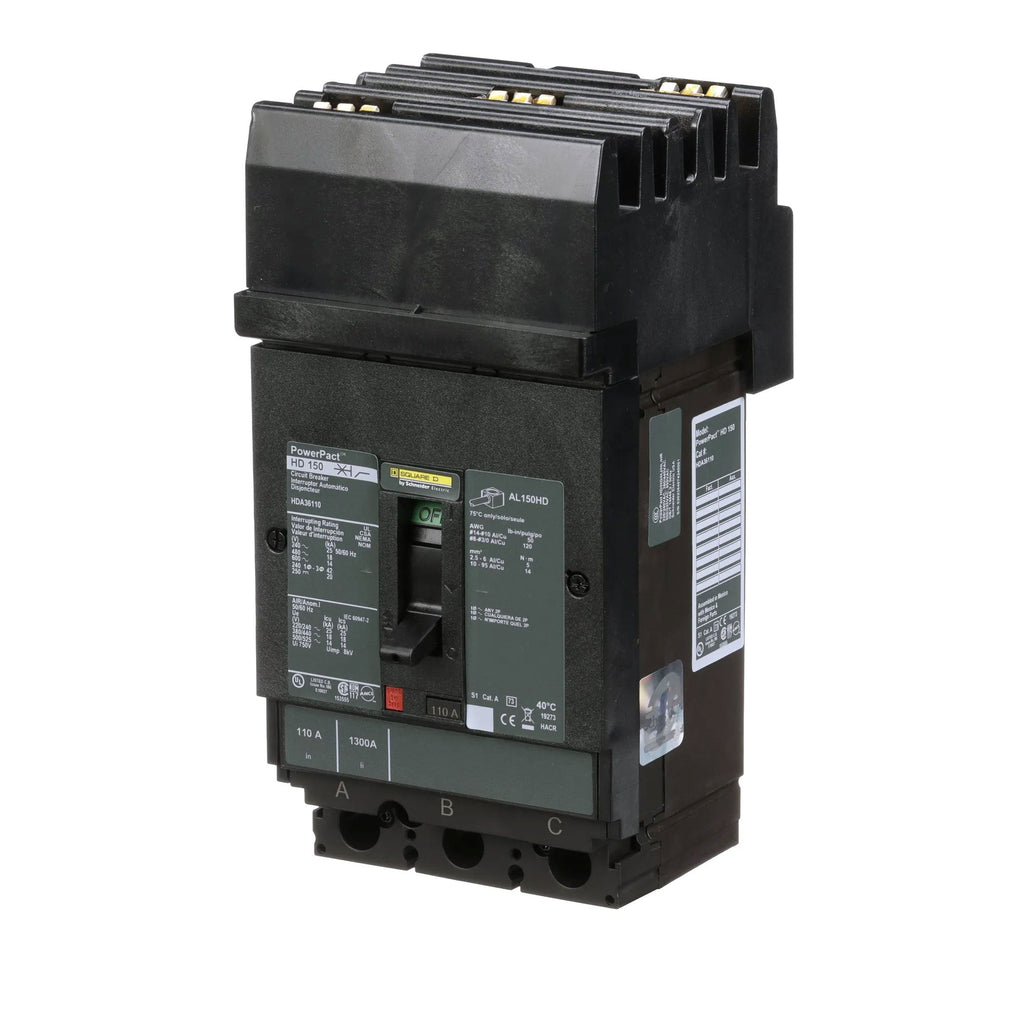

HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC

Save $1,417.81
SKU: HDA36110-New
Condition: New
Price:
$1,312.19 $2,730.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HDA36110 - Square D I-Line Style Plug-In 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HDA36110 - Square D I-Line Style Plug-In 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDA36110 - Square D I-Line Style Plug-In 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HDA36110 - Square D I-Line Style Plug-In 600V 110A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply
HDA36110 - Square D PowerPacT H-Frame 110A 3 Pole 600VAC 14kA I-Line Thermal Magnetic Circuit Breaker, UL CSA CE NEMA IEC - Essential Electric Supply

Description

HDA36110


HDA36110 is a Square D PowerPacT H-Frame 3 pole, 110A, 600VAC thermal magnetic circuit breaker designed for reliable power distribution.

This molded case circuit breaker features an I-Line plug-in mounting style, thermal magnetic trip unit for overload and short circuit protection, and is suitable for use in Class 611/612 I-Line panelboards and switchboards. It is certified to UL, CSA, CE, NEMA, IEC, and other international standards, ensuring compliance and safety in commercial and industrial applications.

    Key Specifications
  • Part Number: HDA36110
  • Manufacturer: Square D
  • Amperage: 110A
  • Voltage: 600VAC
  • Poles: 3
  • Mounting Type: I-Line Style Plug-In
  • Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC, 25kA @ 240VAC
  • Series/Frame: PowerPacT H-Frame (HDA)
  • Trip Unit: Thermal Magnetic
  • Certifications: UL, CSA, CE, NEMA, IEC, NOM, CCC, RoHS
  • Connection: Line and Load Lug
  • Wire Range: AWG 14 to AWG 3/0 (Aluminum/Copper)
  • Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HDA36110
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDA
  • Voltage : 600
  • Amperage : 110
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : H
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901422273
  • GTIN : 00785901422273
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5.456
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29451
S29450
S29383
S29402
S29412
CYA150HD
