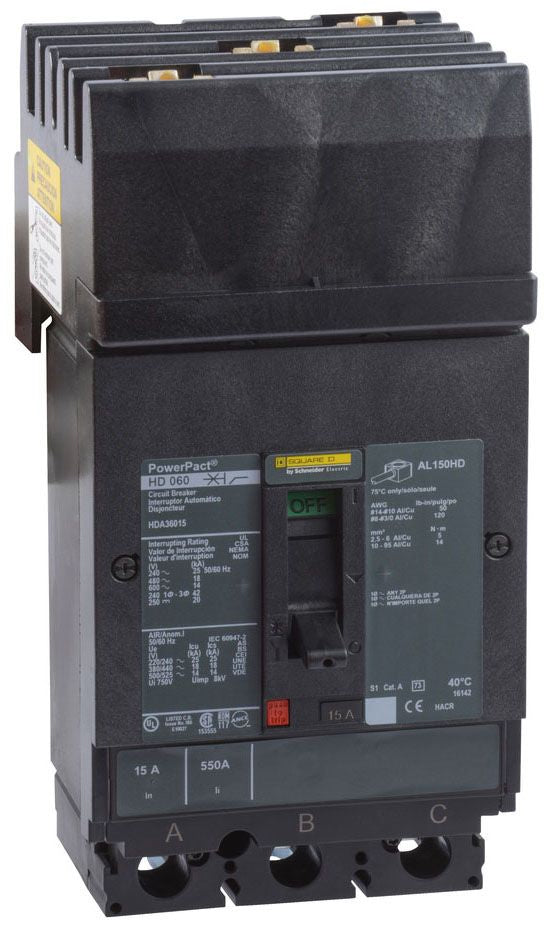

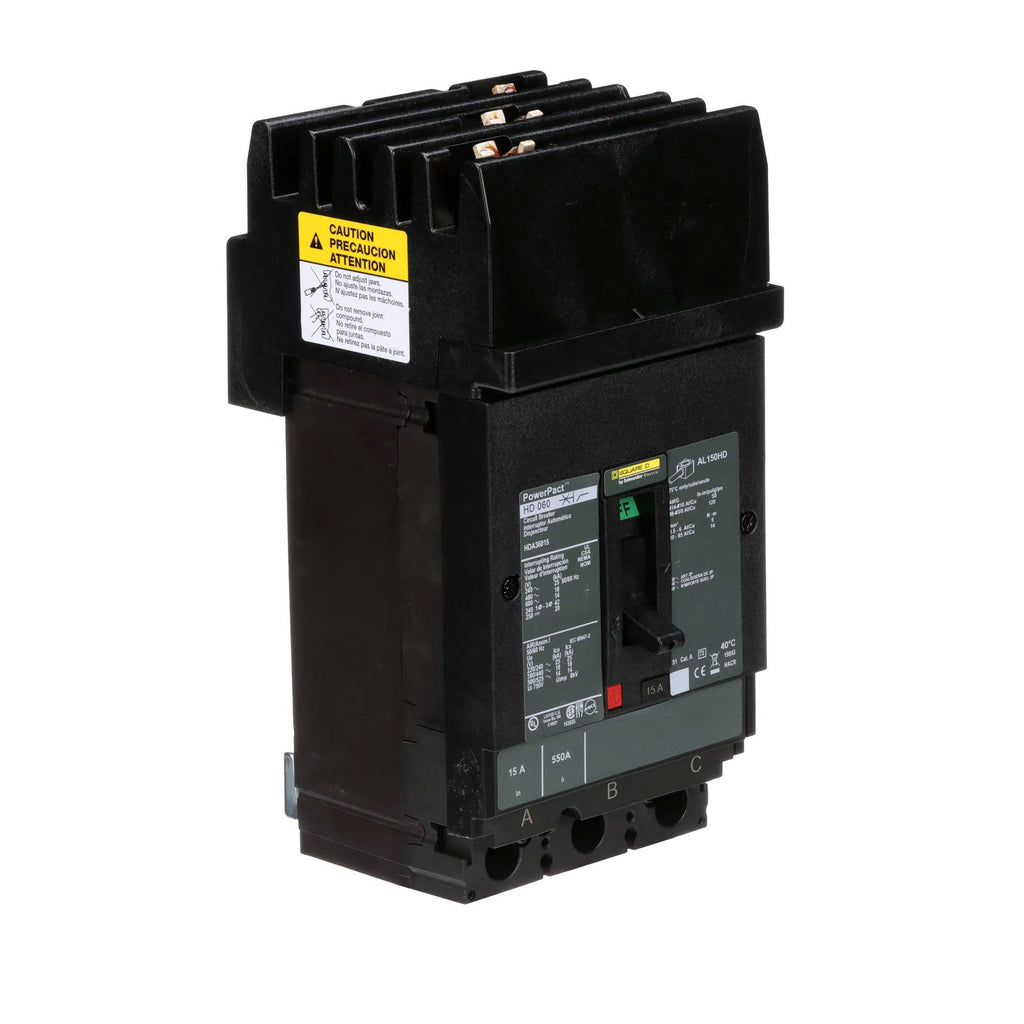

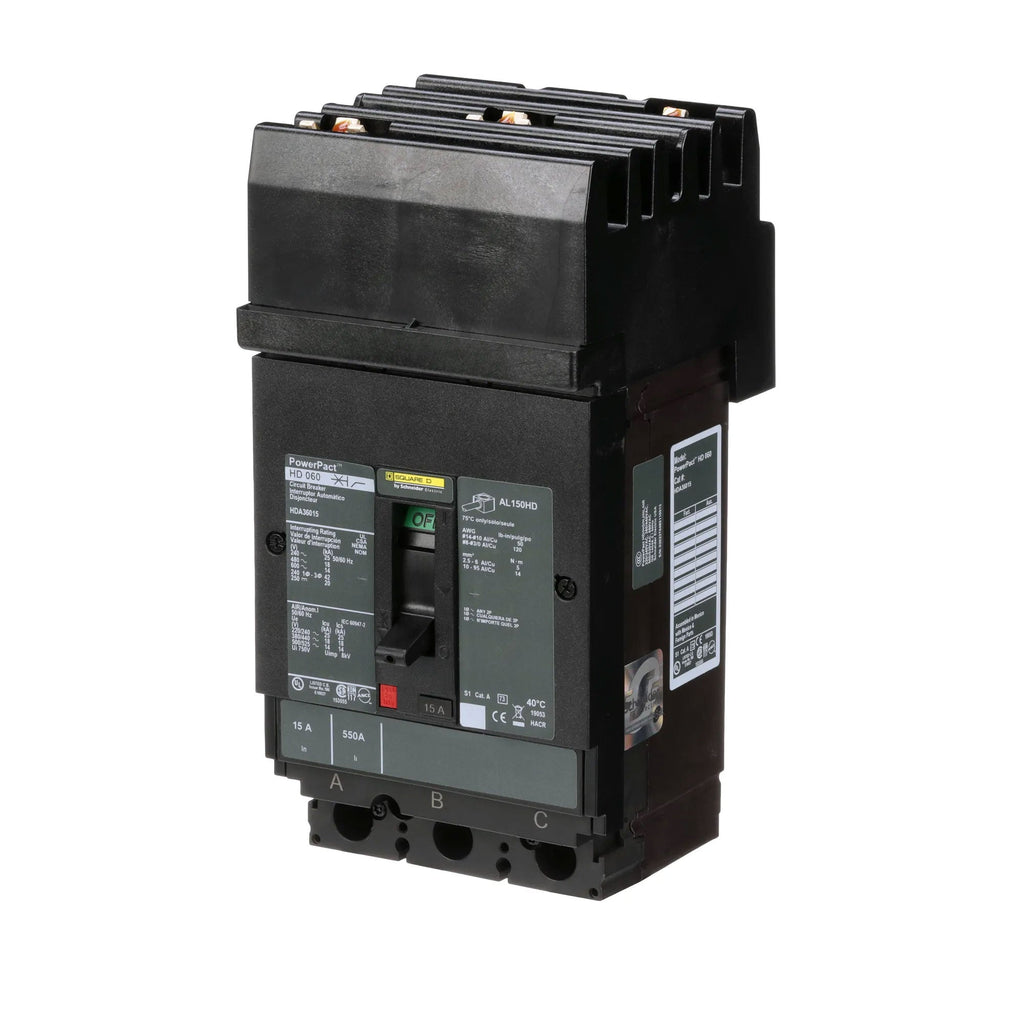

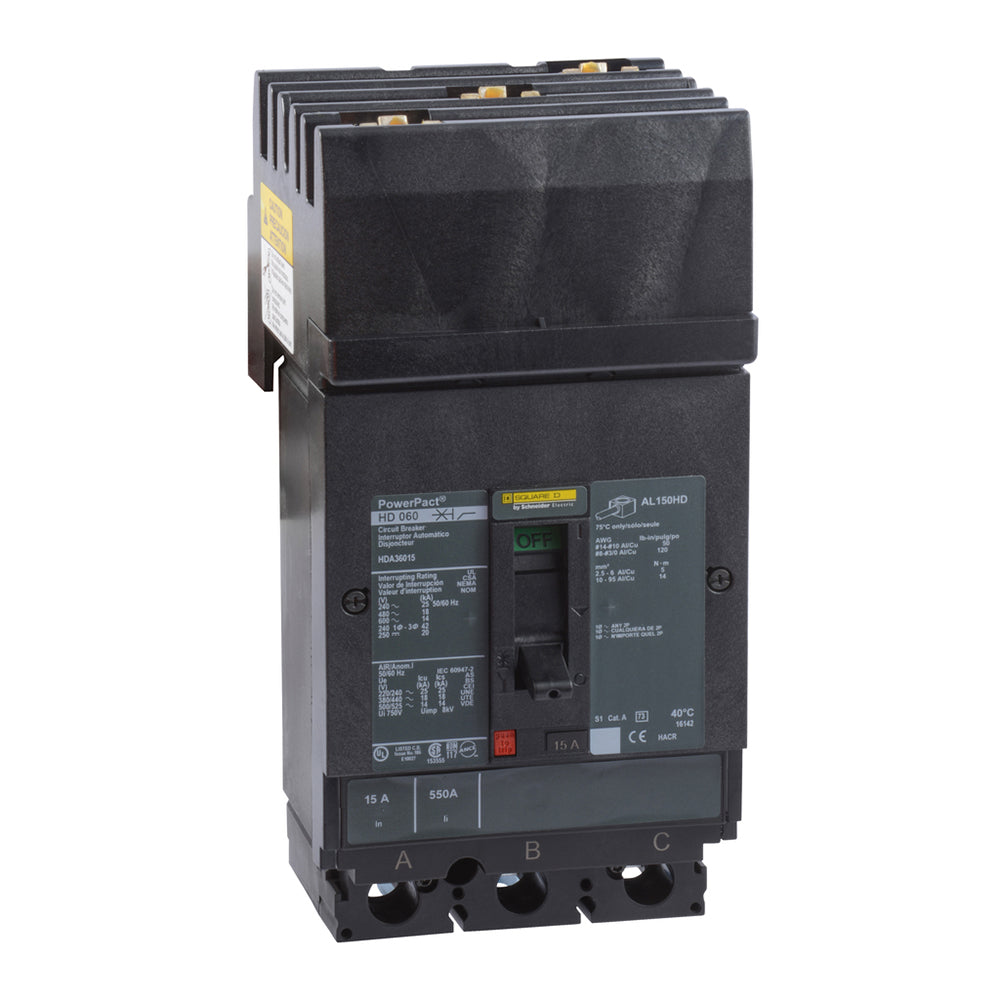

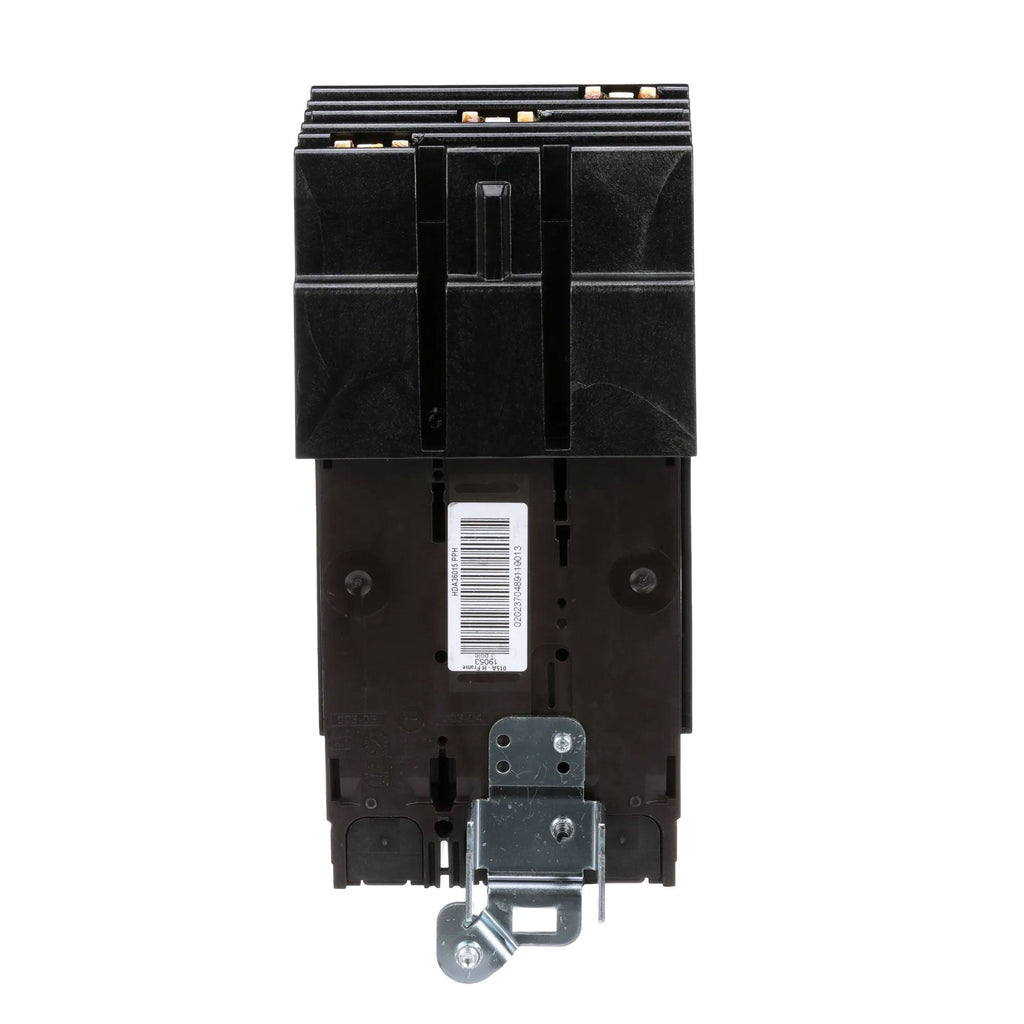

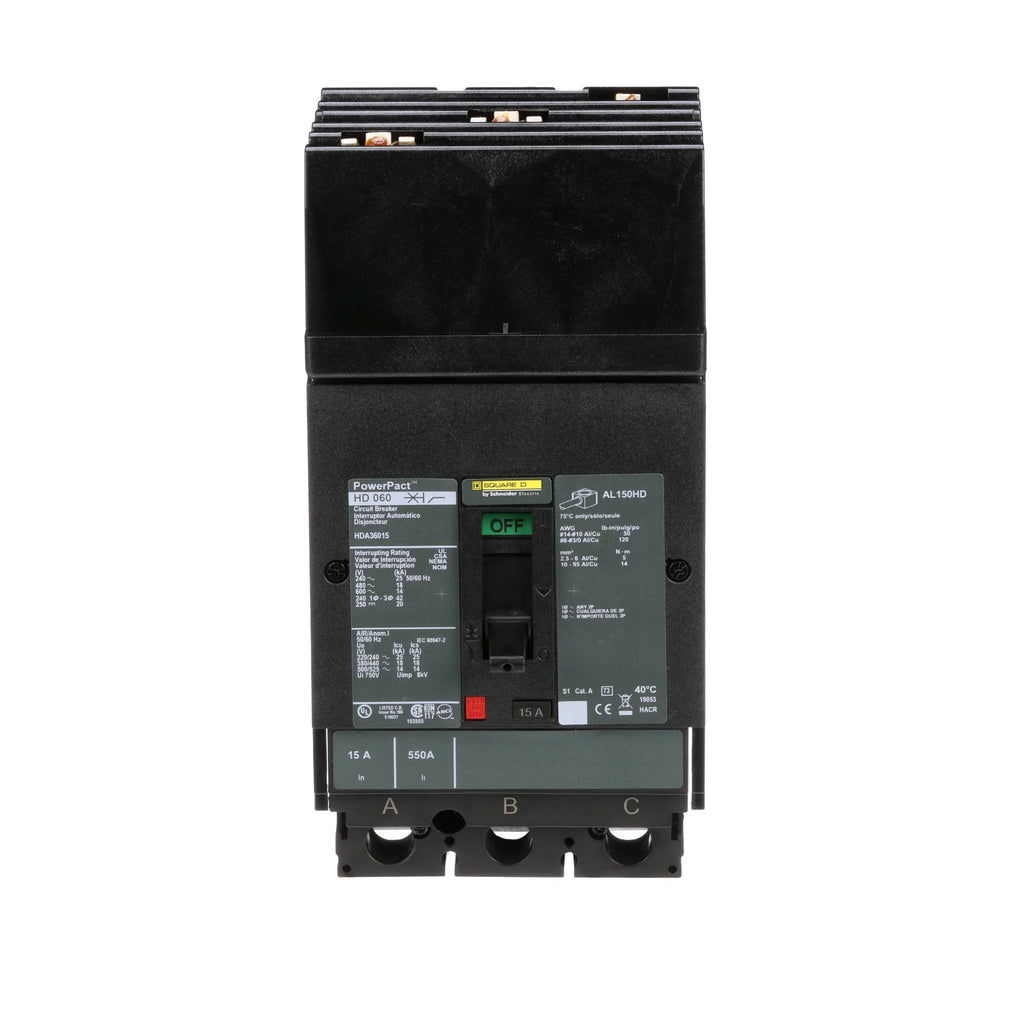

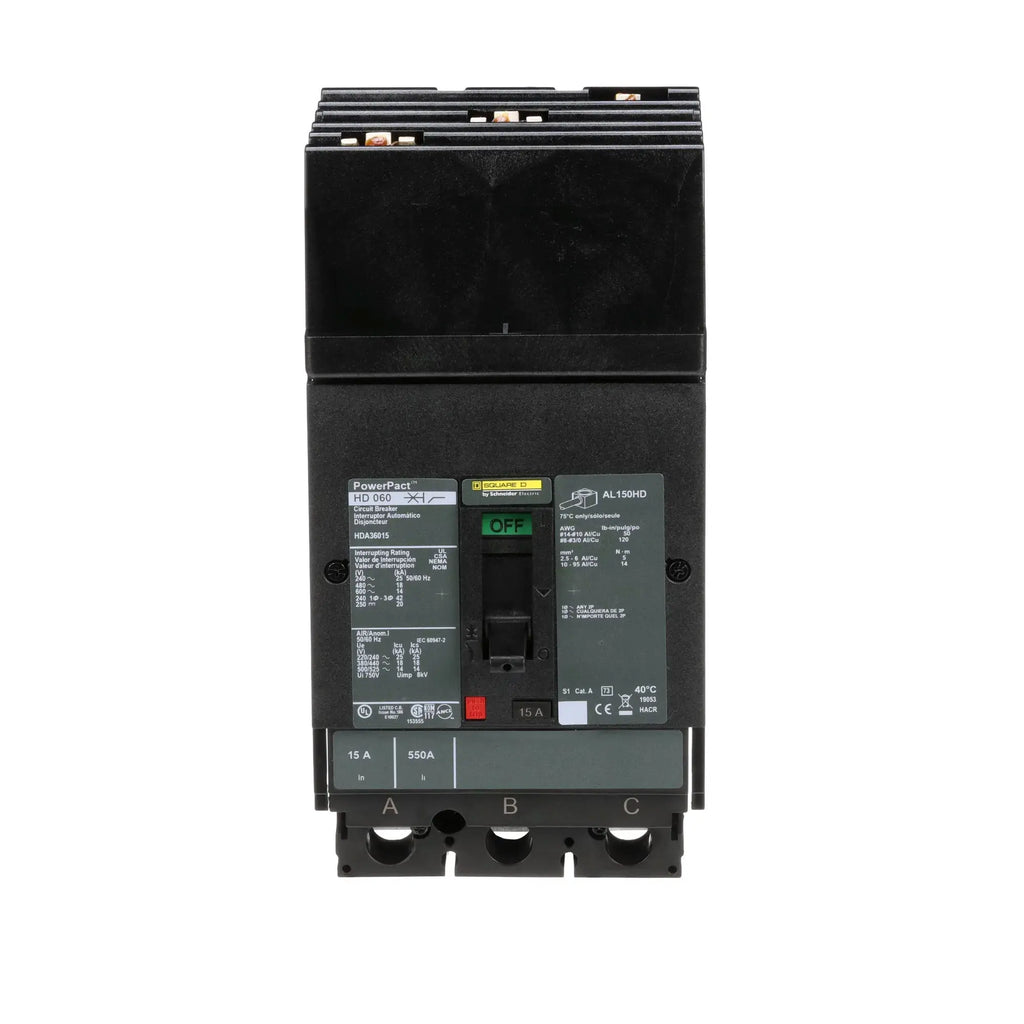

HDA36015 - Square D 15A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker PowerPacT H

HDA36015

HDA36015 is a Square D 3 pole, 15 amp, 600 volt thermal magnetic circuit breaker with I-Line style plug-in mounting from the PowerPacT H series.This molded case circuit breaker features an 18kA interrupting rating at 480VAC, long-time and instantaneous trip functions (LI), and is UL, CSA, CE, IEC, NOM, and NEMA certified. It supports load side lug connections and is designed for use in industrial and commercial power distribution systems with a temperature rating from -25 to 70 °C.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 600/690 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA at 480 VAC
• Frame Type: HDA (PowerPacT H Series)
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL, CSA, CE, IEC, NOM, NEMA
• Terminal Connection: Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Operating Temperature: -25 to 70 °C
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901419105
• GTIN : 00785901419105
• Country of Origin : Mexico

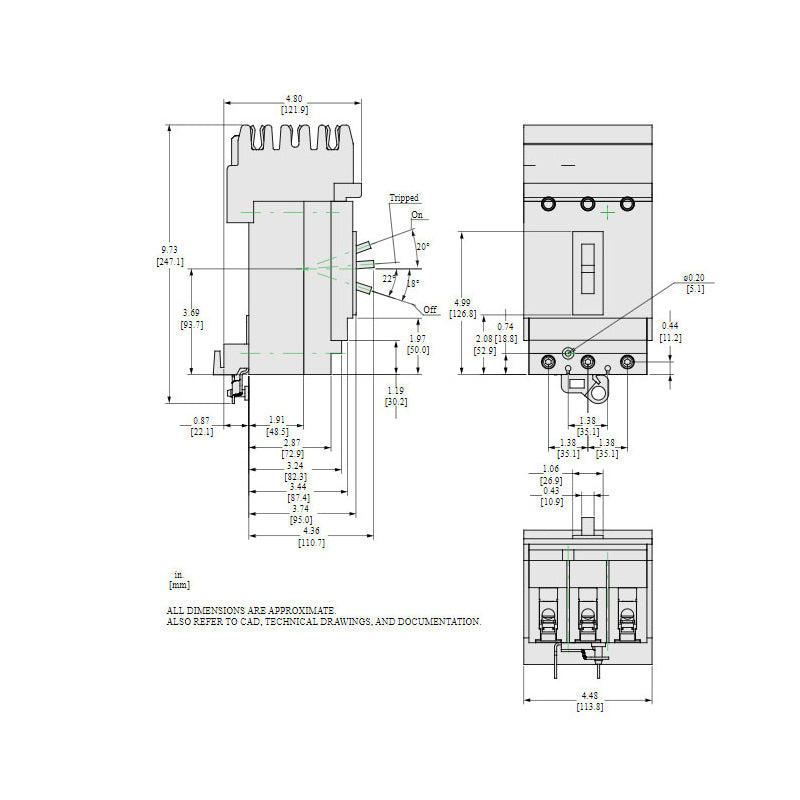

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.419 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
