HDA36070 - Square D 70A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker PowerPact H

HDA36070

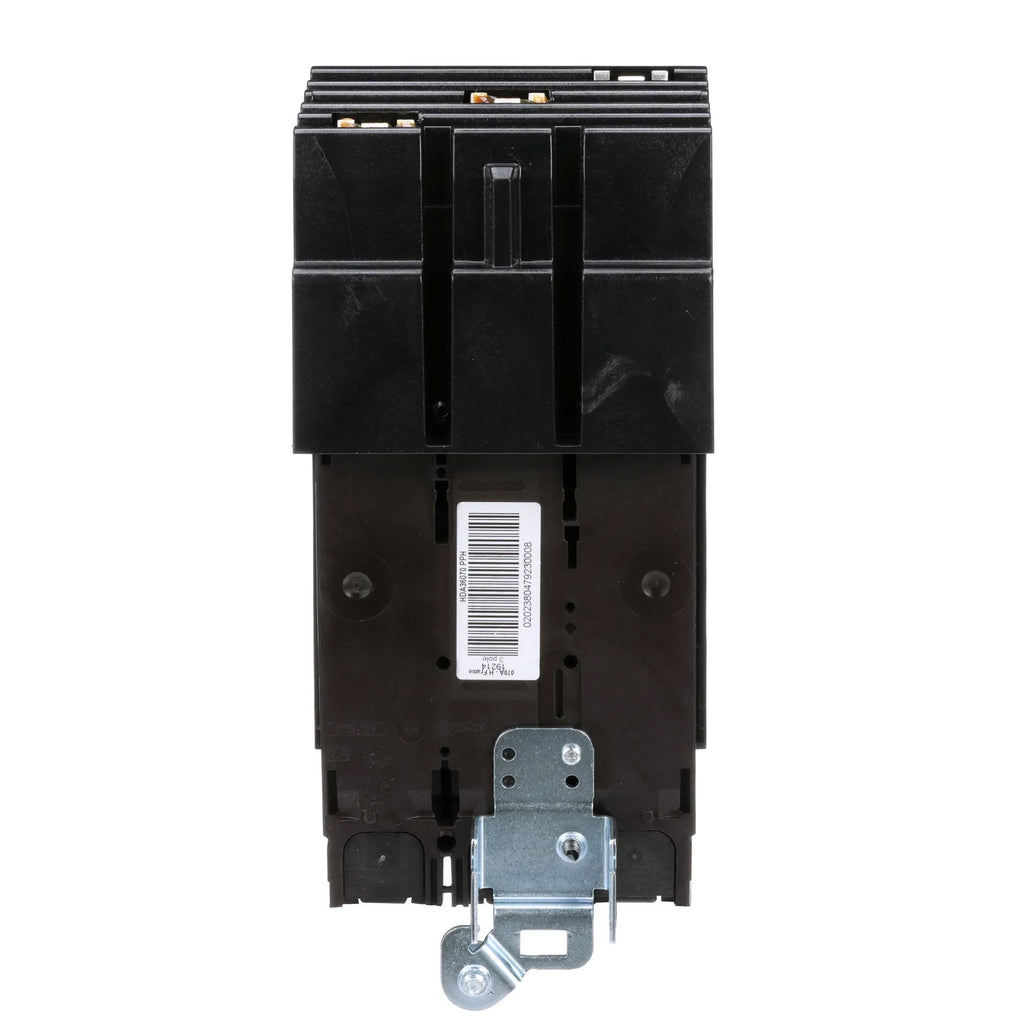

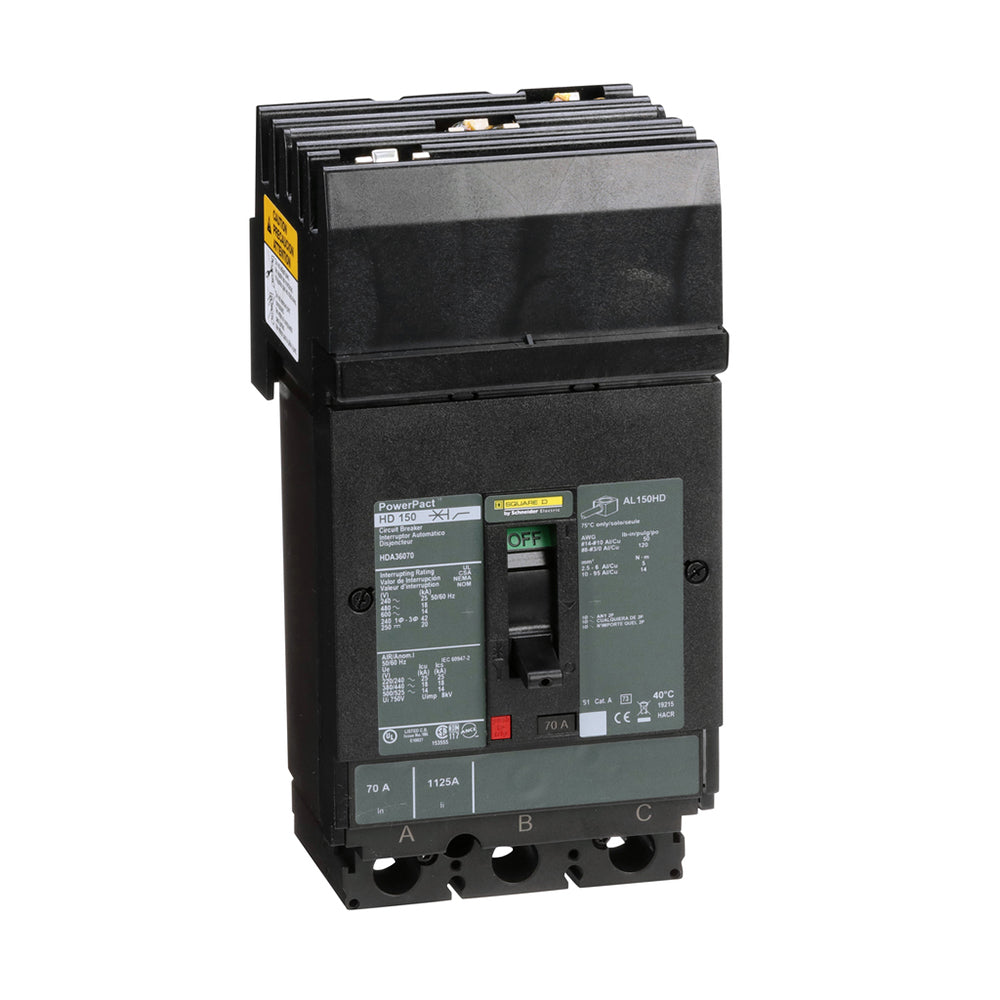

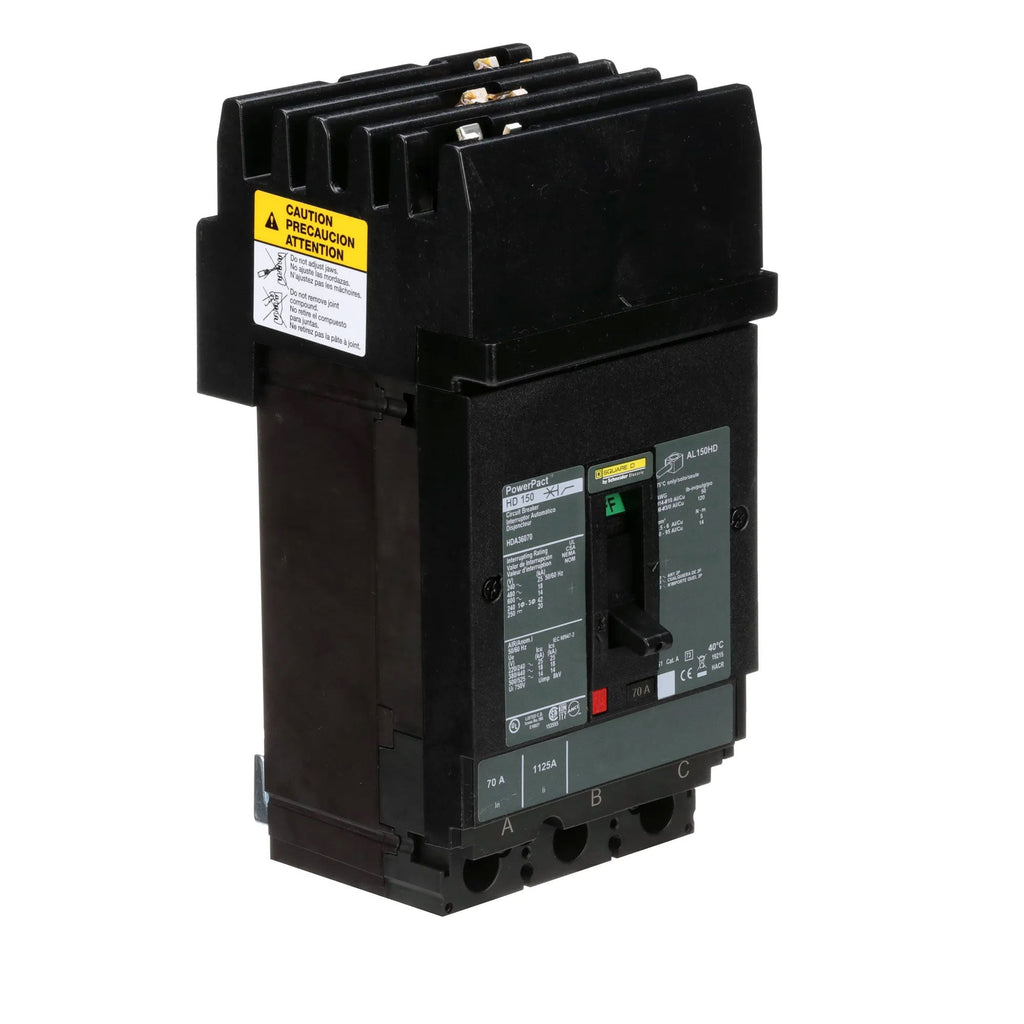

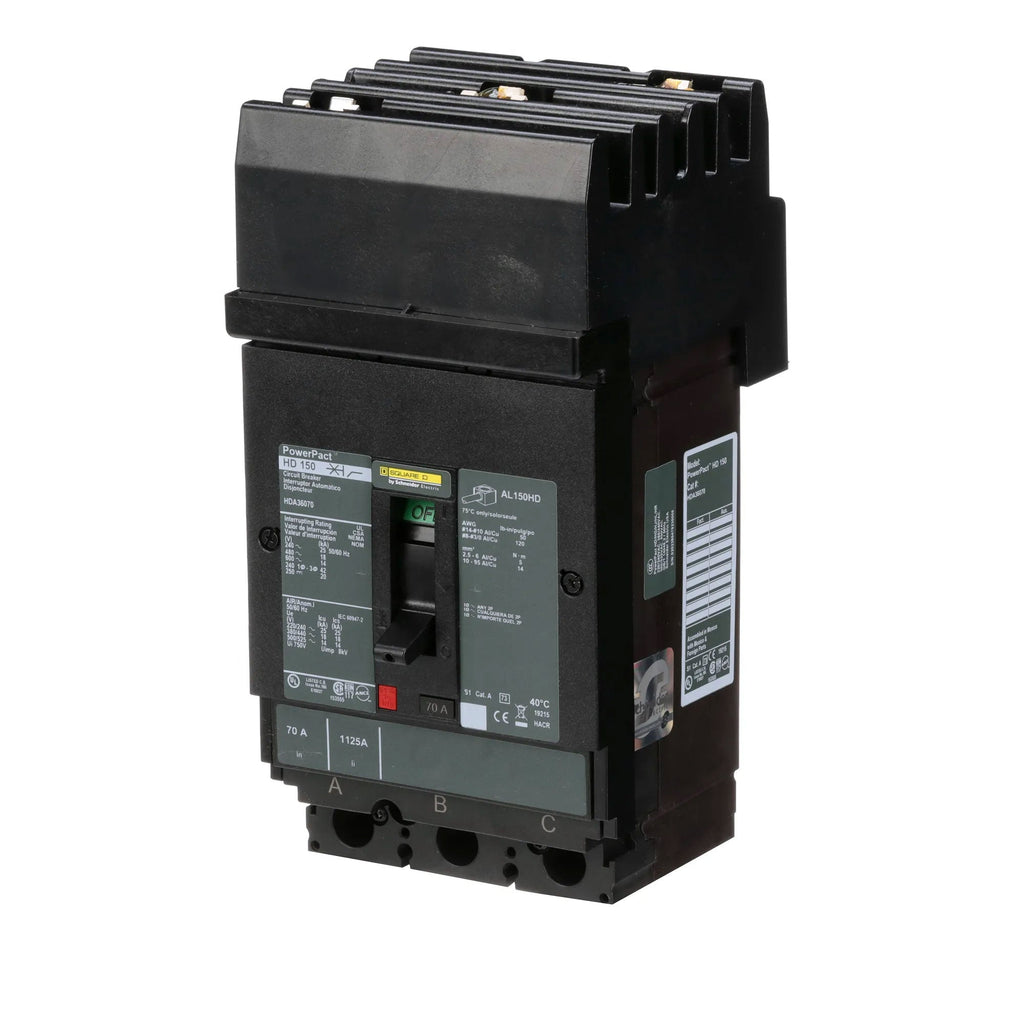

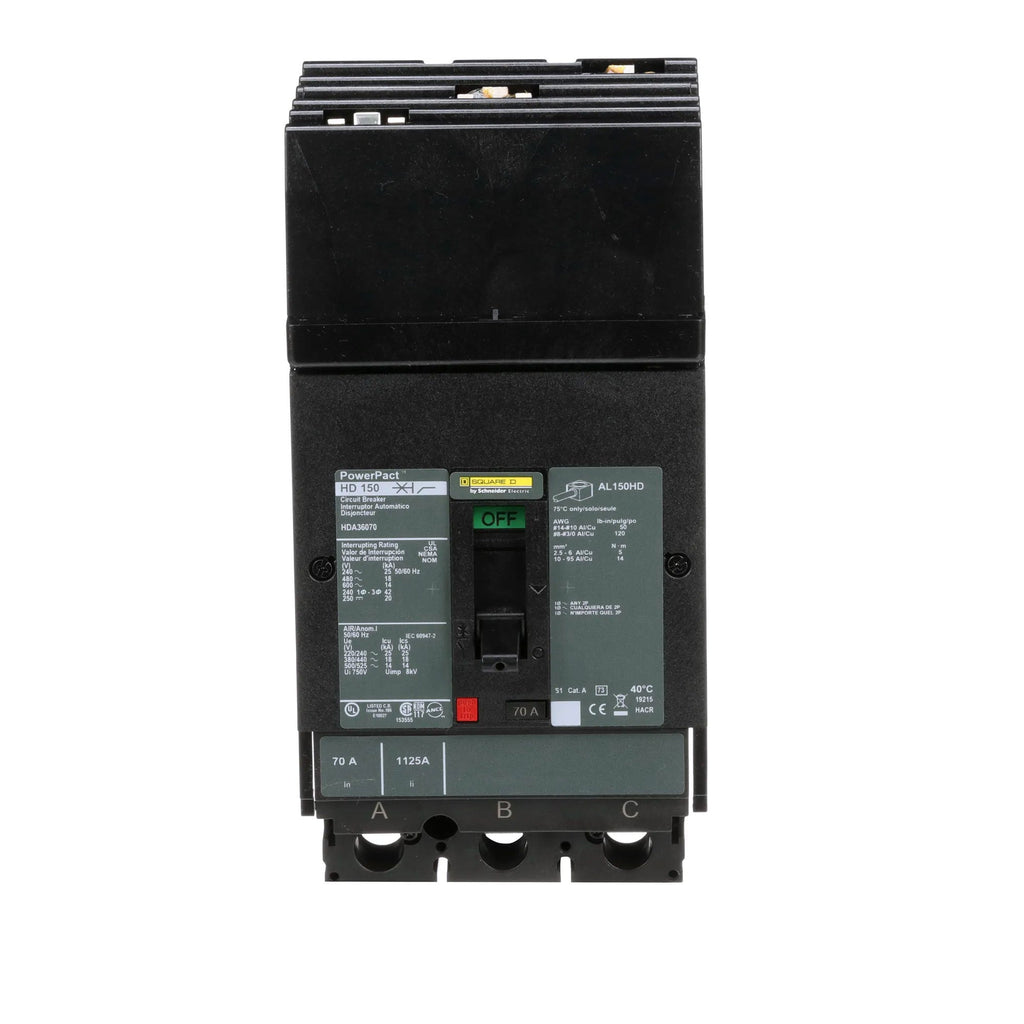

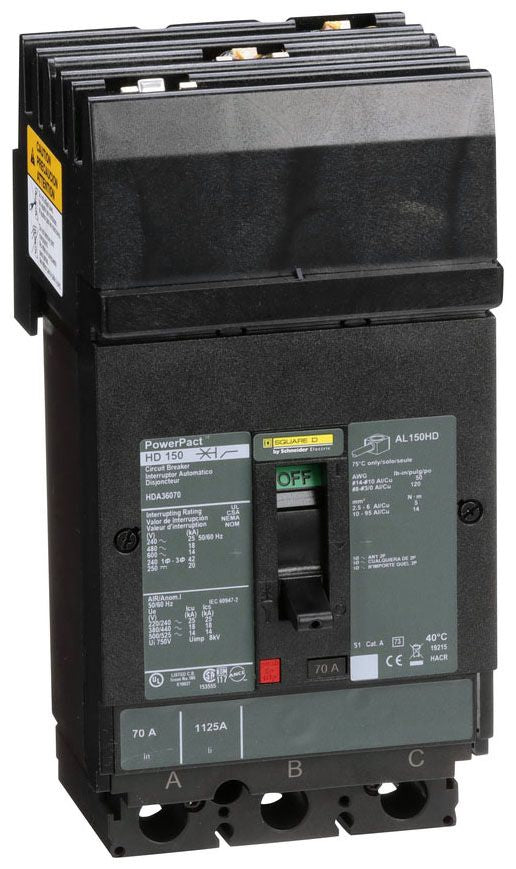

HDA36070 is a 3 pole, 70 amp thermal magnetic circuit breaker from Square D's PowerPact H series designed for I-Line plug-in mounting.This molded case circuit breaker features a 600V AC and 250V DC voltage rating with interrupt ratings of 25 kA at 240V AC, 18 kA at 480V AC, 14 kA at 600V AC, and 20 kA at 250V DC. It includes a thermal magnetic trip unit with a magnetic hold current of 800A and trip current of 1450A. The breaker supports wire gauges from AWG 14 to AWG 3/0 aluminum or copper and is UL, CSA, and CE certified for distribution applications.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 600 V AC / 250 V DC
• Number of Poles: 3P
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25 kA @ 240 V AC, 18 kA @ 480 V AC, 14 kA @ 600 V AC, 20 kA @ 250 V DC
• Trip Unit: Thermal magnetic
• Series/Frame: PowerPact H
• Wire Gauge: AWG 14–3/0 aluminum/copper
• Magnetic Hold Current: 800 A
• Magnetic Trip Current: 1450 A
• Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDA36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901419976
• GTIN : 00785901419976
• Country of Origin : Mexico

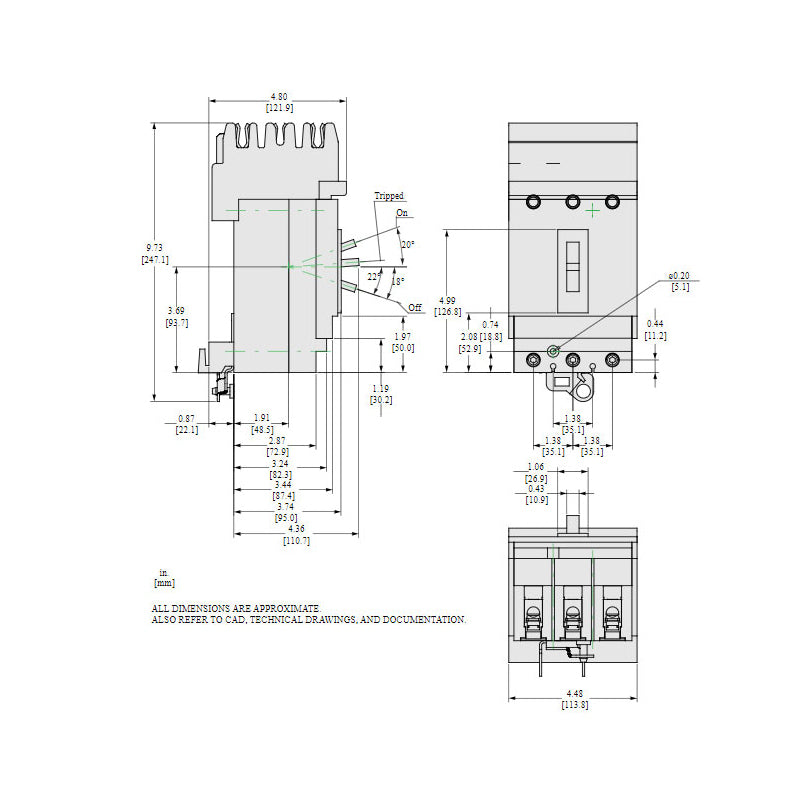

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.481
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
