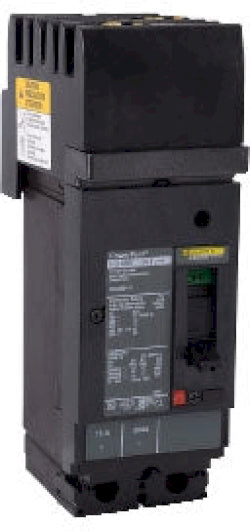

HDA260254 - Square D 25A 600V 2-Pole Molded Case Circuit Breaker, 14kA AC Interrupt Rating, Panel Mount, Powerpact H Series

HDA260254

HDA260254 is a 25A, 600V, 2-pole molded case circuit breaker from Square D's Powerpact H series, designed for panel mounting and reliable circuit protection in commercial and industrial applications.This breaker features a 14kA AC interrupt rating and a 20kA DC interrupt rating, making it suitable for demanding electrical environments. The Powerpact H series is known for its durability, ease of installation, and compatibility with I-Line style plug-in connections. It is certified to meet California Proposition 65 standards and is ideal for use in systems requiring robust overcurrent protection.

• Part Number: HDA260254
• Manufacturer: Square D
• Series: Powerpact H
• Frame: 150A
• Amperage: 25A
• Voltage Rating: 600V AC / 250V DC
• Poles: 2
• Mounting Type: Panel Mount
• Interrupt Rating: 14kA AC / 20kA DC
• Connection: I-Line Style Plug-In
• Trip Unit: Thermal-Magnetic
• Certifications: California Proposition 65

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA260254
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901632481
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
