HDA260151 - Square D 15 Amp 600V 2 Pole I-Line Style Plug-In Circuit Breaker

Save $267.37
SKU: HDA260151-New
Condition: New
Price:
$631.63 $899.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HDA260151 - Square D I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDA260151 - Square D I-Line Style Plug-In 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA260151 - Square D 15 Amp 600V 2 Pole I-Line Style Plug-In Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDA260151 - Square D I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDA260151 - Square D I-Line Style Plug-In 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA260151 - Square D 15 Amp 600V 2 Pole I-Line Style Plug-In Circuit Breaker - Essential Electric Supply

Description

HDA260151

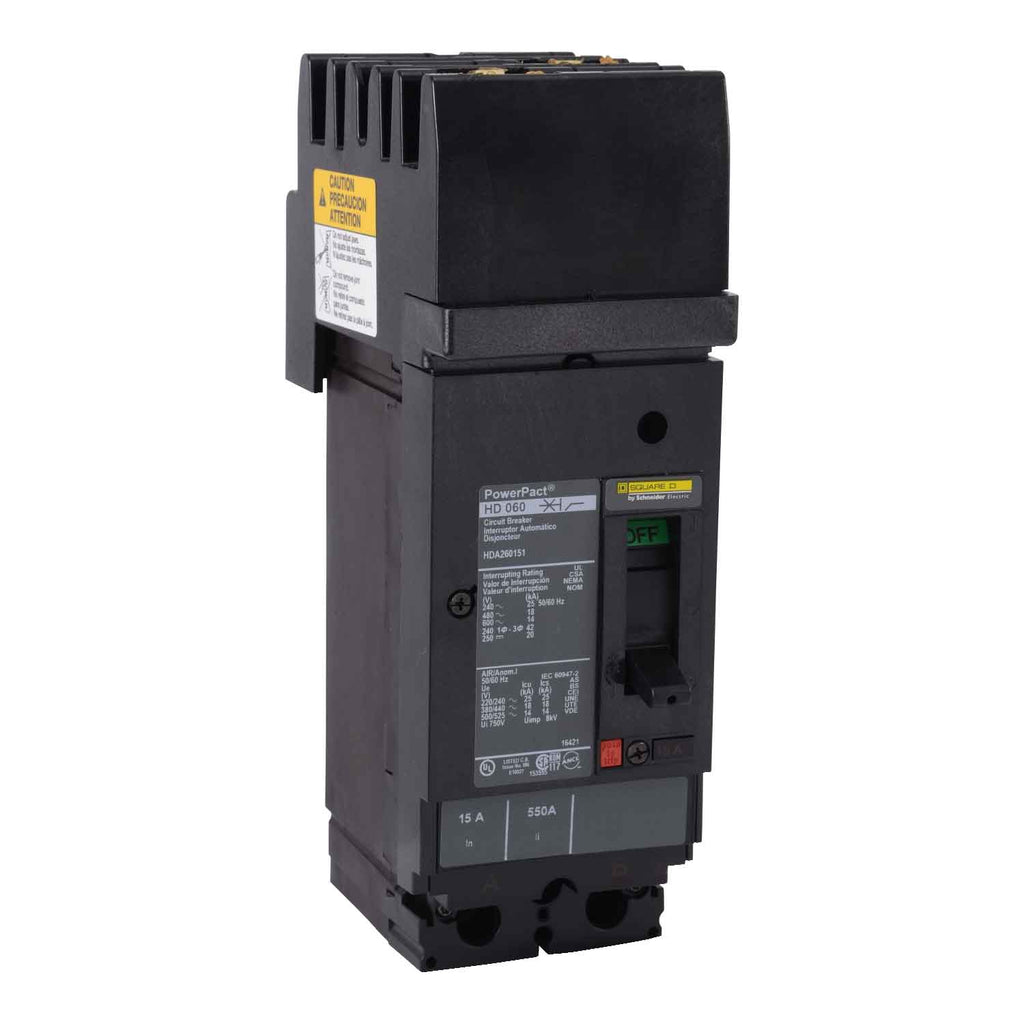

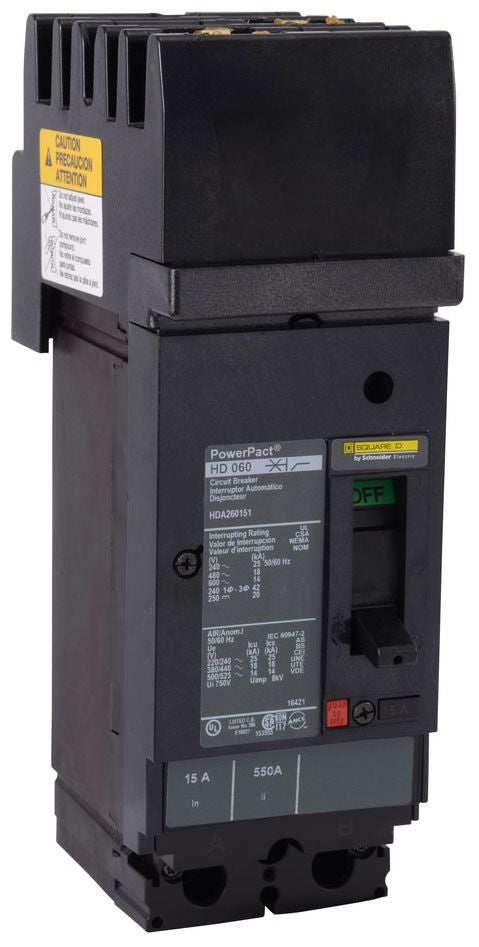

HDA260151 is a 2 pole, 15 amp, 600 volt thermal magnetic molded case circuit breaker by Square D designed for reliable protection in electrical distribution systems.This Square D HDA260151 circuit breaker features a 2 pole configuration with an I-Line style plug-in connection, suitable for 600V applications. It offers a thermal magnetic trip unit with long-time and instantaneous trip functions, providing effective overload and short circuit protection. The breaker has an interrupting rating of 25kAIC at 240VAC and 18kAIC at 480VAC, UL listed, and is part of the HDA series frame.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: HDA260151
    • Amperage: 15 Amp
    • Voltage Rating: 600 Volt AC
    • Poles: 2
    • Connection Type: I-Line Style Plug-In
    • Interrupting Rating: 25kAIC at 240VAC, 18kAIC at 480VAC
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
    • Series/Frame: HDA
    • Certifications: UL Listed
    • Phase: Single Phase
    • Mounting Type: Plug-In
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: HDA260151
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : HDA
    • Voltage : 600
    • Amperage : 15
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : I-Line Style Plug-In
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : I-Line, Lug
    • Frame Size : H
    • Temp Rating : 28-158 °F (-2-70 °C)
    • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
    • Protection : Thermal Magnetic
    • Phase Connection : AB

    Product Data

    • UPC : 785901418979
    • GTIN : 00785901418979
    • Country of Origin : Mexico
    • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
    • Weight : 3.001
    • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
    • Certification : UL, CSA, NOM
    • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
