Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Pin & Sleeve
- Series
- HBL Heavy Duty IEC Pin and Sleeve
- Rated current
- 60
- Voltage
- 480 480V
- Poles
- 3
- Wires
- 4
- UPC
- 783585404912
- GTIN
- 783585404912
- Dimensions
- 4.5 in W x 4.07 in D x 5.1 in H 5.1 in H x 4.5 in W x 4.07 in D
- Weight
- 0.3
Product description & additional details
HBL460R7W

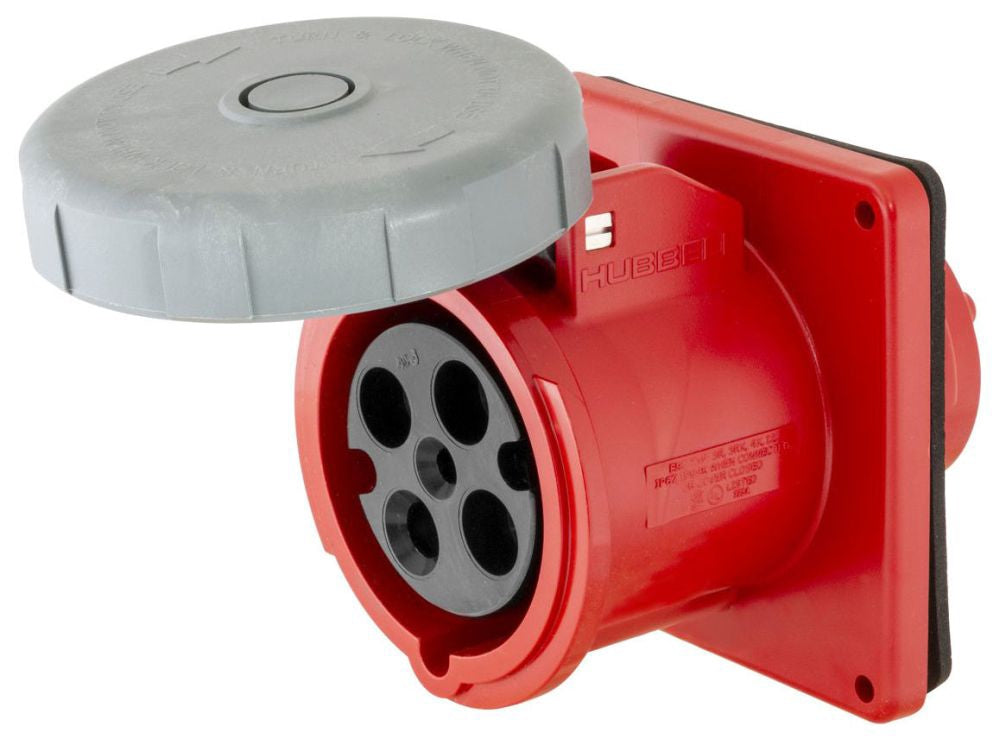

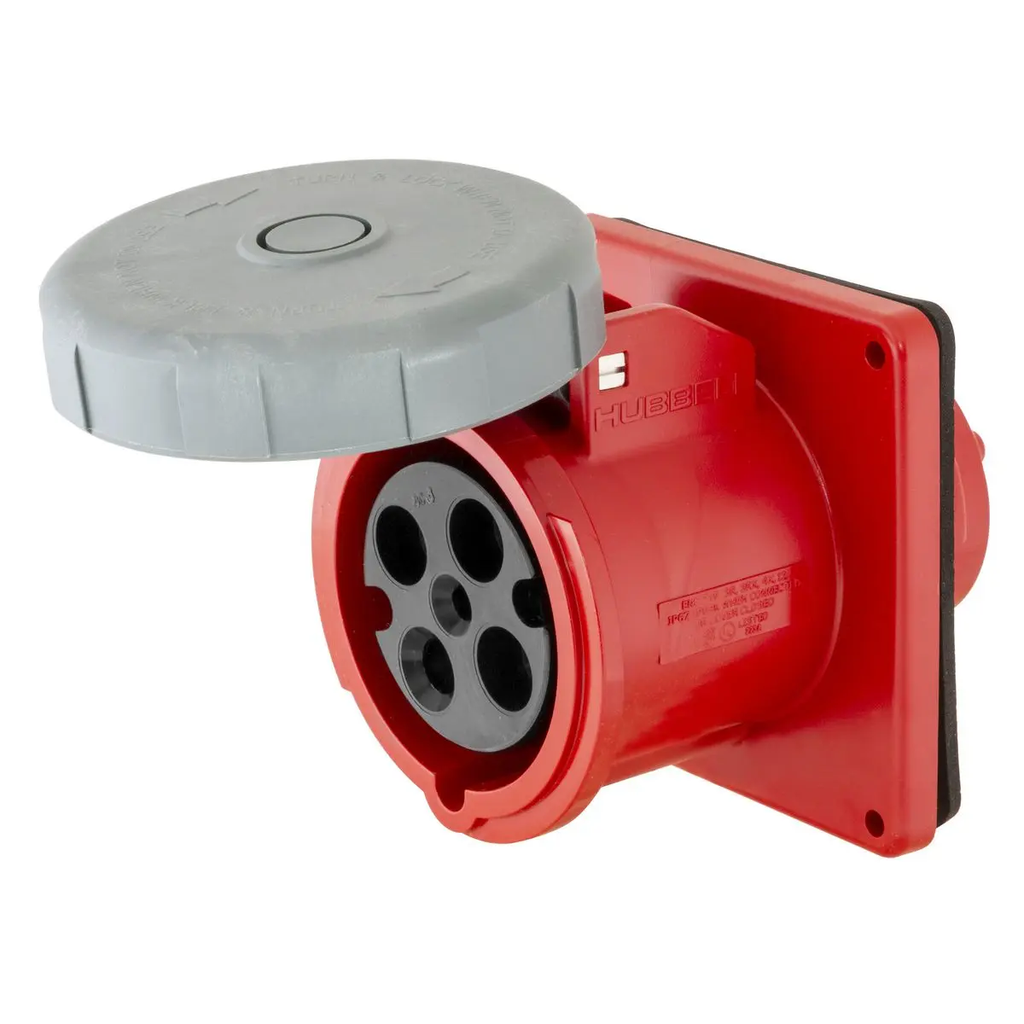

HBL460R7W is a 60 amp, 3-pole, 4-wire, 3-phase 480V watertight pin and sleeve receptacle from Hubbell.This industrial-grade female grounding receptacle features a thermoplastic housing with pressure terminal screws for secure wiring. It is designed for heavy-duty applications requiring watertight protection (IP67) and meets UL1682 standards. The device supports wire sizes from #8 AWG to #2 AWG and is suitable for 10 hp motor loads. Mounting is screw type with a single flanged style. The red color coding identifies it for 480V applications.
- Key Specifications
- Amperage: 60 A
- Voltage: 3 Phase 480 VAC
- Poles: 3-Pole
- Wires: 4-Wire
- Mounting Type: Screw Mounting, Single Flanged
- Material: Thermoplastic
- Enclosure: Watertight (IP67)
- Horsepower Rating: 10 hp
- Connectivity: Pressure Terminal Screws
- Certifications: UL1682 Listed
- Series: HBL Heavy Duty IEC Pin and Sleeve
- Color: Red
- Part Number: HBL460R7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Family : HBL Heavy Duty IEC Pin and Sleeve
- Voltage : 480 480
- Amperage : 60
- Poles : 3
- Wire : 4
- UPC : 783585404912
- GTIN : 783585404912
- Dimensions : 4.5 in W x 4.07 in D x 5.1 in H 5.1 in H x 4.5 in W x 4.07 in D
- Weight : 0.3
Specifications
Product Data
