2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL460P9W

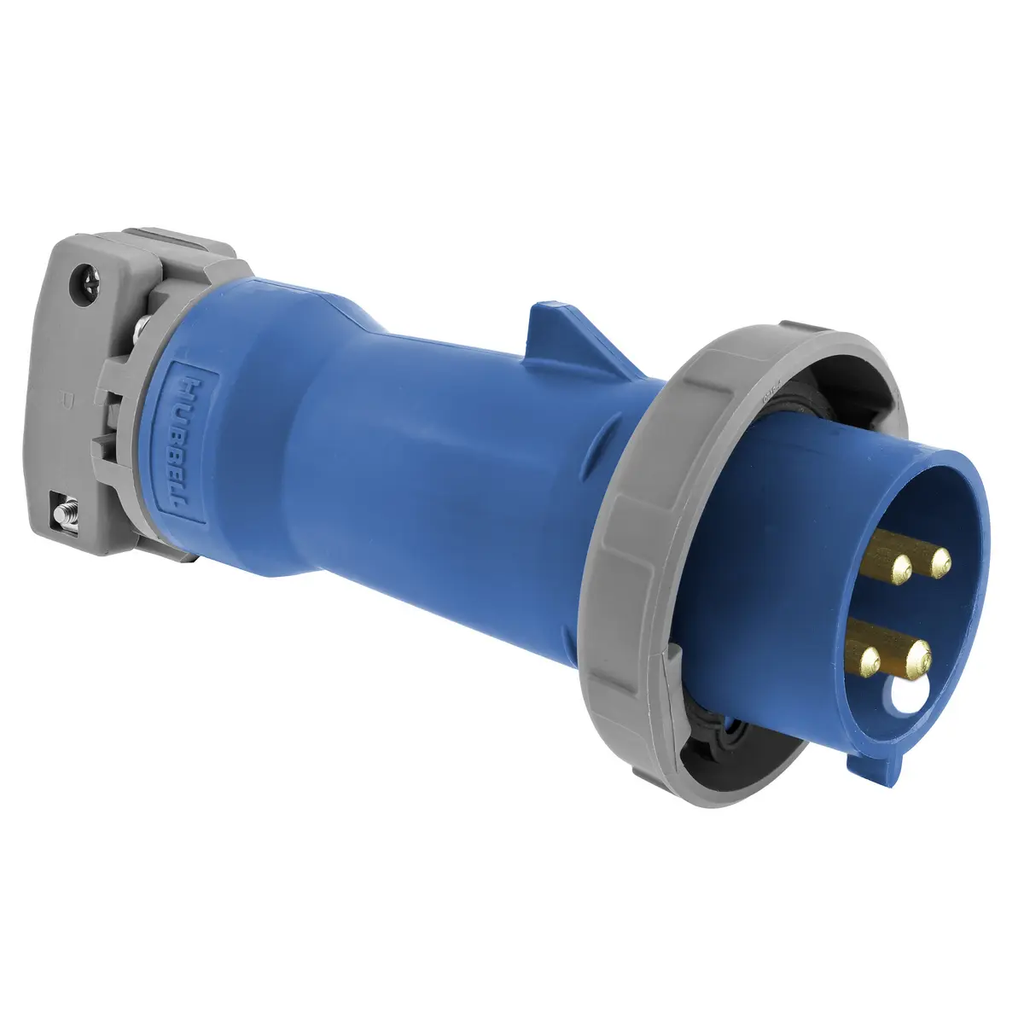

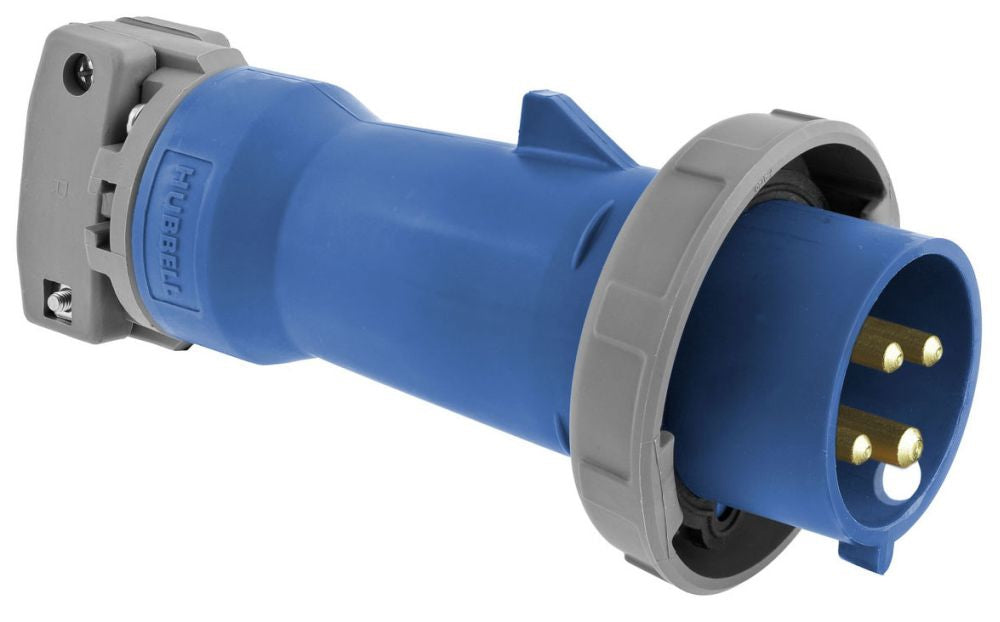

HBL460P9W is a Hubbell 60 amp, 250 VAC, 3-pole 4-wire watertight pin and sleeve male plug designed for heavy-duty industrial use.This plug features a durable composite housing with a high-impact thermoset contact carrier and reinforced thermoplastic polyester locking ring. It is cord mounted with pressure terminal screws for secure connections, rated for three-phase 250 VAC applications. The device meets UL 498, IEC 60309-1 and 309-2 standards, is UL listed and CSA certified, and is designed for portable cord use with wire sizes from #8 AWG to #2 AWG. It provides watertight protection and superior strain relief for high ampacity connections.
- Key Specifications
- Amperage Rating: 60 A
- Voltage Rating: 250 VAC, 3 Phase
- Number of Poles: 3
- Number of Wires: 4
- Mounting Type: Cord Mounted
- Material: Composite
- Connectivity: Pressure Terminal Screws
- Standards: UL 498, IEC 60309-1, IEC 309-2, CSA C22.2 No. 182.1
- Color: Blue
- Watertight: Yes
- Wire Size Range: #8 AWG to #2 AWG
- Series: HBL Heavy Duty
Specifications
- Part Number: HBL460P9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
Product Data
- UPC : 783585404882
- GTIN : 00783585404882
- Dimensions : 4.49 in Dia x 10.15 in L
- Weight : 5.19
