Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL460C9W

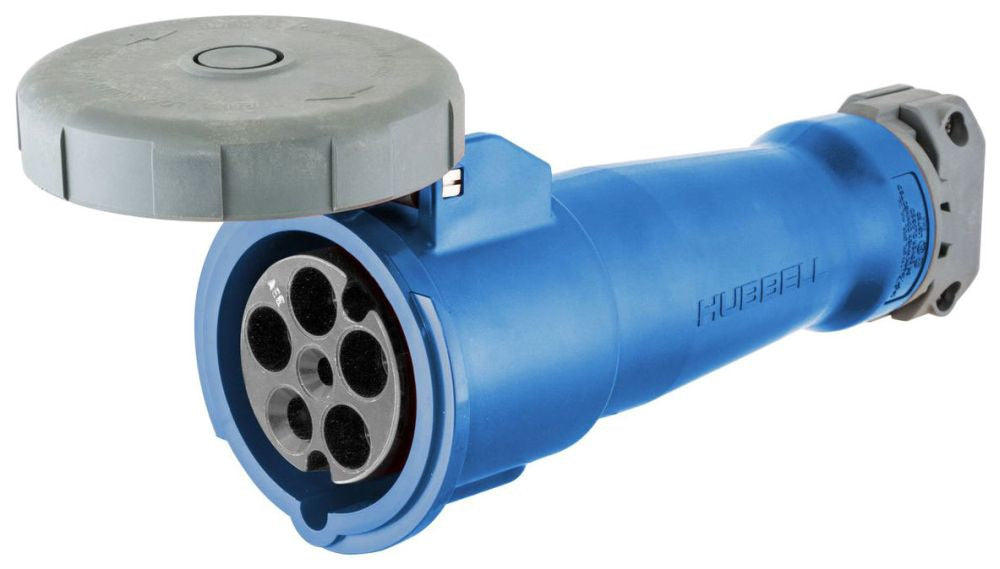

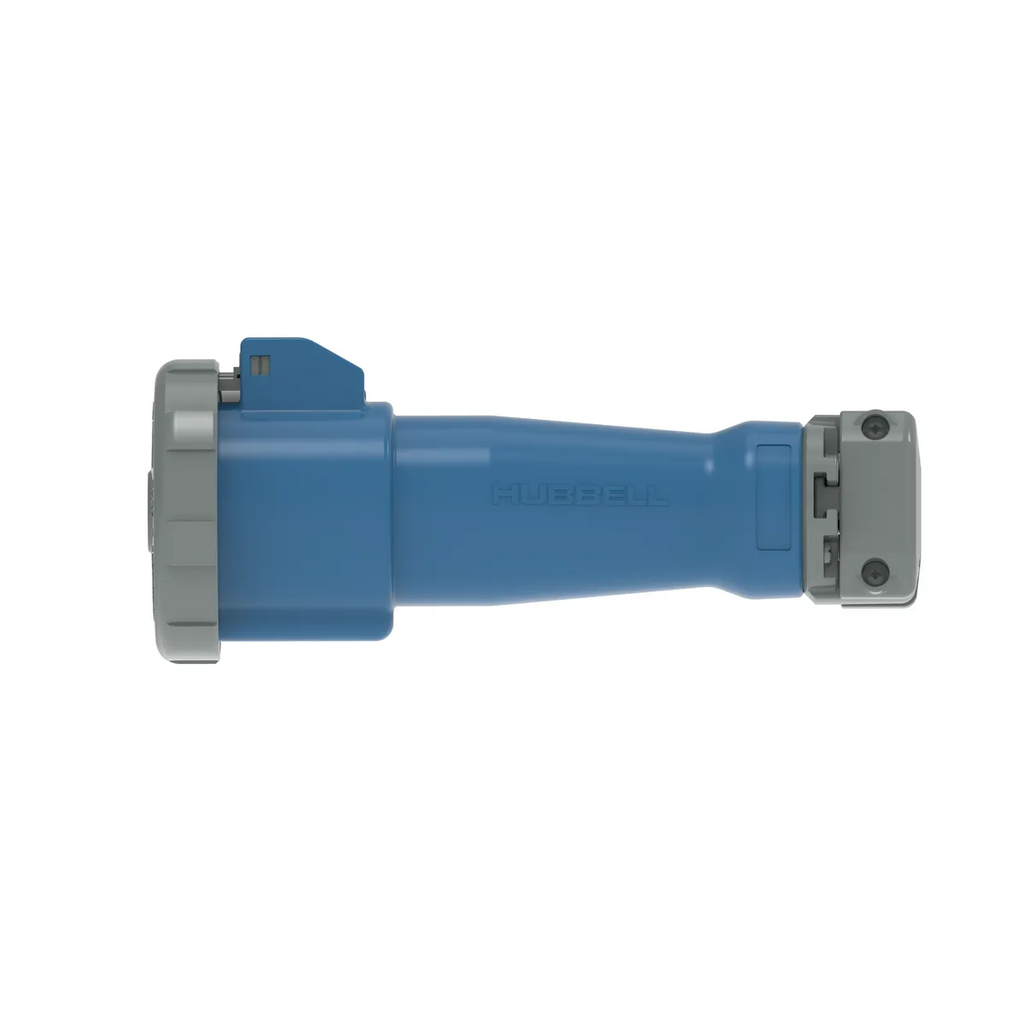

HBL460C9W is a Hubbell 60 Amp, 250 Volt, 3 Pole 4 Wire watertight female pin and sleeve connector designed for heavy-duty industrial applications.HBL460C9W features a durable insulated housing compliant with UL 1686 C2 and IEC 309-2 standards, providing reliable watertight connections in 3-phase power systems. It accommodates 8 to 2 AWG copper wire with screw pressure terminals and is rated for 60A continuous current at 250VAC. The connector is blue, with a clock position 9 configuration, and constructed from PBT material for enhanced durability and resistance to environmental factors.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 250 Volts AC
- Poles/Wires: 3 Pole, 4 Wire Grounding
- Mounting Type: Female Pin and Sleeve Connector
- Interrupt Rating: IEC Watertight, UL 1686 C2 Compliant
- Material: PBT Housing
- Wire Size: 8 to 2 AWG Copper
- Color: Blue
- Standards: UL 1686 C2, IEC 309-2
- Configuration: Clock Position 9
- Weight: Approx. 2.95 lbs
Specifications
- Part Number: HBL460C9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
Product Data
- UPC : 783585404837
- GTIN : 00783585404837
- Dimensions : 5.1 in Dia x 11.15 in L
- Weight : 5.19
