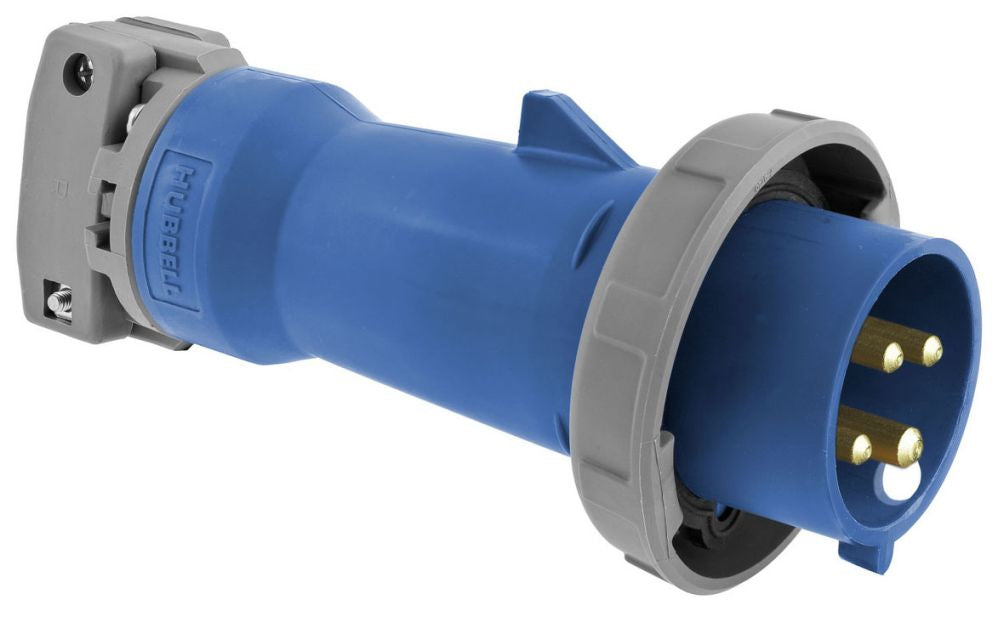

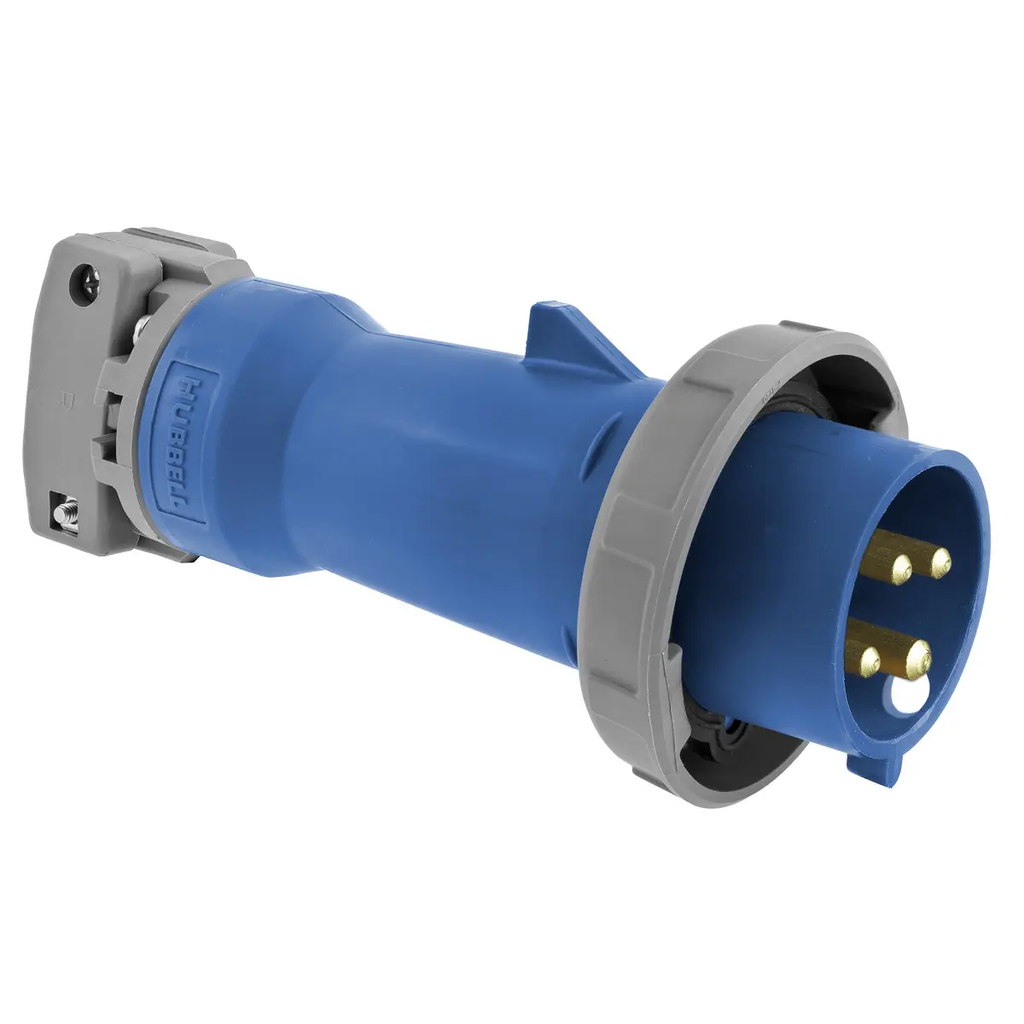

HBL420P9W - Hubbell 20A 3-Phase 250V AC 3-Pole 4-Wire Grounding Watertight Pin and Sleeve Male Plug

HBL420P9W

HBL420P9W is a heavy-duty, watertight, industrial-grade pin and sleeve male plug designed for reliable 3-phase power connections in demanding environments. This Hubbell device features a rugged composite housing and thermoset polyester contact carrier for superior durability and resistance to electrical tracking. The plug is rated for 20A, 250V AC, 3-pole, 4-wire grounding, and is cord-mounted for easy installation. It is ideal for industrial applications requiring a secure, watertight connection. Hubbell's HBL420P9W is part of the HBL Heavy Duty series and is certified to UL and CSA standards. The plug features pressure terminal screws for secure conductor attachment and is designed to withstand harsh conditions, including temperature extremes and mechanical impact. The device is recognized as an approved disconnecting means per NEC 430.109(F) and is suitable for use in portable power applications.

• Part Number: HBL420P9W
• Manufacturer: Hubbell Wiring Device-Kellems
• Amperage Rating: 20 A
• Voltage Rating: 3 Phase 250 VAC
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire Grounding
• Mounting Type: Cord Mounted
• Series: HBL Heavy Duty
• Interrupt Rating: Certified for current interrupting at full rated current
• Terminal Type: Pressure Terminal Screws
• Material: Composite Housing, Thermoset Polyester Contact Carrier
• Certifications: UL Classified to IEC60309-1, CSA C22.2 No. 182.1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL420P9W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 250 250

Product Data

• UPC : 783585404394
• GTIN : 783585404394
• Dimensions : 3.19 in Dia x 7 in L
• Weight : 0.3
