Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Pin & Sleeve
- Rated current
- 60
- Voltage
- 480 480V
- Poles
- 3
- UPC
- 783585404806
- GTIN
- 0078358540480
- Dimensions
- 5.1 in Dia x 11.15 in L
- Weight
- 0.5
Product description & additional details
HBL460C7W

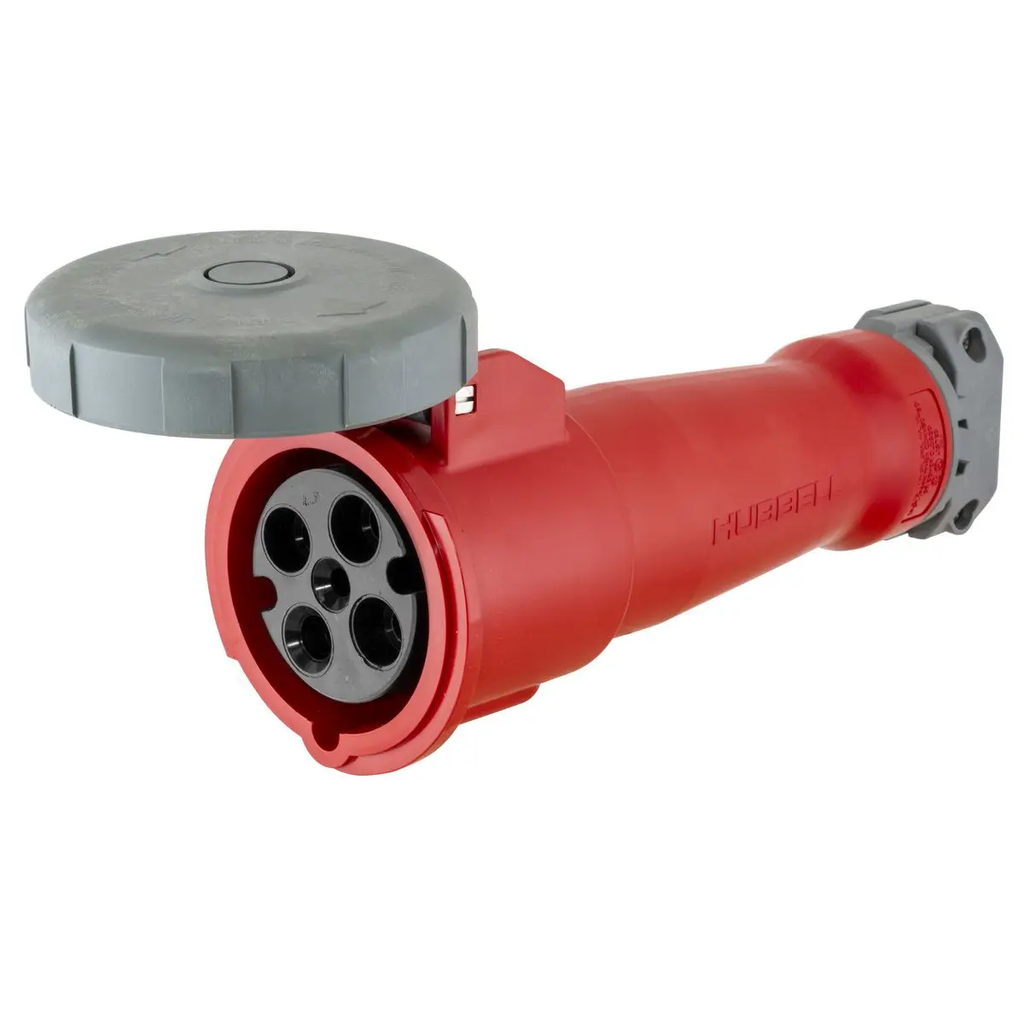

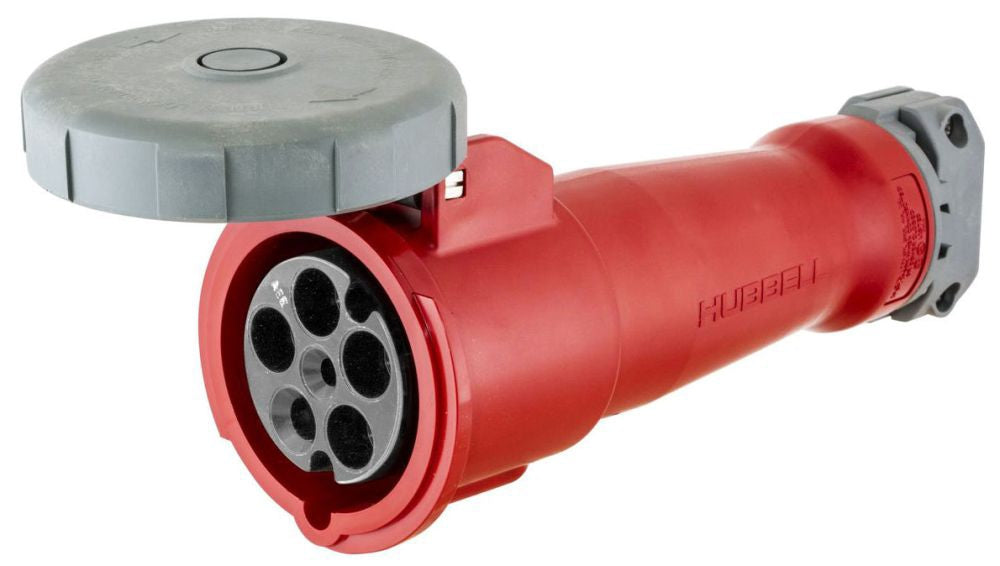

HBL460C7W is a Hubbell female grounding watertight cord mount pin and sleeve connector designed for demanding industrial environments.
This connector features a 3-pole, 4-wire configuration, pressure screw terminals, and a robust composite housing rated for watertight (IP67) service. It is engineered for 3-phase 480V AC applications, supports conductor sizes from #8 AWG to #2 AWG, and operates reliably in temperatures from -40°C to 75°C. The connector is UL Listed, CSA Certified, and complies with IEC 60309 standards for global compatibility.
-
Key Specifications
- Amperage: 60A
- Voltage: 480V AC, 3-phase
- Poles: 3
- Wires: 4 (including ground)
- Mounting Type: Cord mount
- Interrupt Rating: Not specified in available data
- Series/Frame: HBL Heavy Duty
- Trip Unit: Not applicable (passive connector)
- Certifications: UL Listed (File E146033), CSA Certified (File LR280C), IEC 60309-1/2
- Material: Zytel ST801 nylon housing, reinforced thermoplastic polyester covers and cord clamps, solid neoprene gaskets and glands
- Environmental: Watertight (IP67), -40°C to 75°C operating range
- Color: Red
- Conductor Range: #8 AWG to #2 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL460C7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 480 480
- Amperage : 60
- Poles : 3
Product Data
- UPC : 783585404806
- GTIN : 0078358540480
- Dimensions : 5.1 in Dia x 11.15 in L
- Weight : 0.5
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
