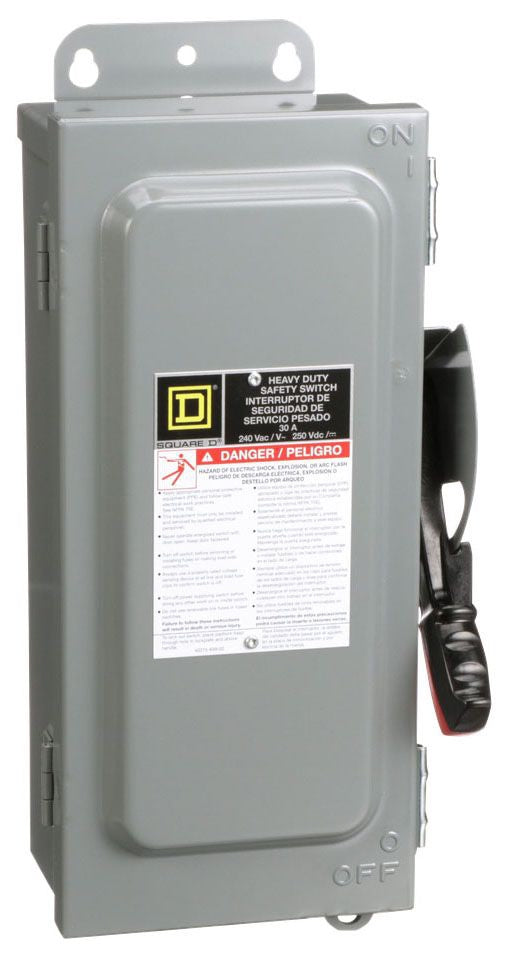

H221AWK - Square D 30A 240VAC/250VDC 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R/12

H221AWK

H221AWK is a Square D heavy duty fusible safety switch designed for reliable circuit control in demanding indoor environments.This switch features a 30 amp rating with 240 VAC and 250 VDC voltage capacity, 2 poles, and a fusible design for enhanced protection. It is constructed with a galvannealed steel enclosure rated NEMA 3R/12 for indoor use, suitable for motor loads up to 7.5 hp at 240 VAC. The switch supports Class R/J/H/K fuses and is UL listed for safety and performance.

• Amperage: 30 A
• Voltage: 240 VAC / 250 VDC
• Poles: 2
• Mounting Type: Surface
• Interrupt Rating: Fusible (Class R/J/H/K)
• Enclosure: Galvannealed steel, NEMA 3R/12
• Motor HP Rating: 1.5 hp at 240 VAC single phase, up to 7.5 hp
• Type: Heavy Duty Safety Switch
• Certifications: UL Listed
• Series/Frame: Heavy Duty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H221AWK
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R/12
• Compatible Frames : FAP

Product Data

• UPC : 078590147750
• GTIN : 00785901477501
• Dimensions : 14.6 in (370.8 mm) x 6.63 in (168.40 mm) x 4.96 in (125.98 mm) (Height x Width x Depth)
• Weight : 10.08
