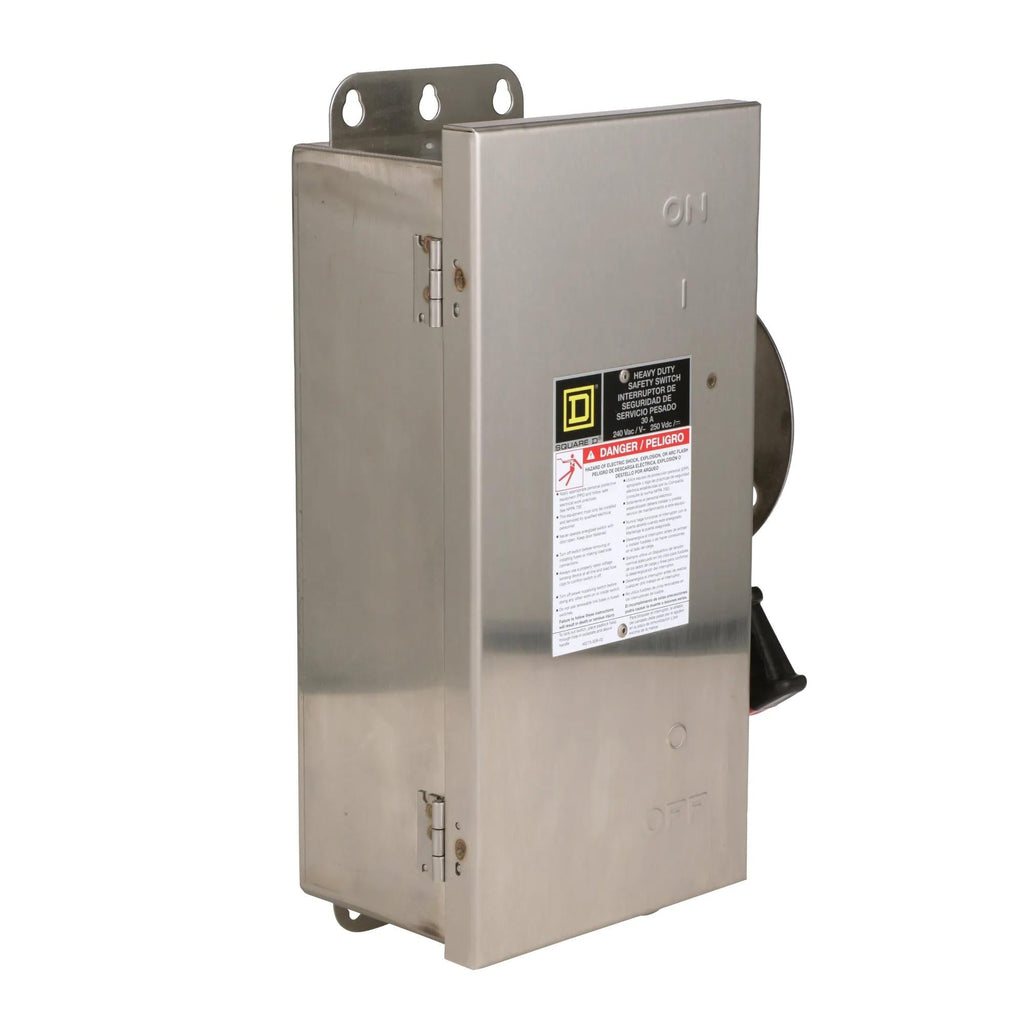

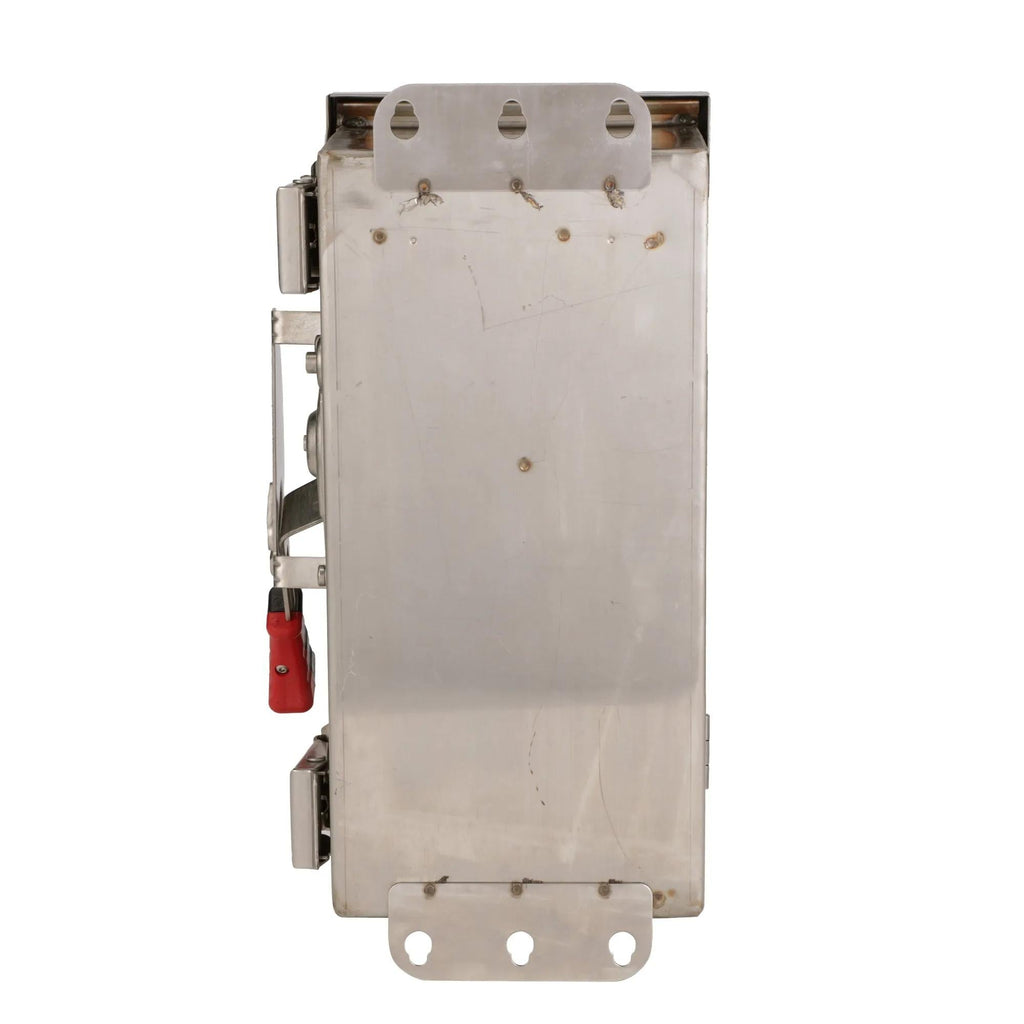

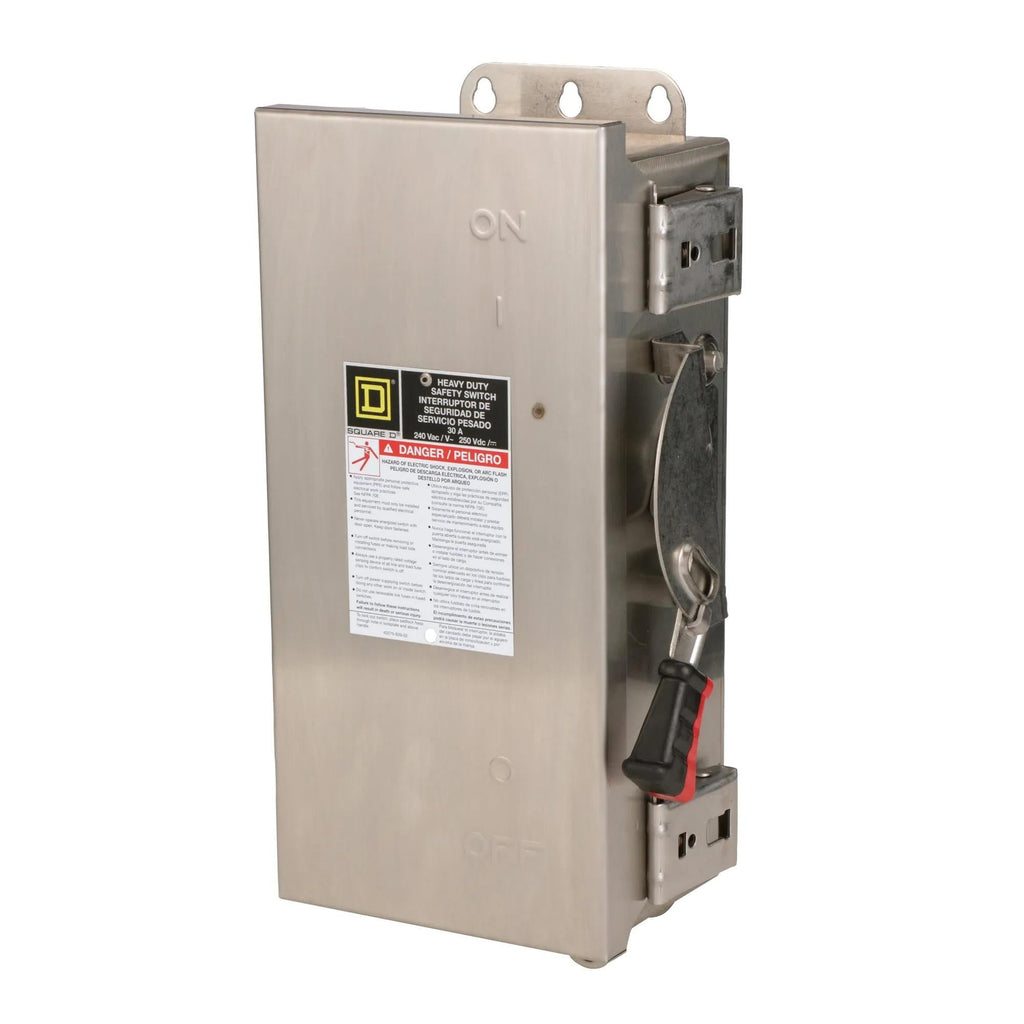

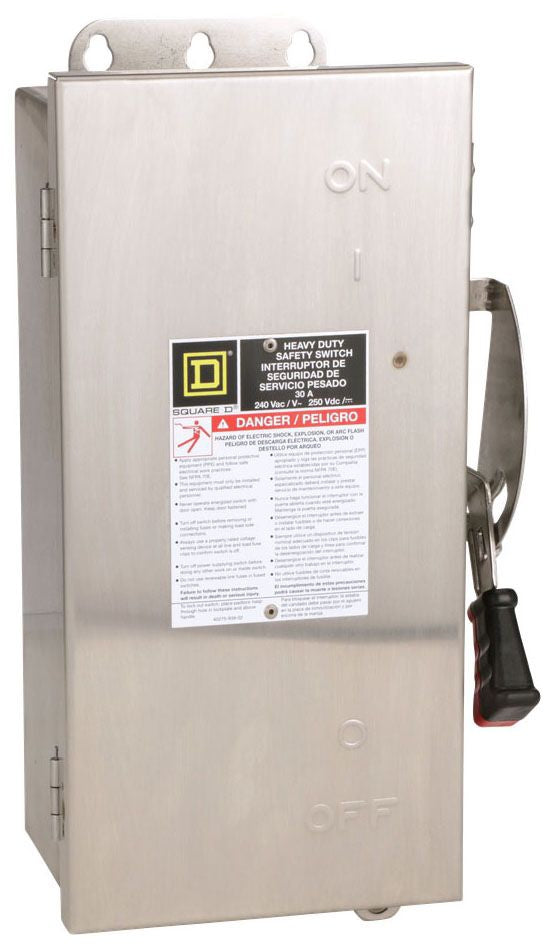

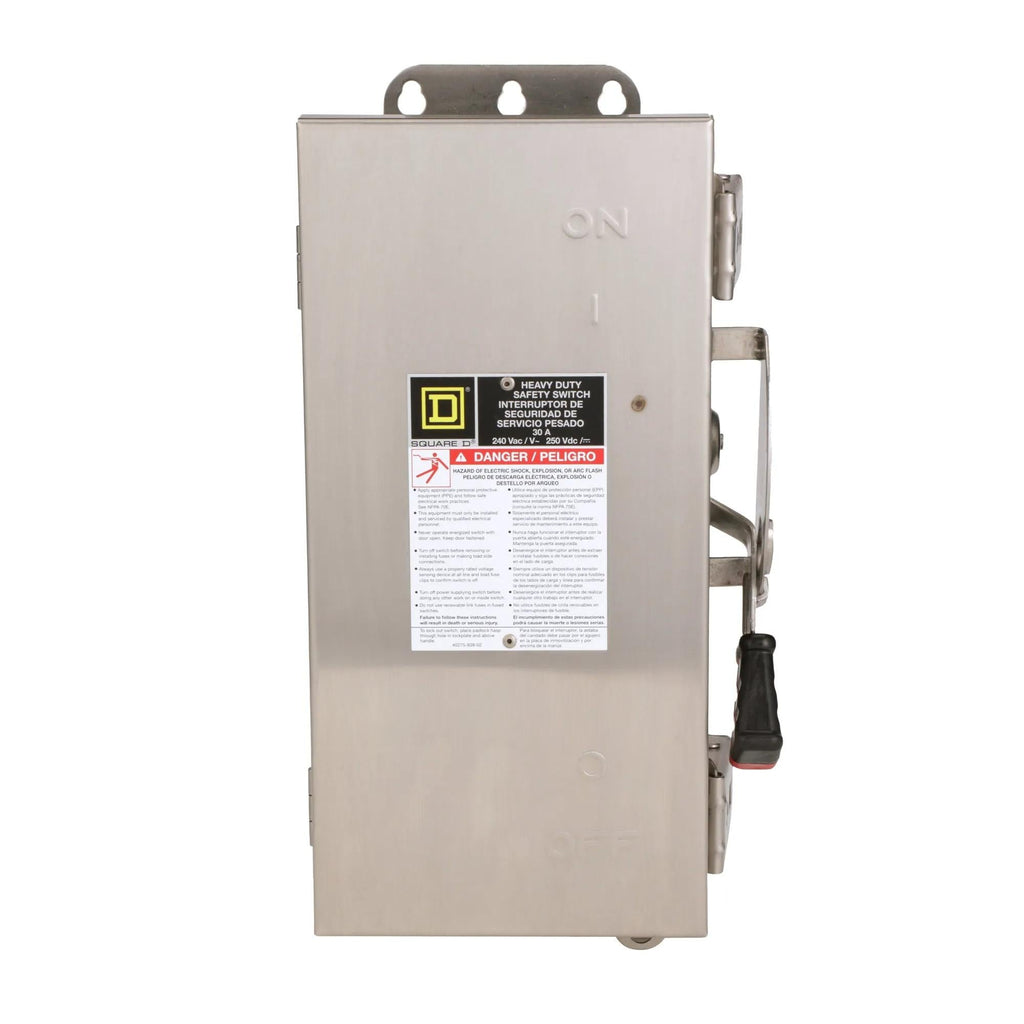

Reference images. Contact us for photos of the available unit.


Schneider Electric

H221DS

Square D 30A 240VAC 2 Pole Fusible Heavy Duty Safety Switch H Frame Surface Mount NEMA 4X

Current: 30Poles: 2Voltage: 240V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$710.47
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Brand
Square D
Sub-Category
Disconnect
Series
Series F
Frame
H
Rated current
30
Voltage
240V
Poles
2
Phases
1
Interrupting rating
200kA@240V
Configuration
Single
Switch style
Fusible
Fuse class
R
NEMA rating
4/4X/5
Show all specifications (6 more)
Compatible Frames
FAP
UPC
785901023579
GTIN
00785901023579
Dimensions
14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
Weight
13.329
Certification
UL
Product description & additional details

H221DS


H221DS is a Square D 30 Amp 2 Pole Fusible Heavy Duty Safety Switch with 240VAC/250VDC voltage rating and H frame type.H221DS features a surface mounting type, NEMA 4X enclosure rating, and a 200kA interrupting rating at 240V. It supports lug terminal connections and is constructed with 304 stainless steel for durability. This switch is UL approved, RoHS compliant, and designed for heavy duty industrial and commercial applications.
    Key Specifications
    • Amperage: 30 Amps
    • Voltage: 240VAC, 250VDC
    • Poles: 2
    • Mounting Type: Surface
    • Interrupt Rating: 200kA @ 240V
    • Frame Type: H
    • Terminal Connection: Lug
    • NEMA Rating: 4, 4X, 5
    • Wire Gauge: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper
    • Fusibility: Fusible
    • Enclosure Material: 304 Stainless Steel
    • Certifications: UL, RoHS
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: H221DS
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Switch
  • Item Subcategory : Disconnect
  • Family : Series F
  • Type : H
  • Voltage : 240
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 200kA@240V
  • Fuse Class : R
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : 4/4X/5
  • Compatible Frames : FAP

Product Data

  • UPC : 785901023579
  • GTIN : 00785901023579
  • Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
  • Weight : 13.329
  • Certification : UL
