Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Bussmann
- Sub-Category
- Low Voltage Fuse
- Series
- Fusetron
- Frame
- FRS-R
- Rated current
- 20
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 0.81 in
- Country of origin
- Mexico
- UPC
- 051712508322
- GTIN
- 00051712508322
Show all specifications (3 more)
- Dimensions
- 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight
- 0.16
- Certification
- CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Product description & additional details

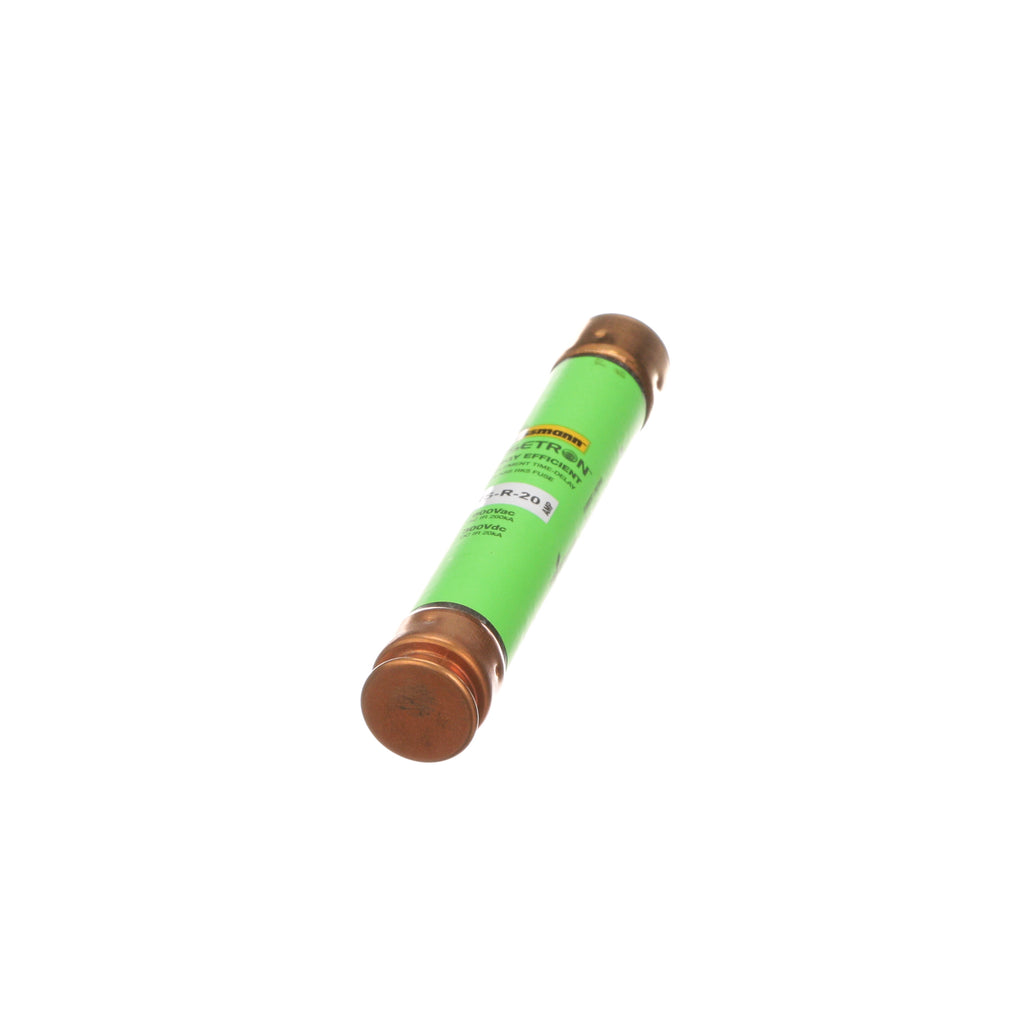

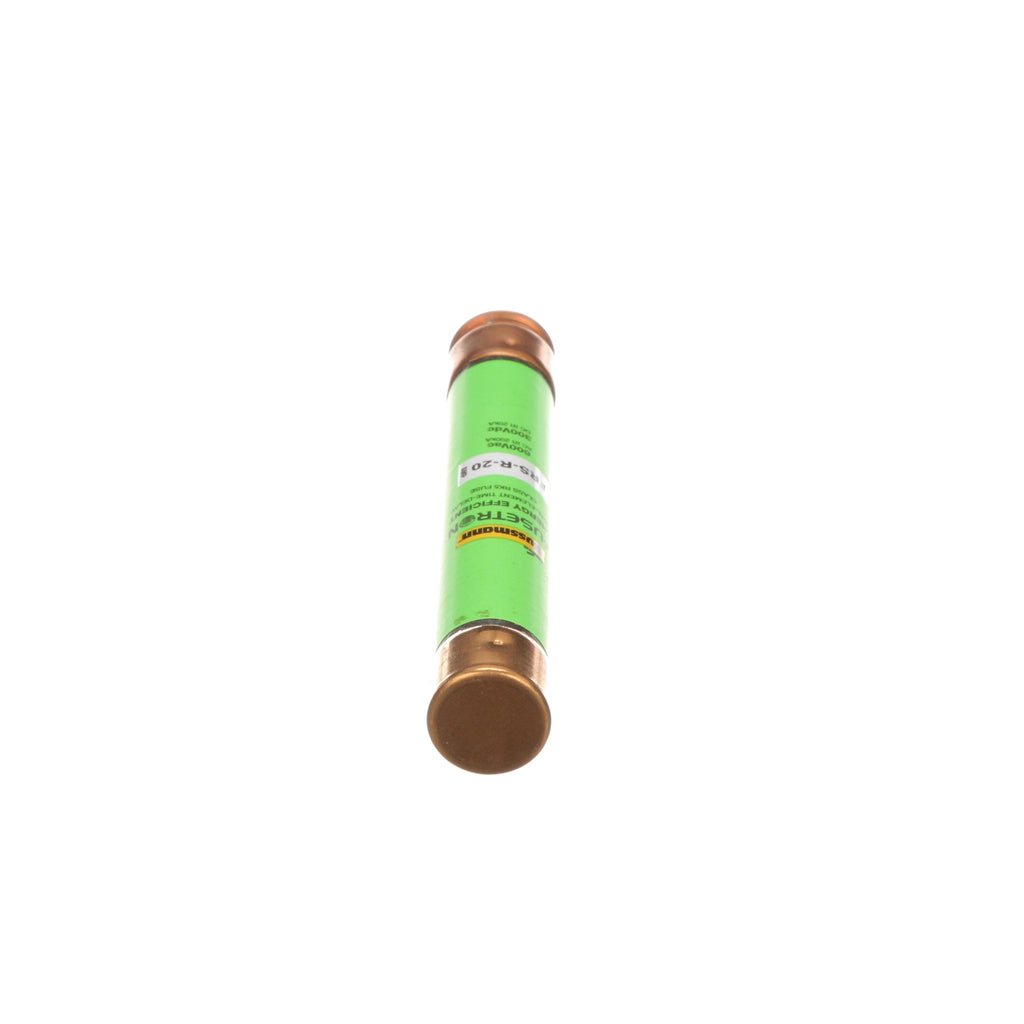

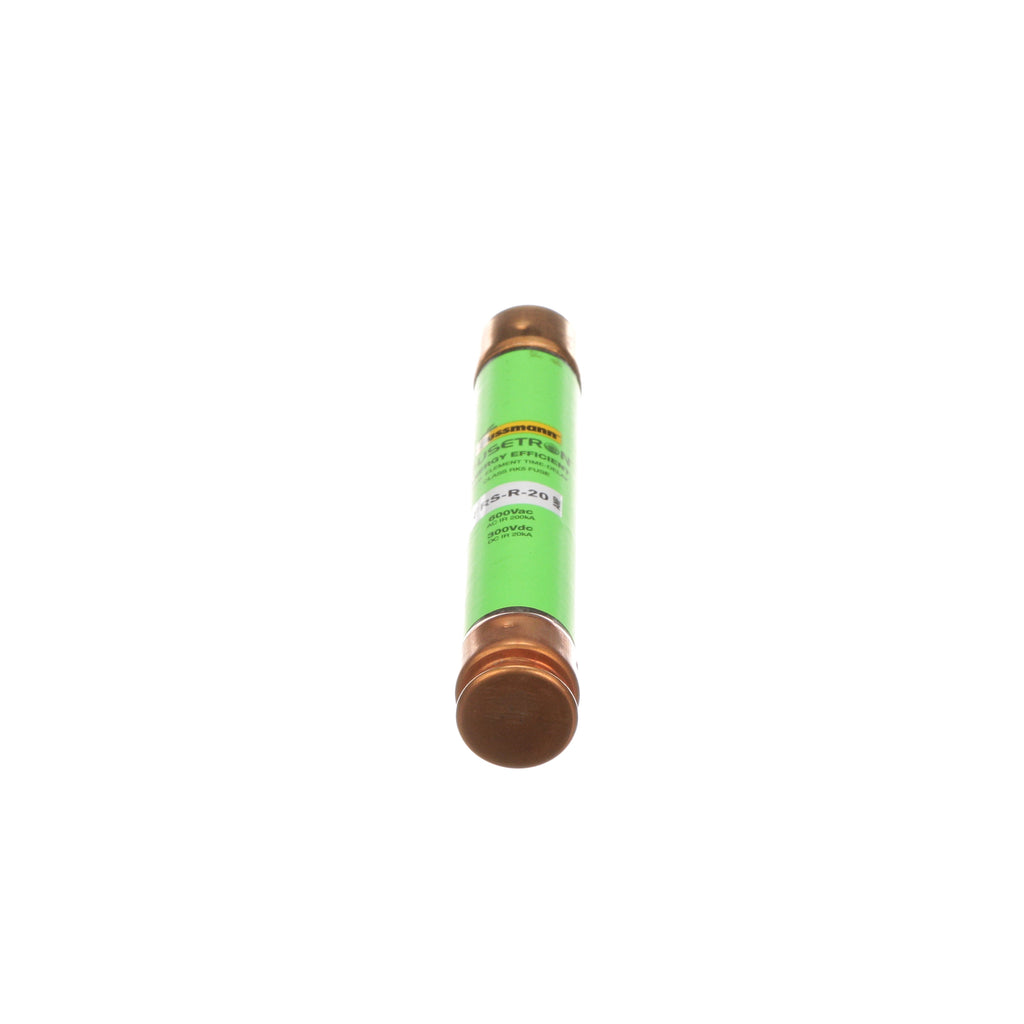

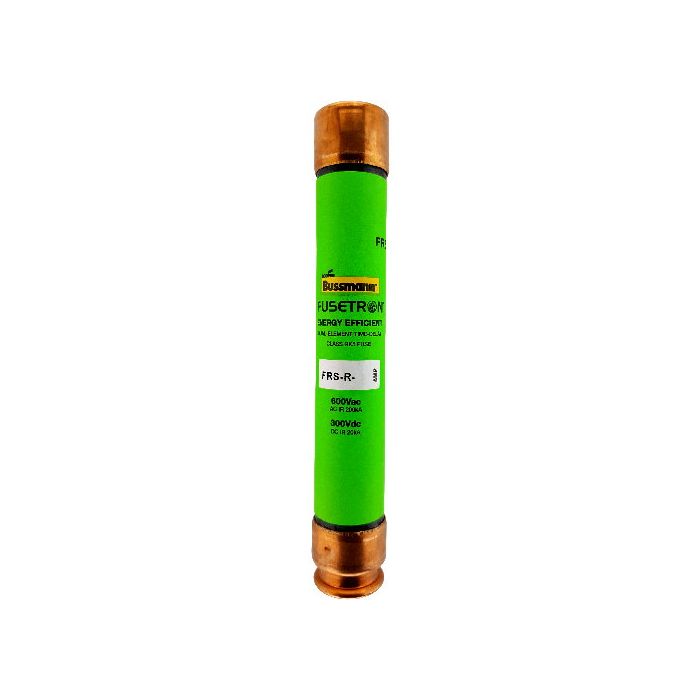

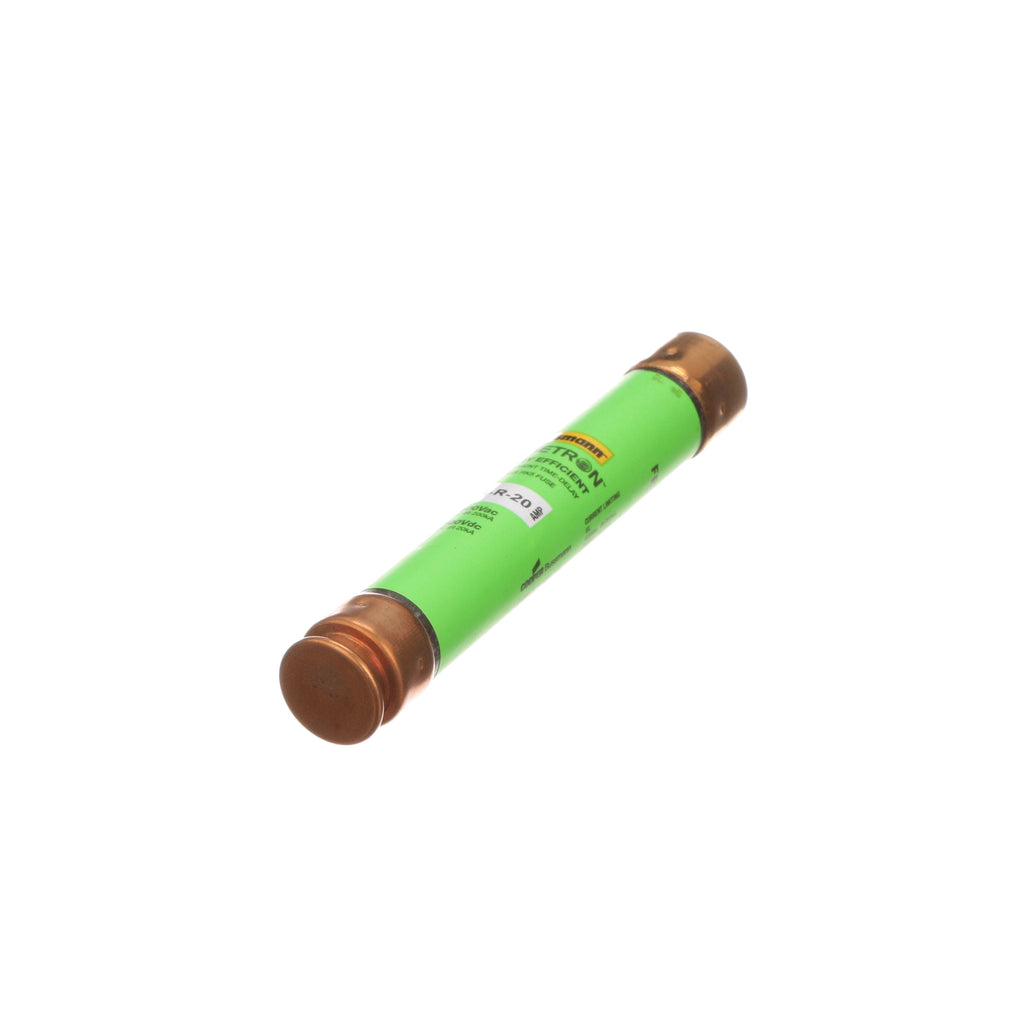

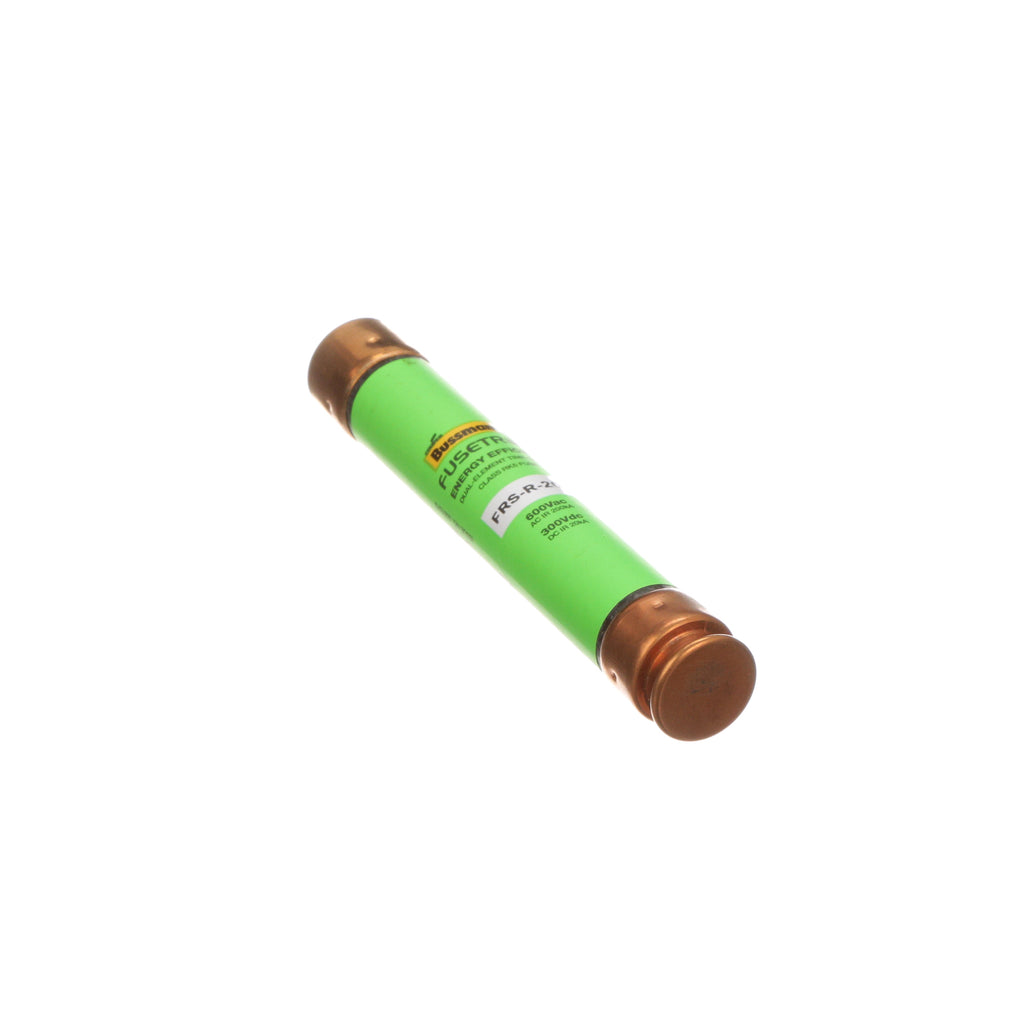

FRS-R-20
FRS-R-20 is a 20 amp, 600 volt dual element time delay fuse from Eaton Bussmann's FRS-R series, designed for reliable circuit protection.This fuse features a 10 second time delay at 500% of rated current, a high interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, and is classified as a Class RK5 fuse. It has ferrule end x ferrule end mounting without an indicator holder, suitable for use in various fuse blocks and equipment requiring UL current limiting protection.
- Amperage: 20 A
- Voltage Rating: 600 Vac / 300 Vdc
- Interrupt Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
- Fuse Type: Dual Element, Time Delay
- Class: RK5
- Mounting: Ferrule End x Ferrule End
- Response Time: 10 seconds at 500% rated current
- Series: FRS-R
- Certifications: UL Listed
- Physical Size: Cartridge body fuse
Specifications
- Part Number: FRS-R-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712508322
- GTIN : 00051712508322
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.16
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
