FRN-R-30 - Eaton Bussmann 30A 250V Dual Element Time-Delay Class RK5 Fuse

FRN-R-30

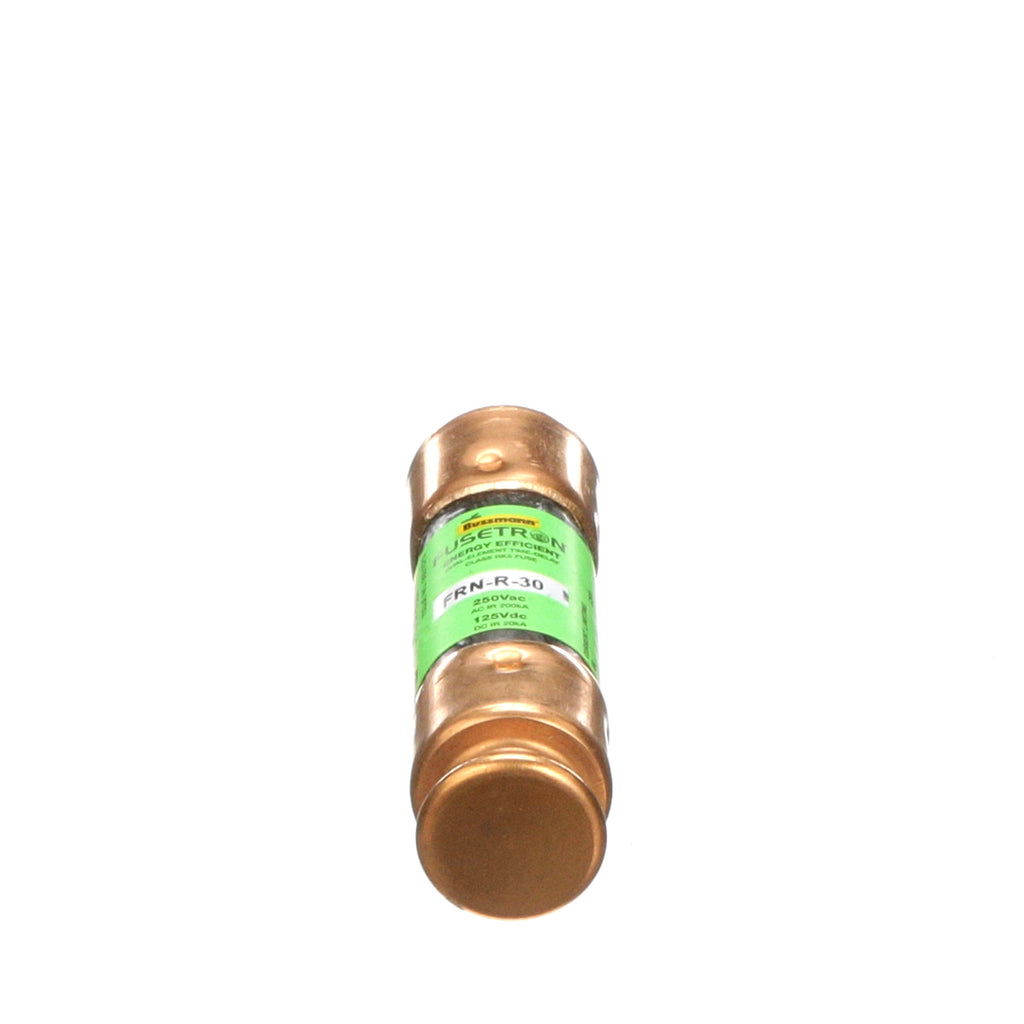

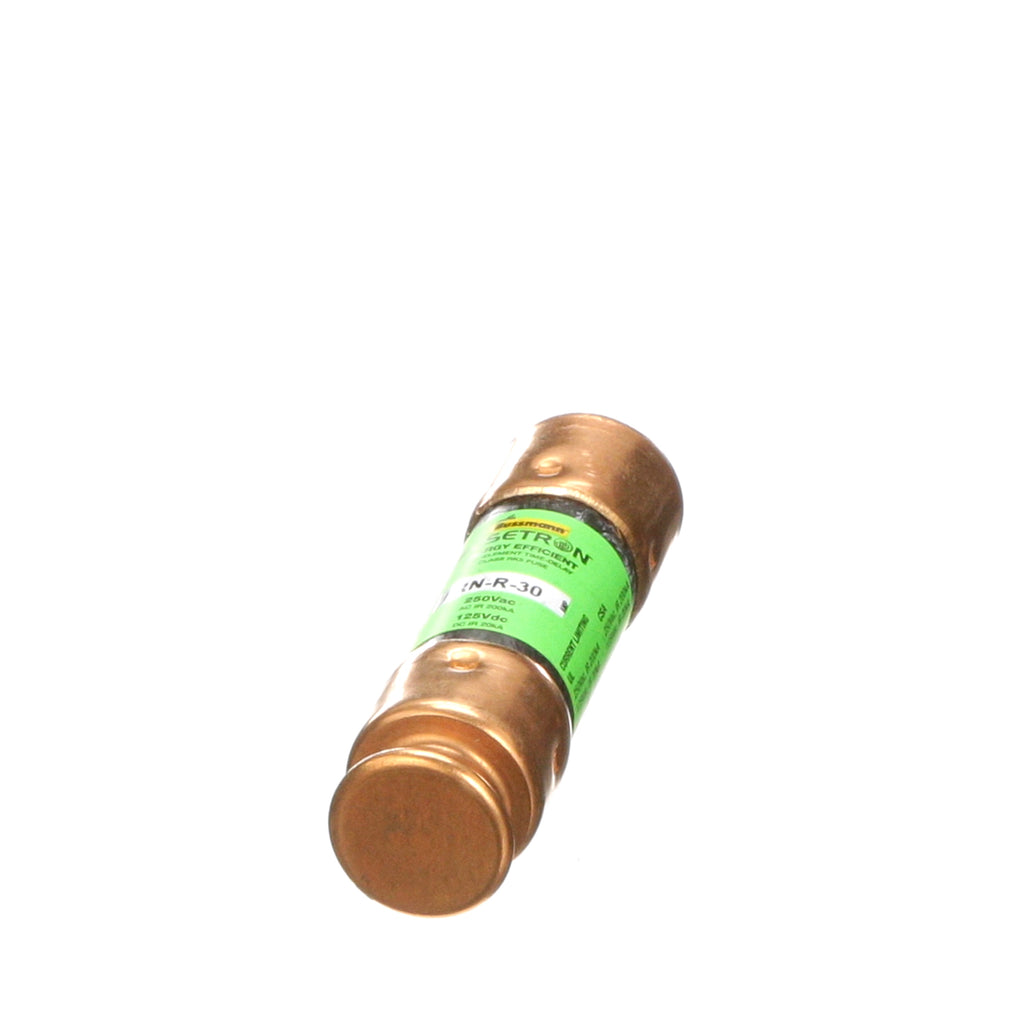

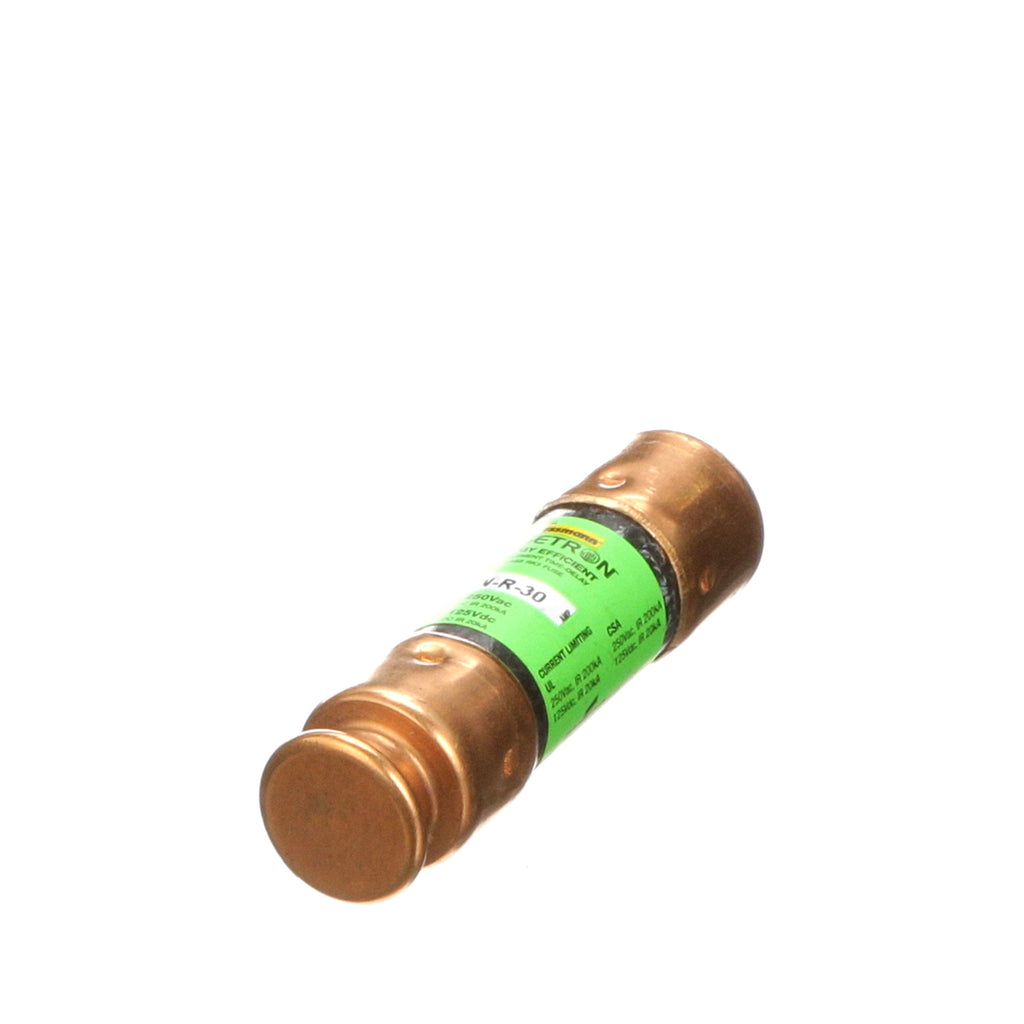

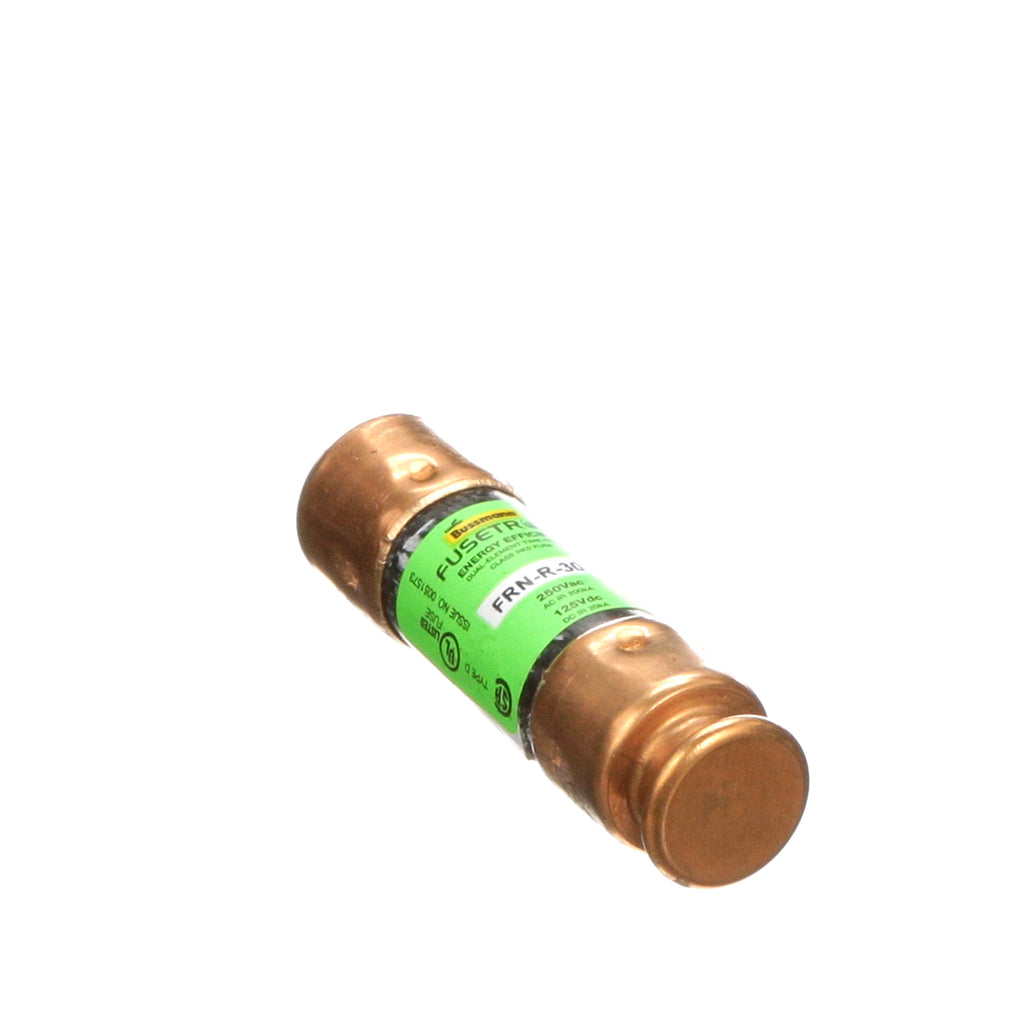

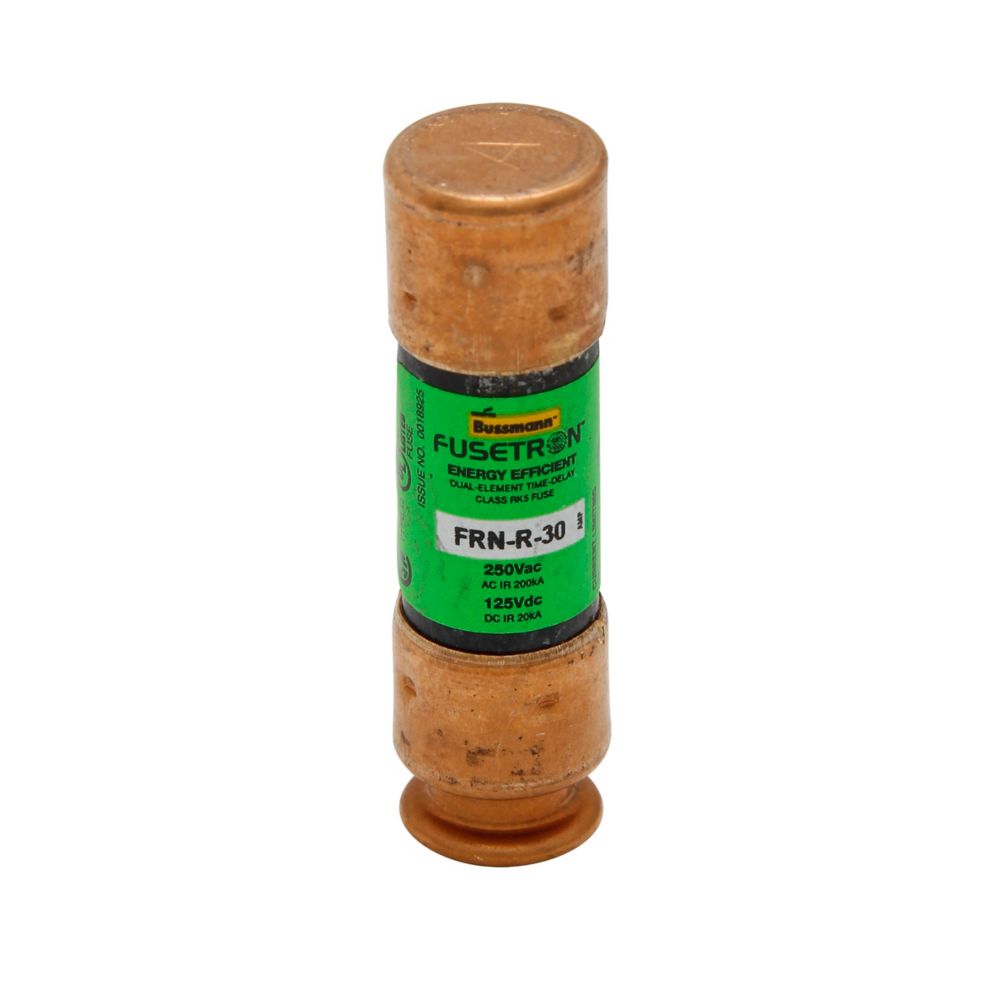

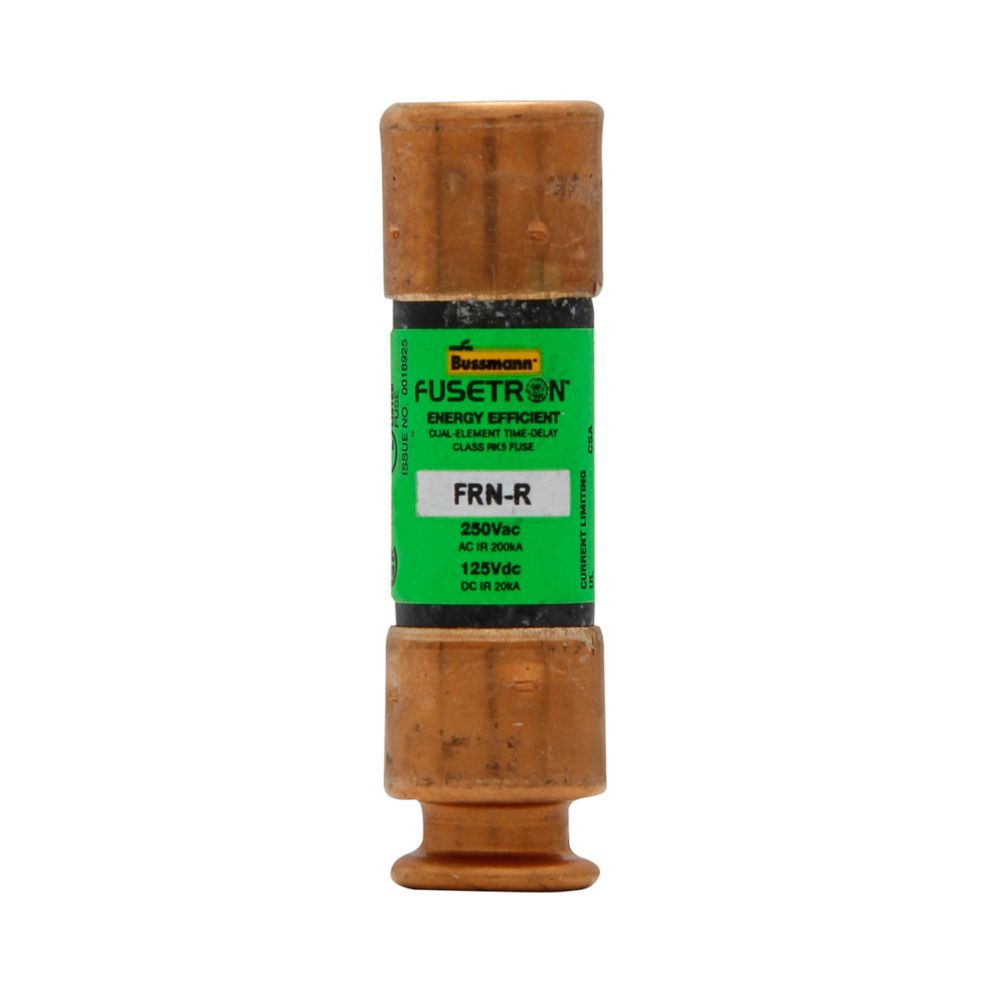

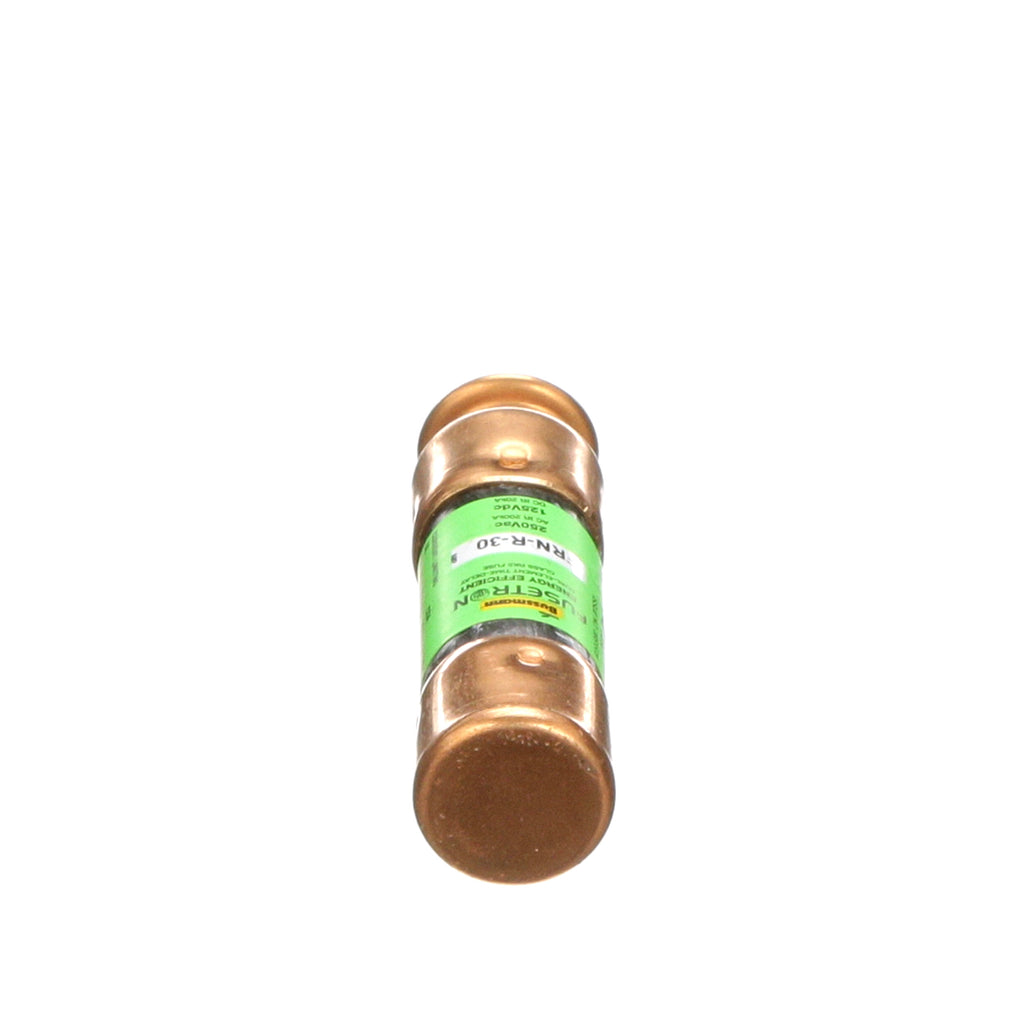

FRN-R-30 is a 30 amp, 250 volt AC, dual-element time-delay fuse from Eaton Bussmann, designed for reliable circuit protection.This Class RK5 fuse features a ferrule end x ferrule end connection, non-indicating design, and provides 8 seconds minimum time delay at 500% overload current. It has an interrupt rating of 200 kA at 250 VAC and 20 kA at 125 VDC, suitable for branch circuit protection in industrial and commercial applications.

• Amperage: 30 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
• Fuse Class: RK5
• Time Delay: 8 seconds at 500% rated current
• Number of Elements: Dual
• End Type: Ferrule x Ferrule
• Non-indicating
• Dimensions: 0.56 in diameter x 2 in length
• Certifications: CE Marked, UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 250
• Amperage : 30
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101769
• GTIN : 00051712101769
• Country of Origin : Mexico
• Dimensions : 2 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.05
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
