EJB14015SA - Schneider Electric (Square D) 1-Pole 15 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EJB

EJB14015SA

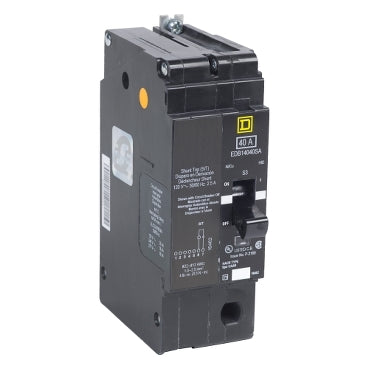

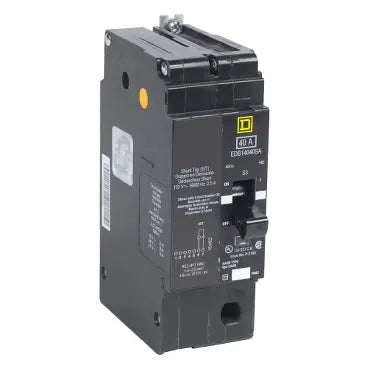

EJB14015SA is a bolt-on molded case circuit breaker manufactured by Schneider Electric (Square D). It is a Type EJB device rated for 15 A, 1 pole, and 480Y/277 V AC. This model includes a factory-installed shunt trip for remote tripping via external control signals. It provides thermal-magnetic protection for overload and short-circuit conditions and installs using a secure bolt-on connection in NF and NQ panelboards, delivering reliable performance for branch circuits in lighting, HVAC, and power distribution applications.

• Part Number: EJB14015SA
• Manufacturer: Schneider Electric (Square D)
• Product Type: Bolt-On Thermal-Magnetic Circuit Breaker
• Type: EJB
• Poles: 1
• Amperage Rating: 15 A
• Voltage Rating: 480Y/277 V AC
• Interrupting Rating: 18 kA @ 480Y/277 V AC
• Trip Unit: Fixed thermal-magnetic
• Mounting: Bolt-on (for NF/NQ panelboards)
• Accessory: Factory-installed shunt trip
• Application: Branch protection, EPO systems (with shunt trip), and automation control
• Certifications: UL 489 Listed, CSA Certified, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EJB14015SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EJB Series
• Type : EJB
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.094
