Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
EIK032

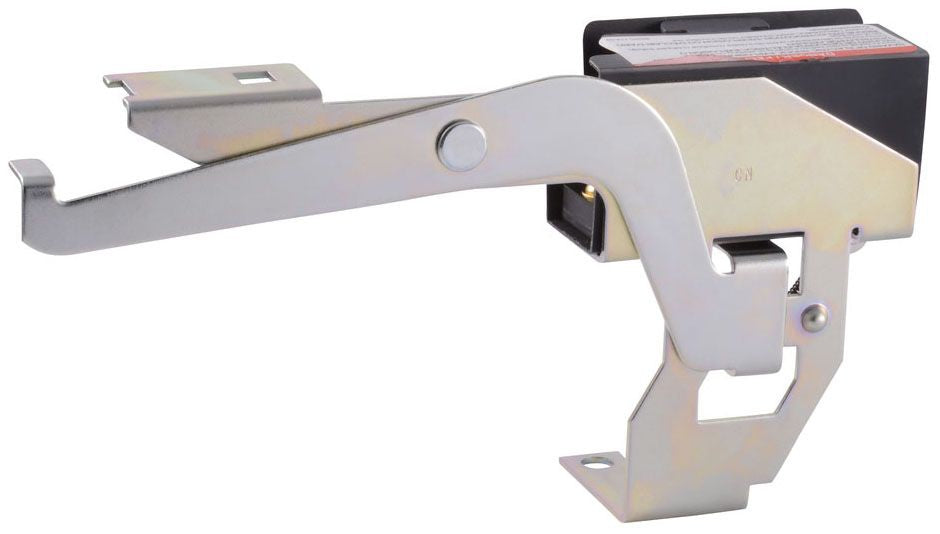

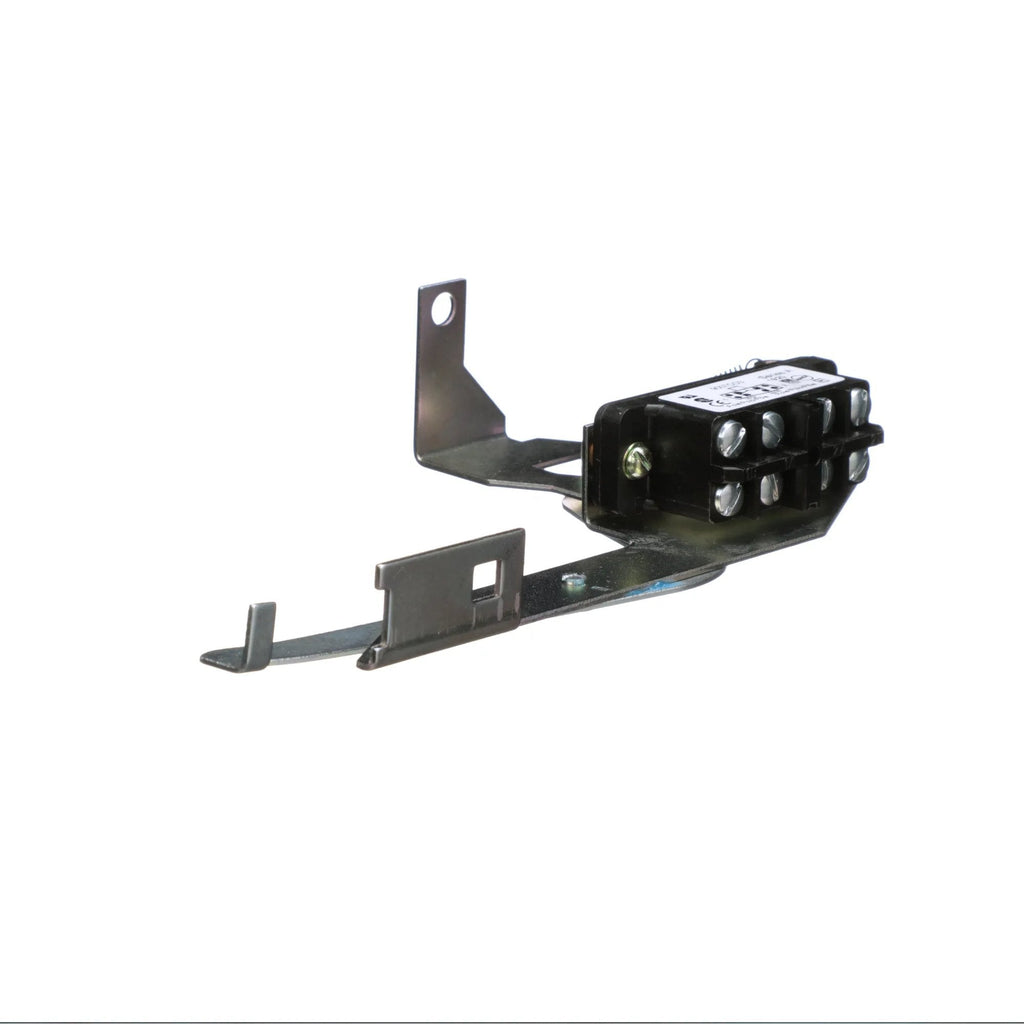

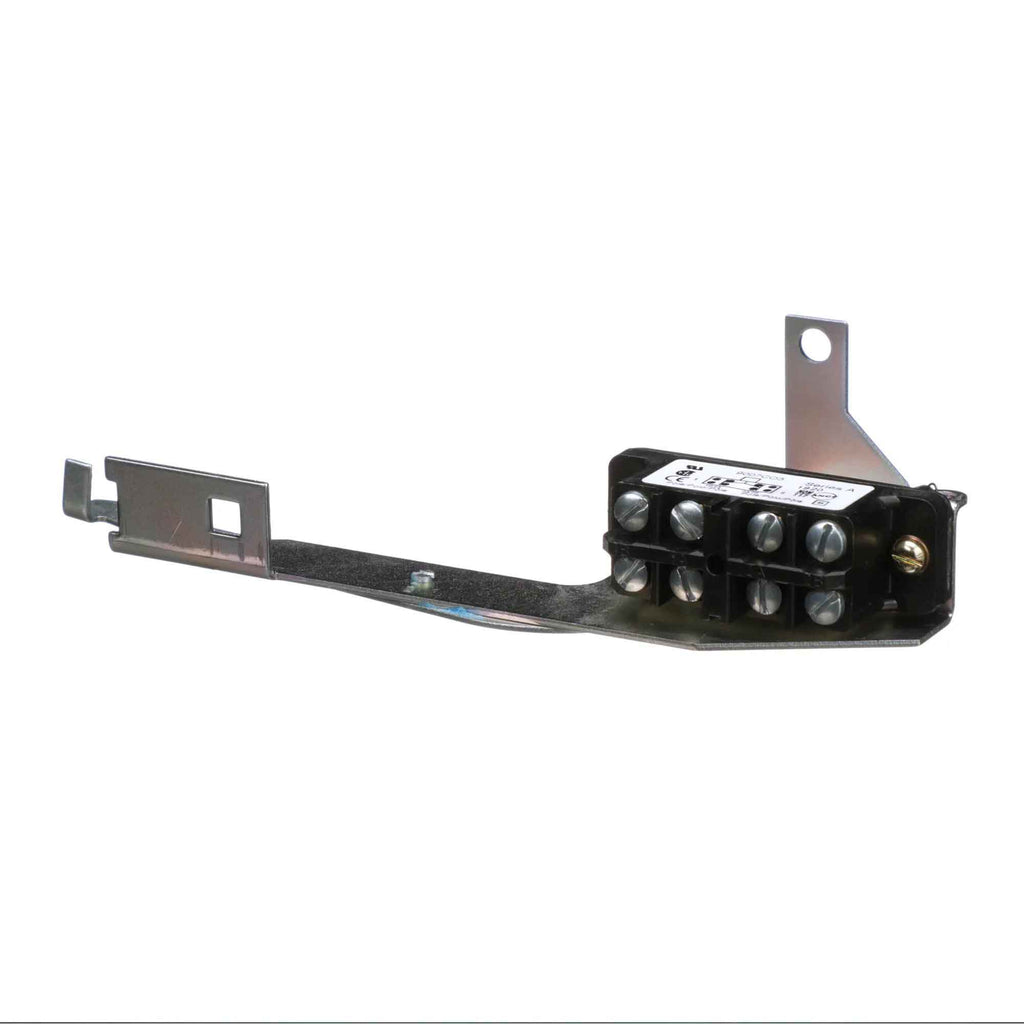

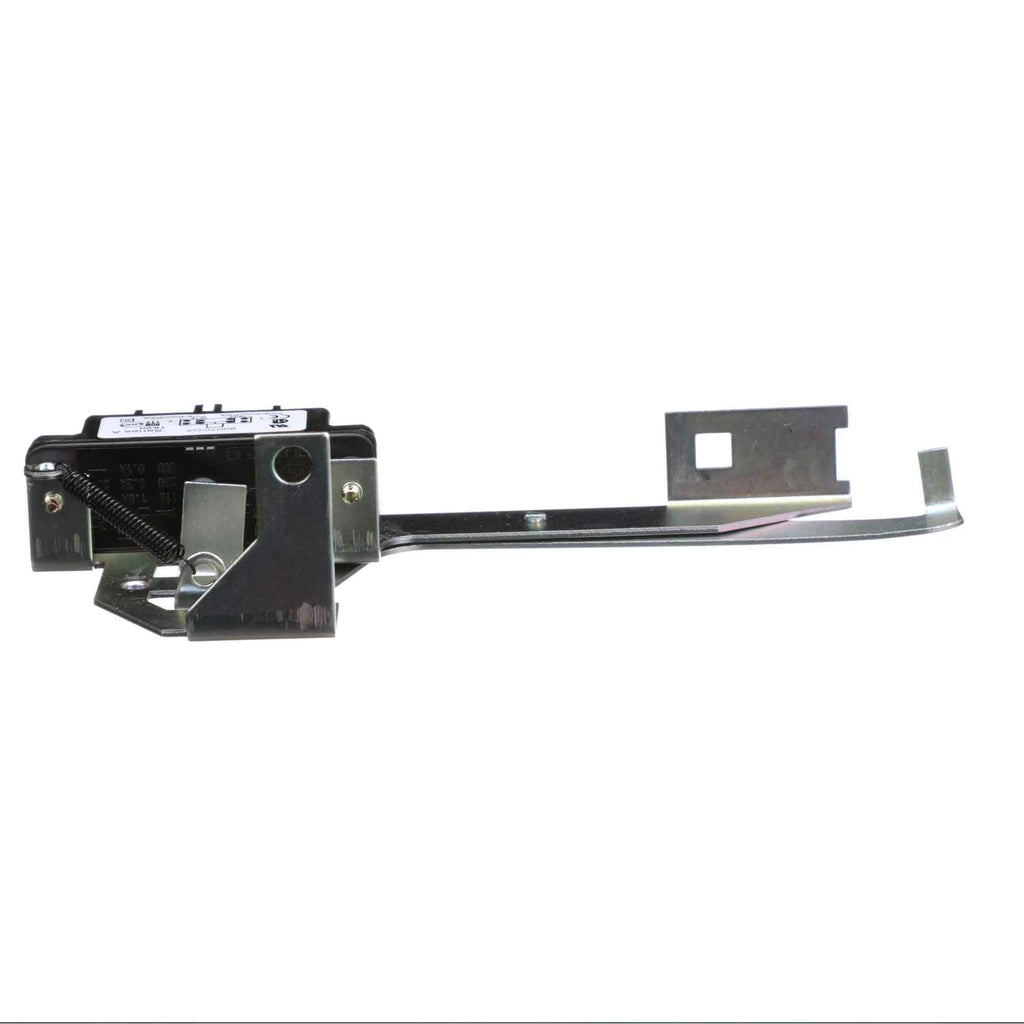

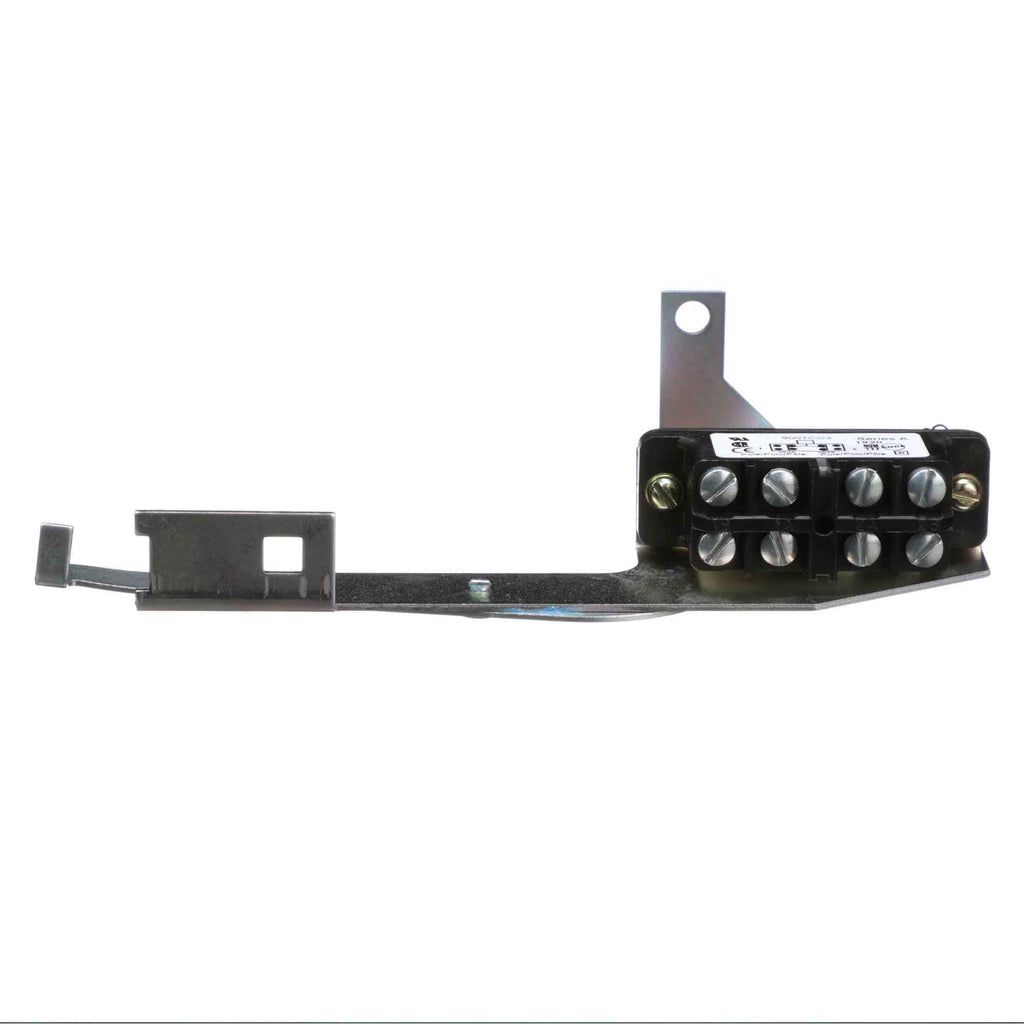

EIK032 is an electrical interlock kit designed for Square D heavy duty safety switches rated 30 to 60 Amps and up to 600 Volts.EIK032 provides a reliable mechanism that breaks the control circuit before the main switch blades open, enhancing safety. This kit includes a pivot arm operating from the switch mechanism and is intended for field installation with detailed mounting instructions. It features 2 normally open (NO) and 2 normally closed (NC) contacts and is UL listed and CSA certified.
- Amperage rating: 30 to 60 Amps
- Voltage rating: Up to 600 VAC/VDC
- Contact configuration: 2 NO, 2 NC
- Mounting type: Field installable kit
- Interrupt rating: Designed for heavy duty safety switches
- Series/Frame: Compatible with Series F, F5, F6 switches
- Trip unit: Not applicable (interlock kit)
- Certifications: UL Listed, CSA Certified
- Compliance: RoHS Compliant, Prop 65 Warning
- Includes detailed installation instructions
Specifications
- Part Number: EIK032
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Parts & Accessories
- Section : Interlocks
- Family : Series F
- Type : EIK
- Voltage : 240/600 AC/250/600 DC
Product Data
- UPC : 785901421863
- GTIN : 00785901421863
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.588
- Certification : UL Listed
